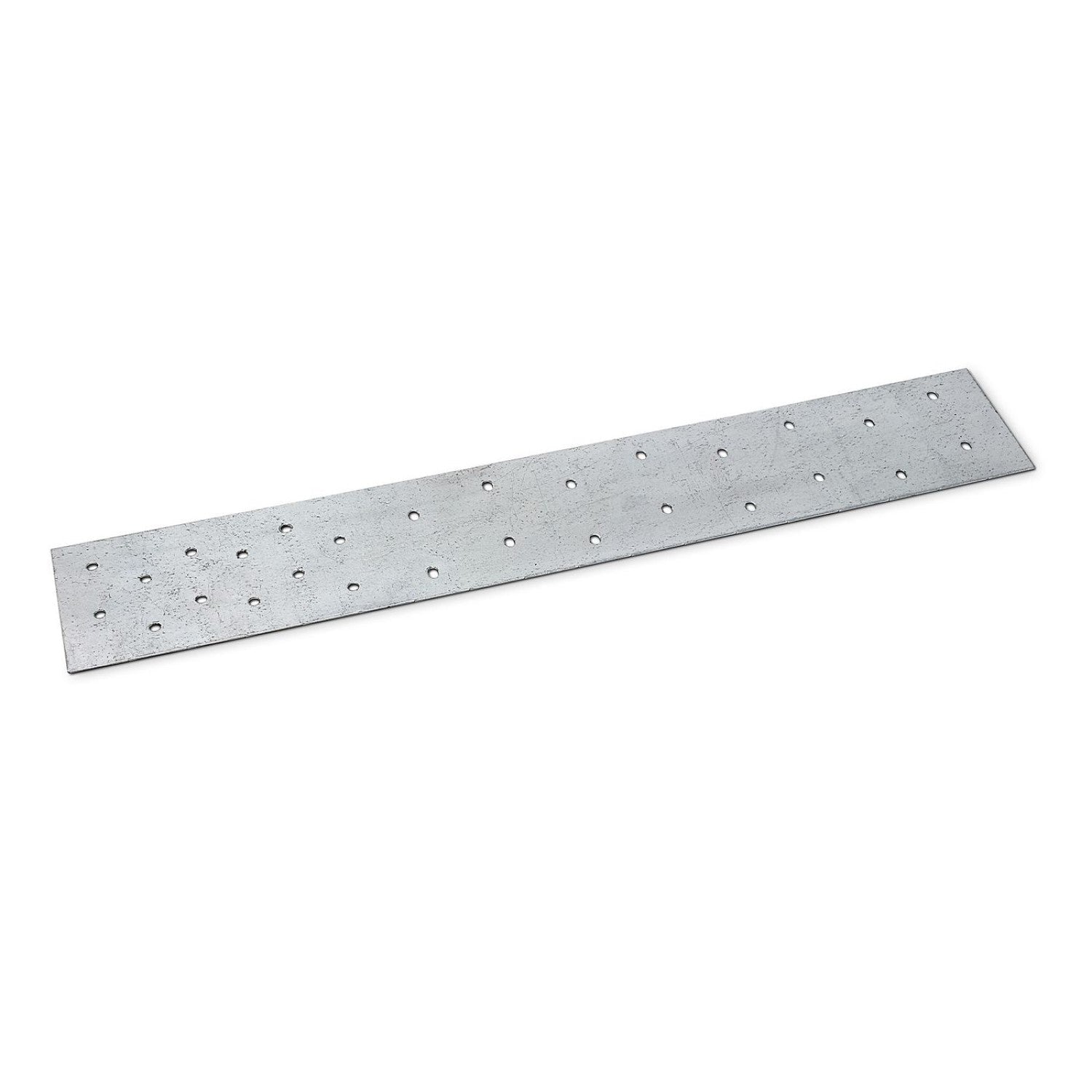

Simpson MSTD5 Marriage Strap, 16 Gauge - G90 Galvanized
Simpson MSTD5 Marriage Strap, 16 Gauge - G90 Galvanized!
Continue Browsing
MSTA/MSTC/MSTI Strap Ties
Specifications

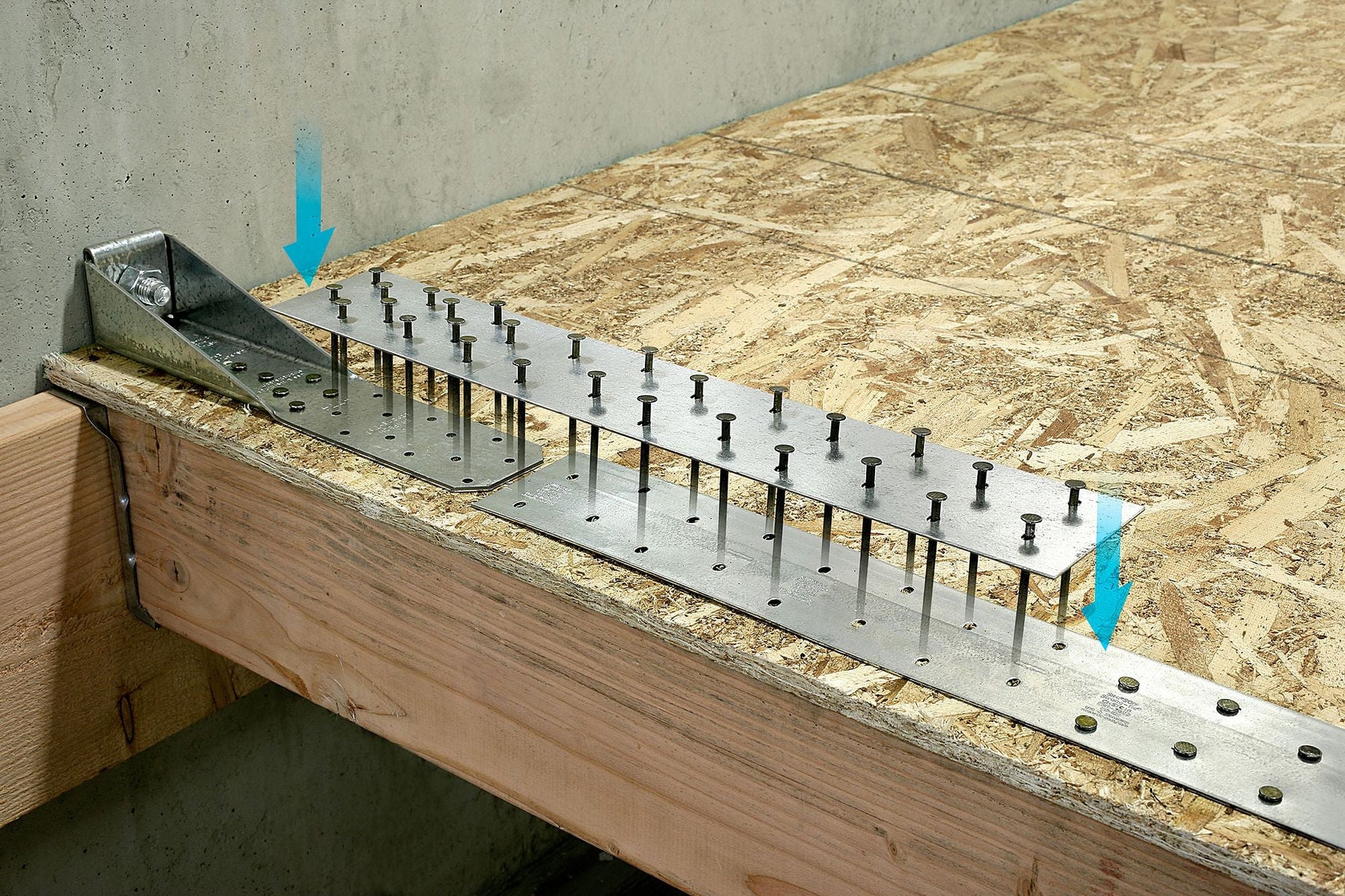

The Simpson MSTD marriage strap provides an overlapping, in-line splice between an HTT tension tie and a CMSTC16 coiled strap for panelized-roof applications where the roof member adjacent to the wall is too short to develop the required load into the roof diaphragm. The MSTD provides continuity of load without the need to splice the CMSTC16 alongside the HTT which requires additional blocking. Use MSTD4 with HTT4 and MSTD5 with HTT5. 10d common nails may be substituted at 100% of table load.
- Use all specified fasteners
- The CMSTC and HTT must be spliced end-to-end without any gap
- Suitable for use with both 10d and 16d sinker nailing options for the HTT and CMSTC as specified per the Designer
California Residents: WARNING
