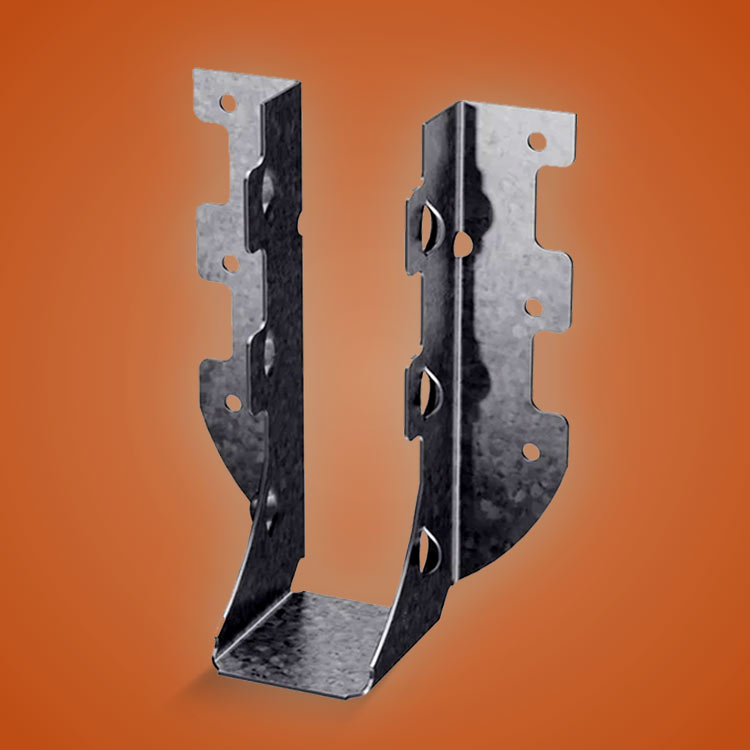

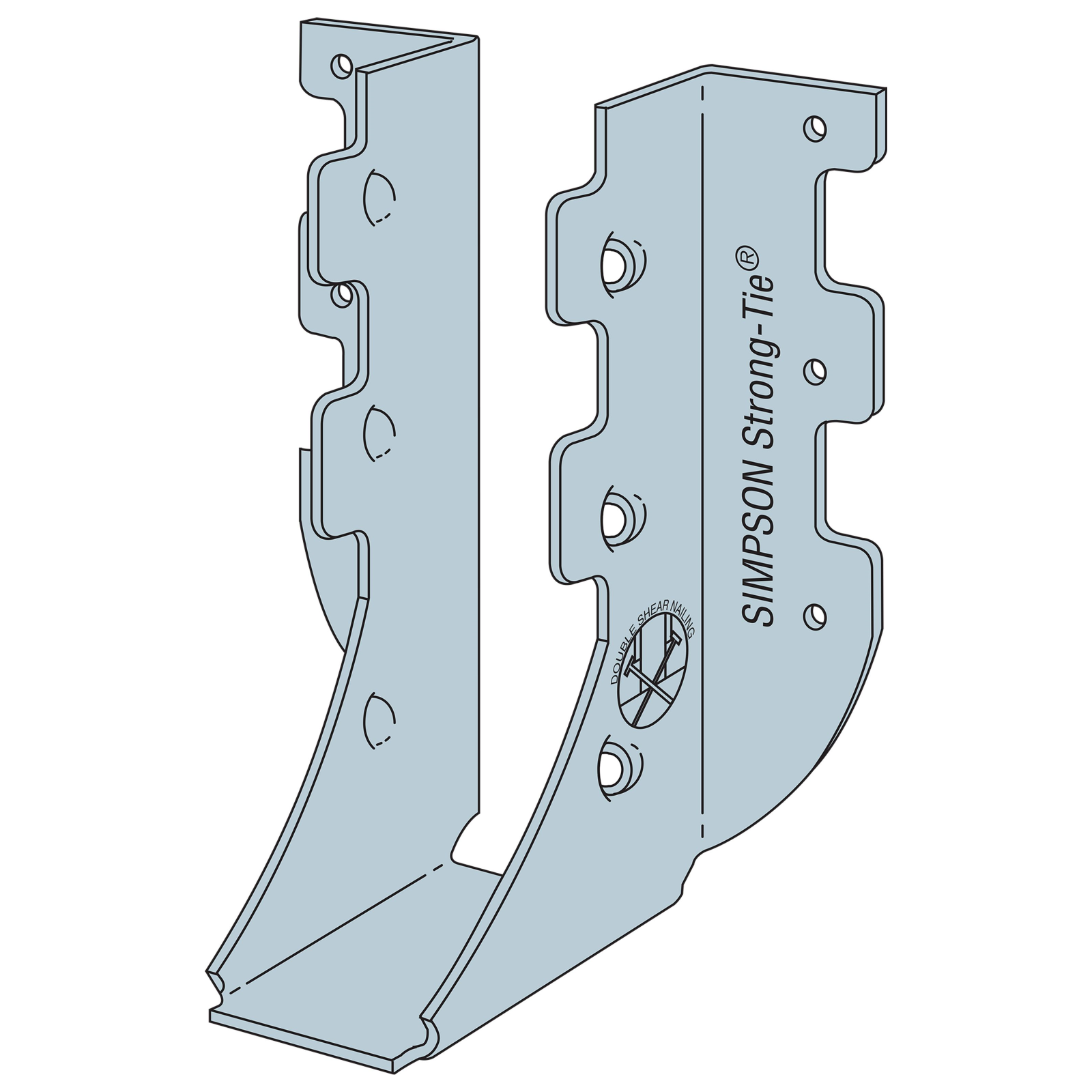

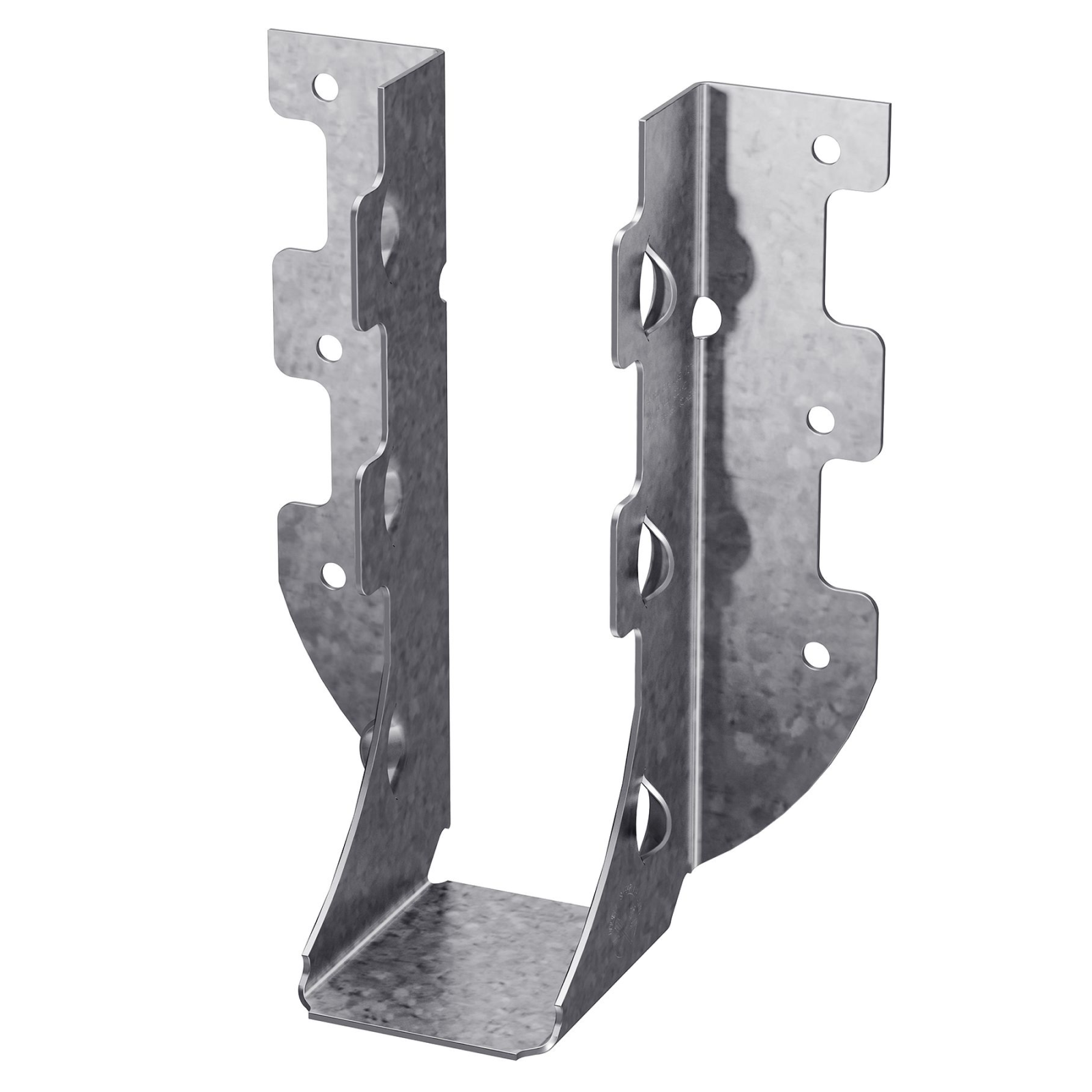

Simpson MUS26 2x6 Face Mount Joist Hanger - Galvanized
Simpson MUS26 2x6 Face Mount Joist Hanger - Galvanized!
Continue Browsing
MUS Joist Hangers
Specifications
The Simpson Strong-Tie MUS Hanger is engineered for securely connecting plated trusses and solid sawn lumber to supporting structures. Featuring a face-mount design, it ensures a strong, load-bearing connection while allowing for quick and efficient installation. The G90 galvanized coating provides reliable corrosion resistance, making it well-suited for interior framing and standard construction applications. Whether used in residential, commercial, or light industrial projects, the MUS hanger delivers exceptional performance in a variety of wood-to-wood connections.
Key Features:
- Face-Mount Design: Ensures a strong connection between trusses, beams, and joists.
- G90 Galvanized Coating: Provides standard corrosion protection for general construction applications.
- Versatile Use: Compatible with plated trusses, I-joists, and solid sawn lumber.
- Engineered Strength: Designed to provide superior structural integrity and load-bearing performance.
- Efficient Installation: Pre-punched holes allow for fast and secure fastening.
Applications:

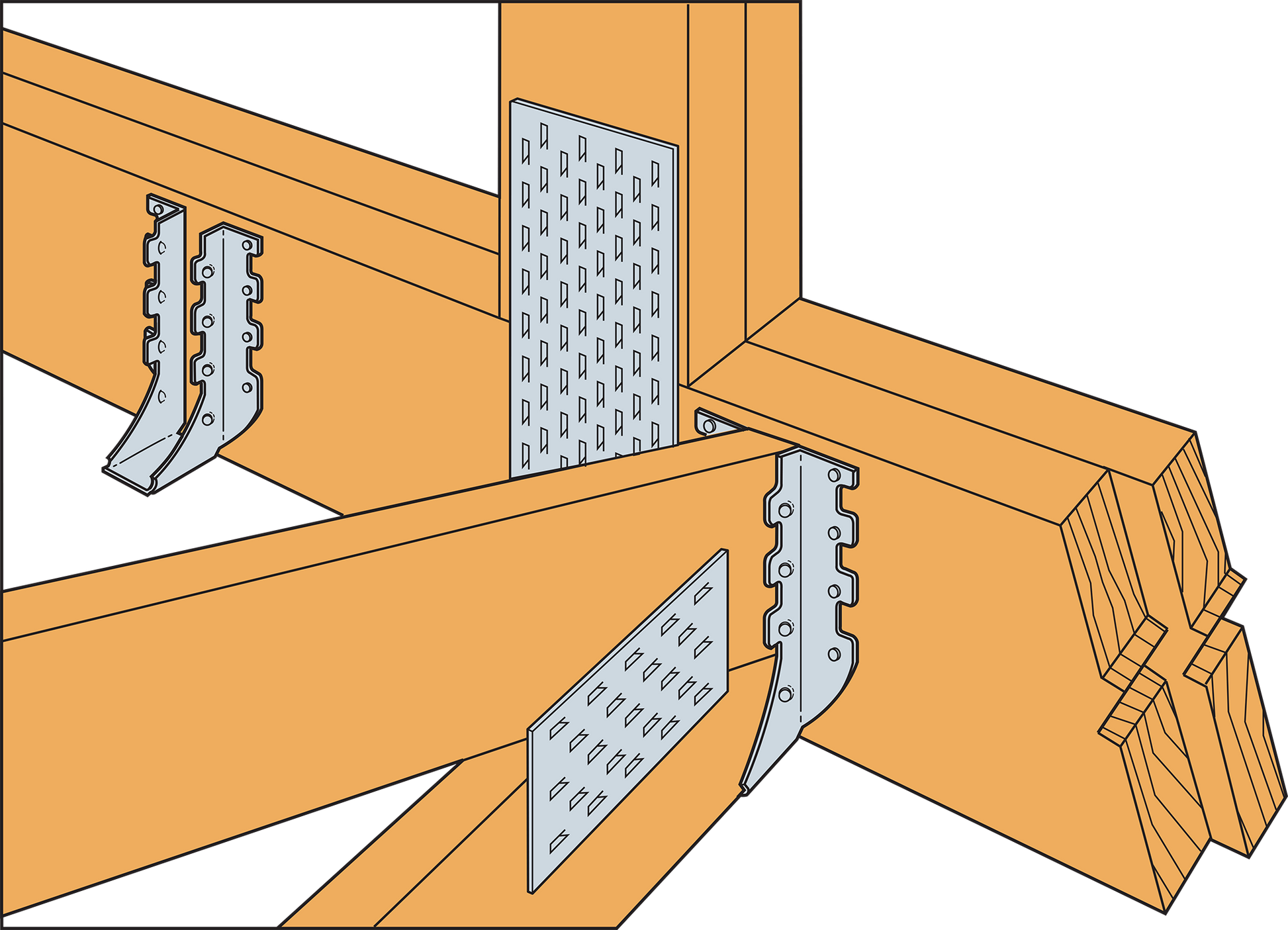

- Interior Framing: Reinforces joist and truss connections in residential and commercial buildings.
Light Commercial Construction: Provides stability for structural framing in small-scale commercial projects.
- Home Additions & Remodeling: Ensures secure connections in renovation and expansion projects.
- Attics & Loft Spaces: Strengthens wood-to-wood connections in overhead framing structures.
- Basement Supports: Enhances load distribution for structural reinforcement.
Installation:
- Wood-to-Wood Installations: Use Simpson Strong-Tie Strong-Drive SD Connector screws or 10d common nails in all pre-punched holes.
-
Mounting Instructions:
- Align the hanger properly with the supported member before securing.
- Fasten the hanger completely using all designated holes to maintain its load rating.
- Use corrosion-resistant fasteners when installing with pressure-treated lumber.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
