Simpson MUS28 2x8 Face Mount Joist Hanger - Galvanized

Simpson MUS28 2x8 Face Mount Joist Hanger - Galvanized

Regular price $4.58
Sale price $4.58 Regular price
0% off

Description:

The MUS is designed for medium-load truss applications and is a low-cost option offering quick and easy installation while providing high load and bearing strength. This hanger is features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

Installation:

  • Use all Specified Fasteners.
  • MUS-series hangers are tested, load rated and code compliant.
  • Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
  • Not designed for welded or nailer applications.
  • Cannot be modified.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

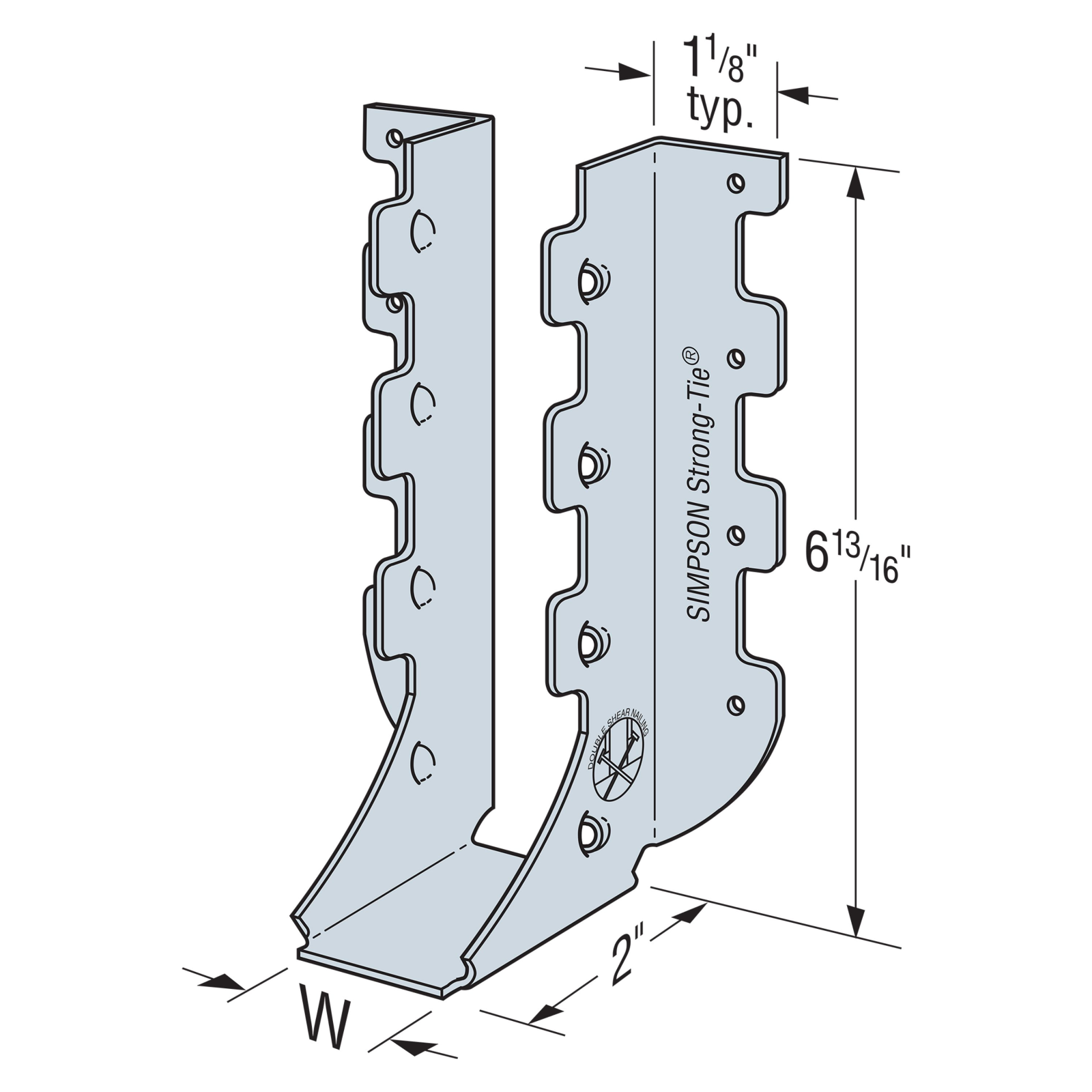

Specifications:


Height: 6 13/16"
Fasteners required: Carrying and Carried Member - (8) 0.148 x 3
Width: 1 9/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Use all Specified Fasteners.
-MUS-series hangers are tested, load rated and code compliant.
-Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
-Not designed for welded or nailer applications.
-Cannot be modified.
