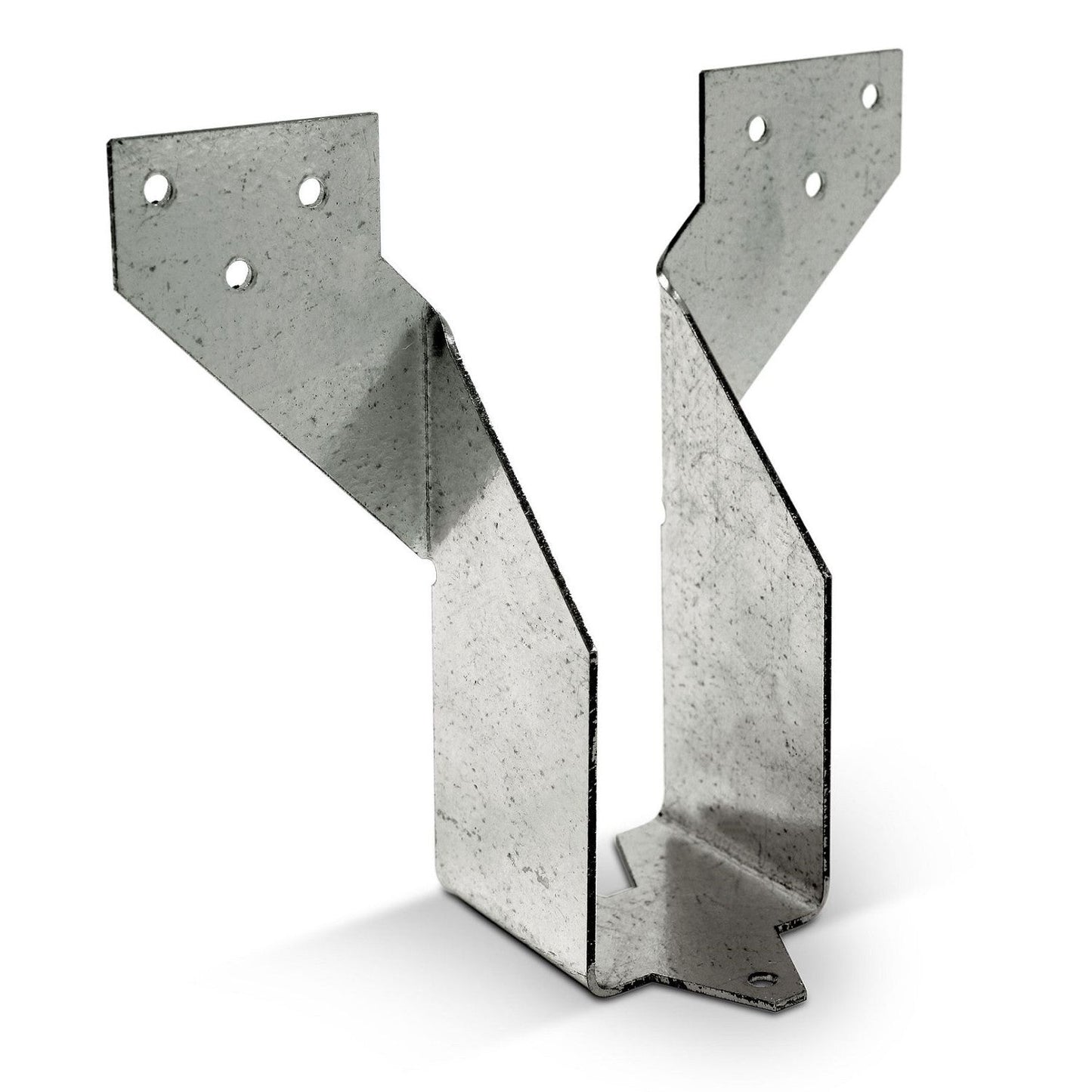

NRUZ Retrofit Hanger
Specifications
This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
The Simpson Strong-Tie NRUZ Hanger is engineered for superior performance in panelized construction, providing exceptional strength and stability for sub-purlin and beam connections. Designed for solid sawn lumber, these hangers offer reliable load-bearing capacity, making them an essential component in large-scale framing applications.
Featuring a ZMAX galvanized finish, the NRUZ Hanger delivers enhanced corrosion resistance, making it ideal for projects exposed to moisture or varying environmental conditions. The robust design ensures structural integrity and long-term durability, even in demanding construction settings.
Key Features:
- ZMAX Galvanized Coating: Provides superior corrosion resistance, extending the life of the connector in moisture-prone environments.
- Engineered for Strength: Designed to support sub-purlins and beams, ensuring a secure and stable connection.
- Versatile Installation: Accommodates solid sawn lumber, making it suitable for a variety of framing applications.
- Code-Compliant Design: Meets industry standards for structural integrity in panelized construction.
Installation:
- Use the specified nails or screws as recommended by Simpson Strong-Tie to ensure full load capacity.
- Ensure proper alignment with the sub-purlin or beam before fastening.
- Verify that all nail holes are filled to achieve maximum load strength.
- Always refer to project specifications and local building codes to confirm compliance with installation requirements.
Applications:

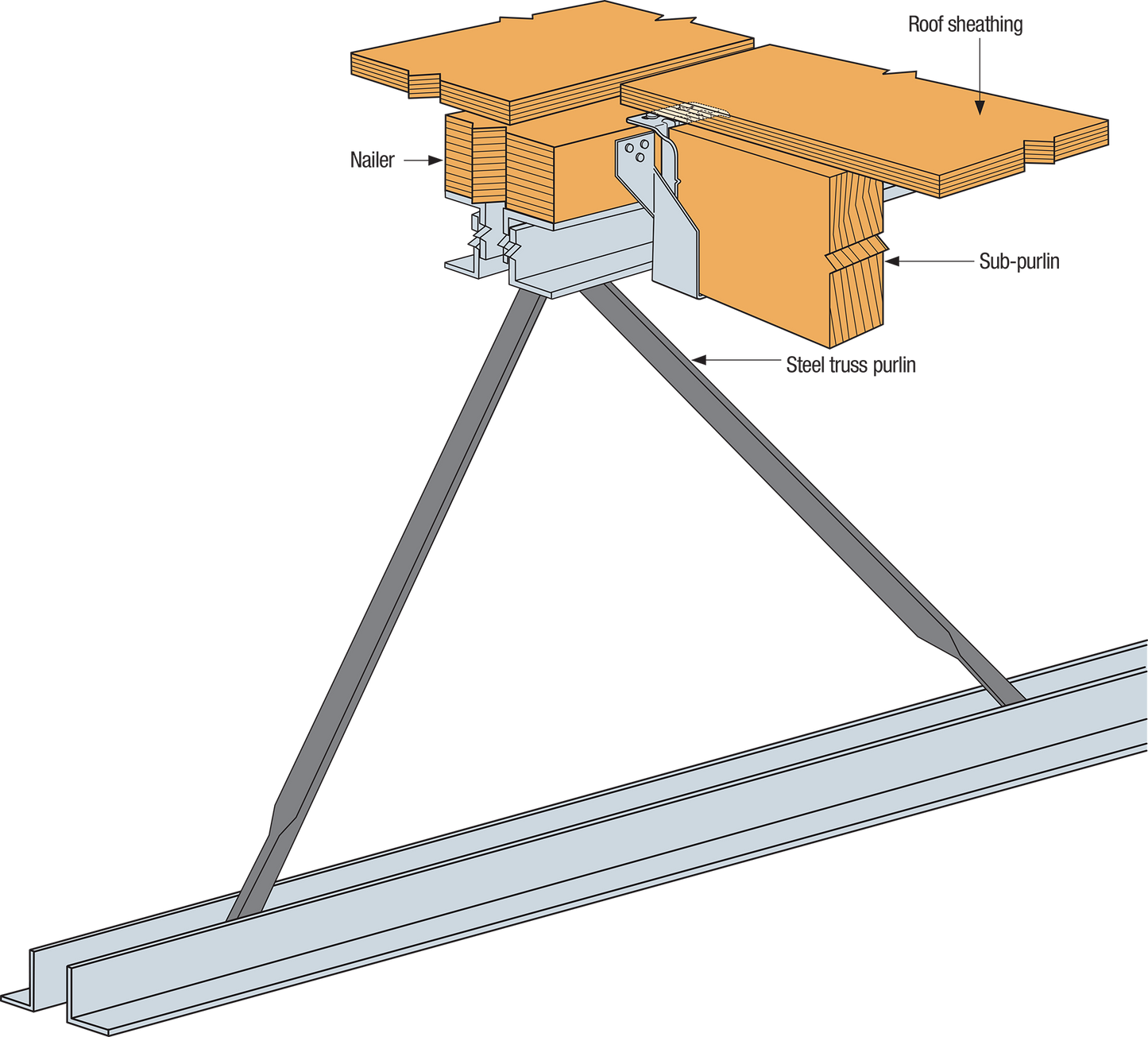

- Panelized Roof Systems: Provides a secure connection between sub-purlins and primary roof beams, ensuring structural stability.
- Commercial & Industrial Construction: Ideal for large-scale framing applications where strength and durability are critical.
- Moisture-Prone Environments: The ZMAX coating offers corrosion protection in humid or exposed conditions, making it suitable for open-air structures.
- Heavy-Duty Beam Connections: Supports the transfer of loads between beams in demanding structural applications.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
