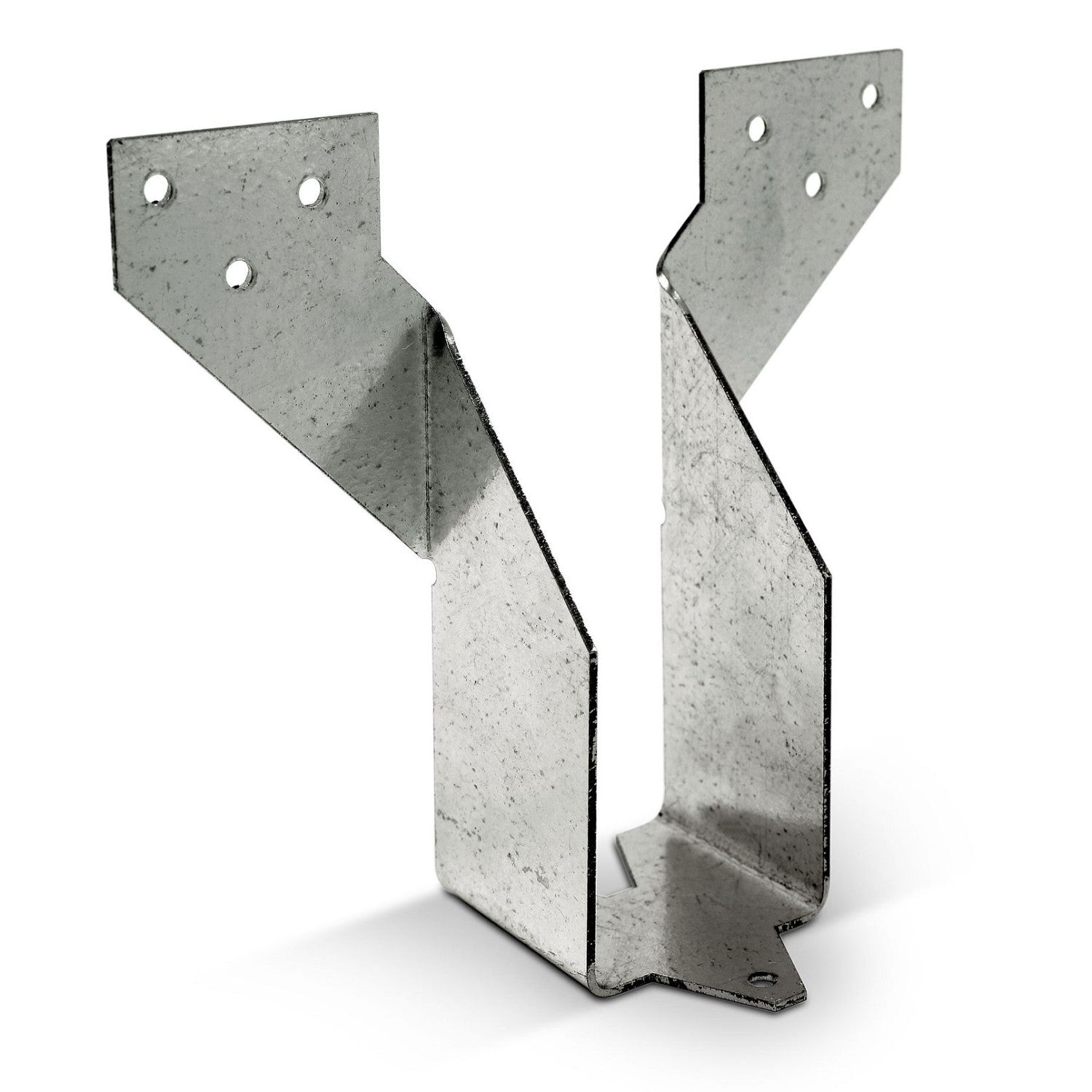

Simpson NRU46Z Retrofit Hanger - ZMAX

Simpson NRU46Z Retrofit Hanger - ZMAX

Regular price $53.31
Sale price $53.31 Regular price
0% off
Made to Order
Ships in 2-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

The Simpson NRUZ series of retrofit hangers is designed specifically for use on nailers on steel trusses. Like the original RUZ for glulam purlins, the new NRUZ are designed specifically to fit around existing Simpson panelized roof hangers such as the F or HFN series.

In some cases, existing panelized roof hangers may need replacement due to excessive gapping, damage incurred during field erection or corrosion from roof leaks or condensation. The NRUZ allows you to quickly and effectively match the capacity of these hangers without having to remove the original connectors or disassemble the roof.

When installed with no more than a 1/8" gap between the original hanger and the purlin, the NRUZ series provides equal or greater capacity than Simpson's F, HF and HFN series hangers. See load table for data on gaps greater than 1/8".

Installation

  • Use all specified fasteners. See General Notes.
  • ZMAX coating (G185)

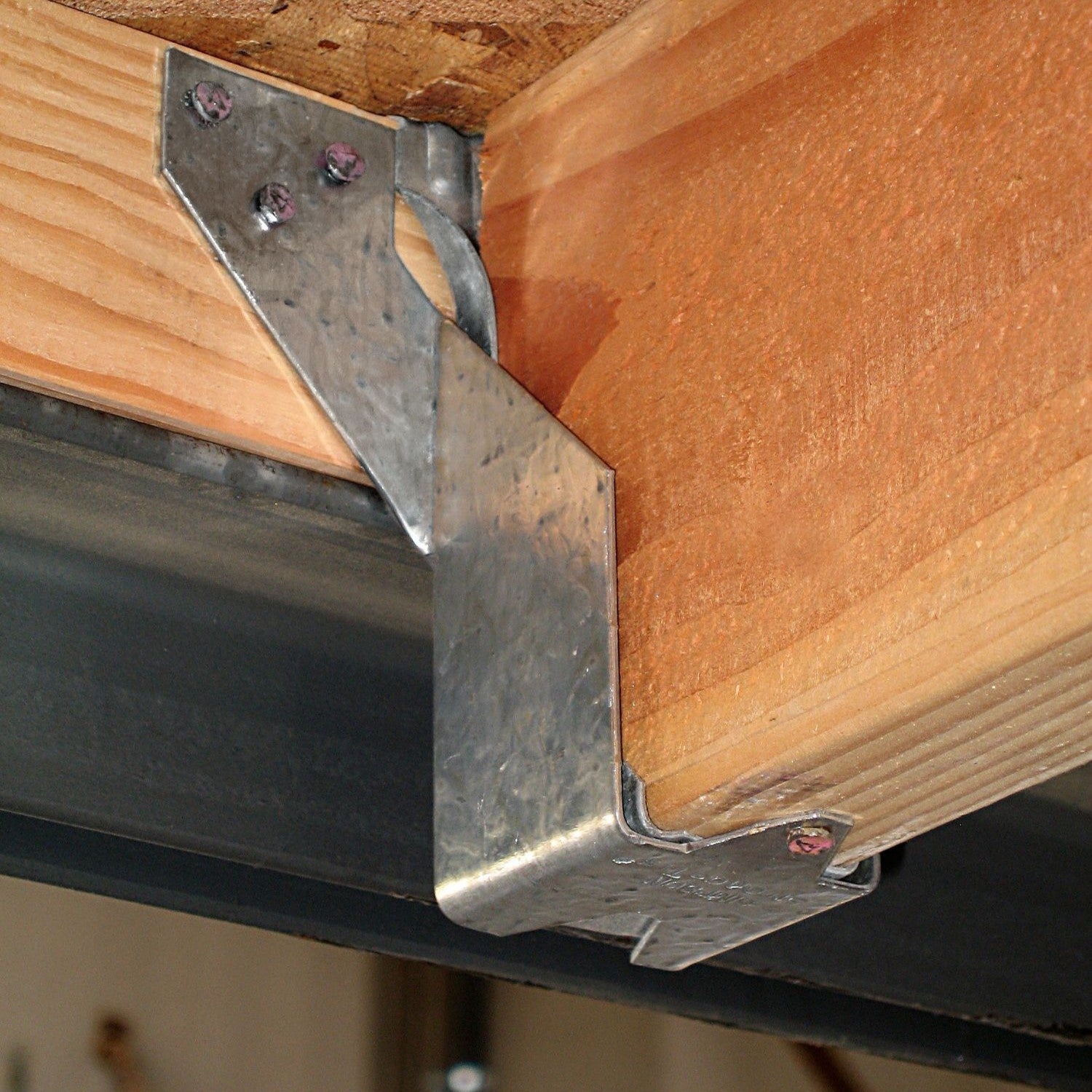

  • Tightly install NRUZ hanger around existing panelized roof hanger.
  • Install fasteners as referenced in tables.
  • If retrofitting corroded hangers, the cause of moisture intrusion into the roof system must be determined and resolved before the hangers are installed.

California Residents: WARNING

Specifications:


Height: 5-9/32"
Fasteners required: Face: 6-10dx2-1/8" Seat: 1-10dx2-1/8"
Thickness: 16 Gauge
Width: 3-3/4”
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
Joist size: 4X6
