Shop more OU Ornamental Joist Hangers
SKU: OU614

Simpson OU614 6x14 Ornamental Joist Hanger - Black Powder Coated

Simpson OU614 6x14 Ornamental Joist Hanger - Black Powder Coated

Regular price $247.92
Sale price $247.92 Regular price
0% off
Made to Order
Ships in 21-28 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

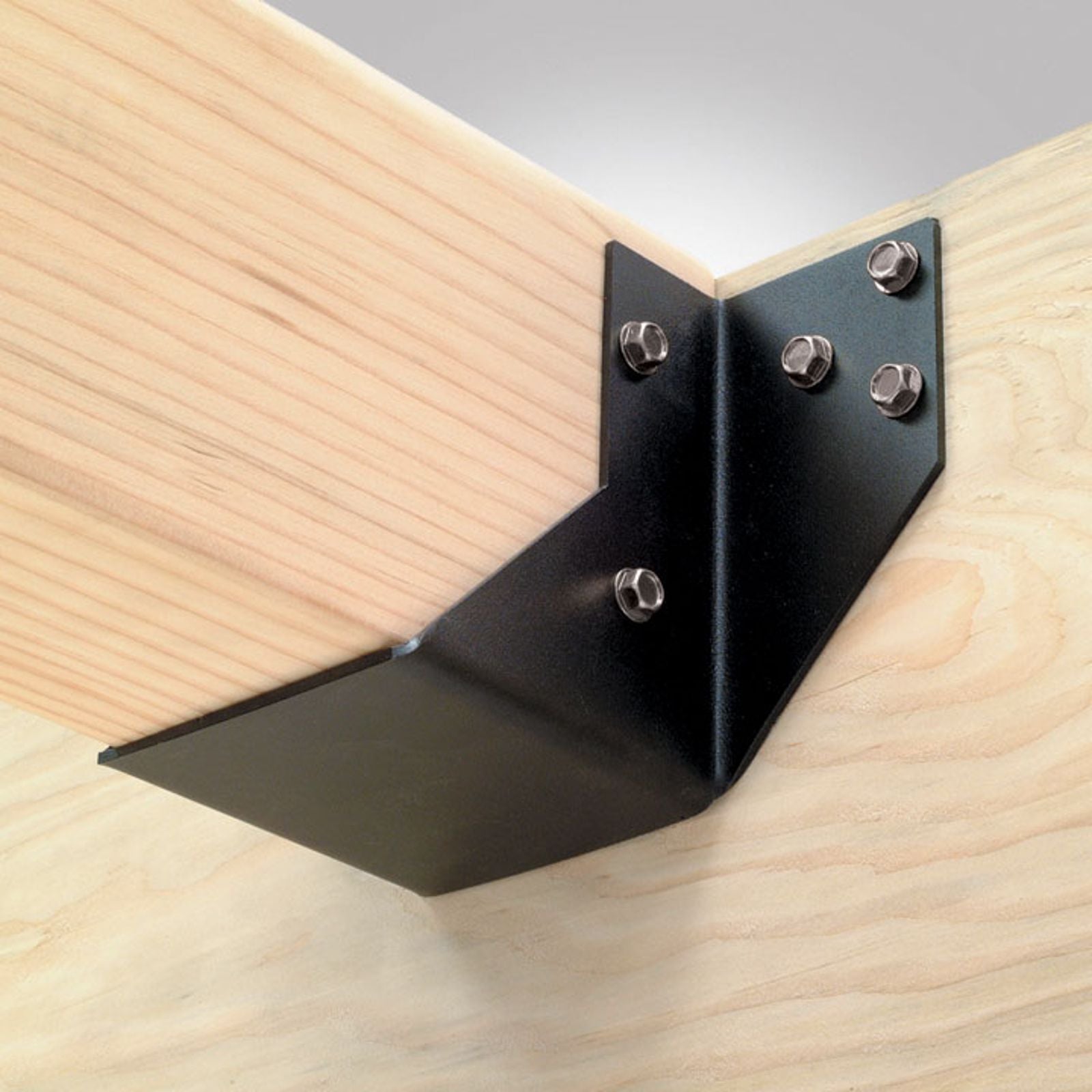

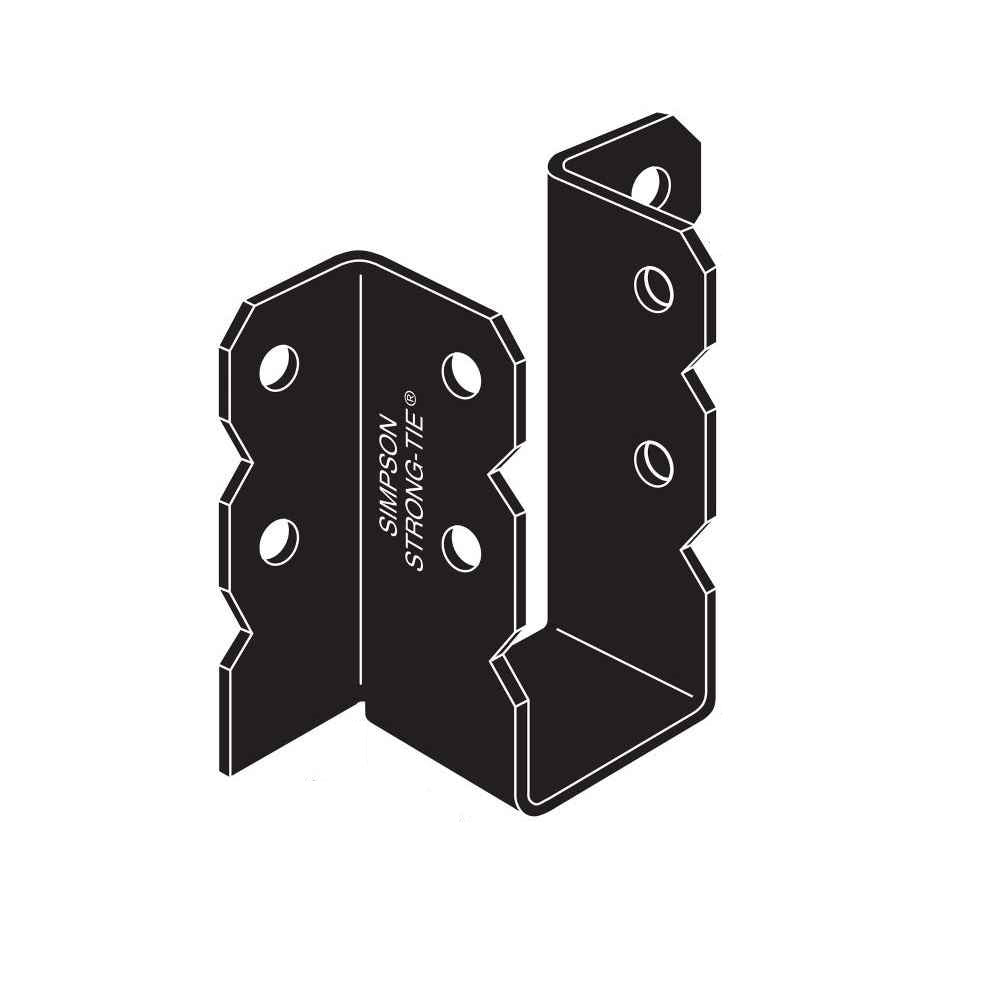

  • The Simpson Strong-Tie OU is a 7 gauge, face-mount hanger connecting a joist to a header for an ornamental application. The OU series of ornamental joist hangers are designed to be bolted to both the header and the joist. The OU614 hanger features a flat black powder-coated finish which produces a much more durable and better looking finish than standard paint.

    Installation:
    • Use all specified fasteners.
    • Load values allowed assume a carrying member of not less than 3 1/2".
    • Roof loads are 125% of the floor loads unless limited by other criteria. Floor loads may be adjusted for other load durations according to the code, provided they do not exceed those in the roof column.
    • Additional glulam beam widths are available. Add an "X" to the name and specify width, i.e. OU68X, W = 5.25.
    • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
    • Skew and slope options not available.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

    Specifications:


    Height: 13"
    Fasteners required: Header - (6) 3/4" Machine Bolts Joist - (3) 3/4" Machine Bolts
    Manufacturer name: Simpson Strong-Tie
    For Treated Lumber: No
    Joist size: 6X14
    Product Guide: View Spec Sheet

    Installation

    -Use all specified fasteners.
    -Load values allowed assume a carrying member of not less than 3 1/2".
    -Roof loads are 125% of the floor loads unless limited by other criteria. Floor loads may be adjusted for other load durations according to the code, provided they do not exceed those in the roof column.
    -Additional glulam beam widths are available. Add an "X" to the name and specify width, i.e. OU68X, W = 5.25.
    -Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
    -Skew and slope options not available.
