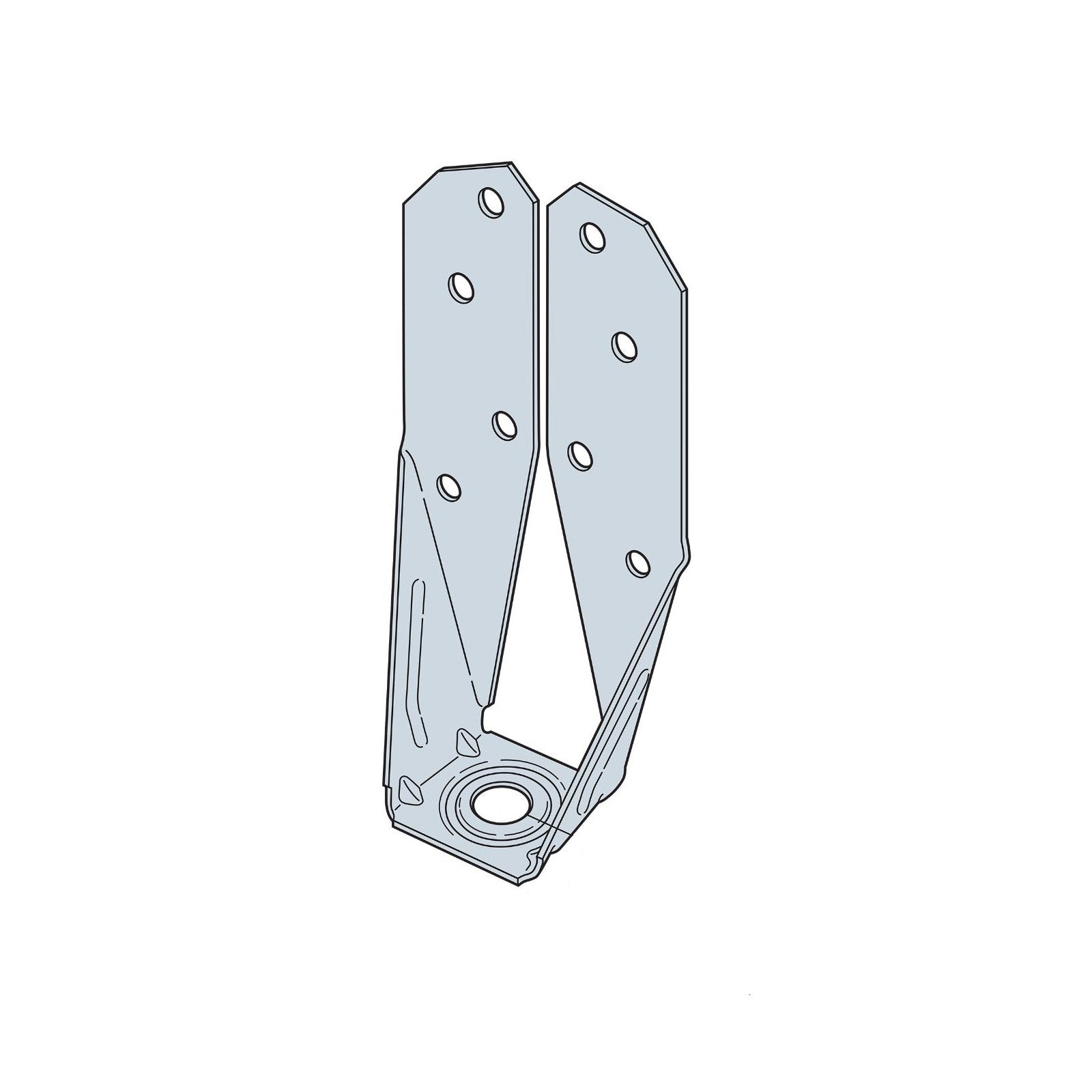

Simpson S/DTT2Z Deck Tension Tie For Steel - Zmax Finish

SKU: S-DTT2Z

$9.46

The Simpson S/DTT2Z tension tie is suitable for lighter-duty hold-down applications on single or back-to-back studs, and installed easily with #14 self-drilling screws. The HTT, S/DTT and S/LTT Tension Ties are ideal for retrofit or new construction projects. They provide high-strength, post-pour, concrete-to-steel connections.


Installation:
  • Use all specified fasteners.

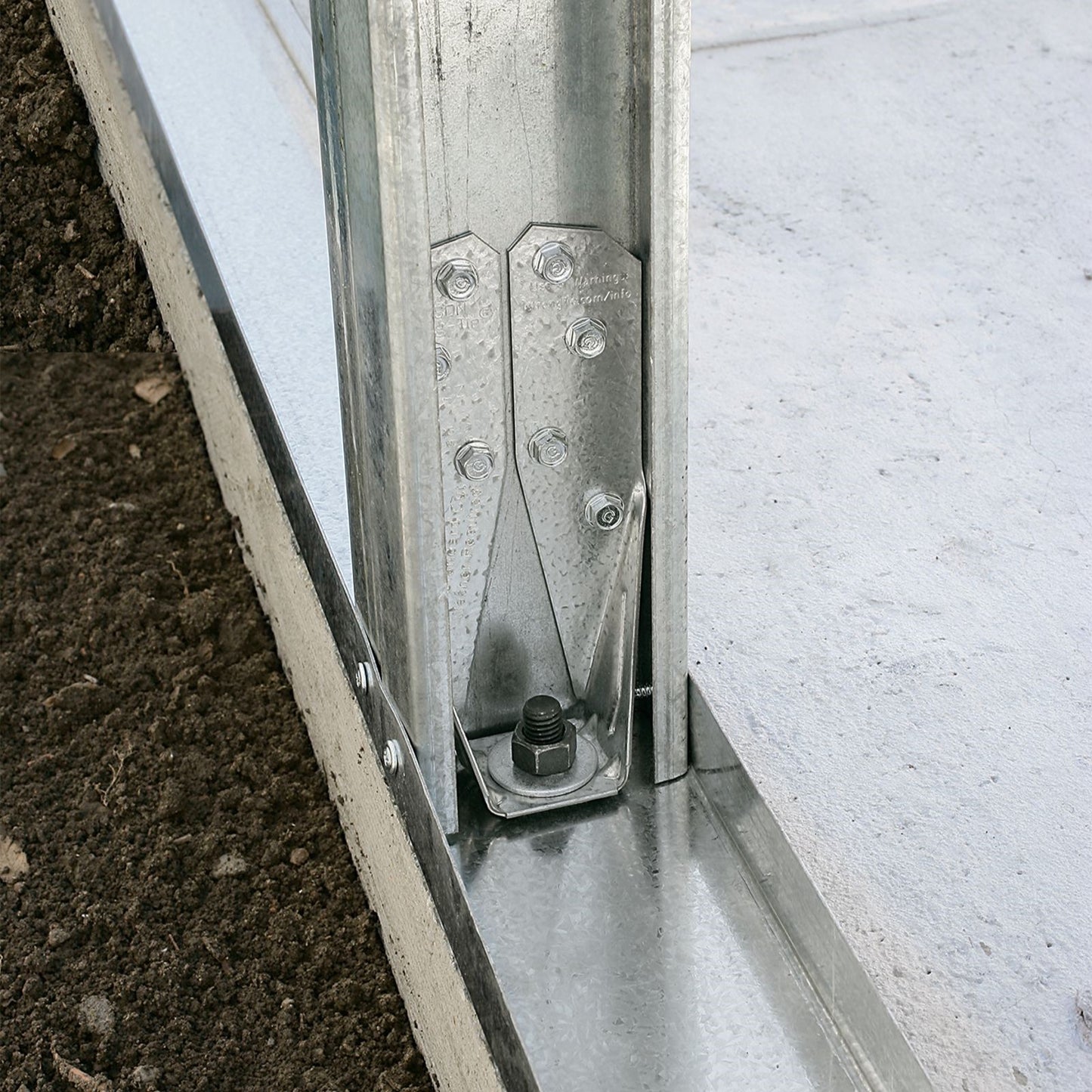

  • Use the specified number of type of screws to attach the strap portion to the steel stud. Bolt the base to the wall or foundation with a suitable anchor; see table for the required bolt diameter.
  • S/DTT2Z requires a standard cut washer (included) be installed between the nut and the seat.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson S/DTT2Z tension tie is suitable for lighter-duty hold-down applications on single or back-to-back studs, and installed easily with #14 sel...

Read More

The Simpson S/DTT2Z tension tie is suitable for lighter-duty hold-down applications on single or back-to-back studs, and installed easily with #14 self-drilling screws. The HTT, S/DTT and S/LTT Tension Ties are ideal for retrofit or new construction projects. They provide high-strength, post-pour, concrete-to-steel connections.


Installation:
  • Use all specified fasteners.
  • Use the specified number of type of screws to attach the strap portion to the steel stud. Bolt the base to the wall or foundation with a suitable anchor; see table for the required bolt diameter.
  • S/DTT2Z requires a standard cut washer (included) be installed between the nut and the seat.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Finish Spec:
ZMAX

Height:
6-15/16"

Manufacturer Name:
Simpson Strong-Tie

Thickness:
68 mil (14 ga.)

Product Guide:

Read More

Show Less

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

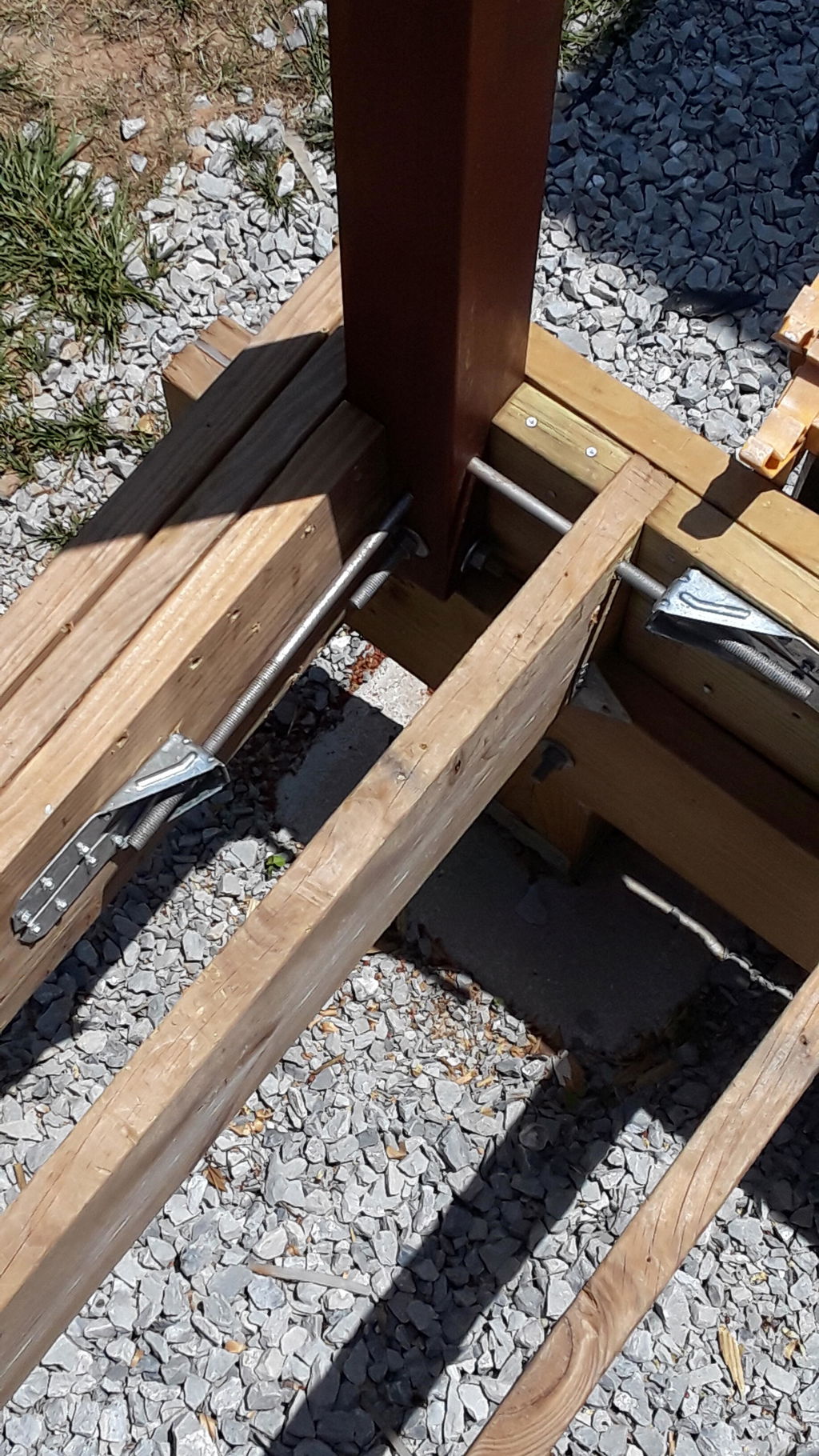

A
Anonymous
SimpsonHTT4

fully satisfied with this product. it worked as advertised
