SKU: SBV

Simpson SBV Shelf Bracket Vertical, 16 Gauge - G90 Galvanized

Name: Simpson SBV Shelf Bracket Vertical, 16 Gauge - G90 Galvanized
SKU: SBV
Price: 11.99 USD
Availability: InStock

$11⁹⁹

Ships Nov 11 when you order now

Description

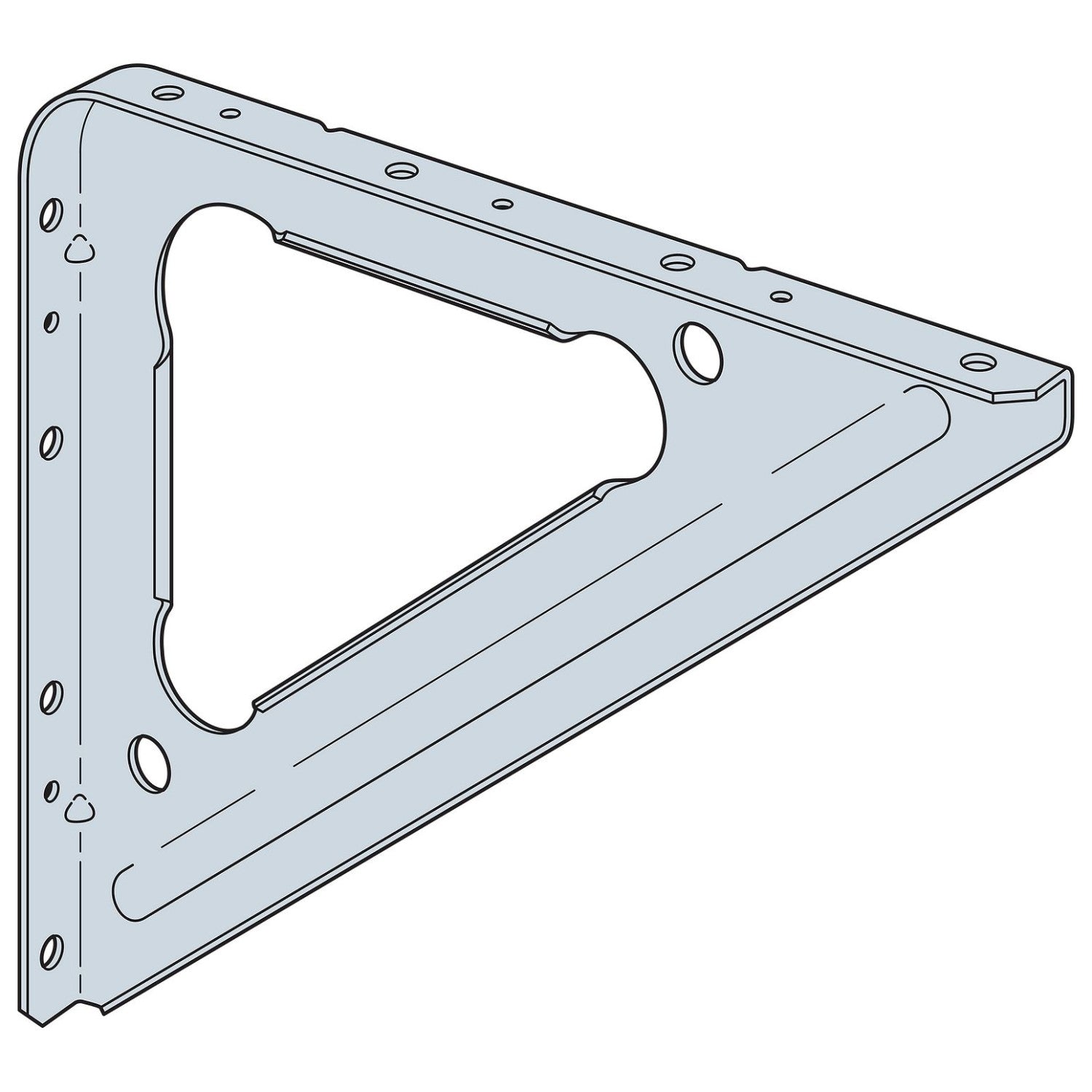

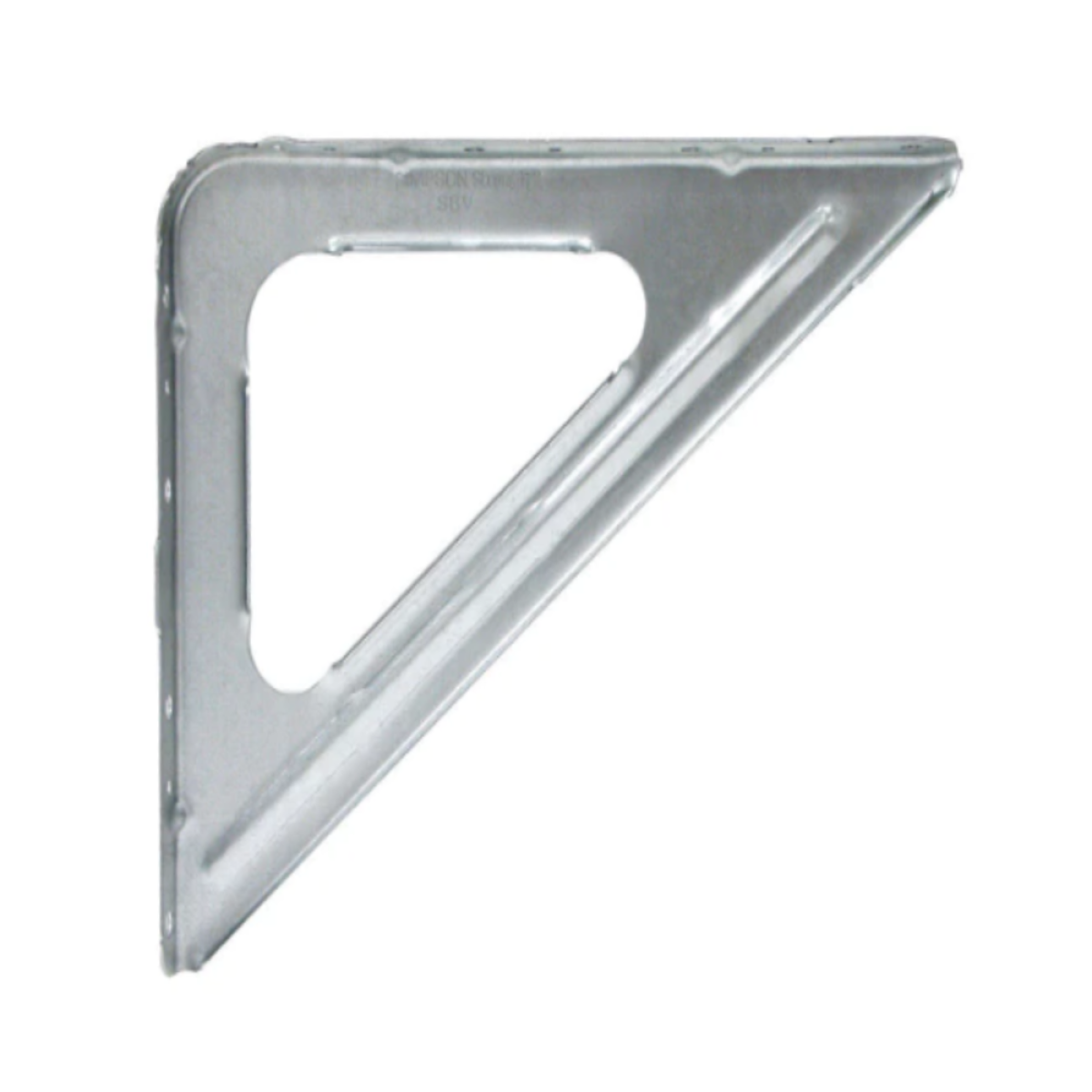

The SBV Shelf Bracket Vertical is designed to reinforce the connection between a vertical wall and a horizontal surface. This economical bracket provides structural support and functionality to a variety of projects including shelving, counters and window ledges. The SBV also features a reversible design that can support shelves of any thickness from nominal 10" to 12".

Approved for installation with Strong-Drive® SDS Heavy-Duty Connector screws
Reversible design to support up to a 12" overhang
Reversible for nominal 10" or 12" shelves of any thickness
Strategically placed nail holes provided to secure item to bracket

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications

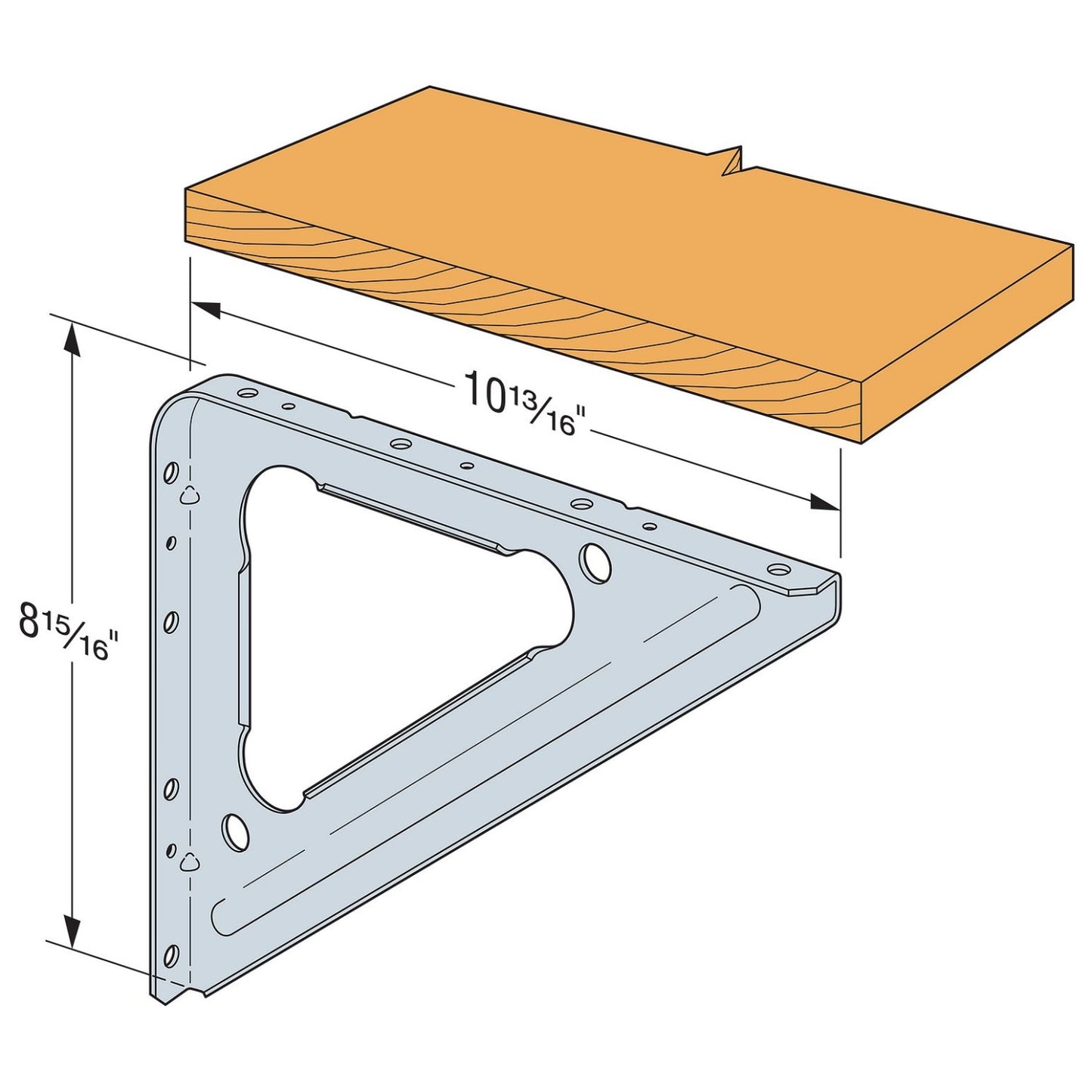

Width: 10-13/16"

Height: 8-15/16"

Thickness: 16 Gauge

Manufacturer Name: Simpson Strong-Tie

Fasteners Required: (4) 1/4" x 2" SDS

View Spec Sheet
