SKU: SCS82-5/118-KT25

Simpson SCS82-5/118-KT25 Seismic Bypass Framing Connector - G90 Galvanized, Pkg 25

Simpson SCS82-5/118-KT25 Seismic Bypass Framing Connector - G90 Galvanized, Pkg 25!

Skip to product information
1 of 3
$250.38

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Nov 11 when you add 1 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Length: 8”

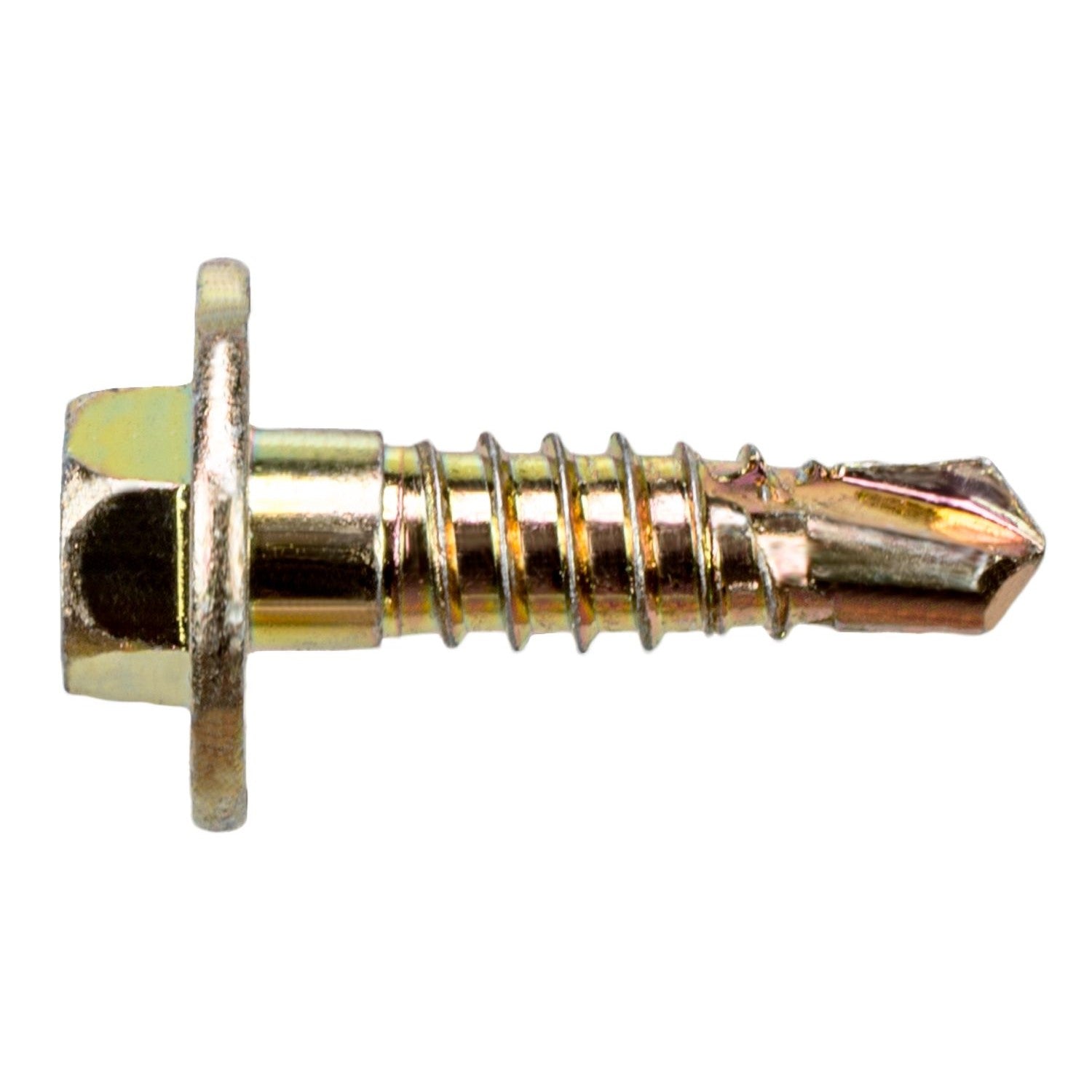

Fasteners required: Includes (83) XLSH78B1414 #14 shouldered screws for slide-clip applications
Manufacturer name: Simpson Strong-Tie
Quantity: 25
Thickness: 12 Gauge and 10 Gauge
Description

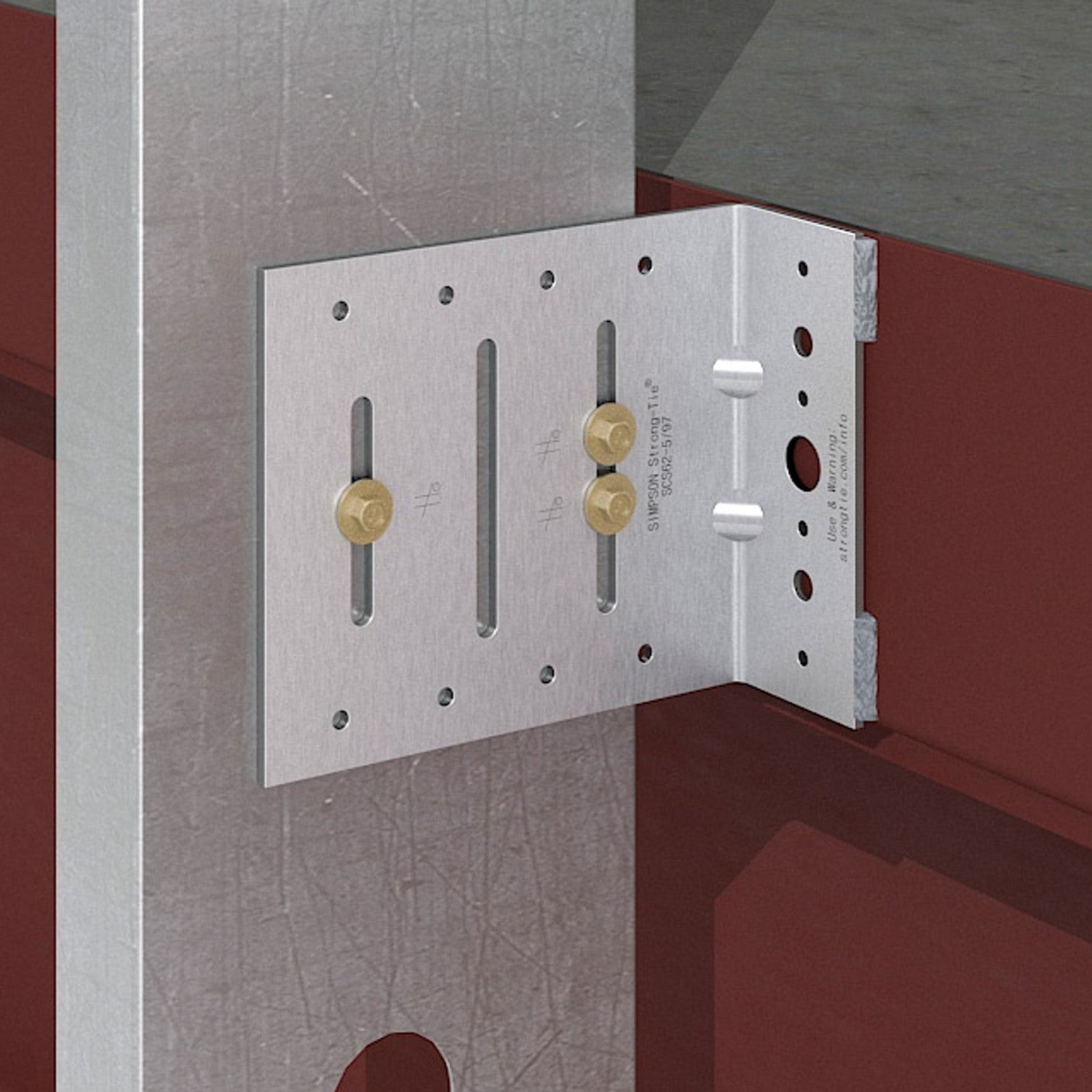

The first product of its type to undergo full-scale cyclic research testing to determine its load capacities in real-world conditions, the SCS is a hybrid clip designed specifically to allow both slide-clip or fixed-clip applications in areas of high seismic activity. Everything about the SCS clip — from its heavy-duty 10- and 12-gauge steel manufacturing to its strategically placed darts to the location of its fastener slots and holes — has been engineered to provide exceptional resistance to in-plane seismic loads. Because slide-clip testing shows that attachment at the first slot is most critical to in-plane capacity, the SCS is designed to accommodate two large washer screws (included) at the first slot attached to the stud.

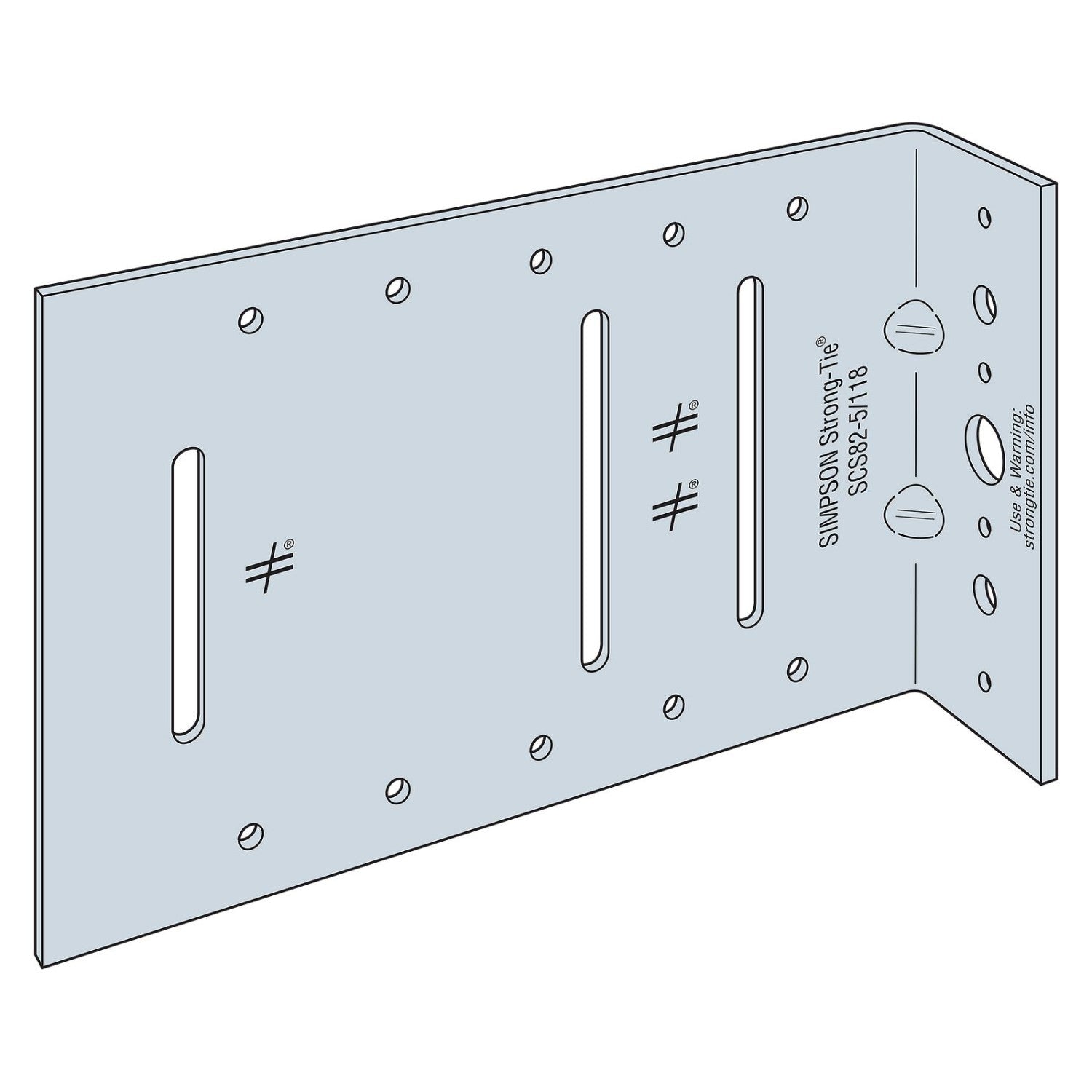

The SCS clip is the most versatile clip on the market making it the ideal clip in seismic and non-seismic areas. This clip has three pre-punched oblong slots for slide applications and a pattern of round holes for fixed-clip applications to meet a range of load needs. In addition, the support leg features anchor holes for concrete supports using 1/4"- or 1/2"-diameter concrete screws or bolts, plus smaller holes for steel supports using powder-actuated fasteners such as Simpson Strong-Tie® PDPAT 0.157"-diameter pins or #12 self-drilling Strong-Drive® XL Large-Head Metal screws.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
