Simpson Strong-Tie 2x4 2-Ply Post-Frame Under-Saddle Hanger, G90 Galvanized

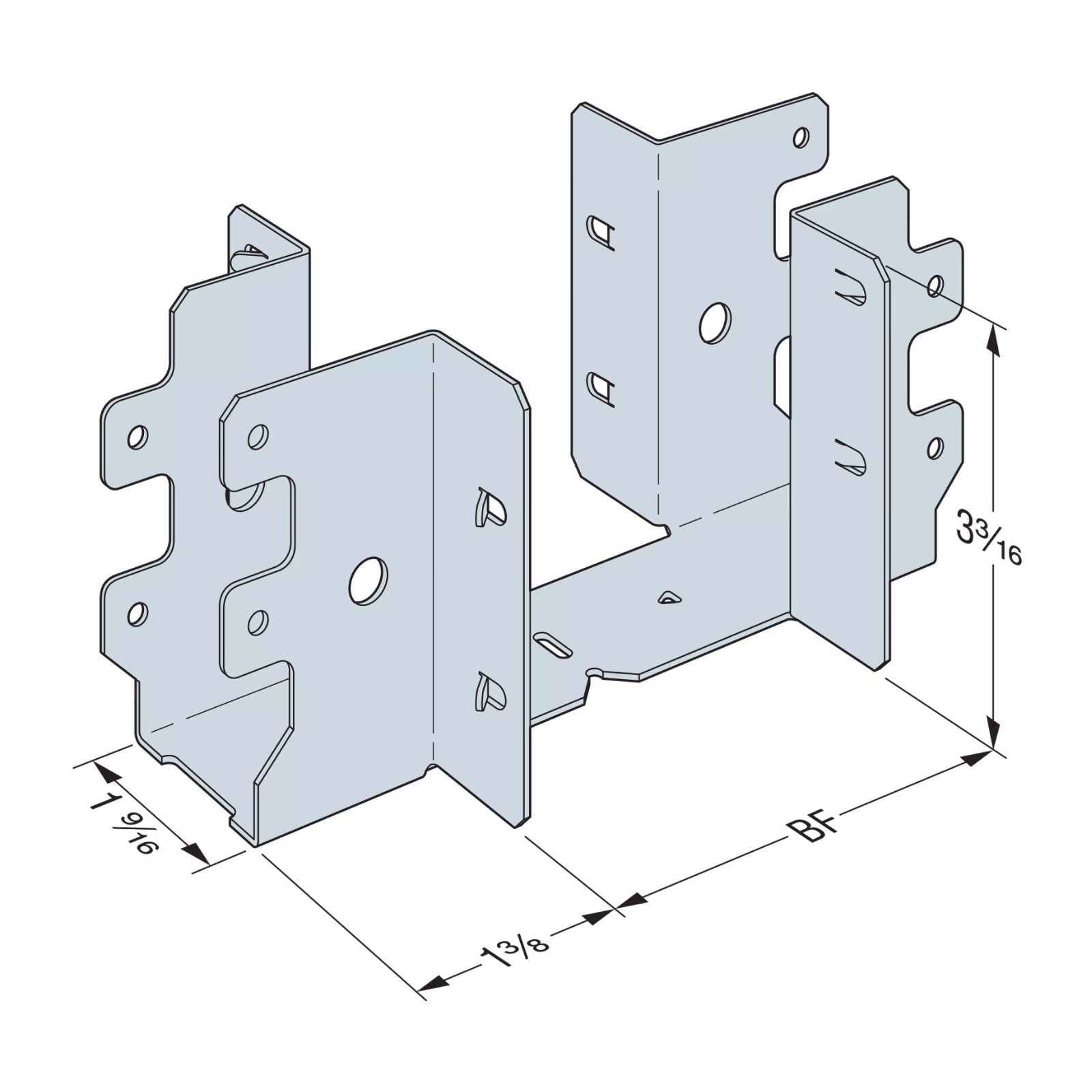

Specifications
The Simpson Strong-Tie PFUDS24 Post-Frame Under-Saddle Hanger is an engineered steel connector designed to support ceiling joists in post-frame construction. Built for strength and ease of use, the PFUDS24 fits 2-ply trusses with a two-sided under-saddle design that enhances layout efficiency and load performance compared to traditional methods.
Key Features
- Two-sided continuous seat: Supports ceiling joists on both sides of a truss to streamline layout and minimize labor.
- Designed for 2-ply trusses: Specifically accommodates larger truss configurations with reliable performance.
- Field-modifiable: Easily split along perforations for single-side use when needed.
- Load-rated performance: Engineered and tested to handle joist tension forces, making it ideal for ceiling panels acting as diaphragms or bottom-chord truss bracing.
- Galvanized protection: Durable G90 galvanized finish resists corrosion on the jobsite.
Applications
- Post-frame construction: Provides strong support for ceiling joists attached to post-frame trusses.
- Ceiling panel integration: Suitable where ceiling panels serve structural diaphragm functions.
- Truss bracing: Ideal choice for bottom-chord truss bracing in wood structural systems.

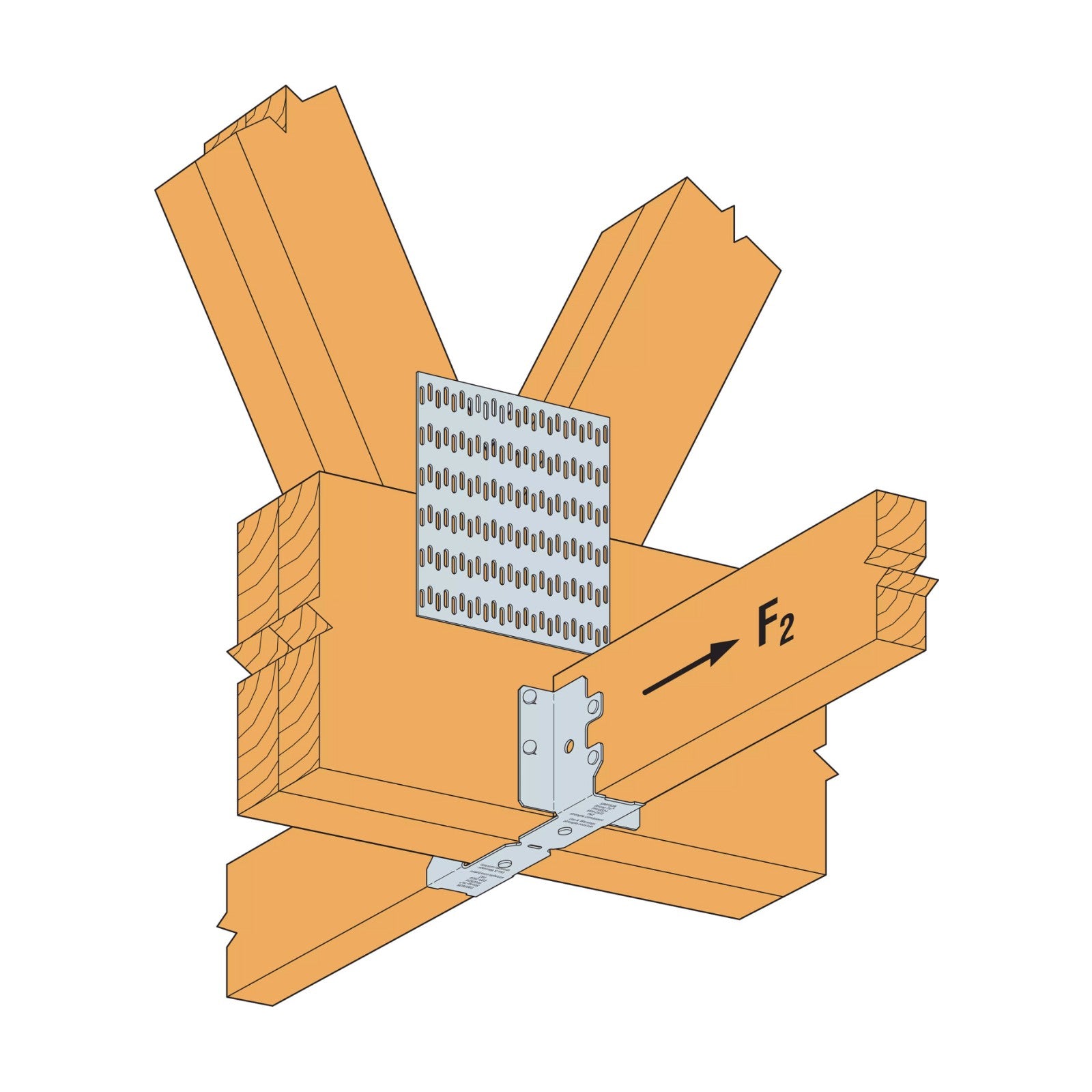

Installation
- Fasteners: Install with specified nails or screws compatible with the hanger for code-listed performance.
- Placement: Position the hanger under the truss bottom chord with the continuous seat snugly against the wood.
- Face fasteners: Drive face nails or screws into the header at a 45 degree angle per manufacturer guidelines.
- Single-side option: For one-side joist applications, bend and separate the hanger along the perforations.
