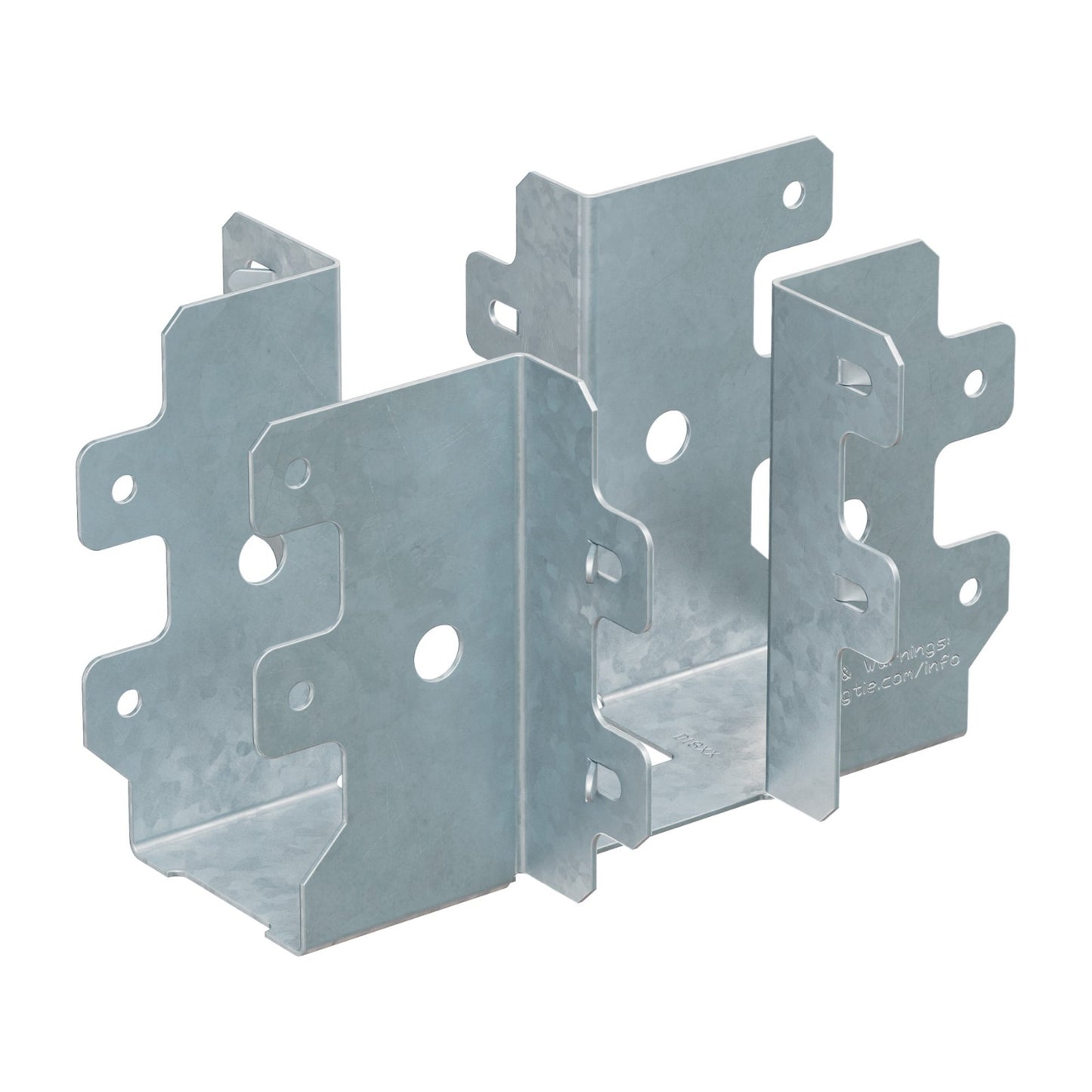

Simpson Strong-Tie 2x4 Post-Frame Under-Saddle Hanger, G90 Galvanized

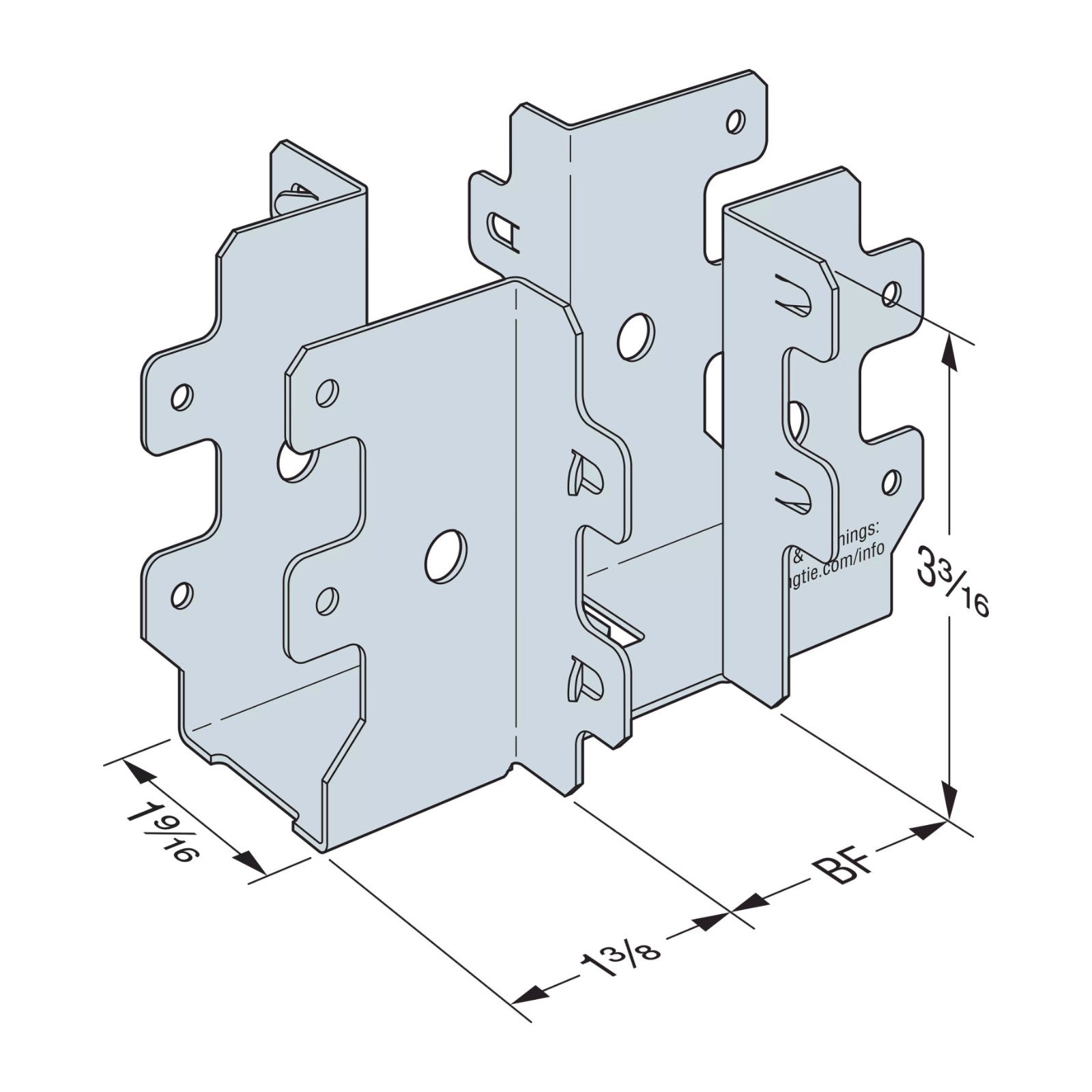

Specifications
The Simpson Strong-Tie PFUD24 is an economical and easy-to-install post frame hanger designed for connecting wood girts and purlins to wood support posts in agricultural and commercial applications. This face-mount hanger features a U-shaped design with double-shear nailing, helping to distribute loads more efficiently while reducing fastener count.
Engineered for strength and ease of use, the PFUD24 supports 2x nominal lumber and allows for a clean, professional installation. Whether you're working on a new pole barn, shed, or other post-frame construction, this connector simplifies your build while maintaining structural integrity.
Key Features:
- Double-shear nailing provides greater strength with fewer nails
- U-shaped design offers a snug fit for 2x nominal lumber
- Galvanized finish for corrosion resistance in exterior environments
- Pre-punched nail holes for fast and consistent installation
- Cost-effective solution for agricultural and commercial builds
Applications:
- Wood-to-wood connections in post-frame structures
- Ideal for attaching 2x girts and purlins to wood posts
- Suitable for pole barns, utility buildings, sheds, and garages

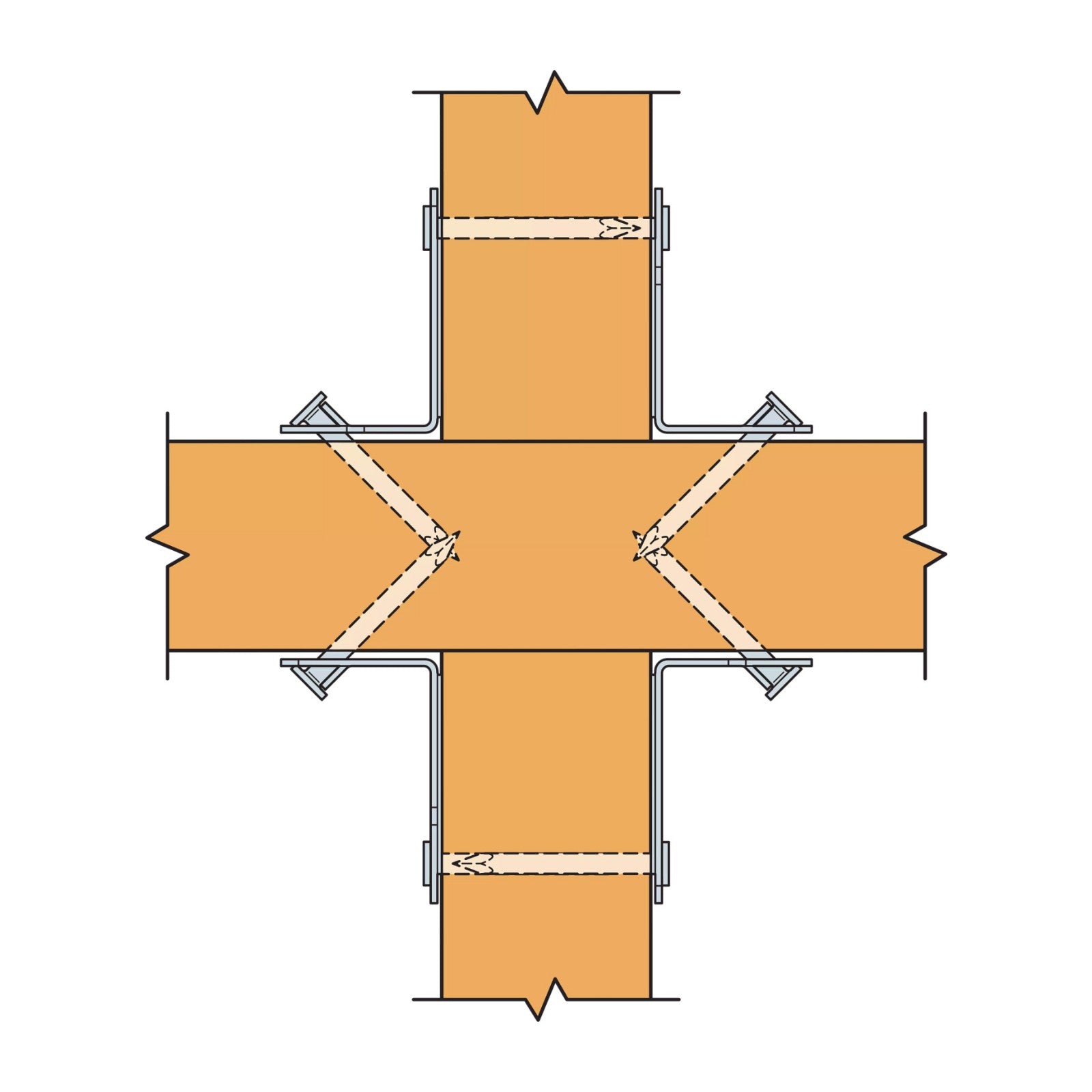

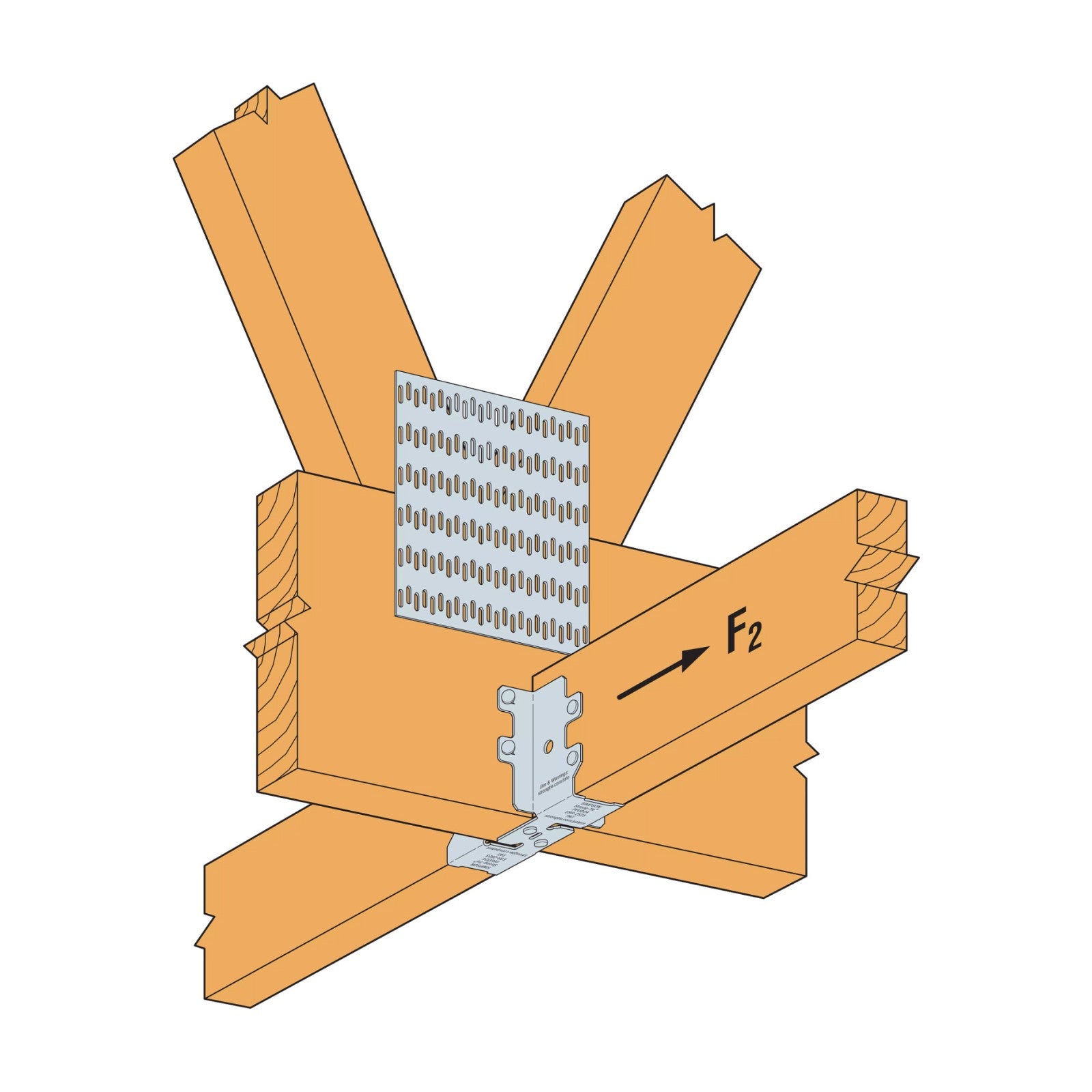

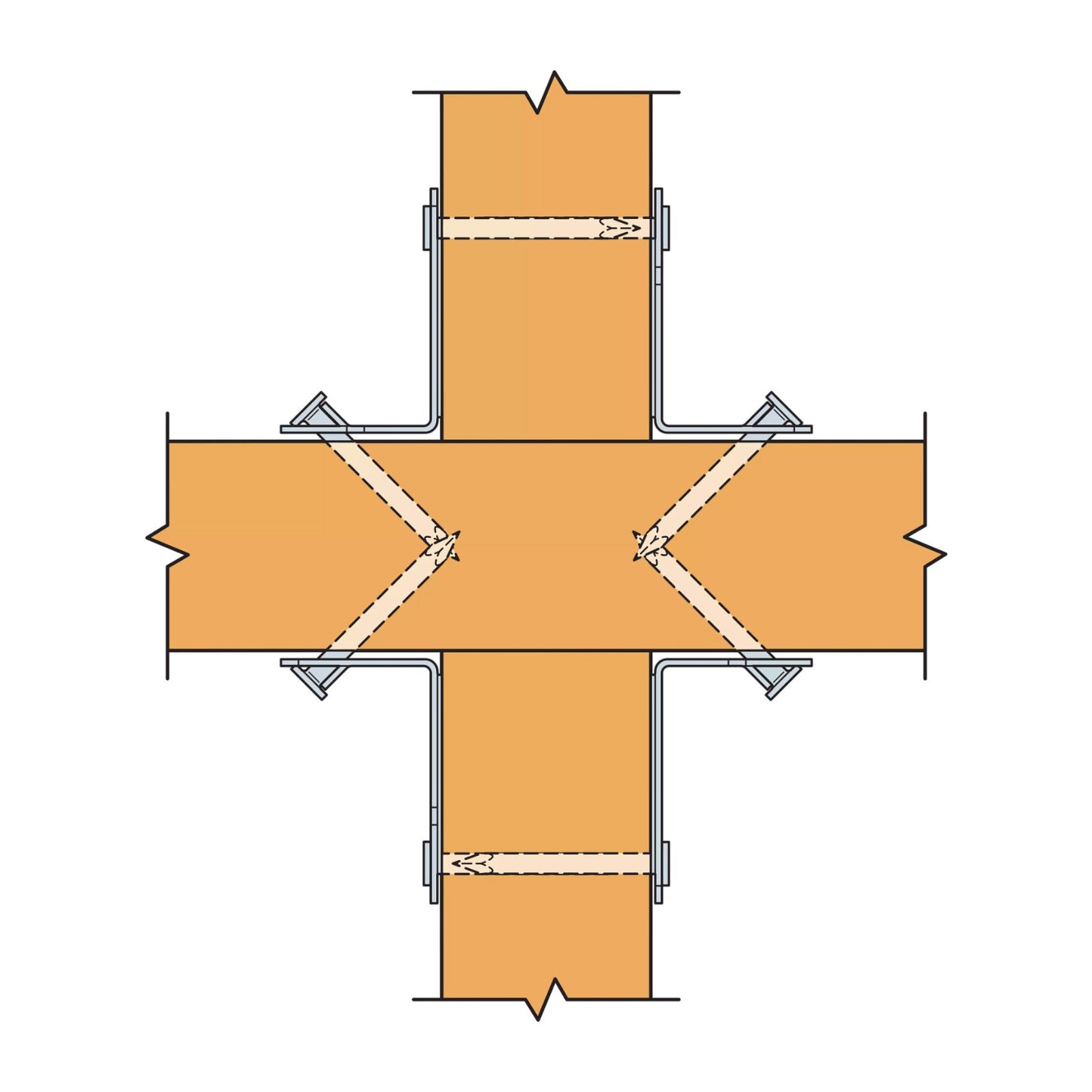

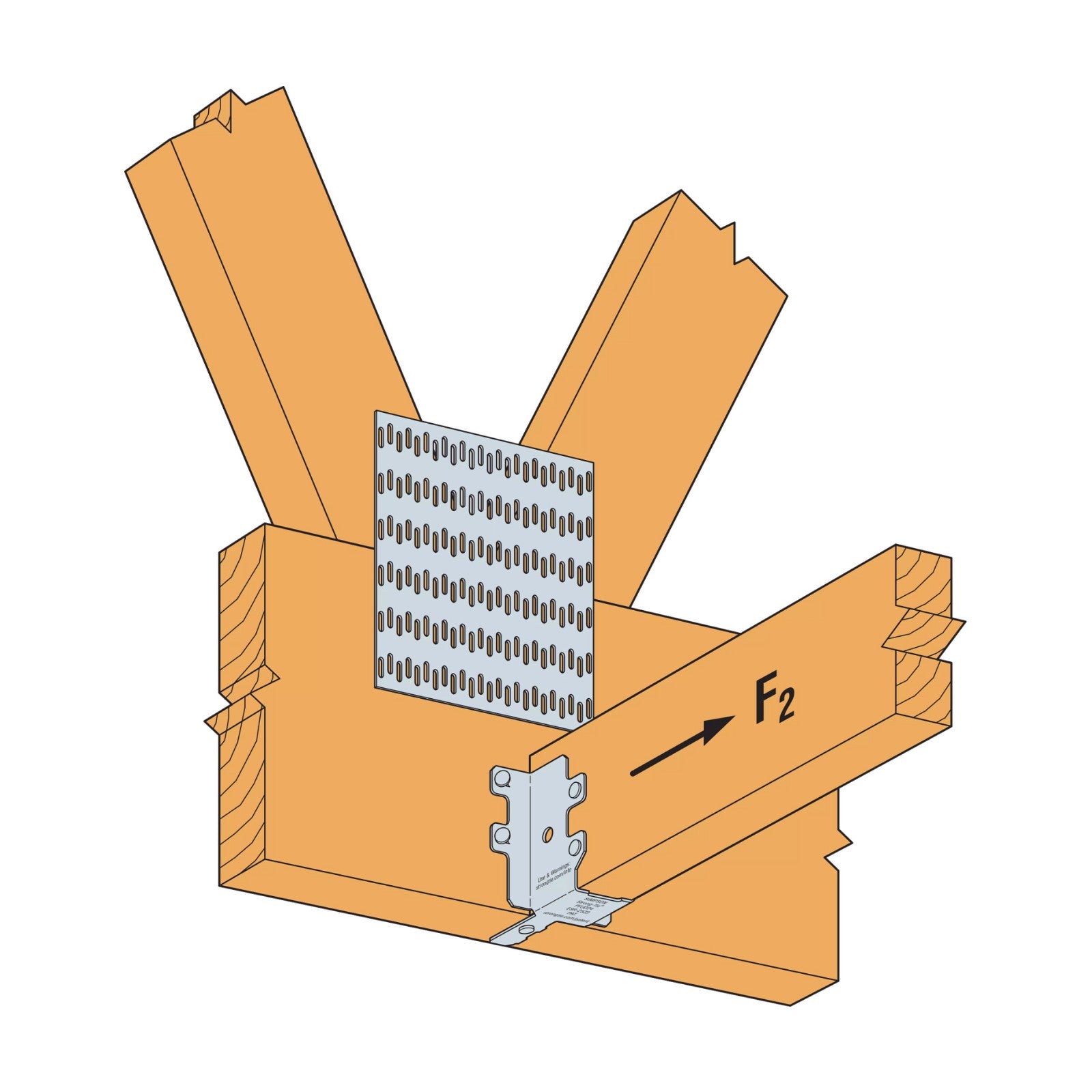

Installation:
- Designed for face-mount installation on wood posts
- Use specified 0.148" x 1½" nails into header and joist
- Ensure all nail holes are filled for maximum load capacity
- Refer to manufacturer load tables for design specifications
