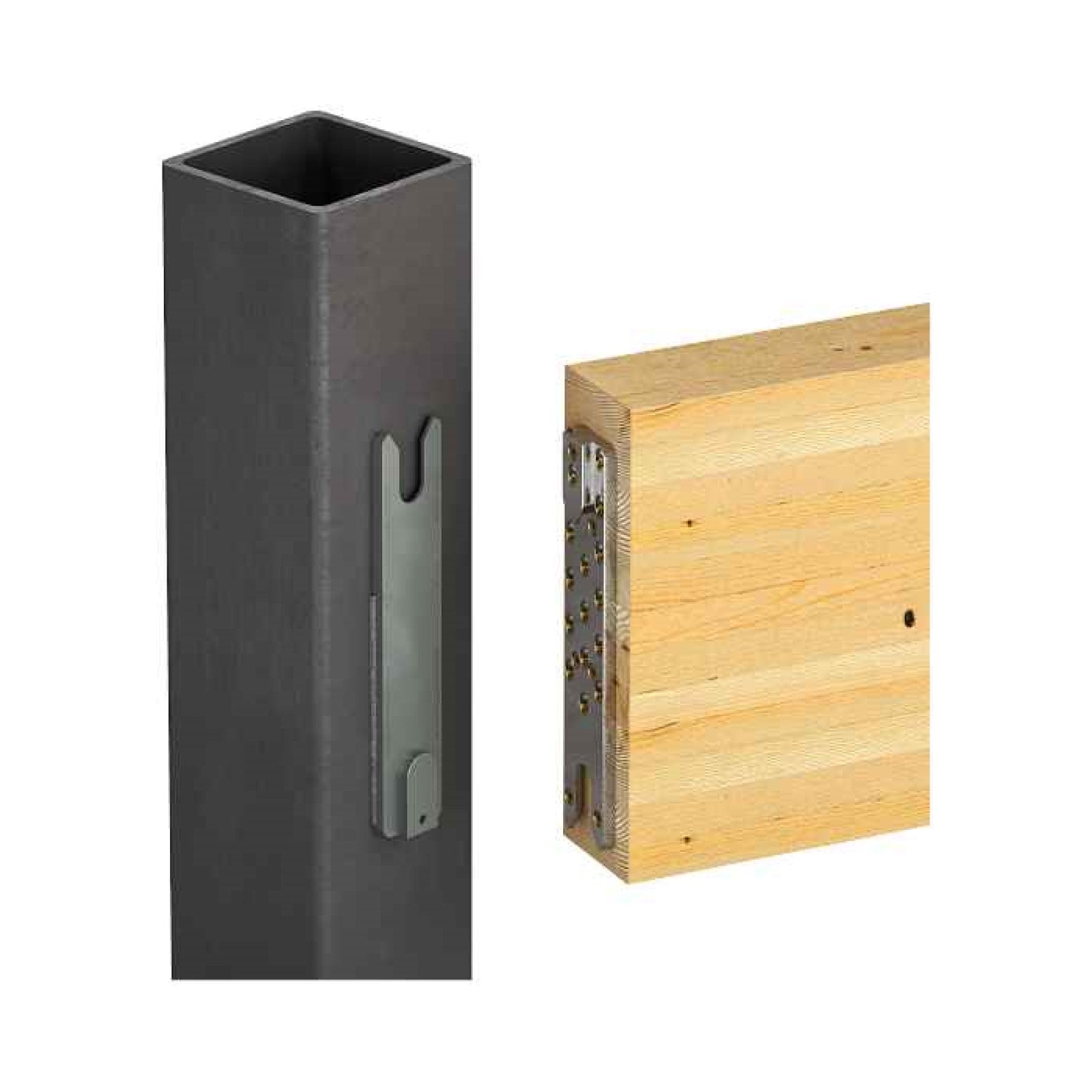

The SCBH3X15.37W-KT from Simpson Strong-Tie is a concealed beam hanger kit designed for structural applications that demand clean aesthetics and uncompromising strength. Perfect for engineered wood construction, this hanger delivers a hidden, high-capacity connection that enhances both performance and visual appeal in exposed timber designs.

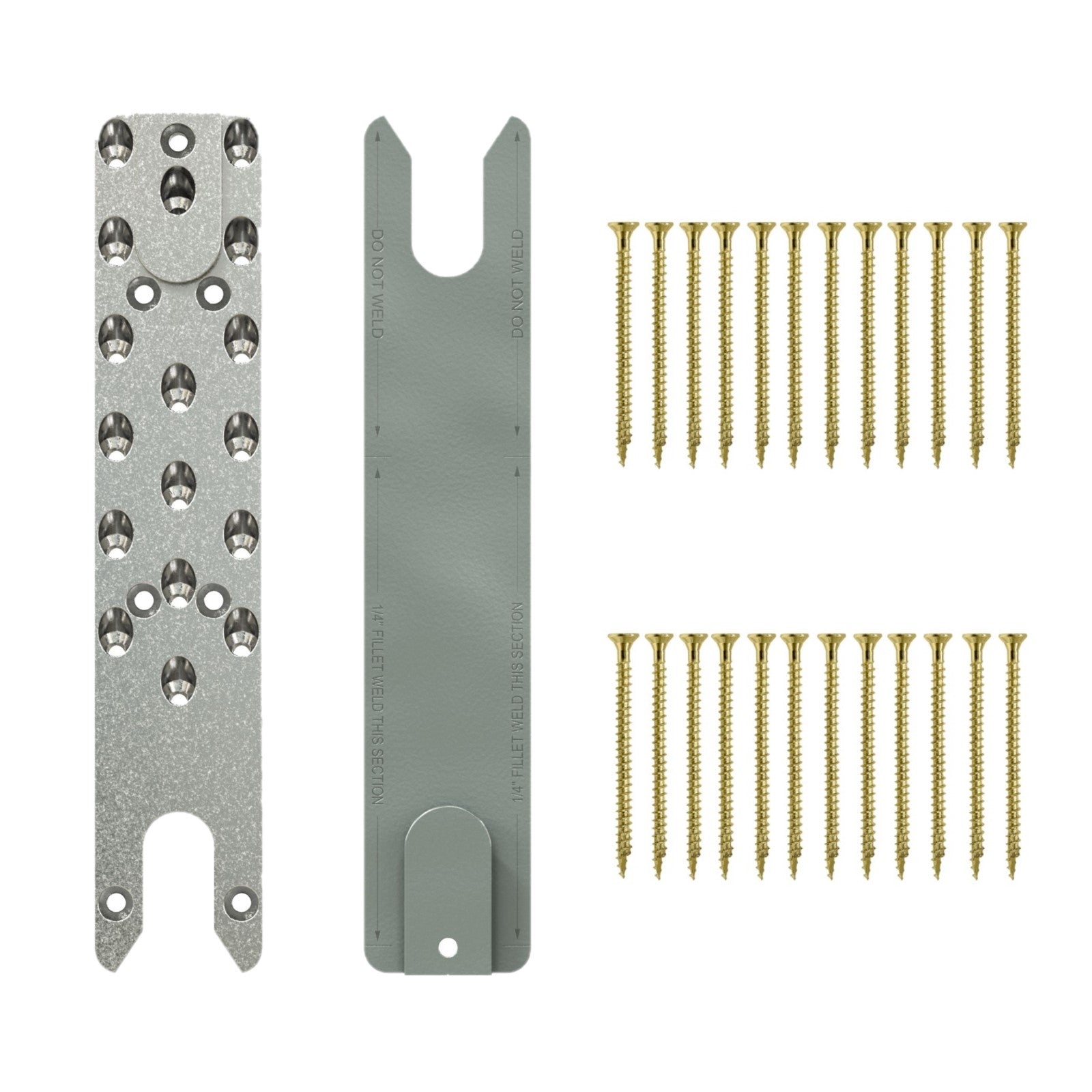

Kit Includes:

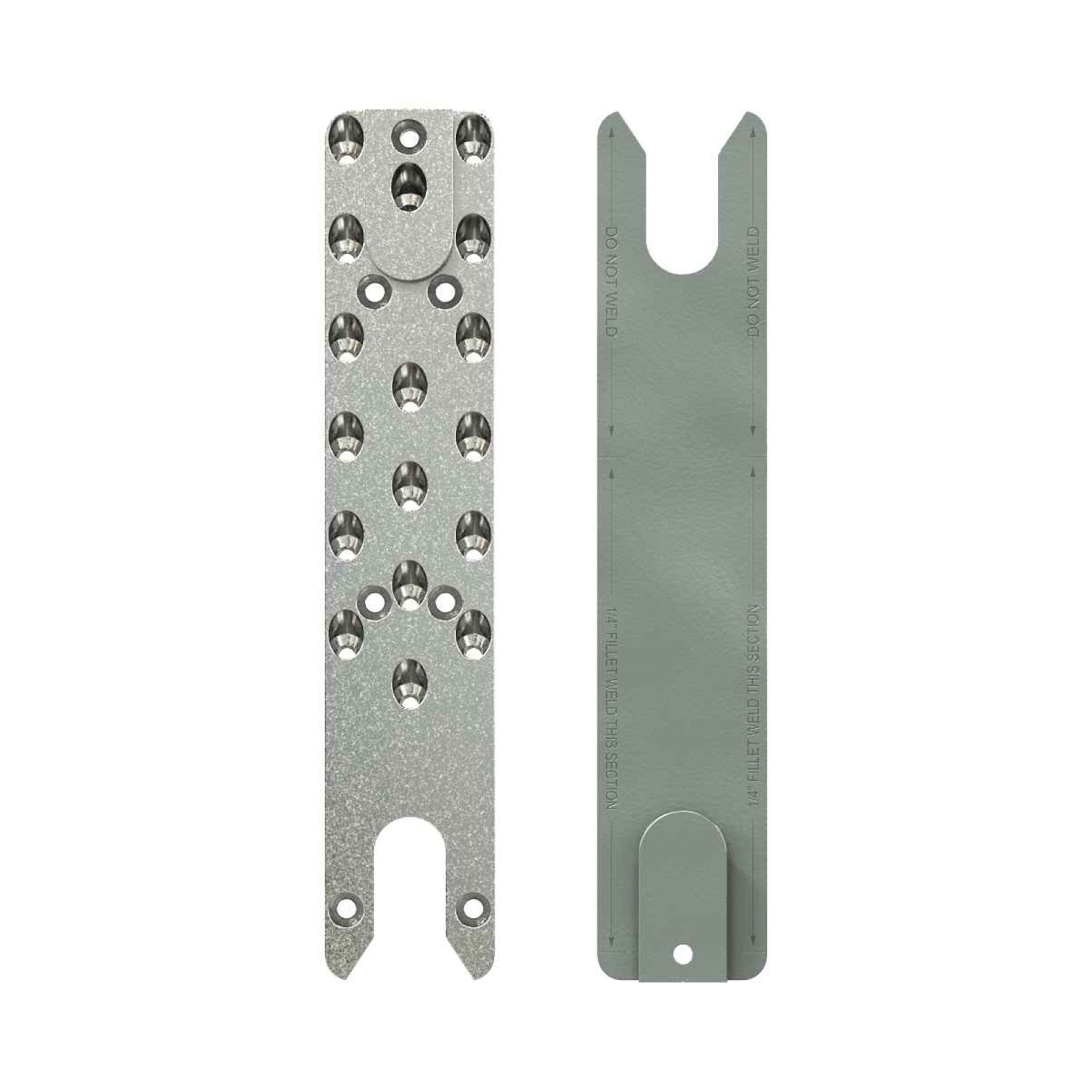

• (1) SCBH 3x15.37 Concealed Beam Hanger Backplate

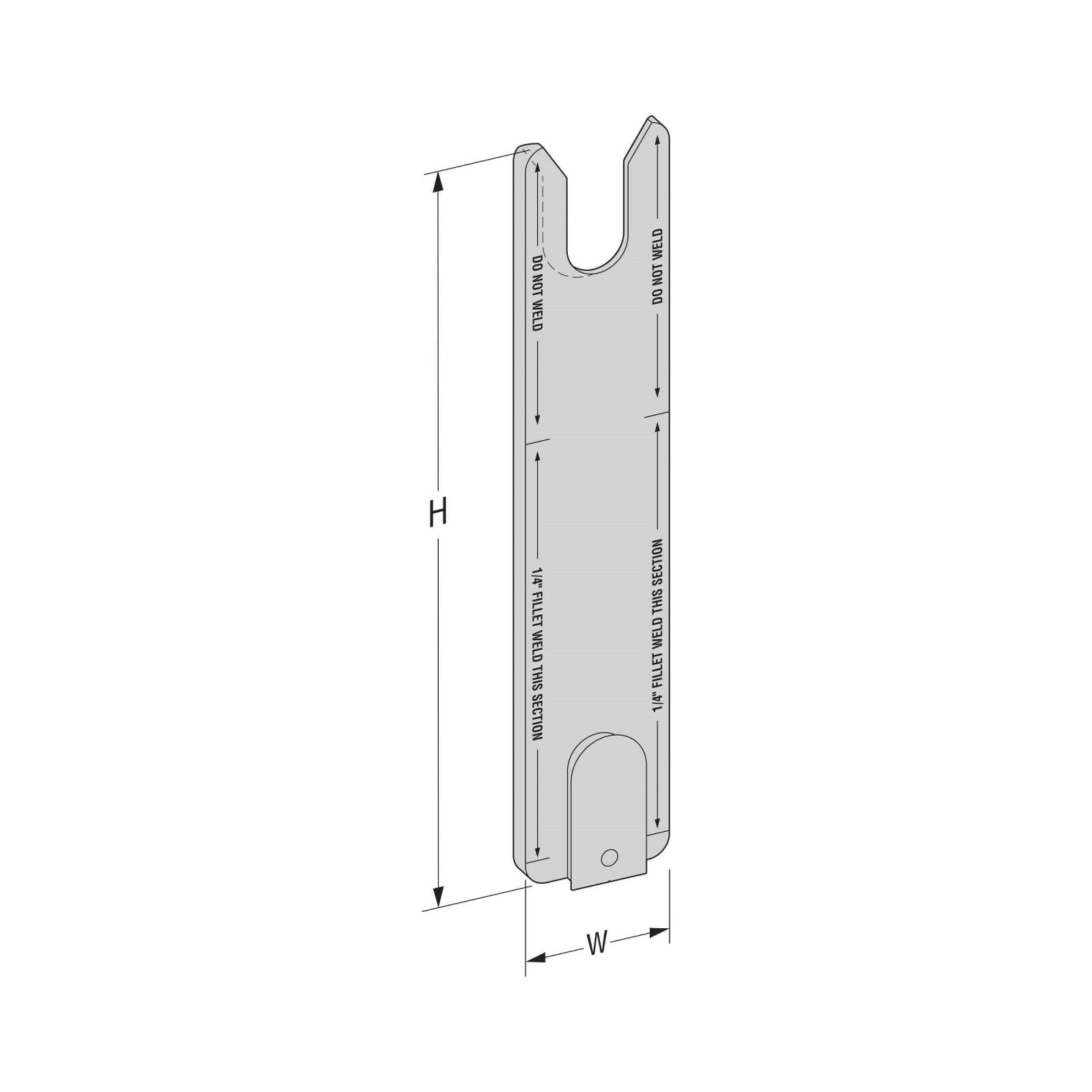

• (1) SCBH 3x15.37W Concealed Beam Hanger Backplate
• (24) SDCF22614 0.315" x 6-1/4" Strong-Drive SDCF Timber-CF Screw

Key Features:

• Concealed Connection: Keeps structural hardware hidden for a sleek, architectural finish
• High Load Capacity: Built for demanding engineered wood applications
• Durable Build: Crafted from high-quality materials for long-term performance

Applications:

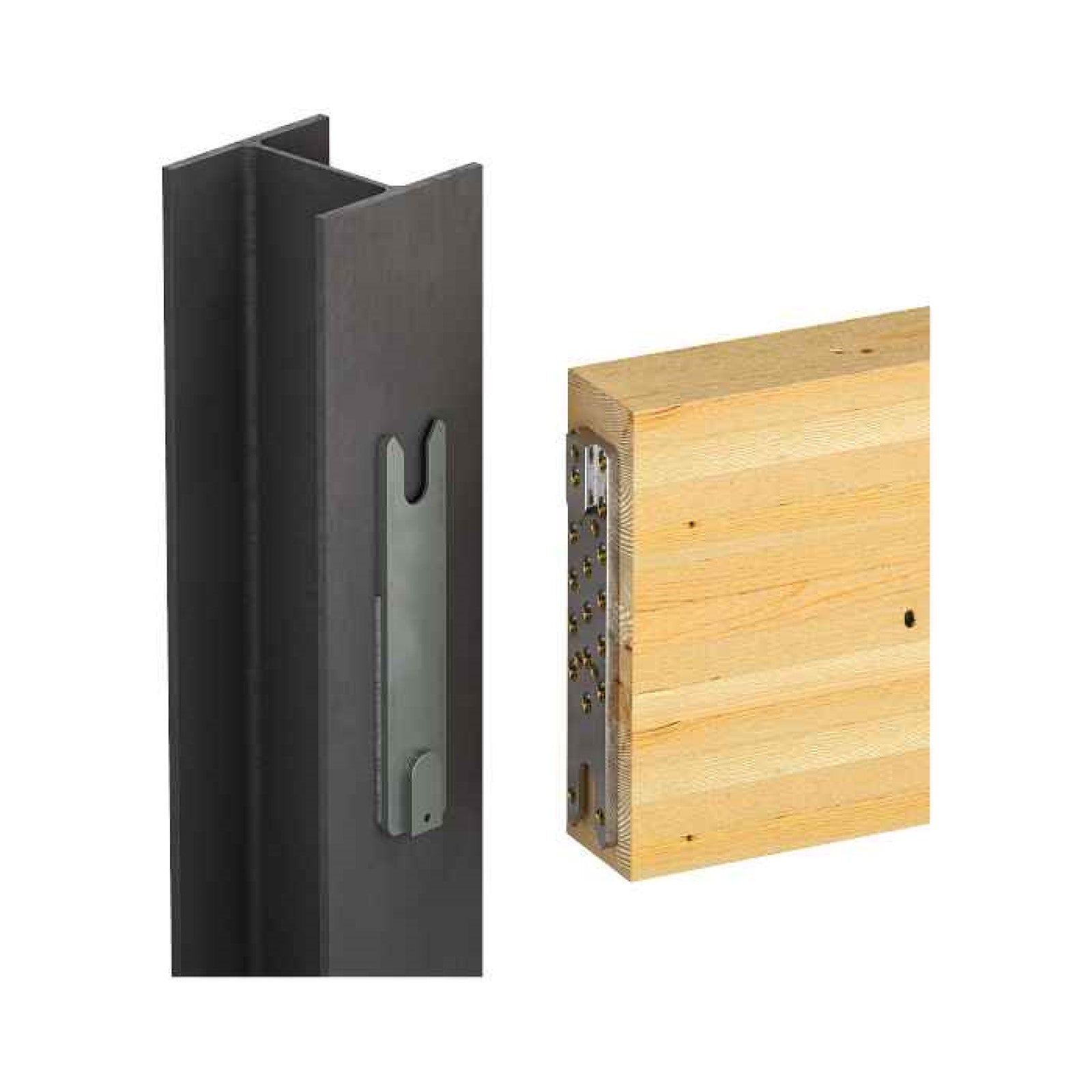

• Engineered wood beam-to-column connections
• Architectural framing where hidden hardware is preferred
• Residential, commercial, or timber frame structures with exposed beams

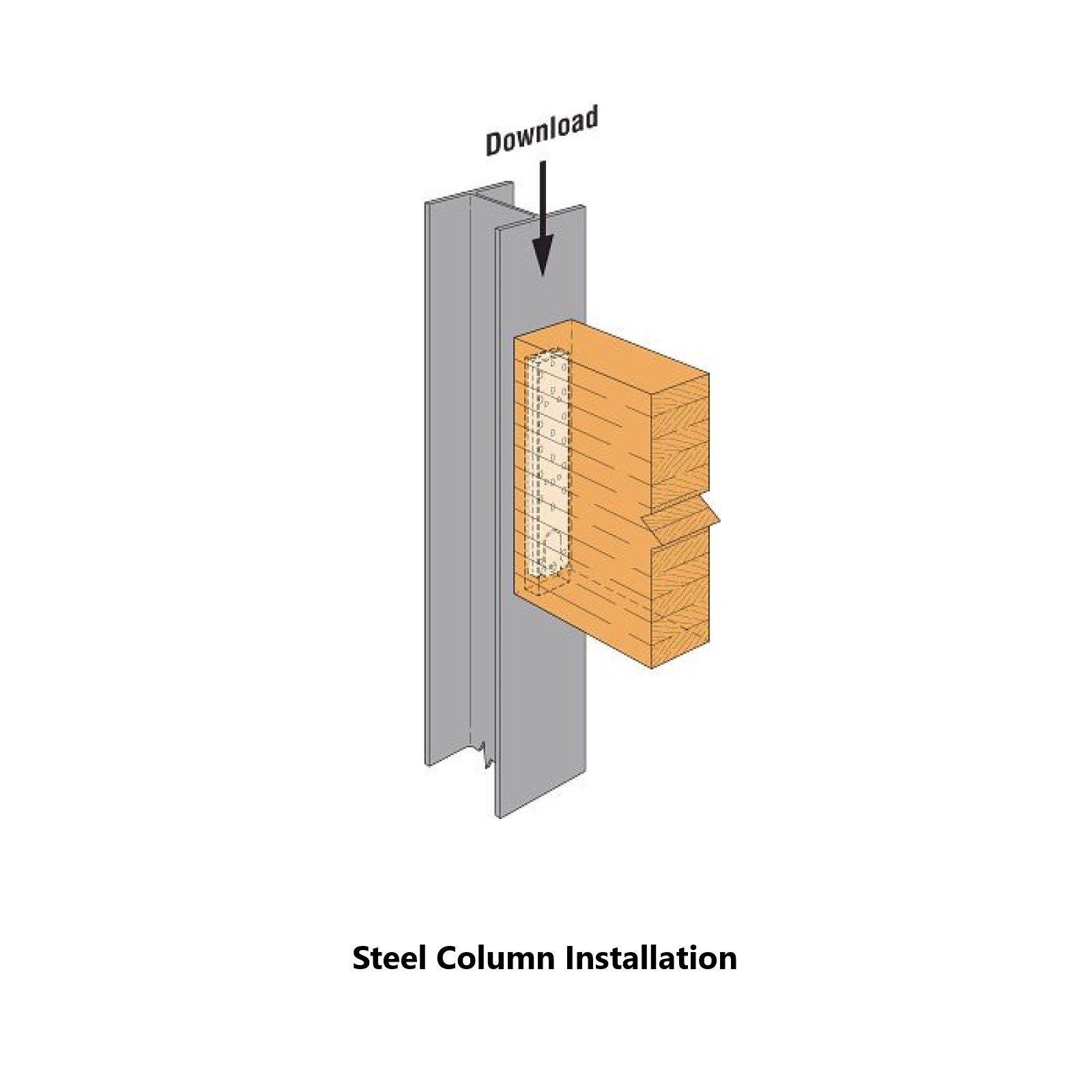

Installation Overview:

1. Preparation: Ensure beam and support surfaces are clean, aligned, and defect-free.
2. Positioning: Align the SCBH hanger per design specs at the designated connection point.
3. Fastening: Install the provided Strong-Drive SDCF Timber-CF Screws at specified angles and depths.
4. Beam Seating: Carefully place the beam into the hanger pocket for full seating and alignment.
5. Final Check: Verify all fasteners are tight and the connection meets structural requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
