Simpson Strong-Tie PFPS24 Post-Frame Purlin Splice Connector - G90 Galvanized
Description
Description
The PFPS post-frame purlin splice connector offers a streamlined, efficient way to join roof purlins end-to-end in post-frame construction. It eliminates the need for overlapping or offsetting purlins, keeps them aligned in a straight run, and helps reduce material waste and labor time.
Key Features
- Eliminates overlapped purlins, enabling use of shorter, lower-cost stock
- Maintains continuous alignment of purlins to improve fastener alignment and reduce installation errors
- Can reduce installed fasteners by up to four per connector when using a minimum fastener pattern (lower labor cost without sacrificing code compliance)
- Supports both nail and screw fastening with tested load values
- Unique geometry allows connectors to be doubled for added load capacity where necessary

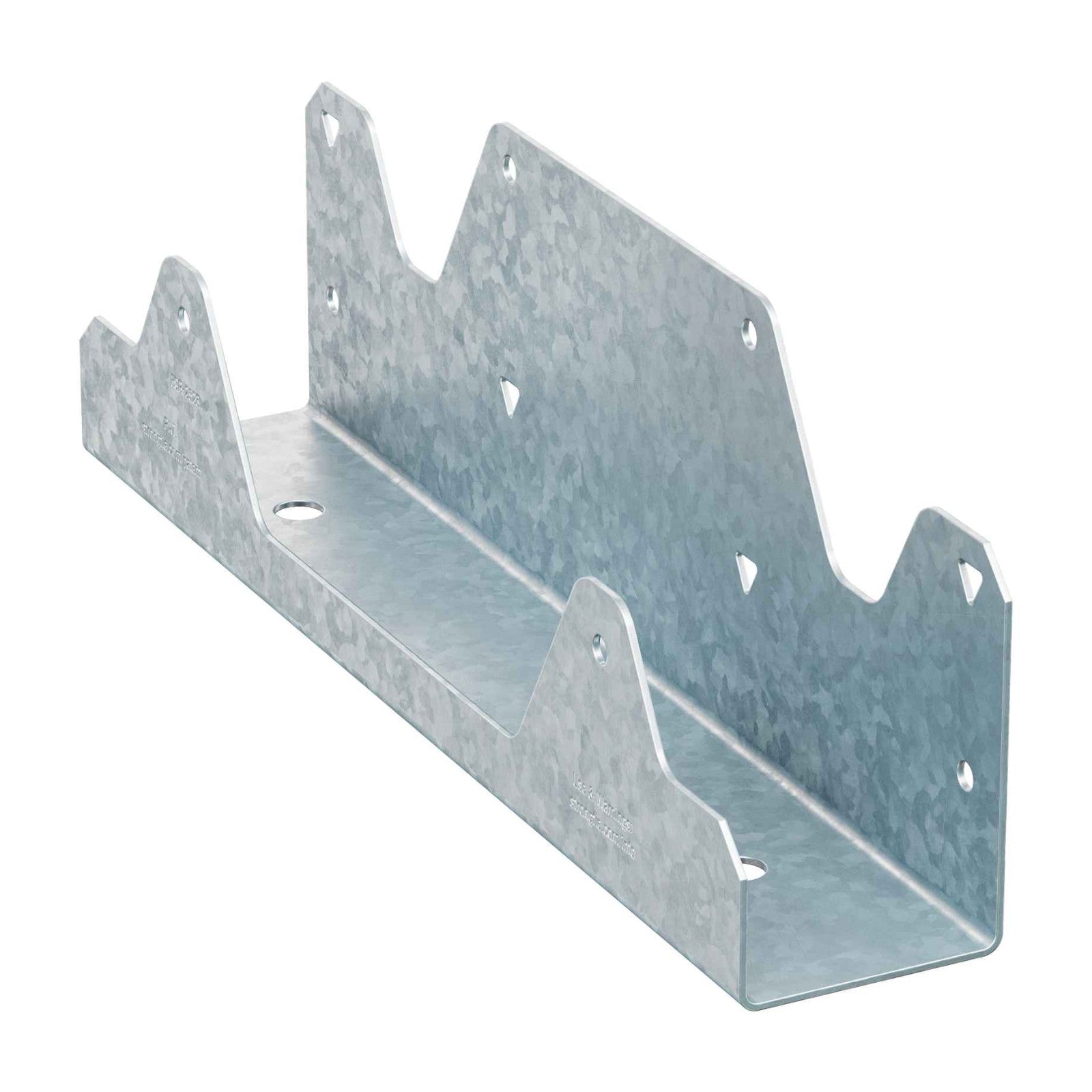

- Constructed from 18?gauge steel with a G90 galvanized finish for durability and corrosion resistance
Applications

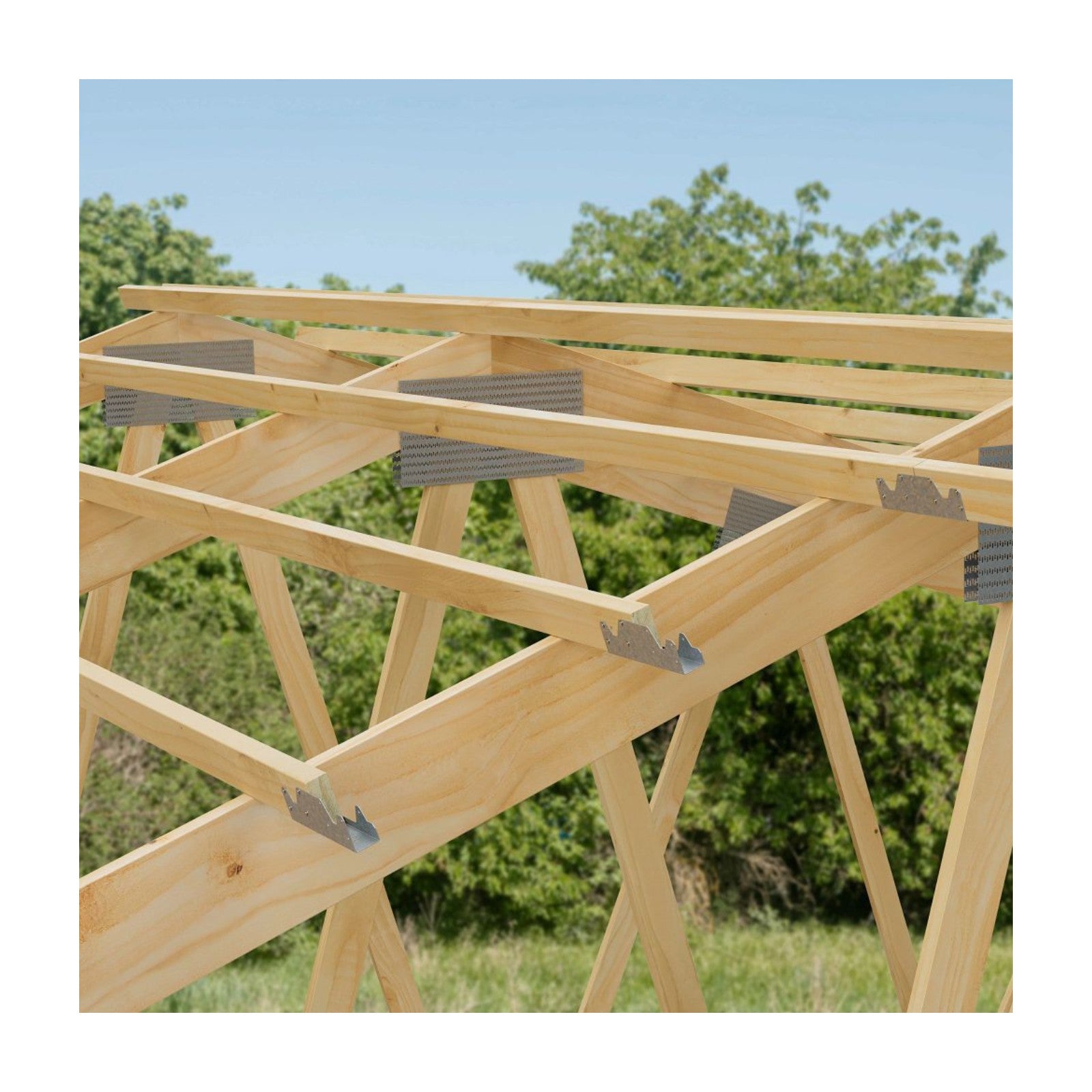

- Ideal for post-frame building roofing systems where long purlins must be spliced
- Use in gable roofs and other roof layouts requiring aligned purlin runs
- Suitable for residential, agricultural, and light commercial structures
- Especially effective in projects focusing on minimizing material cost and streamlining installation
Installation Tips
- Use all specified fasteners in the pattern shown in the engineering documents.
- The minimum purlin size is 2×4; maximum size is 2×6.

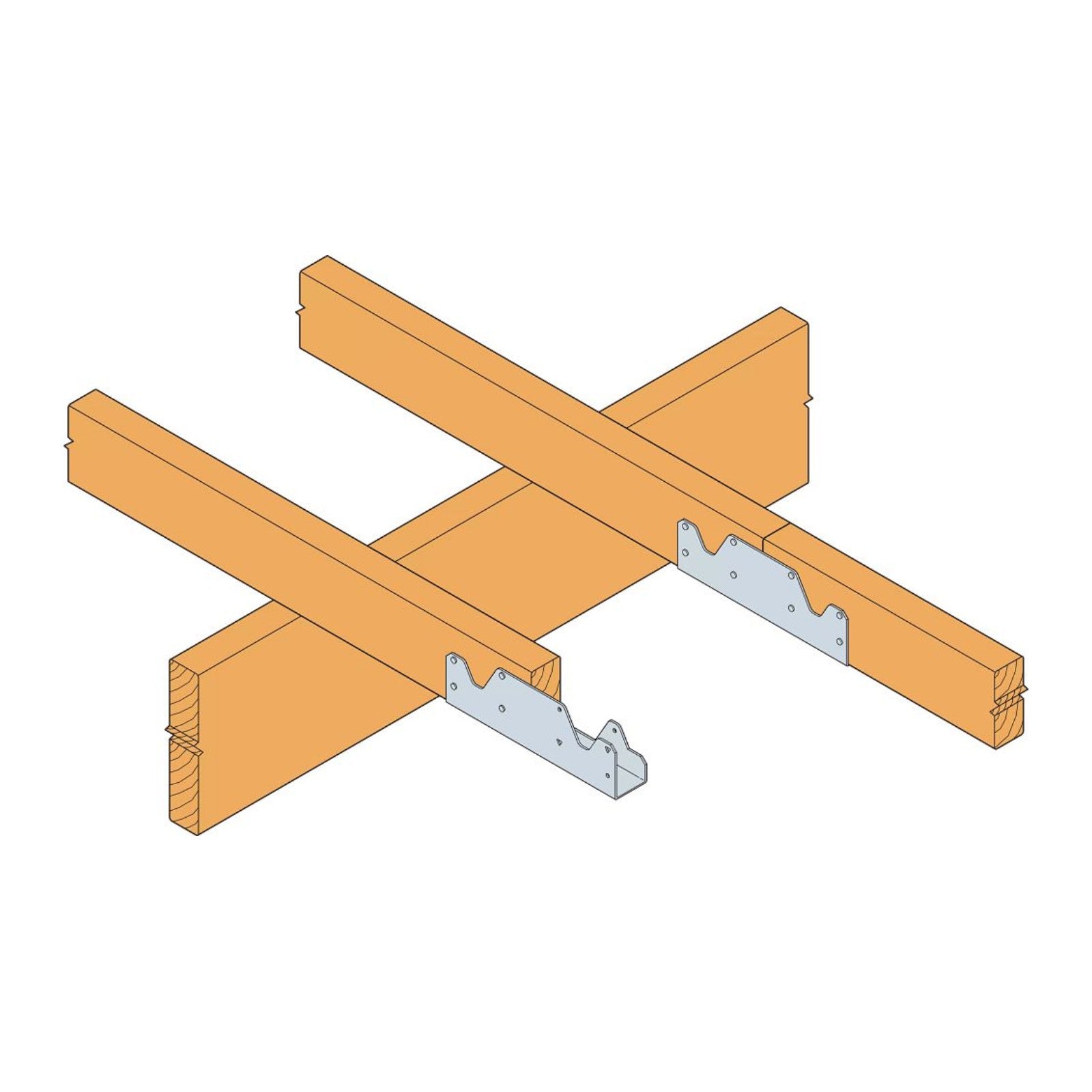

- Install each PFPS connector centered about the splice location (±1/8 in) for optimal load transfer.

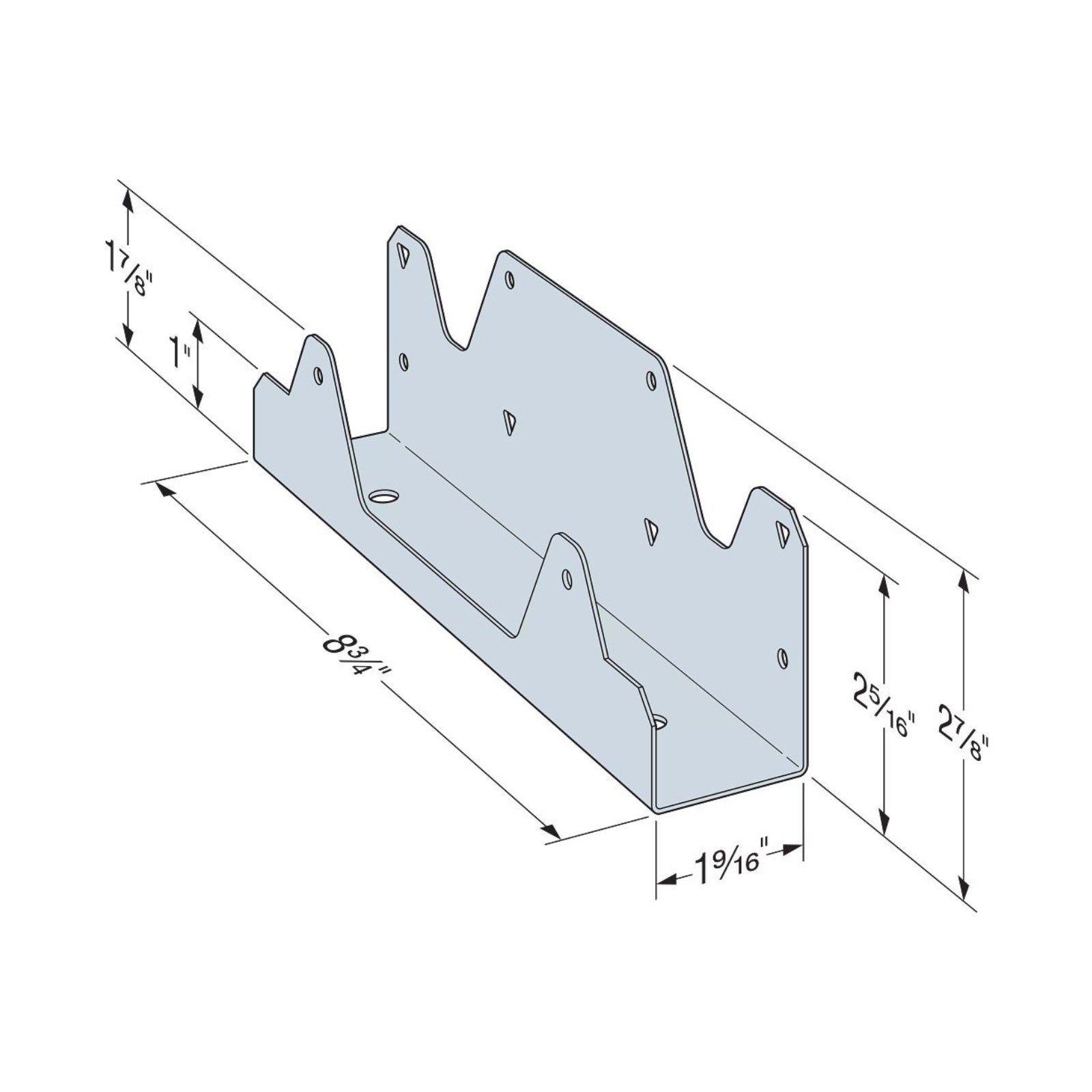

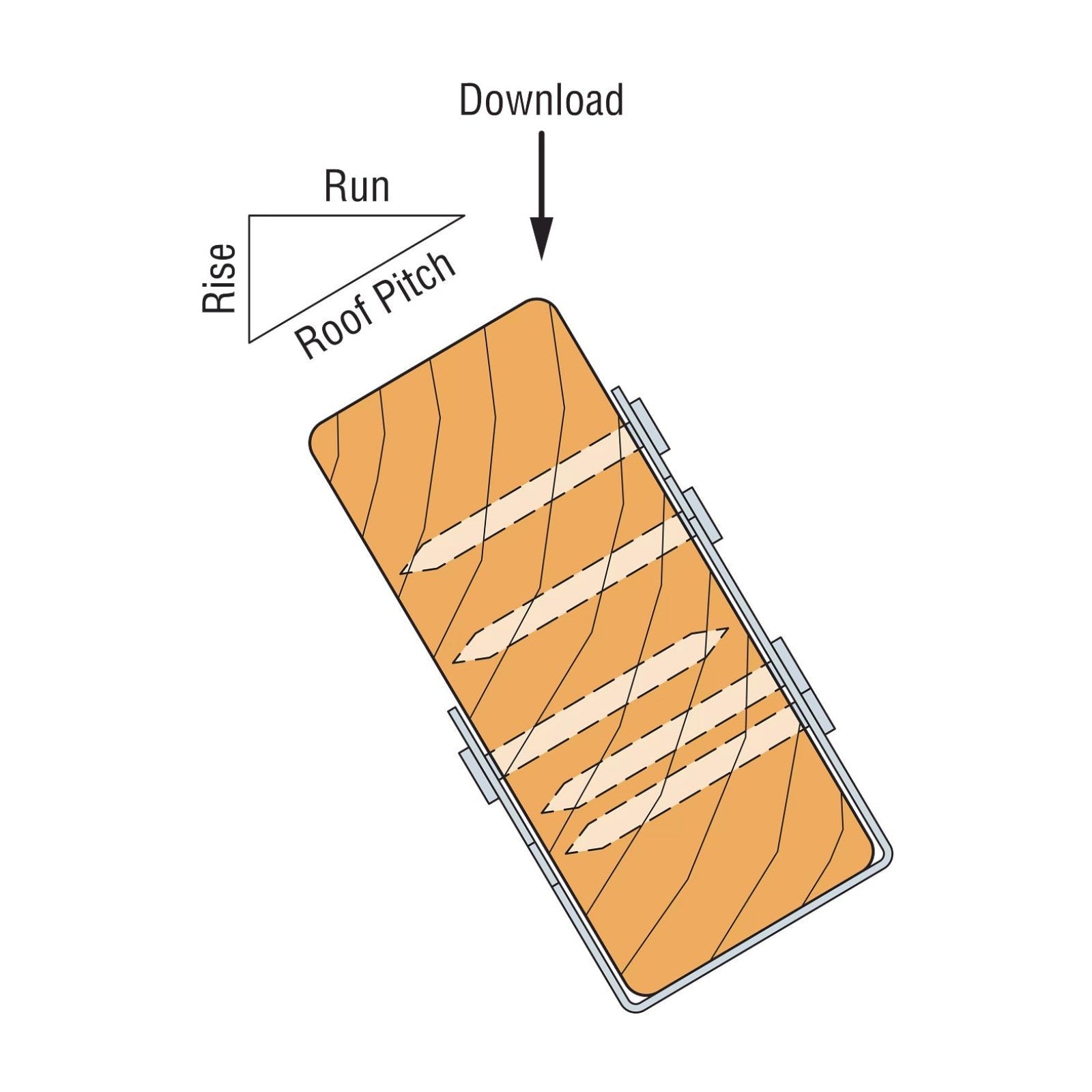

- The larger 2-7/8 in flange may be oriented on either the down-slope or up-slope face of the purlin.

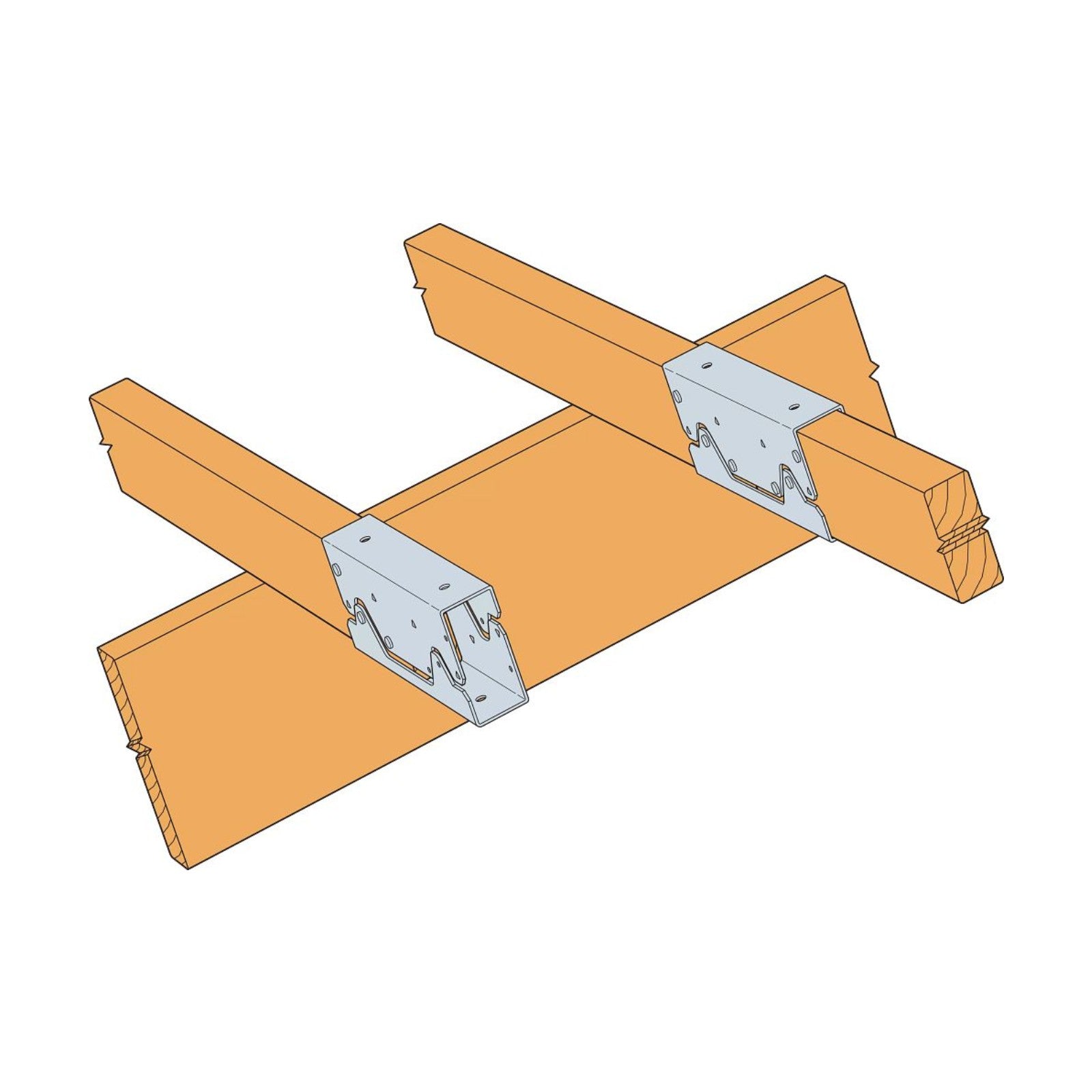

- Where greater capacity is needed, install PFPS connectors in pairs (double up).
- Ensure connector alignment is plumb to avoid unintended bending or twisting forces.
- Review load tables and code ratings prior to installation to confirm suitability for your design.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
