SKU: WBT-KT30

Simpson WBT-KT30 Wall Brace Tensioner - Zinc, Pkg 30

Regular price $11799
Ships today when you order in the next 28 minutes

Description

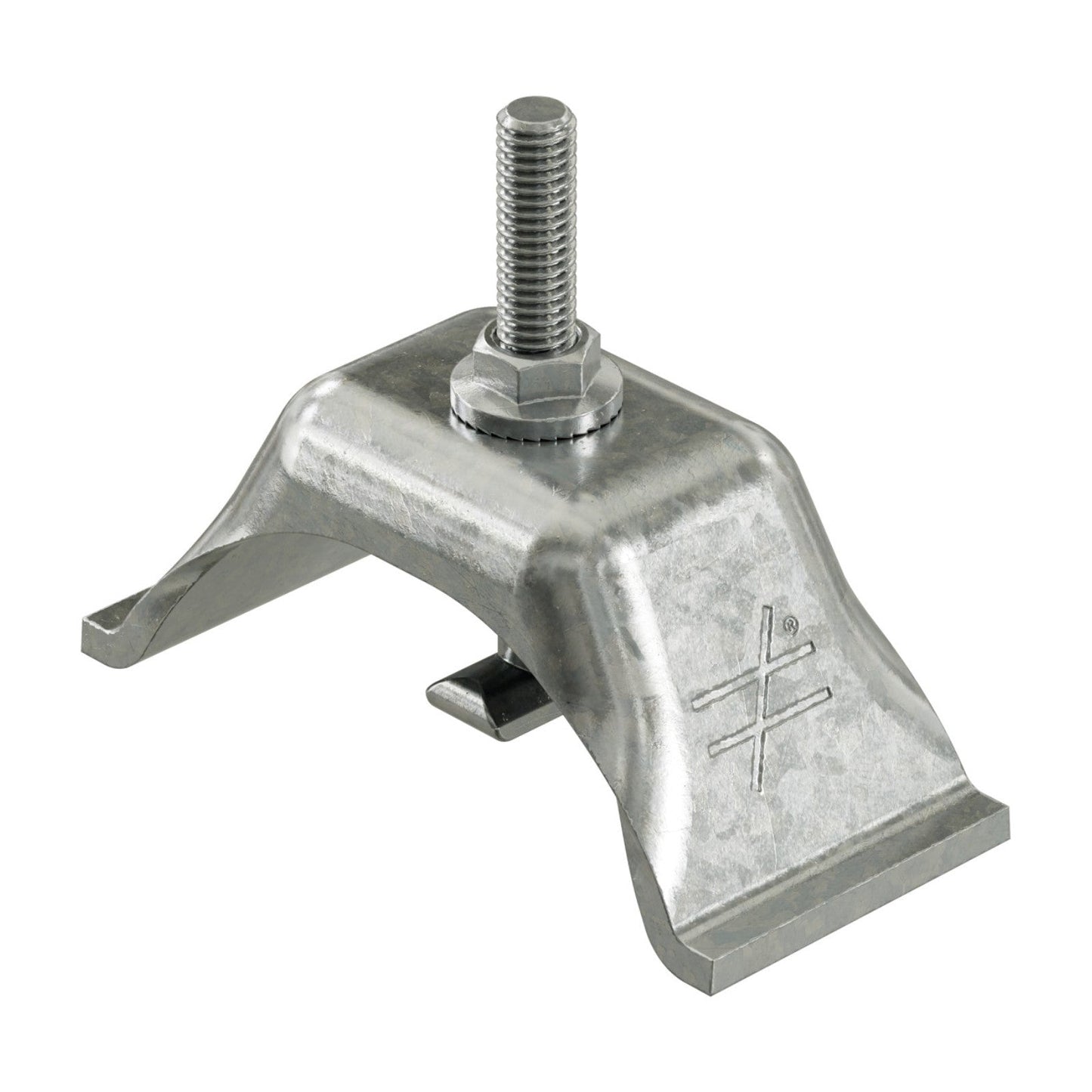

The WBT Wall Brace Tensioner is an efficient device designed to eliminate slack in cold-formed steel (CFS) strap bracing, enhancing the stability of braced wall panels.

Key Features:

  • Slack Reduction: Removes up to 1/2" of slack from a single strap, minimizing deflection in wall panels.
  • Wide Compatibility: Suitable for straps up to 6" wide and 14 gauge (68 mil) thick, including generic straps and Simpson Strong-Tie CS coil straps.

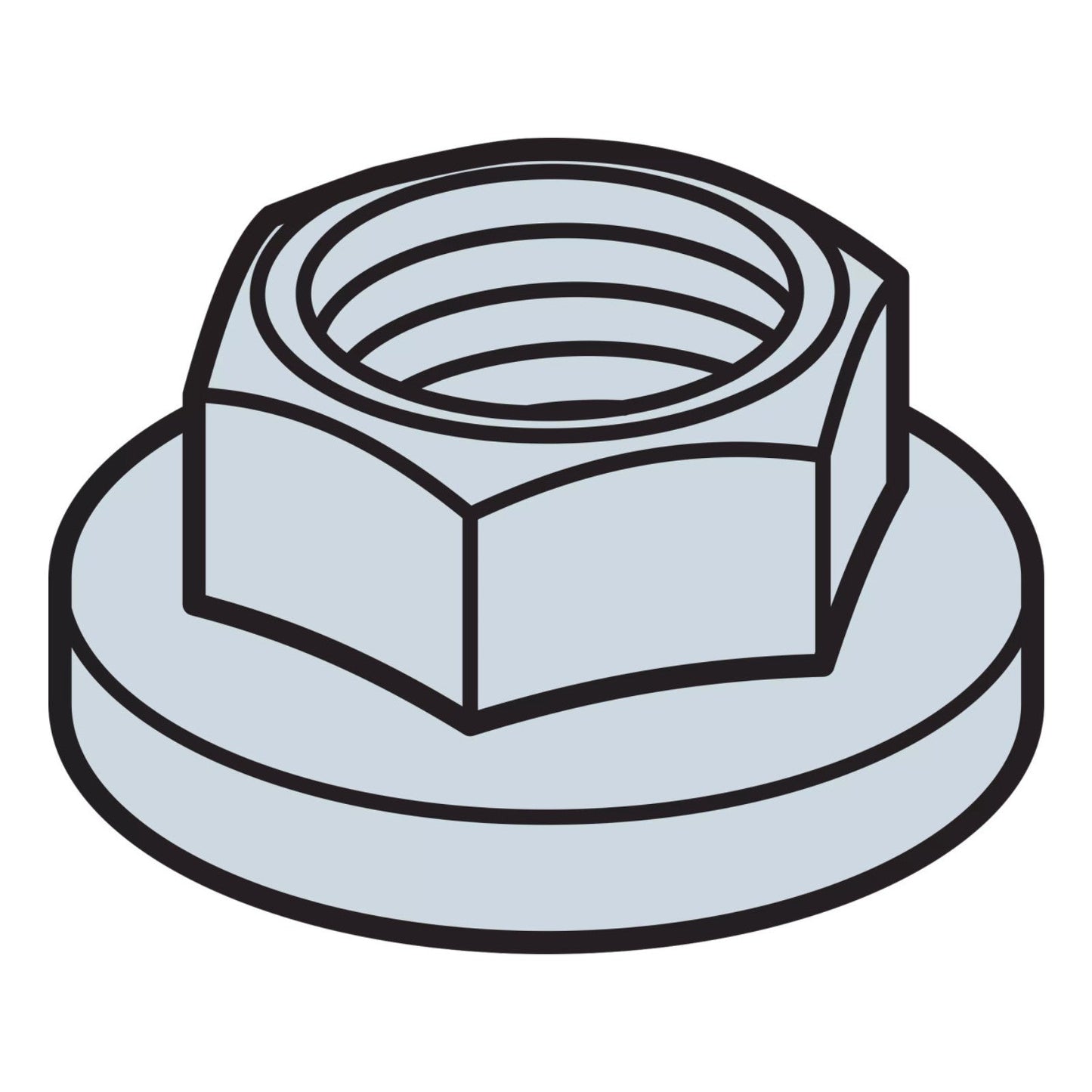

  • Durable Construction: Made from 10-gauge galvanized steel (G90) with zinc electroplated bolt and nut, ensuring corrosion resistance.
  • Easy Installation: Requires only a 10mm hex head socket setter for tightening, streamlining the setup process.

Installation Steps:

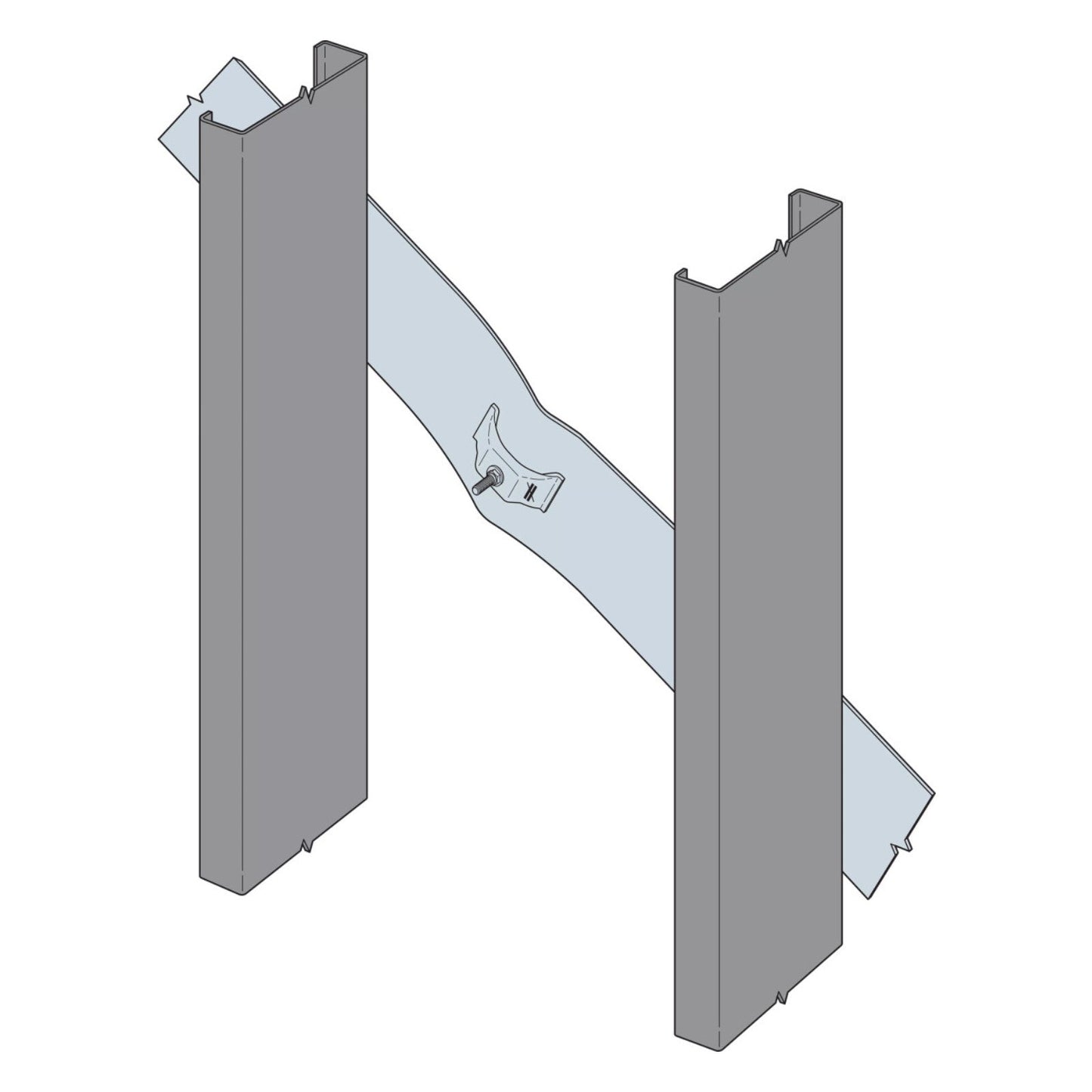

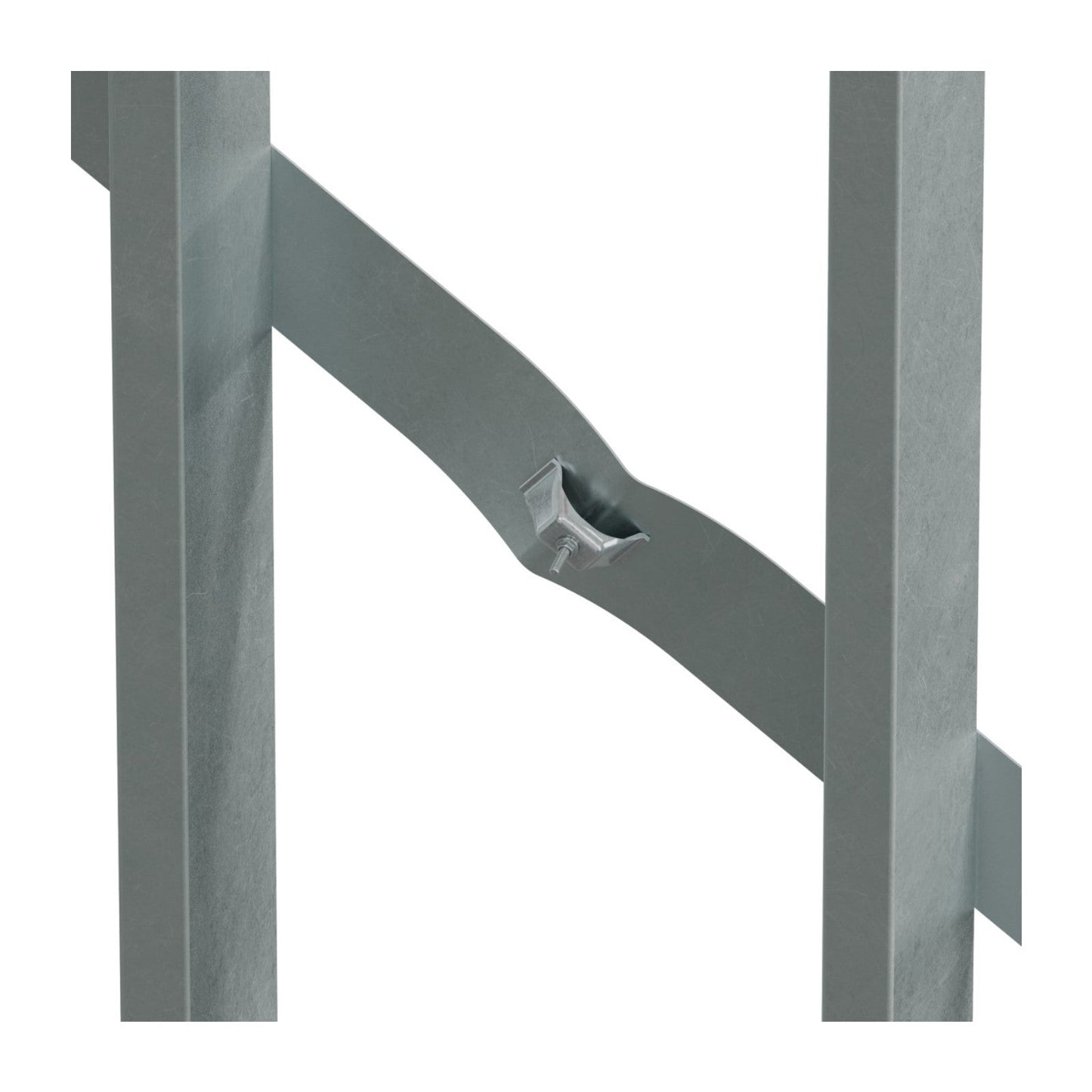

  1. Positioning: Place the WBT near the center of the diagonal brace.

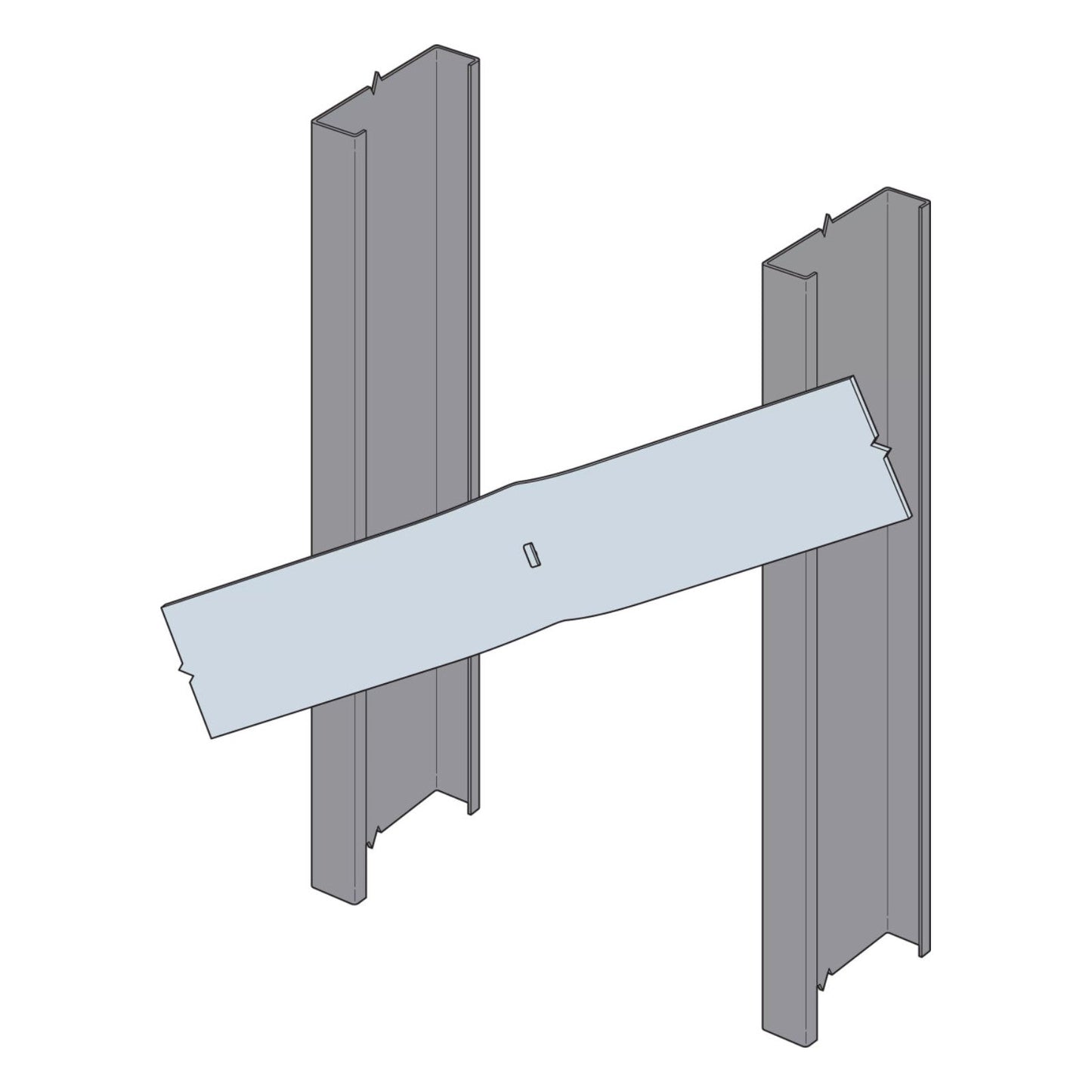

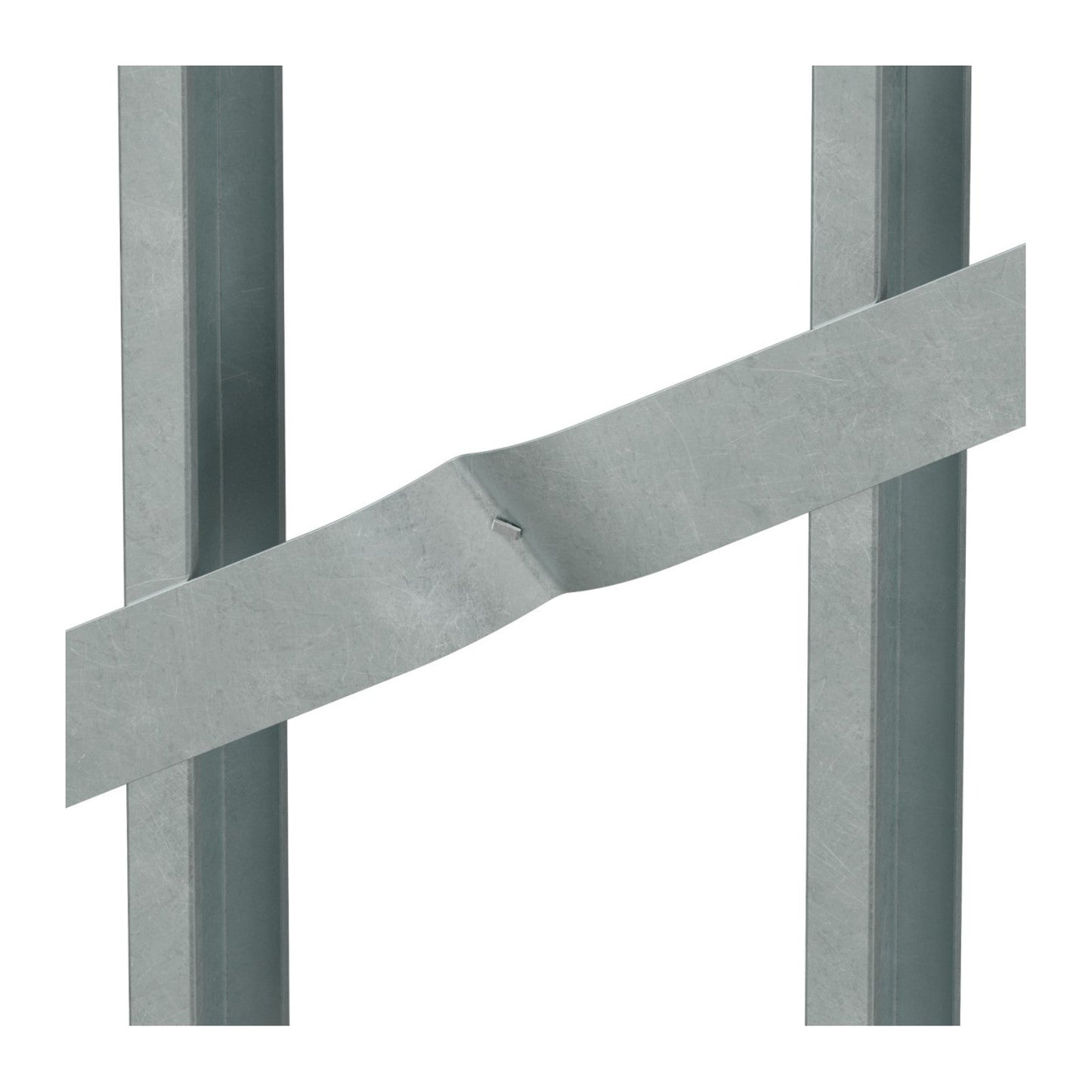

  2. Drilling: Drill a 1/4"-diameter hole through the center of the strap width.

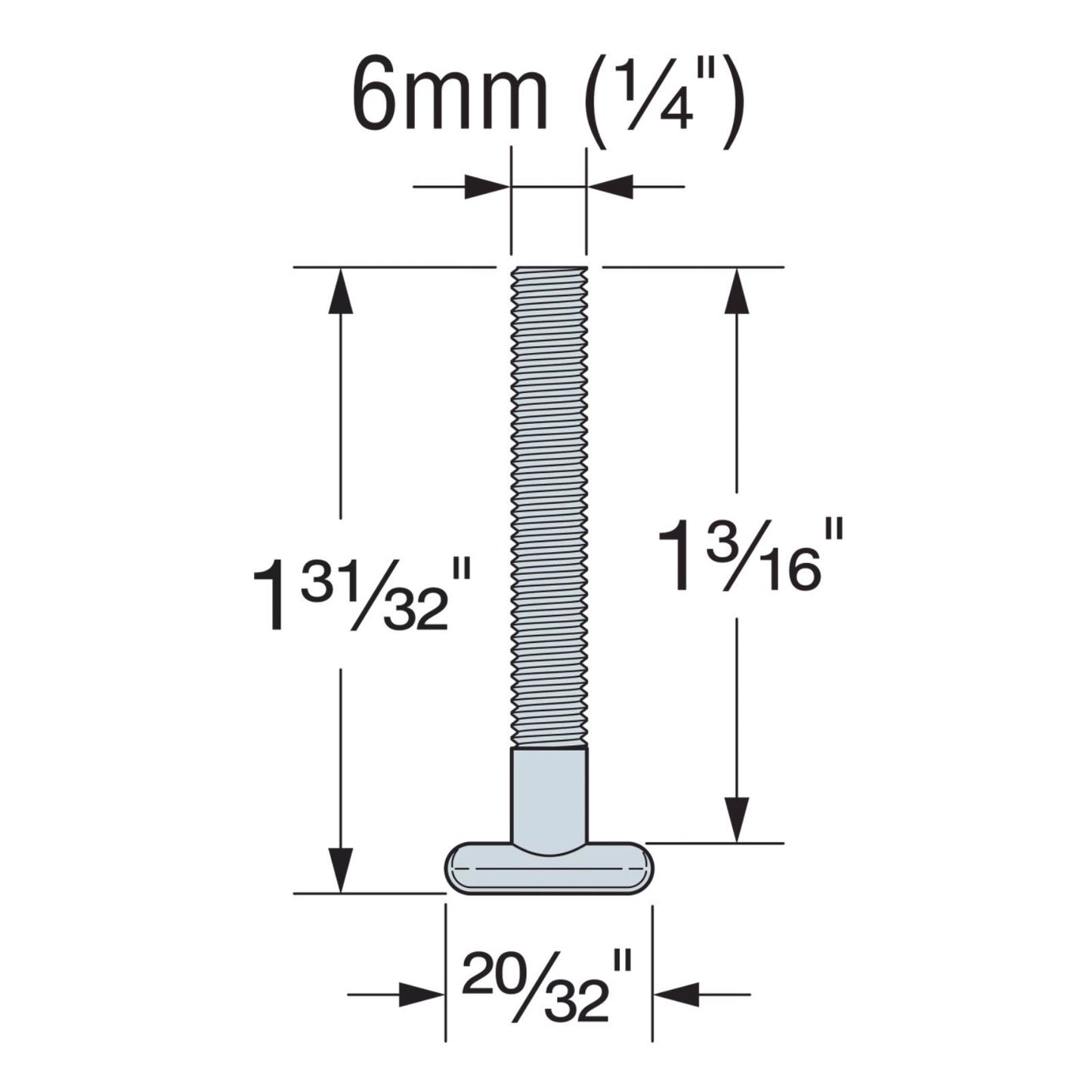

  3. Assembly: Insert the bolt through the strap hole and WBT, ensuring the nut faces the wall cavity.
  4. Tightening: Use a 10mm hex head socket setter to tighten the nut until the slack is removed from the strap.

Specifications

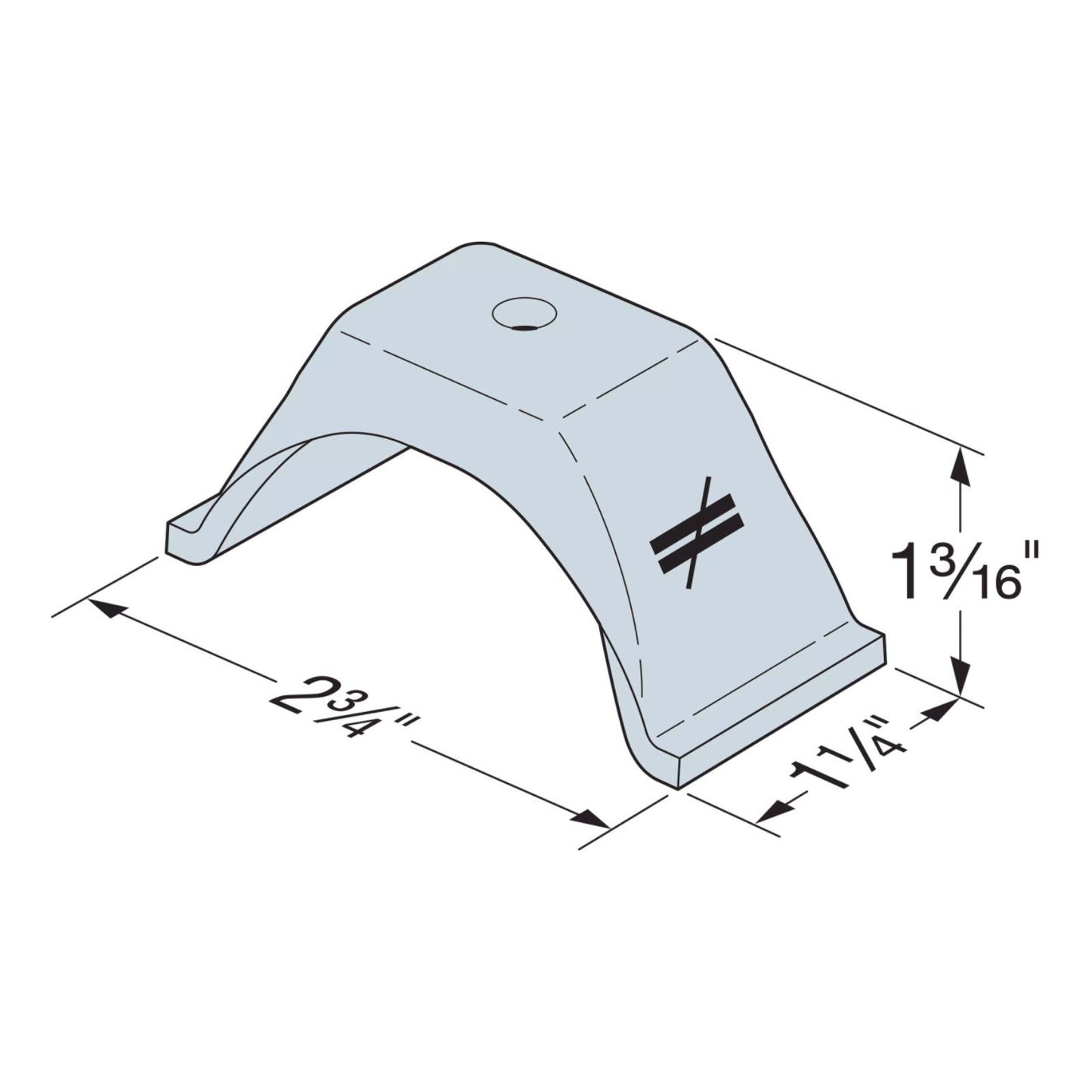

Width: 1-1/4"
Length: 2-3/4"
Height: 1-3/16"
Thickness: 118mm
Material: Carbon Steel
Finish: Zinc Galvanized
Manufacturer Name: Simpson Strong-Tie
Quantity: 30
