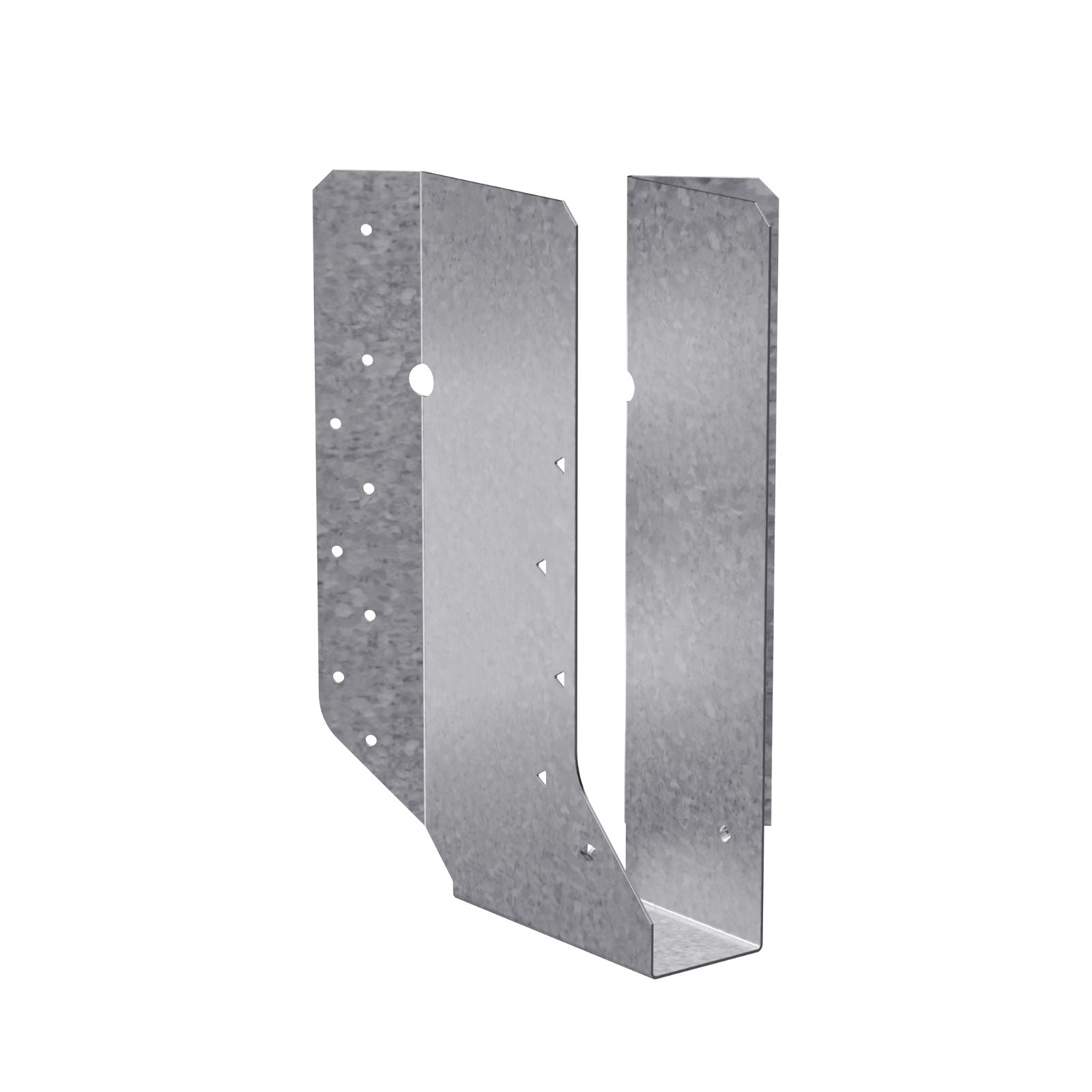

Simpson SUR210SS Joist Hanger Skewed Right - Stainless Steel

SKU: SUR210SS
$31.64

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR210SS skewed joist hanger is made out of 316L stainless steel and offers maximum corrosion resistance in harsh exterior conditions.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

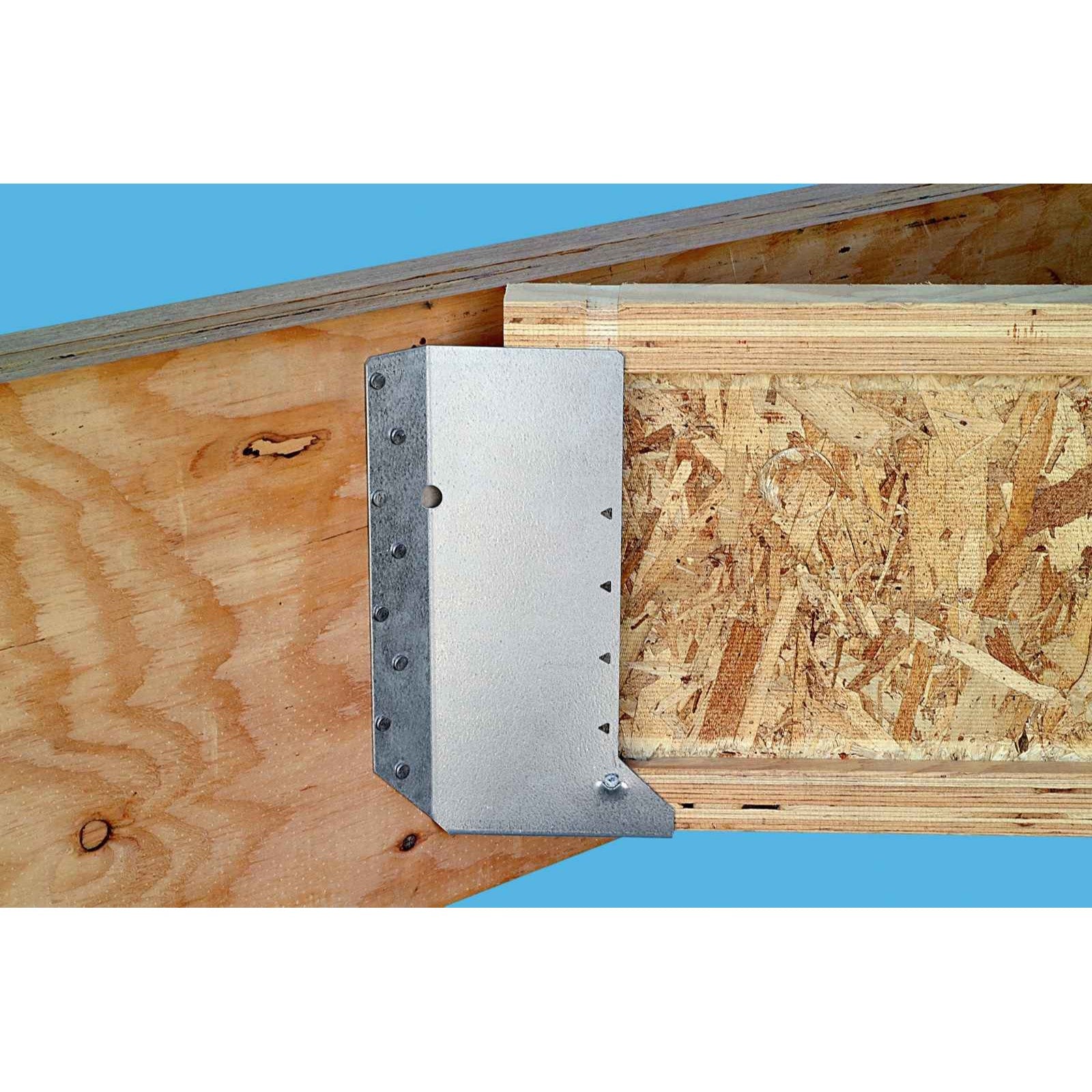

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-...

Read More

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR210SS skewed joist hanger is made out of 316L stainless steel and offers maximum corrosion resistance in harsh exterior conditions.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
316L Stainless Steel

manufacturer name:
Simpson Strong-Tie

fasteners required:
Face - (10) 0.162" x 3-1/2" Nails
Joist - (10) 0.148" x 1-1/2" Nails

for treated lumber:
yes

height:
8-1/8"

joist size:
2X10

thickness:
16 Gauge

width spec:
1-9/16"

Product Spec Sheet:
