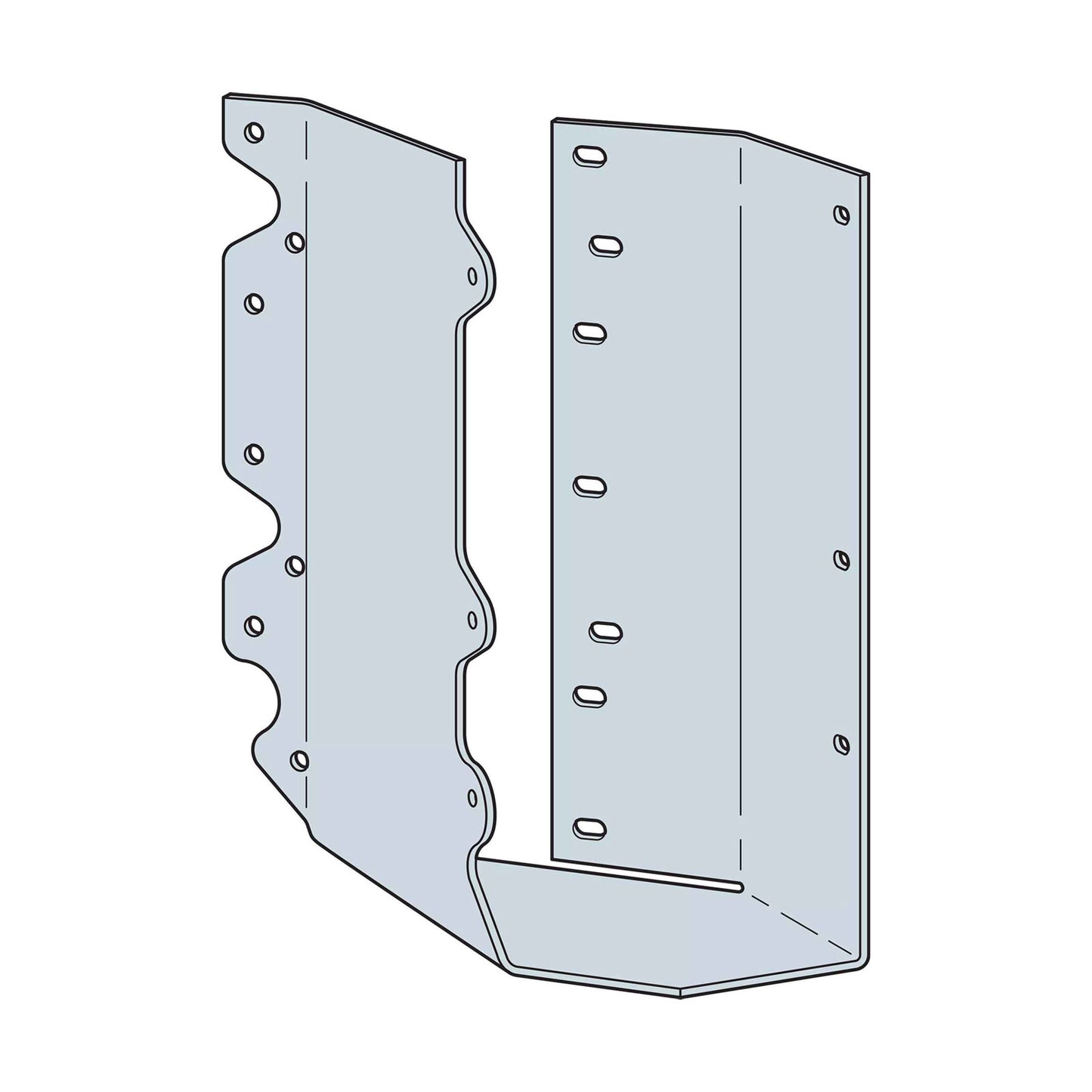

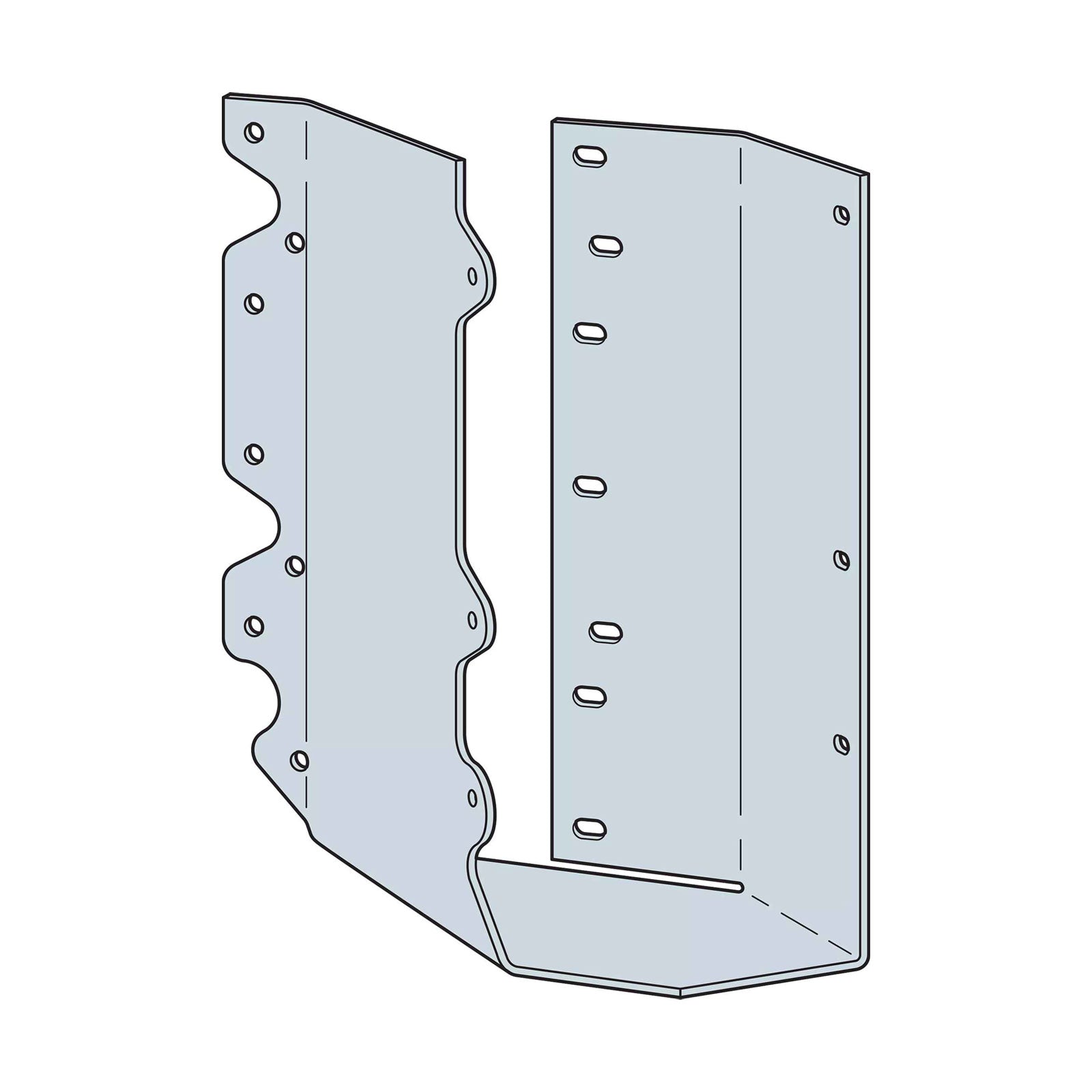

Simpson SURC26-2 Skewed U-Shaped Hanger Right, Concealed Flanges - G90 Galvanized
Simpson SURC26-2 Skewed U-Shaped Hanger Right, Concealed Flanges - G90 Galvanized
Description:
Description:
Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SURC26 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 4-15/16"
Fasteners required: Face: (8) 0.162 X 3-1/2" Joist: (4) 0.162 X 2-1/2"
Thickness: 16 Gauge
Quantity: 1
Width: 3-1/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Joist size: 2X6 Double
Product Guide: View Spec Sheet
Features
Features
•Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
•These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
•A2 (acute) flange turned in to accommodate end-of-wall installation
Installation
Installation
• Use all specified fasteners. These hangers will normally accommodate a 40-to-50-degree skew.
• Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
• The joist end may be square cut or bevel cut.
