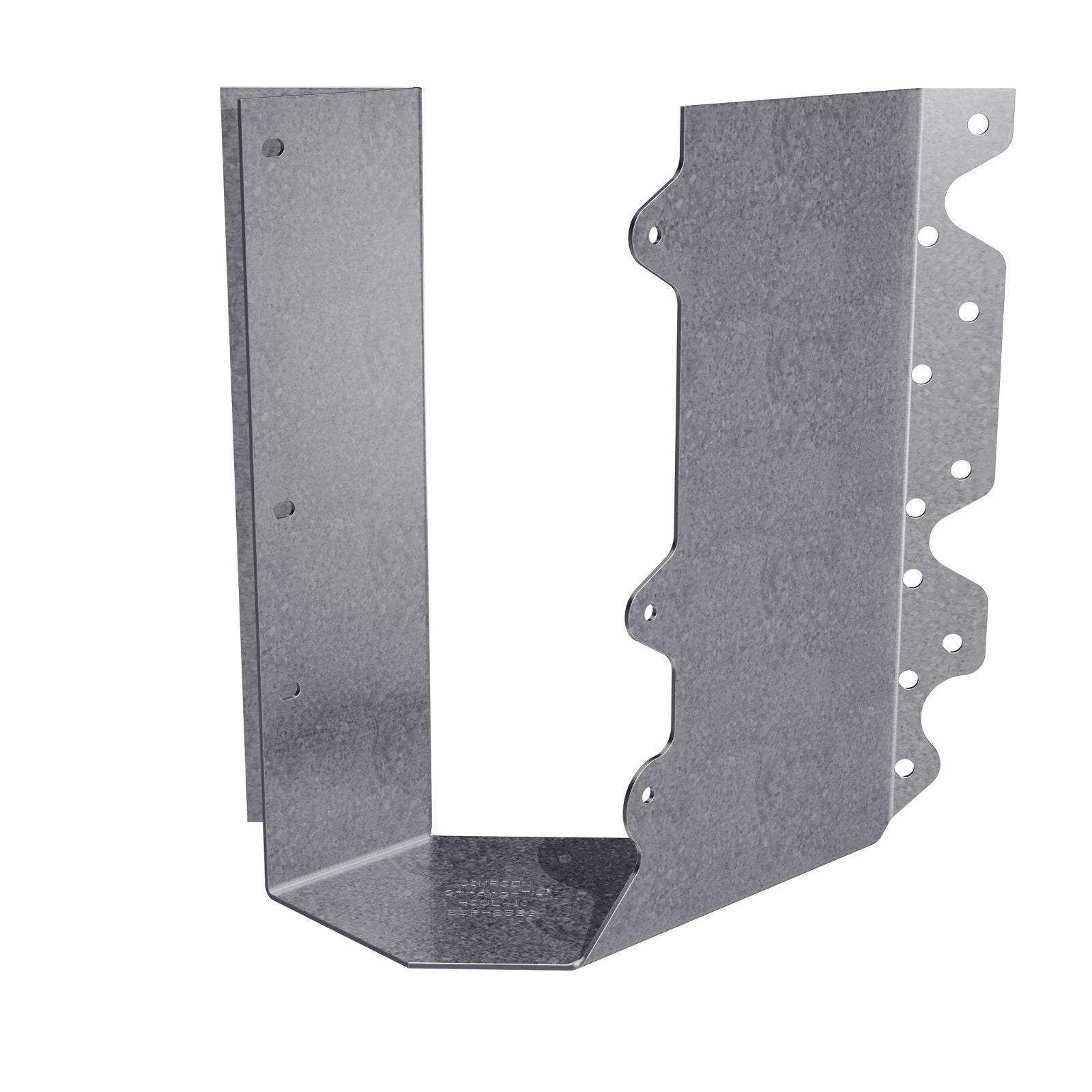

Simpson HSUL410 Joist Hanger Skewed Left - Galvanized

SKU: HSUL410
$33.62

Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUL410 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

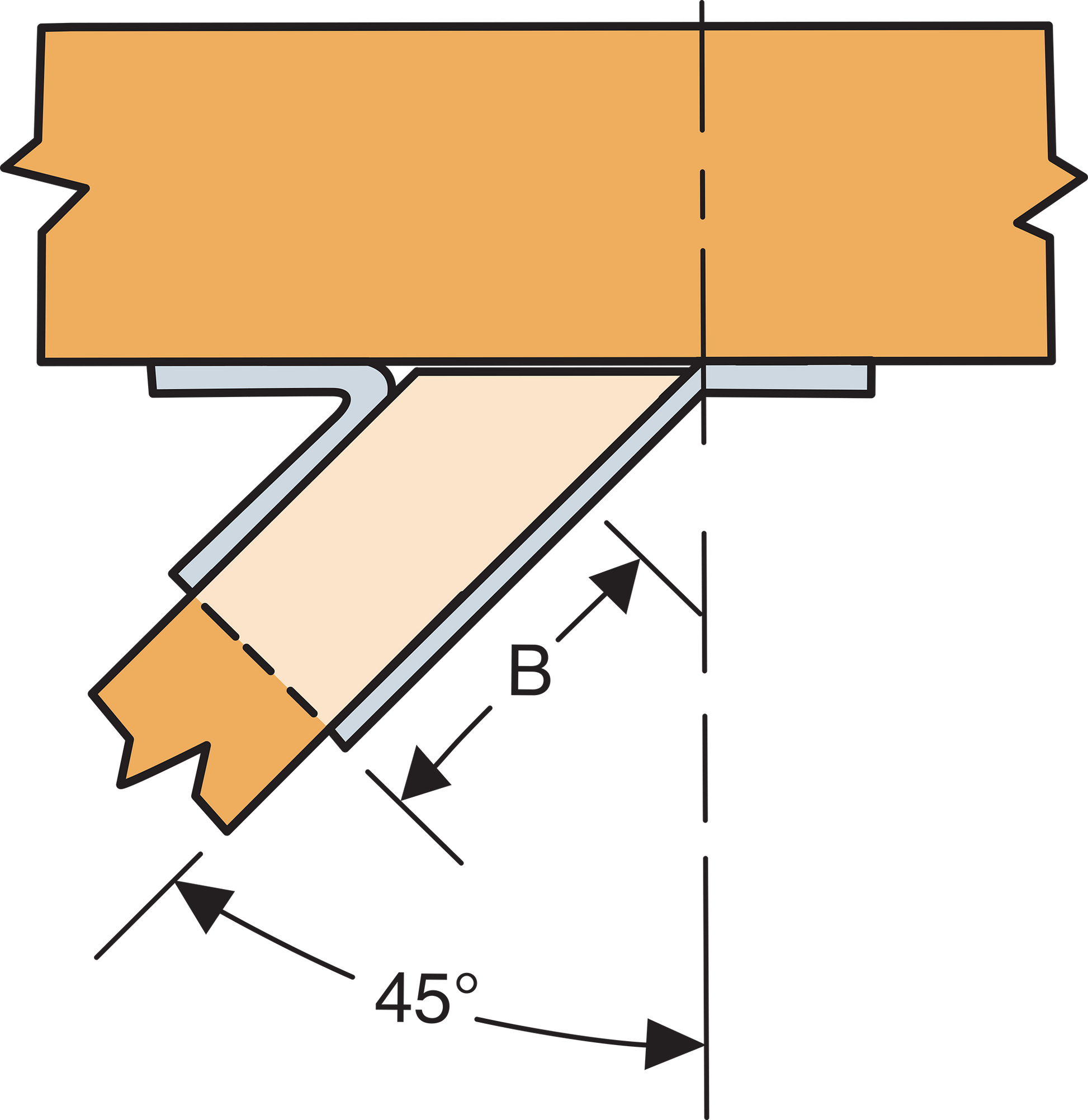

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-...

Read More

Simpson Strong-Tie HSUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUL410 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Face - (20) 0.162" x 3-1/2" Nails
Joist - (6) 0.162" x 3-1/2" Nails

for treated lumber:
no

height:
8-1/2"

joist size:
4X10

thickness:
14 Gauge

width spec:
3-9/16"

Product Spec Sheet:
