SKU: TC28

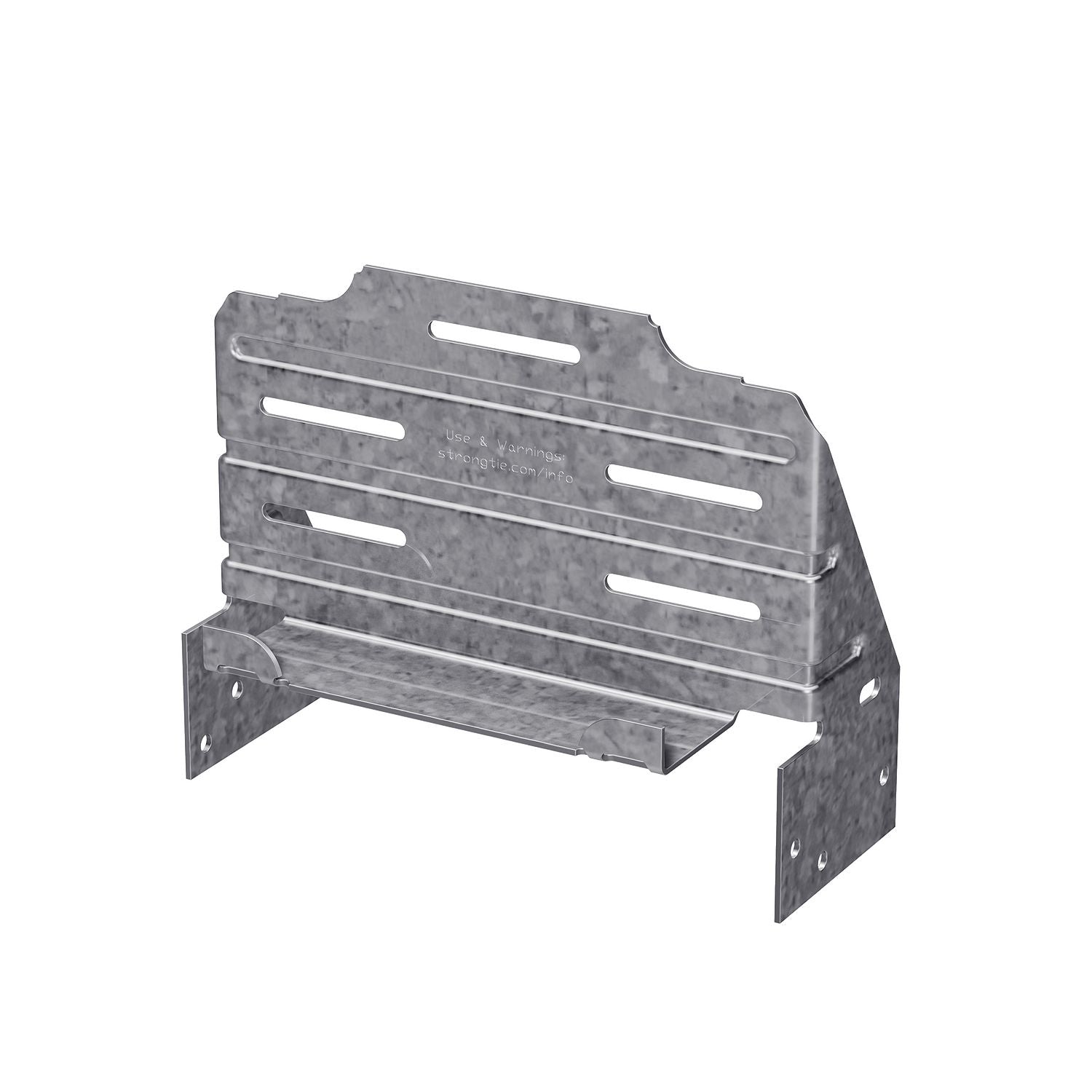

Simpson TC28 Scissor Truss Connector - Galvanized

Simpson TC28 Scissor Truss Connector - Galvanized

Regular price $23.61
Sale price $23.61 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships May 30 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The TC truss connector is an ideal connector for scissor trusses and can allow horizontal movement up to 1 1/4". The TC also attaches plated trusses to top plates or sill plates to resist uplift forces. Typically, the TC truss connector is used on one or both ends of truss as determined by the designer.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:


Fasteners required: See Spec Sheet
Thickness: 16 Gauge
Finish: G90 Galvanized
Product Guide: View Spec Sheet

Installation

Installation
• Drive 0.148" x 3" nails into the truss at the inside end of the slotted holes (inside end is towards the center of the truss and clinch on back side). Do not seat these nails into the truss — allow room under the nail head for movement of the truss with respect to the wall.
• After installation of roofing materials nails may be required to be fully seated into the truss. (As required by the designer or truss designer).

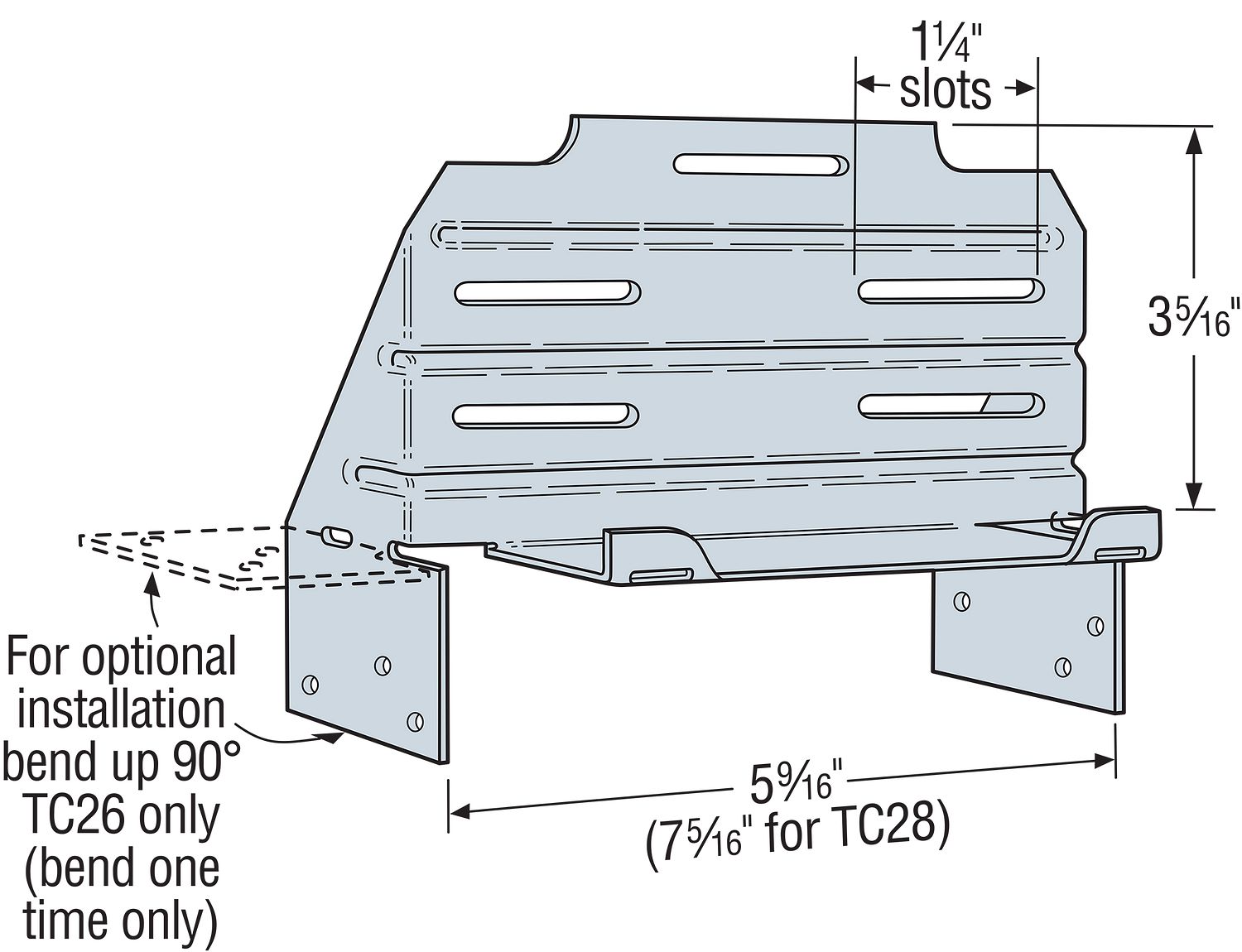

Optional TC Installation
• Bend one flange up 90°.
• Drive specified nails into the top and face of the top plates or install Titen Turbo™ screws into the top and face of masonry wall.
• See optional load tables and installation details.
