SKU: THASR29-2

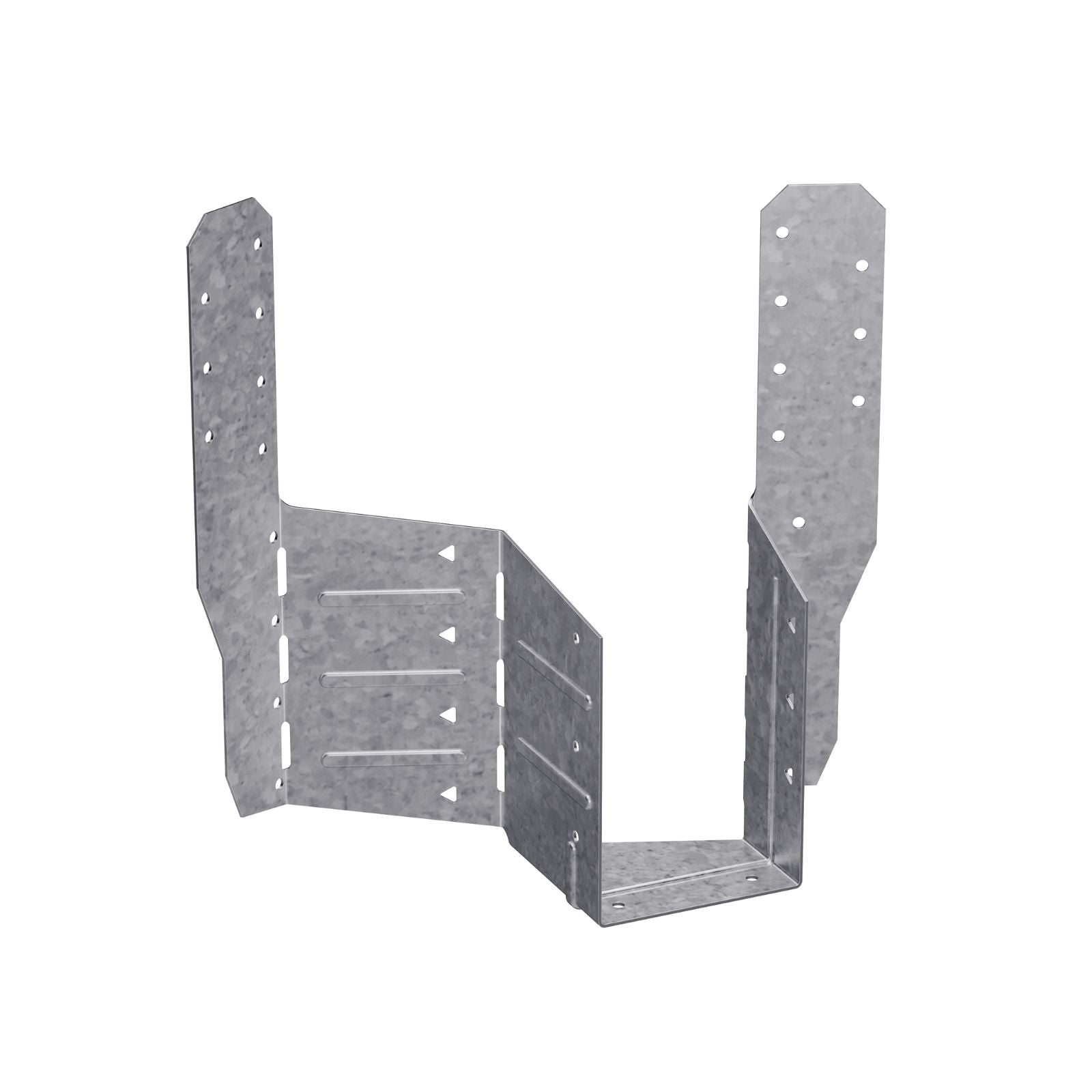

Simpson THASR29-2 Double 2x9 Adjustable Truss Hanger, Skewed Right - G90 Galvanized

Regular price $8200
Ships Nov 17 when you order now

Description

Simpson Strong-Tie THASR/L hangers combine the height adjustability of THA hangers with field skewability, offering maximum flexibility for the installer, and eliminating the need for special orders. Shipped at 22 1/2 degrees right, the THASR29-2 hangers can be field skewed from 22 1/2 degrees or up to 75 degrees (up to 85° for the THASR/L29 and THASR/L29-2). The Strong-Tie THASR29-2 adjustable truss hangers features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.

  • Product is factory skewed to 22 1/2° and may be field skewed from 22 1/2° to 75° (up to 85° for the THASR/L29 and THASR/L29-2). See Installation Sequence below for skews greater than 22 1/2°.

  • For 22 1/2° skew installations, fill all triangle holes. Triangle holes do not need to be filled for skews greater than 22 1/2°.

  • For all installations, fill the fastener hole(s) in the bottom of the hanger seat (THASR/L29 has one and all other models have two).

  • For top flange installations, the straps must be field-formed over the header a minimum of 2".

  • THASR/L29 and THASR/L29-2—For installations where either strap cannot be field-formed over the header, install the strap(s) vertical and fill all holes. Loads must be reduced as noted in the table footnotes.

  • THASR/L422—For face-mount installations, install the carrying member fasteners into the lowest holes.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications

Height: 9-7/8"
For Treated Lumber: No
Manufacturer Name: Simpson Strong-Tie
Fasteners Required: SEE PRODUCT GUIDE DOCUMENT
