Shop more THGB/THGBH Truss Girder Hangers
SKU: THGBH4

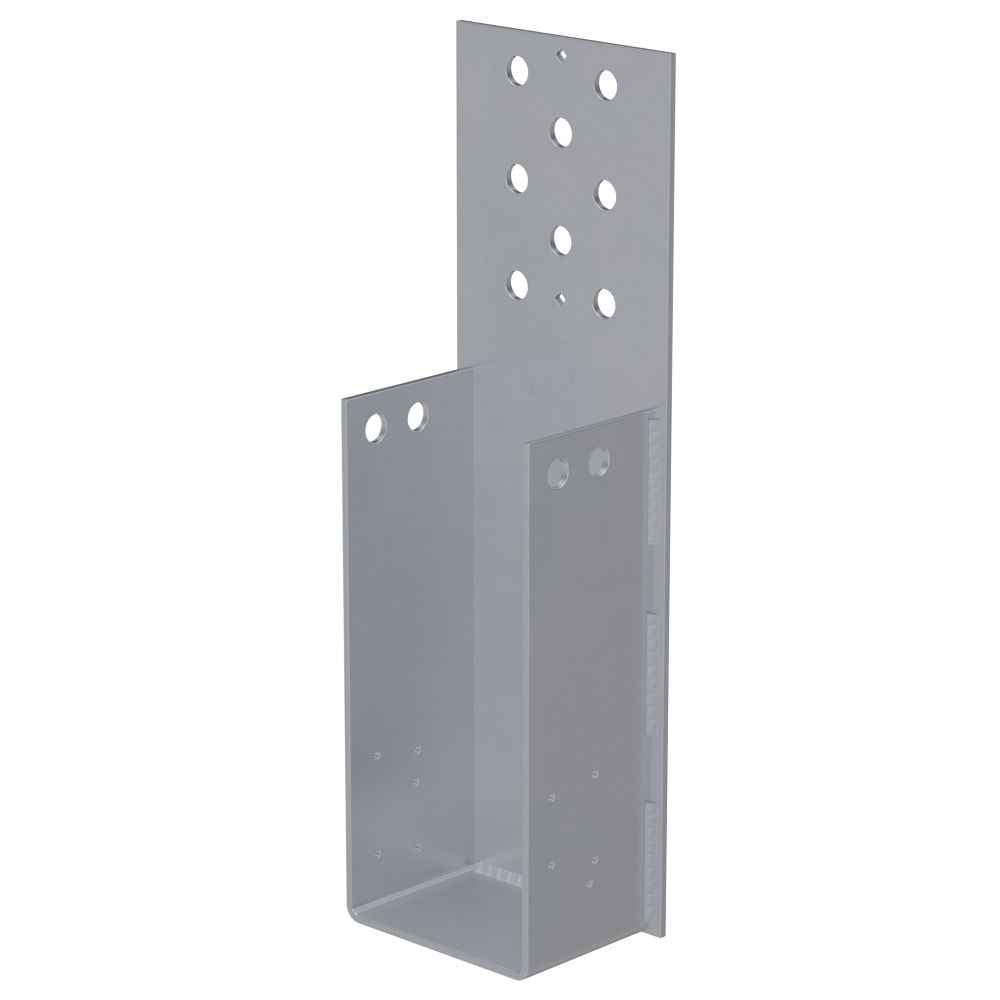

Simpson THGBH4 Truss Girder Hanger, PKG 1

Simpson THGBH4 Truss Girder Hanger, PKG 1

Regular price $487.87
Sale price $487.87 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 2 hours 8 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson THGB truss girder hangers are high capacity, welded hangers designed for multi-ply girder trusses. The THGB series offers optional installation with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, and the bolted THGBH hangers offer higher design loads. For a lower cost alternative that uses Strong-Drive SDS Heavy-Duty Connector screws instead of bolts and offers high load capacities, see the THGQ/THGQH series.


Installation:
  • Use all specified fasteners.
  • All multiple members must be fastened together to act as a single unit.
  • Maximum 11 7/8" bottom chord in the carrying member to allow for the minimum bolt end distance.
  • Bolts must be installed symmetrically when using less than 8 bolts on the 8-bolt backplate.
  • Girders must be adequately laterally braced to prevent excessive displacement due to secondary torsional stresses (Ref ANSI/TPI 1-2007 Section 7.5.3.5).

California Residents: WARNING

Specifications:


Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-All multiple members must be fastened together to act as a single unit.
-Maximum 11 7/8" bottom chord in the carrying member to allow for the minimum bolt end distance.
-Bolts must be installed symmetrically when using less than 8 bolts on the 8-bolt backplate.
-Girders must be adequately laterally braced to prevent excessive displacement due to secondary torsional stresses (Ref ANSI/TPI 1-2007 Section 7.5.3.5).
