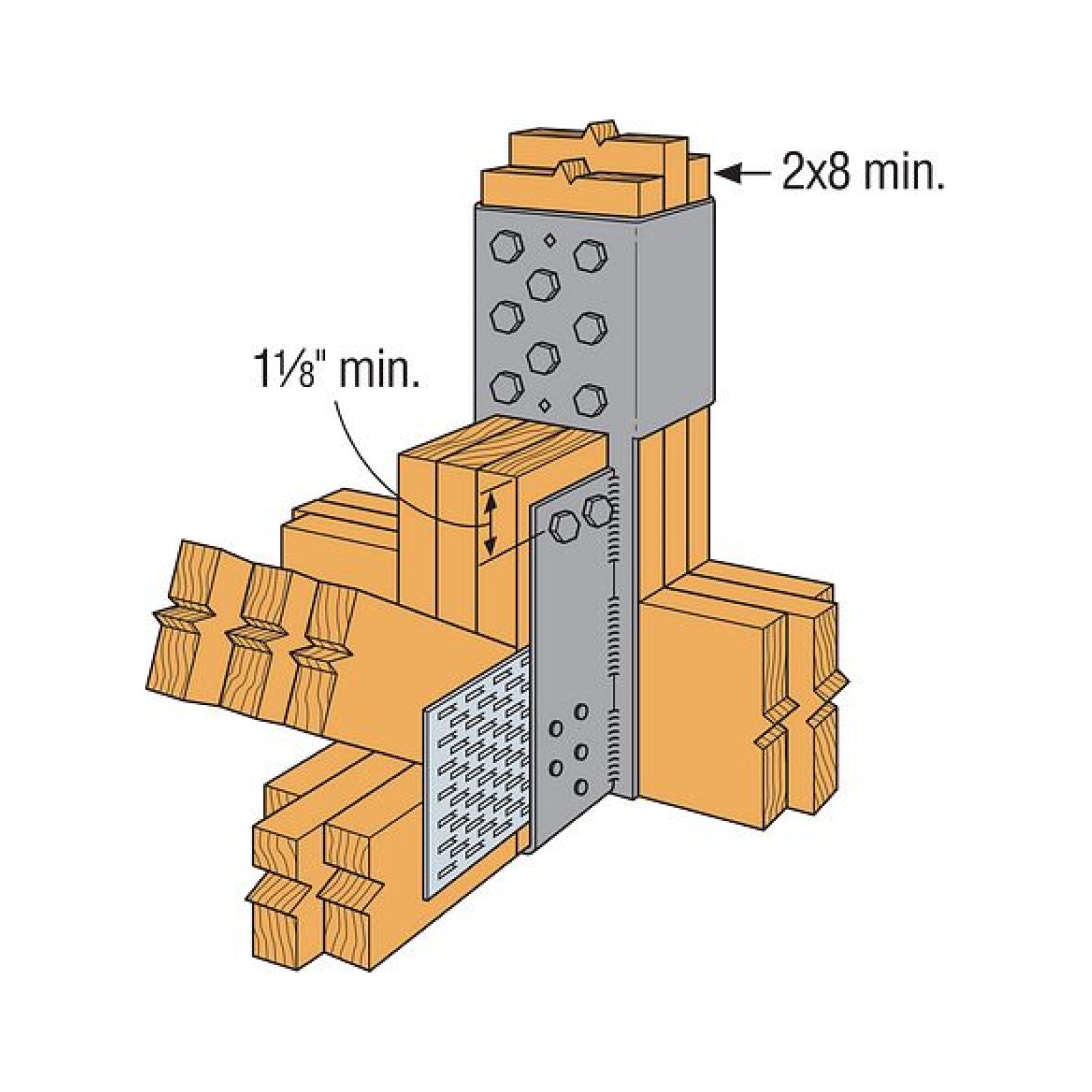

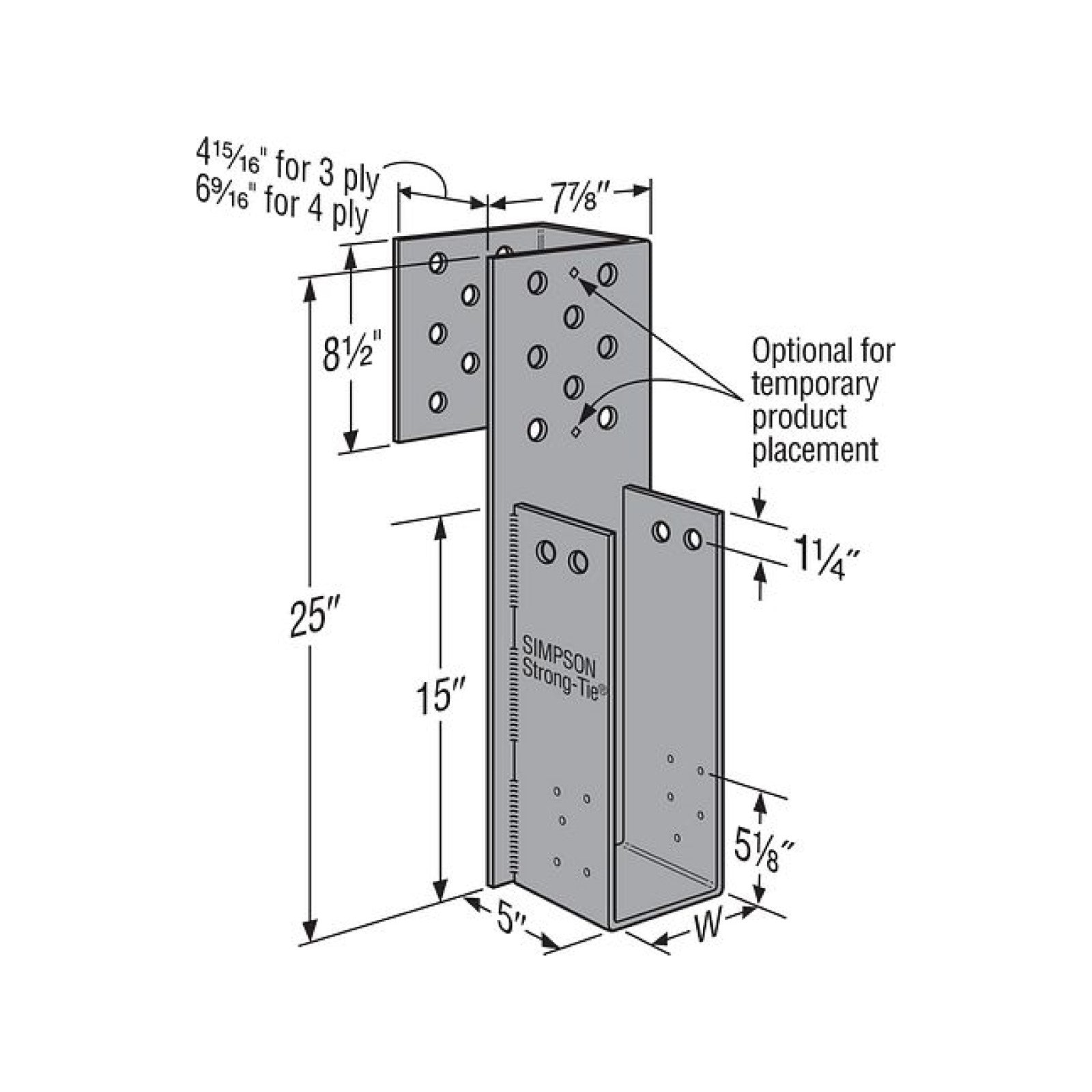

The THGW3-3 is an extra-high-capacity bolted hanger designed for installing multi-ply girder trusses. This welded hanger attaches to a vertical web and features a unique wraparound shape that supports higher loads with a double-shear design.

For custom options give us a call at (888) 794-1590 and we would be glad to custom order the truss hanger you need for your project!

- Use all specified fasteners; see Spec Sheet
- All multiple members must be fastened together to act as a single unit
- Maximum 11 7/8" bottom chord in the carrying member to allow for the minimum bolt end distance
- Bolts must be installed symmetrically when fewer than the maximum number of bolts are used on the backplate
- Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses (refer to ANSI/TPI 1-2014 Section 7.5.3.5)
