SKU: WMU1.62X

Simpson WMU1.62X GFCMU Top-Flange Hanger

Simpson WMU1.62X GFCMU Top-Flange Hanger!

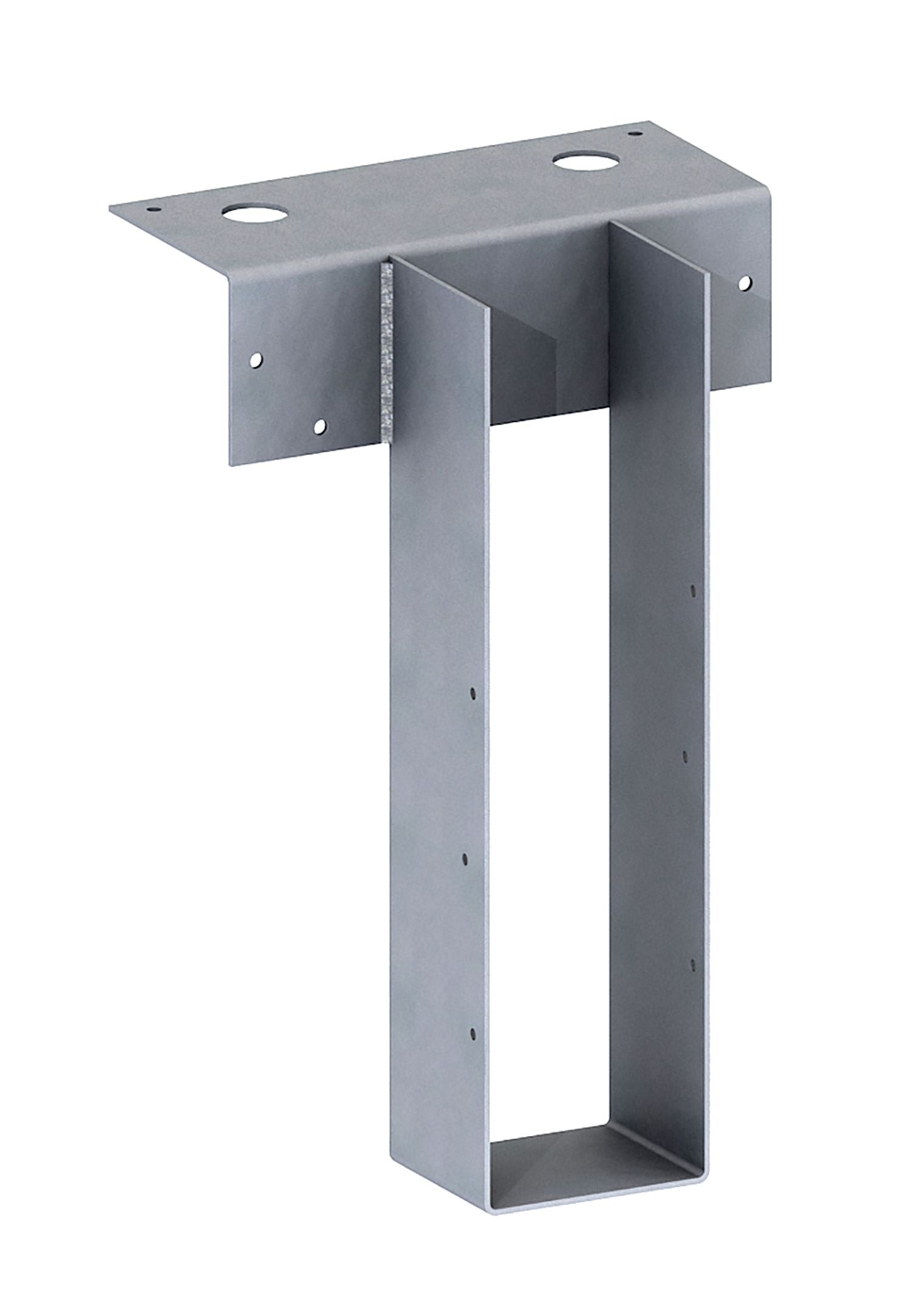

  • Simpson WMU GFCMU Top-Flange Hanger

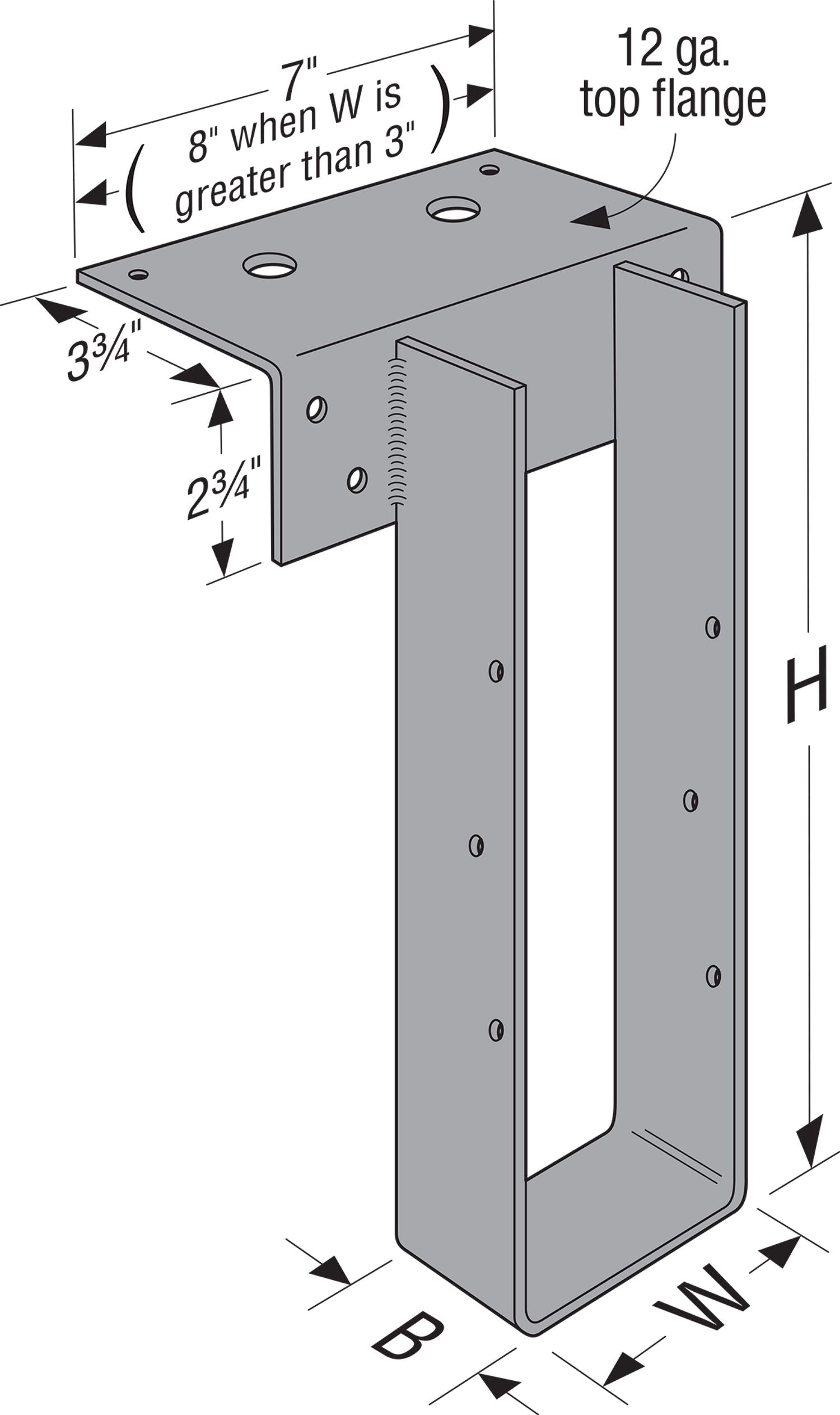

  • Simpson WMU GFCMU Top-Flange Hanger - Callout
1 2

Continue Browsing

WP/HWP/HWPH/WMU Purlin Top-Flange Hangers
SKU: WMU1.62X

Simpson WMU1.62X GFCMU Top-Flange Hanger

Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Titen Turbo screws or Hex-Head Masonry Screws
Joist size: 1-ply Truss
Manufacturer name: Simpson Strong-Tie
Thickness: 12 Gauge Top Flange and Stirrup
Width: 1-5/8”
Description
  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

The WMU is designed for use on standard 8" grout-filled concrete masonry units (GFCMU). This top-flange masonry hanger may be offset to the left or right to accommodate end-of-wall or corner placements. The WMU may be sloped up to 45° with no reduction in download or uplift and skewed up to 45° with no reduction in download.

  • Hot-dip galvanized available: specify HDG when ordering.
  • Uplift loads have been tested and increased for earthquake or wind loading with no further increase allowed
  • When offset or skewed, the hanger no longer provides uplift support; end vertical must be minimum double 2x.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
