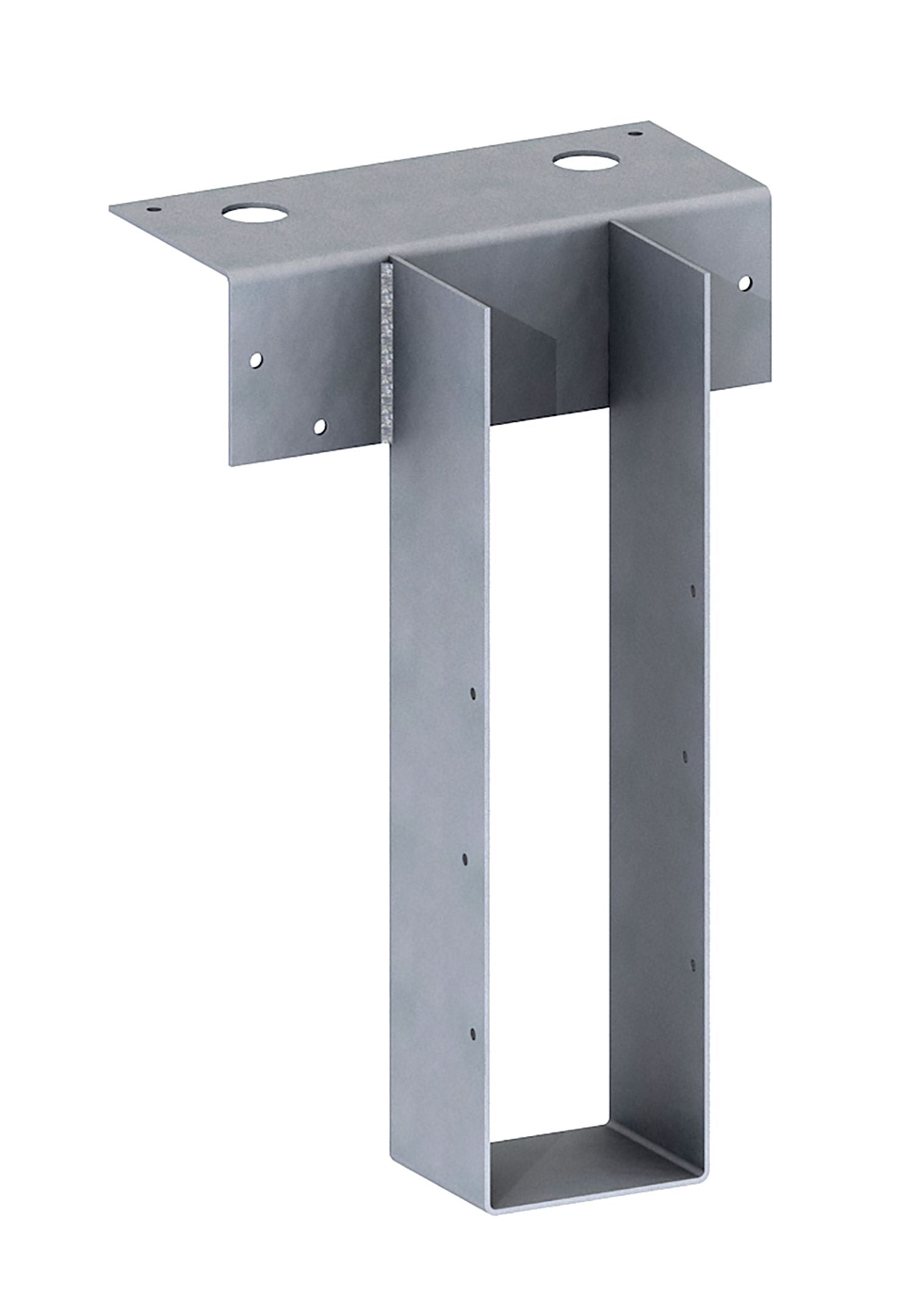

Simpson WMU2.06X GFCMU Top-Flange Hanger
Simpson WMU2.06X GFCMU Top-Flange Hanger
No reviews
Call for Price
Call to Order
Payment methods
Accepted payments:
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.
Description:
Description:
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

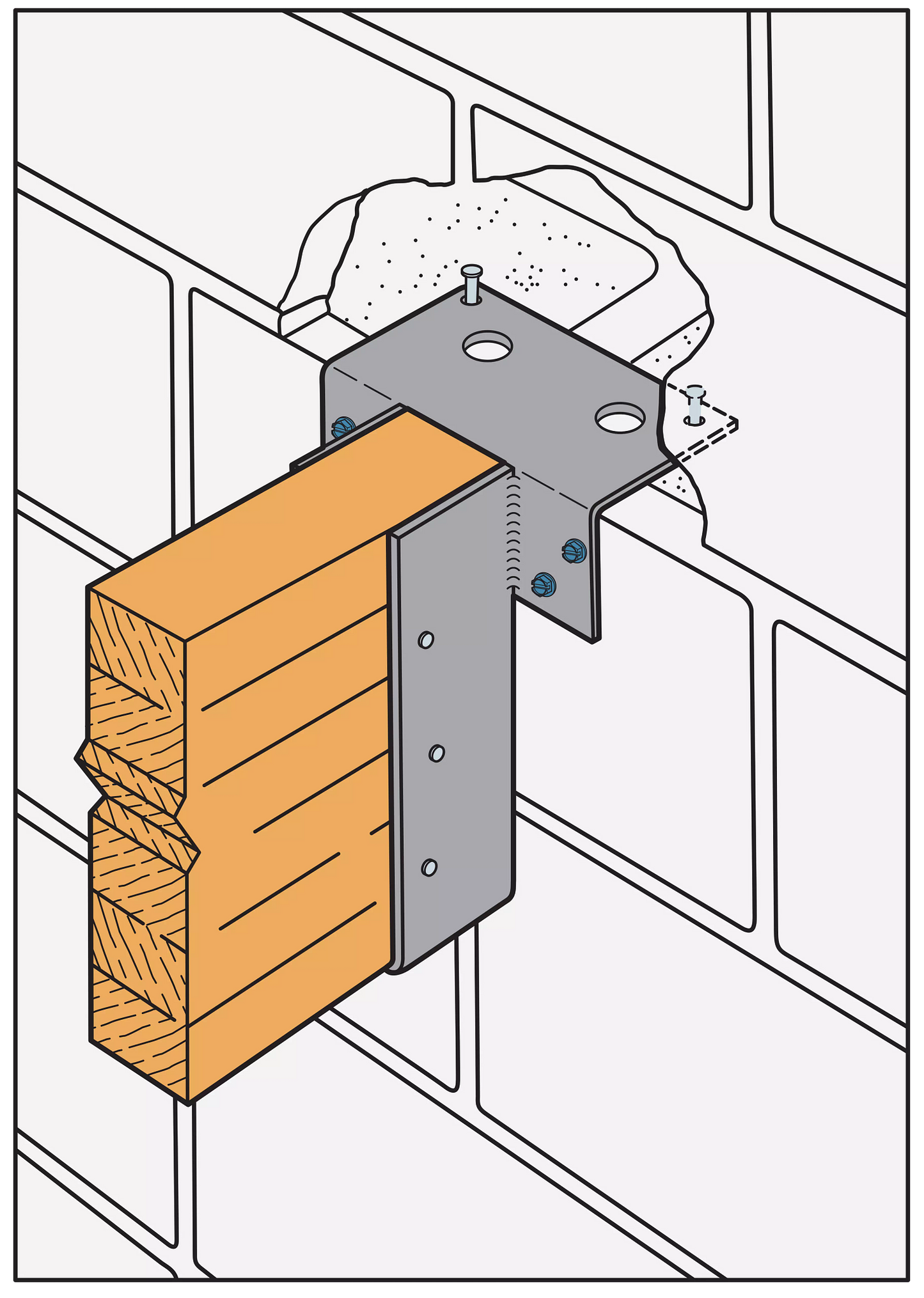

The WMU is designed for use on standard 8" grout-filled concrete masonry units (GFCMU). This top-flange masonry hanger may be offset to the left or right to accommodate end-of-wall or corner placements. The WMU may be sloped up to 45° with no reduction in download or uplift and skewed up to 45° with no reduction in download.
- Hot-dip galvanized available: specify HDG when ordering.
- Uplift loads have been tested and increased for earthquake or wind loading with no further increase allowed
- When offset or skewed, the hanger no longer provides uplift support; end vertical must be minimum double 2x.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING

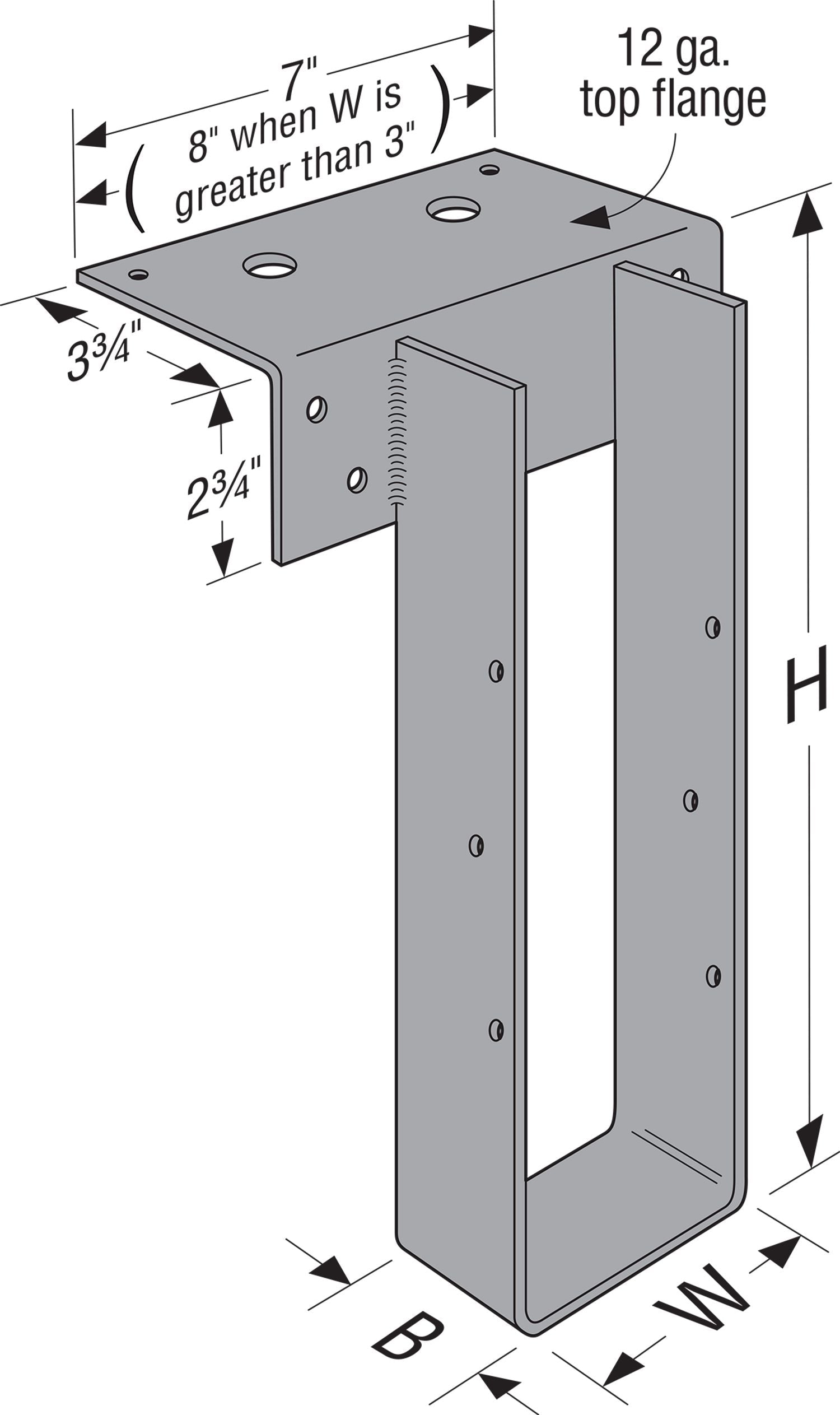

Specifications:
Specifications:
Fasteners required: Titen Turbo screws or Hex-Head Masonry Screws
Thickness: 12 Gauge Top Flange and Stirrup
Width: 2-1/16”
Manufacturer name: Simpson Strong-Tie Company Inc
Joist size: 2 I-joist
Product Guide: View Spec Sheet
