3/4" 6x37 Wire Rope Cable | 304 Stainless

This 3/4" Type 304 stainless steel wire rope features a flexible 6x37 class construction, making it an excellent choice for lifting, suspension, winch line, and general rigging applications where corrosion resistance and repeated bending performance are important. Combining durability, flexibility, and value, it is a versatile solution for both indoor and outdoor environments.

Flexible 304 Stainless Wire Rope for Rigging, Hoisting & Suspension Systems

Manufactured from Type 304 stainless steel, this wire rope provides greater corrosion resistance than galvanized wire rope while maintaining higher strength and a more economical price point than Type 316 stainless steel. The 6x37 class construction offers excellent flexibility and fatigue resistance, making it ideal for applications that involve frequent movement, bending, and cycling over sheaves or drums.

6x37 Wire Rope Configuration

This wire rope is manufactured using Type 304 stainless steel, a popular material choice for applications requiring dependable corrosion protection without the added cost of marine-grade alloys. It provides excellent resistance to rust and environmental exposure while maintaining strong mechanical properties.

The class of this wire rope is 6x37. These numbers nominally refer to the rope construction, indicating six outer strands surrounding the core and approximately 27-49 wires per strand. The actual construction supplied is 6x36. If a different construction is required, please contact us before ordering.

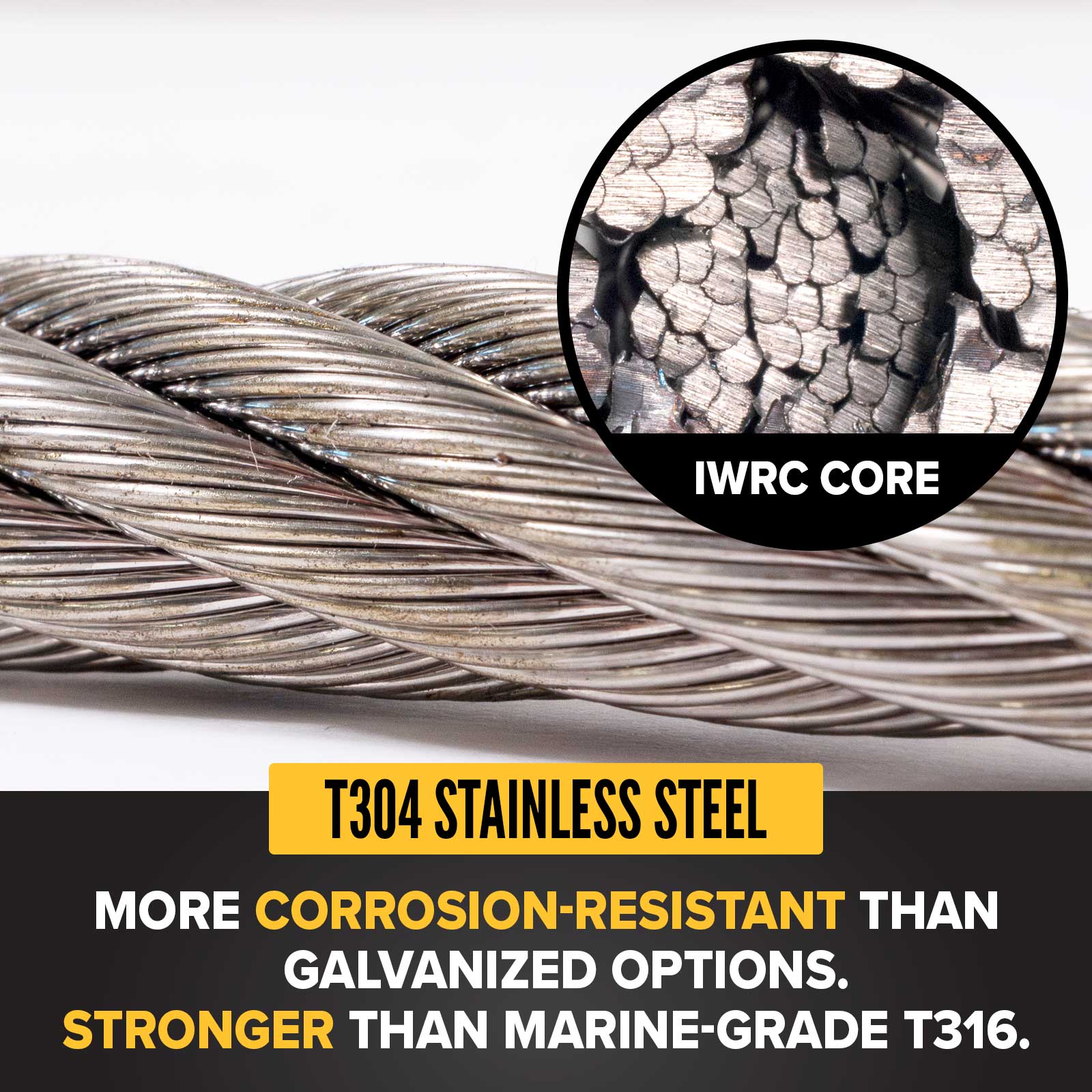

The Independent Wire Rope Core (IWRC) provides increased support and structural stability compared to fiber core alternatives. IWRC construction improves crushing resistance and maintains rope integrity under load, with a general operating temperature range of -40°F (-40°C) to 400°F (204°C).

Key Features

• Type 304 stainless steel provides excellent corrosion resistance for indoor and outdoor applications.
• 6x36 construction delivers superior flexibility and fatigue resistance.
• More corrosion-resistant than galvanized wire rope while offering greater strength than Type 316 stainless steel.
• IWRC core improves crushing resistance and load stability.
• Ideal for winch lines, suspension systems, hoisting, and general rigging applications.
• Performs well in applications involving repeated bending and dynamic loading.
• Meets Federal Specification RR-W-410 and ASTM A1023 requirements.
• Available by the foot for custom-length installations.

Installation Tips

• Use stainless steel fittings and hardware that are properly sized and rated for the intended application.
• Inspect wire rope regularly for wear, broken wires, deformation, or environmental damage.
• Follow applicable industry standards and manufacturer recommendations for installation, operation, inspection, and maintenance.

Wire Rope by the Foot Ordering FAQ

Will my 304 stainless steel wire rope arrive as one continuous length?
Yes. The quantity you order will be supplied as one continuous, uncut length of wire rope. For example, if you order a quantity of 1,000, you will receive a single 1,000-foot length.

Can I order multiple separate lengths?
Yes. To receive multiple lengths, add each length to your cart as a separate line item. For example, if you need two 1,500-foot lengths, enter a quantity of 1,500 and add it to your cart twice. Each line item will be cut and supplied as a separate length.

Can I order lengths shorter than the minimum order quantity if the combined total exceeds the minimum?
Yes. If your combined order will exceed the minimum quantity requirement but you need shorter individual lengths, please call our team to place your order. One of our product experts will be happy to assist.

Accessories & More

Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
