Straightpoint® 1 T Loadlink Plus - LLP1T
Specifications
The Straightpoint Loadlink Plus builds its display right into the load cell, with a 1-inch LCD screen so you can read tension without a separate handheld unit. Like the rest of the Plus line, it's built from hard-anodized, aerospace-grade aluminum for precise, repeatable tension measurement.
Key Features
- 1-ton tension load cell with a built-in 1-inch LCD display
- Push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm
- About 30% lighter on average than comparable products with the same safety rating
- Can connect to a wired HHP Handheld Plus for remote load monitoring
- Internal sealed enclosure for IP67/NEMA 6 environmental protection
- RFID-tagged and ASME B30.26 compliant, with a 2-year warranty

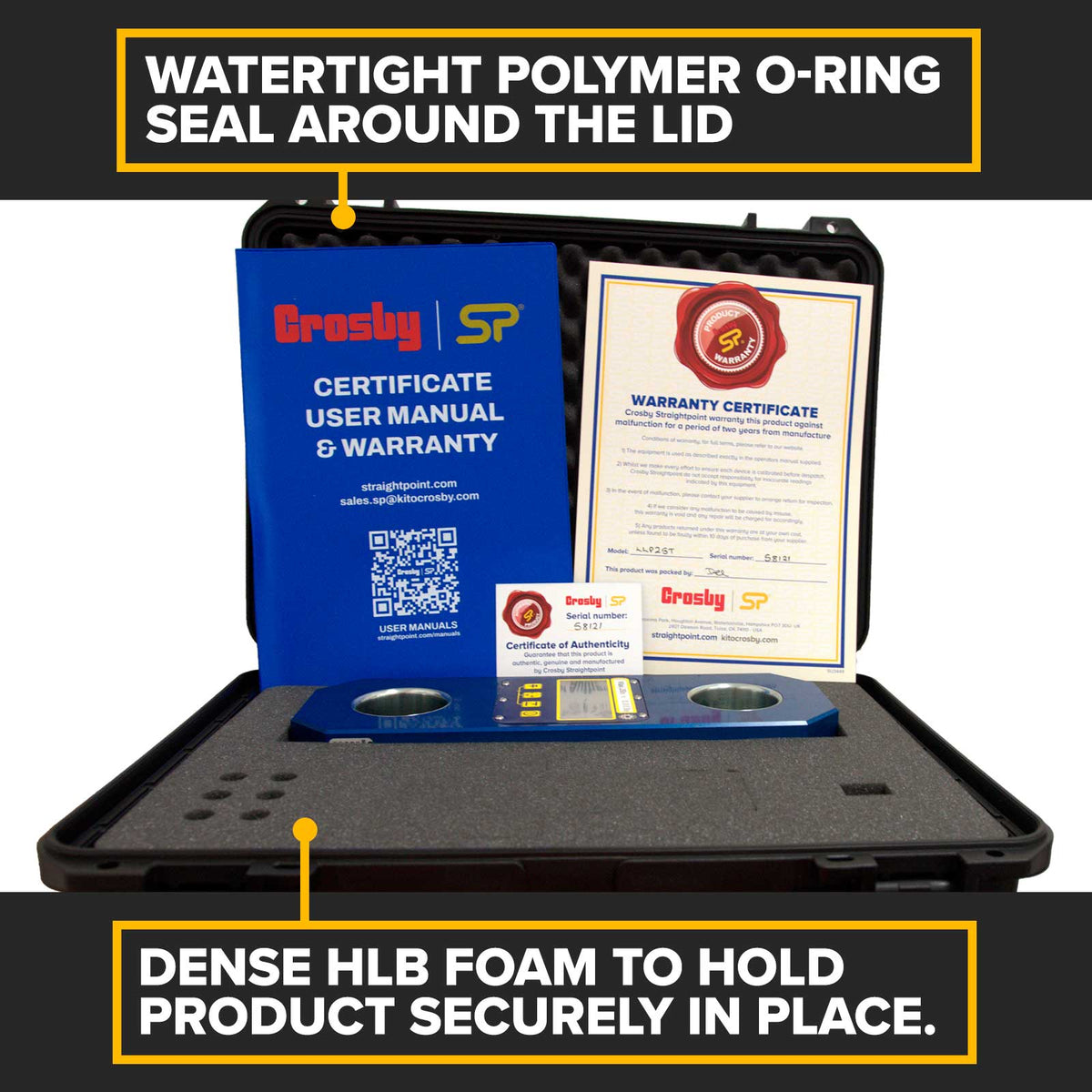

- Includes a calibration and proof test certificate and multilingual user manual
- Some kits include a pair of Crosby shackles; check your specific kit configuration
Applications
- Tandem lifting and lowering, overhead weighing, and bollard pull testing
- Tug testing, cable tensioning, and heavy lift projects
- Single point mooring where an on-board display speeds up readings
