SKU: RLP-12-T

Straightpoint® 12 T Radiolink Plus - RLP12T

Straightpoint® 12 T Radiolink Plus - RLP12T!

Skip to product information
1 of 4
SKU: RLP-12-T

Straightpoint® 12 T Radiolink Plus - RLP12T

$7,487.59
Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you order in the next 1 hour 34 minutes
Fill out the form below or give our sales consultants a call at 888-794-1590.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Safety Factor: 7:1
Load capacity: 26,400 lbs.
Pin Size: 1-3/8"
Type: Standard Load Cell
Power Source: Handheld: 2 x AA batteries | Loadcell: 4 x AA batteries
Accuracy: +/- 0.1% of Full Scale
Resolution: 5 lbs.
Range: 3,280'
Data Rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Operating Temperature: -10° to +50°C | 14° to 122° F
Battery Life: Handheld: 40 hours continuous | Loadcell: 1,200 hours continuous
Display Type: 240x128 Multi-Line Dot Matrix with Backlight
Item Weight: 8.2 lbs.
Standards: IP67
Manufacturer Name: Crosby Straightpoint
Manufacturer Part Number: RLP12T / 2789082
Description

The 12-ton Radiolink Plus ships complete with its own SW-HHP handheld display, unlike Compound Plus where the reader is sold separately, scaled up for mid-capacity rigging.

Key Features

  • 12-ton wireless tension load cell, SW-HHP handheld display included
  • Internal antenna range of up to 3,280 feet, tracking up to 4 load cells at once
  • Six AA alkaline batteries provide about 1,200 hours of power
  • Tare, unit selection (t/lbs/kg/kN), and an audible alarm on the handheld
  • Sealed enclosure rated IP67/NEMA 6

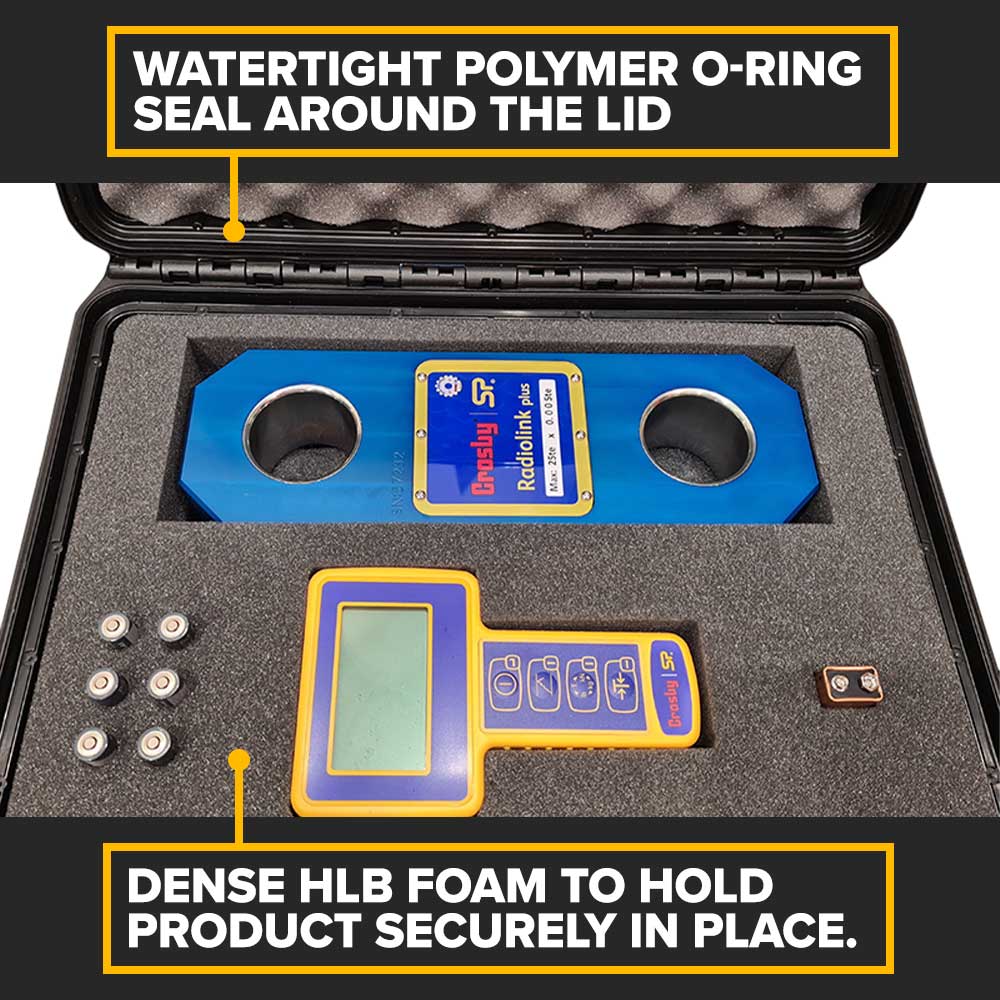

  • Calibration and proof test certificate, manual, and carrying case included
  • Some kits bundle a pair of Crosby shackles; check your configuration

Applications

  • Mid-capacity tandem lifting, water bag testing, and overhead weighing
  • Bollard pull, tug testing, and breakbulk applications
  • Heavy lift projects and spreader beam monitoring at a step up from the 1-ton model
