Terrier TSCC-W 1 Ton Universal Lifting Screw Clamp - 862711
Terrier TSCC-W 1 Ton Universal Lifting Screw Clamp - 862711!
Terrier TSCC-W 1 Ton Universal Lifting Screw Clamp - 862711
Specifications
WLL (tons): 1
The Terrier TSCC-W carries the same universal screw-clamp design as the TSCC, built for a wide variety of steel structures in either horizontal or vertical position. Its articulated lifting eye keeps clamping force consistent regardless of orientation, and the moveable cam on the thread spindle drives a strong grip onto the workpiece.
Key Features

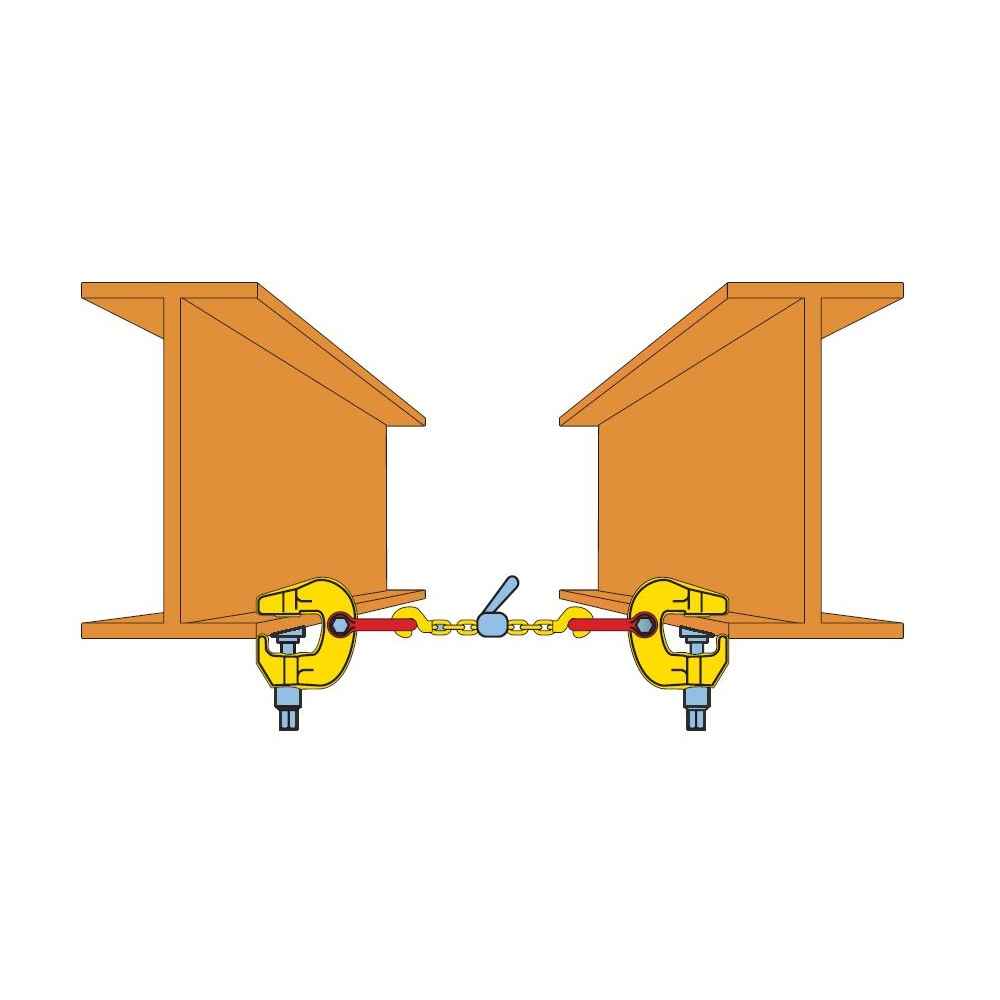

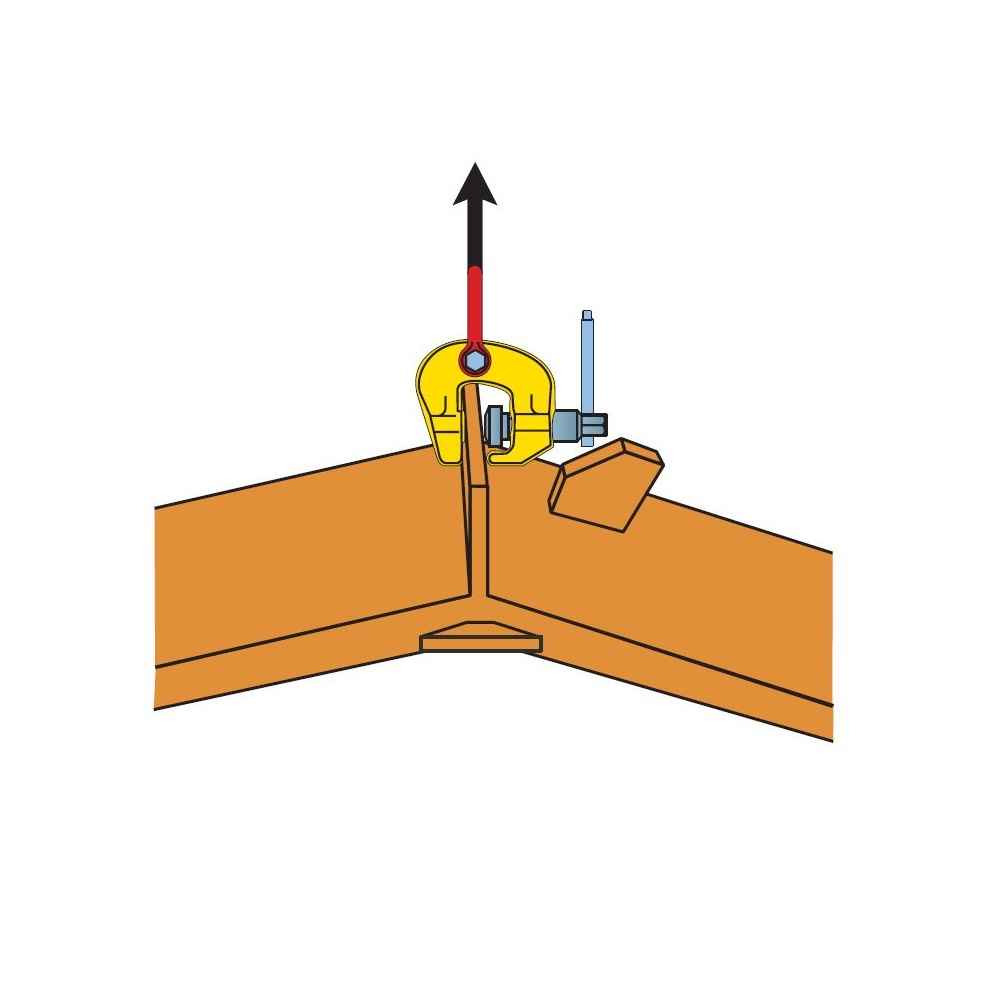

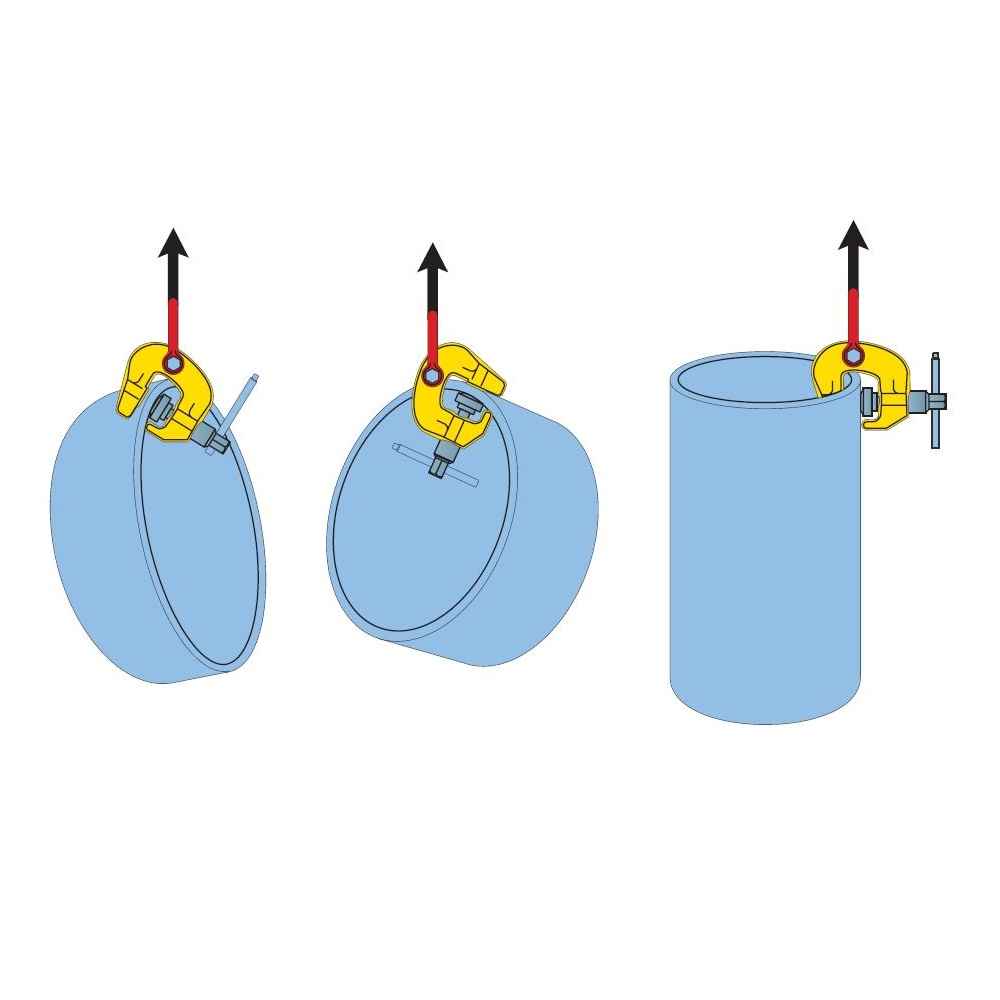

- Handles a wide variety of steel structures, horizontally or vertically

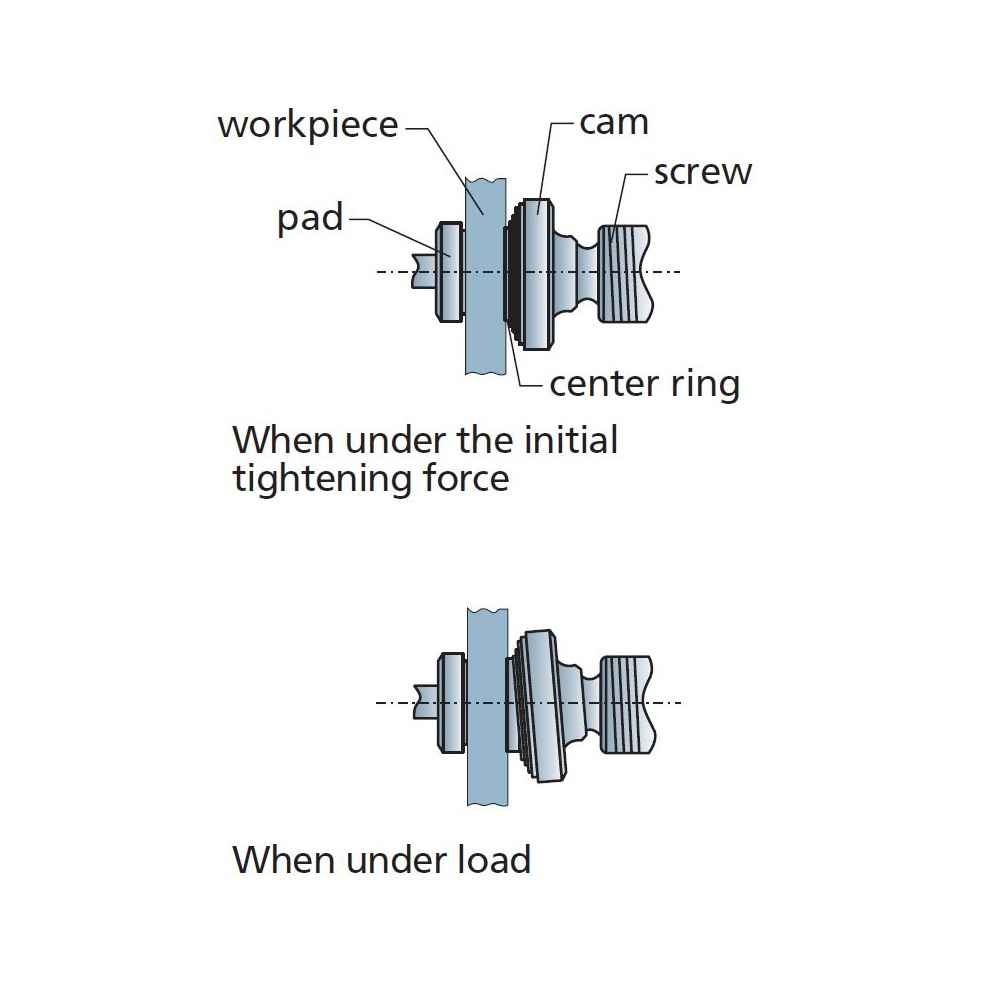

- Moveable cam on the thread spindle provides powerful clamping force
- Articulated lifting eye keeps clamping force effective in every position
- Cam and pivot hardness rated for material up to 37 HRC / 420 Brinell
- No minimum working load limit
- Tightening force of at least 10 Nm (3.687 lb-ft / 44.25 lb-in) at the 1/2-ton capacity, rising to at least 40 Nm (25.815 lb-ft / 309.78 lb-in) from 1 to 6 tons
Applications
- Steel structure lifting where orientation changes during the job
- Any terrier tscc clamp setup needing no minimum load restriction
- A universal screw lifting clamp option alongside the standard TSCC line
