Twin Hoist Lifting Beam - 4,000 Lb. Capacity - 14' Max Spread
Spread
Load Limit
Description
Description
Balancing an asymmetrical load takes more than a single pick point, and that's exactly what this twin hoist lifting beam is designed for. Two hoists work together off one beam, giving crews independent control over each end of the load instead of relying on a single center point. An alloy swivel hook at the bottom provides a secure connection that's easy to adjust for uneven rigging setups, and the safety yellow finish keeps the beam visible on busy job sites, in shops, and in warehouses.
Key Features
- Twin hoist design engineered for precise, independent control over asymmetrical and uneven loads.
- Built for use with both hoists operating within 5 degrees of vertical, which helps prevent side loading during the lift.
- Alloy swivel hook bottom connection for secure, adjustable rigging.
- Made in the USA, with premium machined and welded construction.
- Individually proof-loaded to OSHA requirements, ships with certification paperwork.
- ASME B30.20 and OSHA compliant manufacturing.

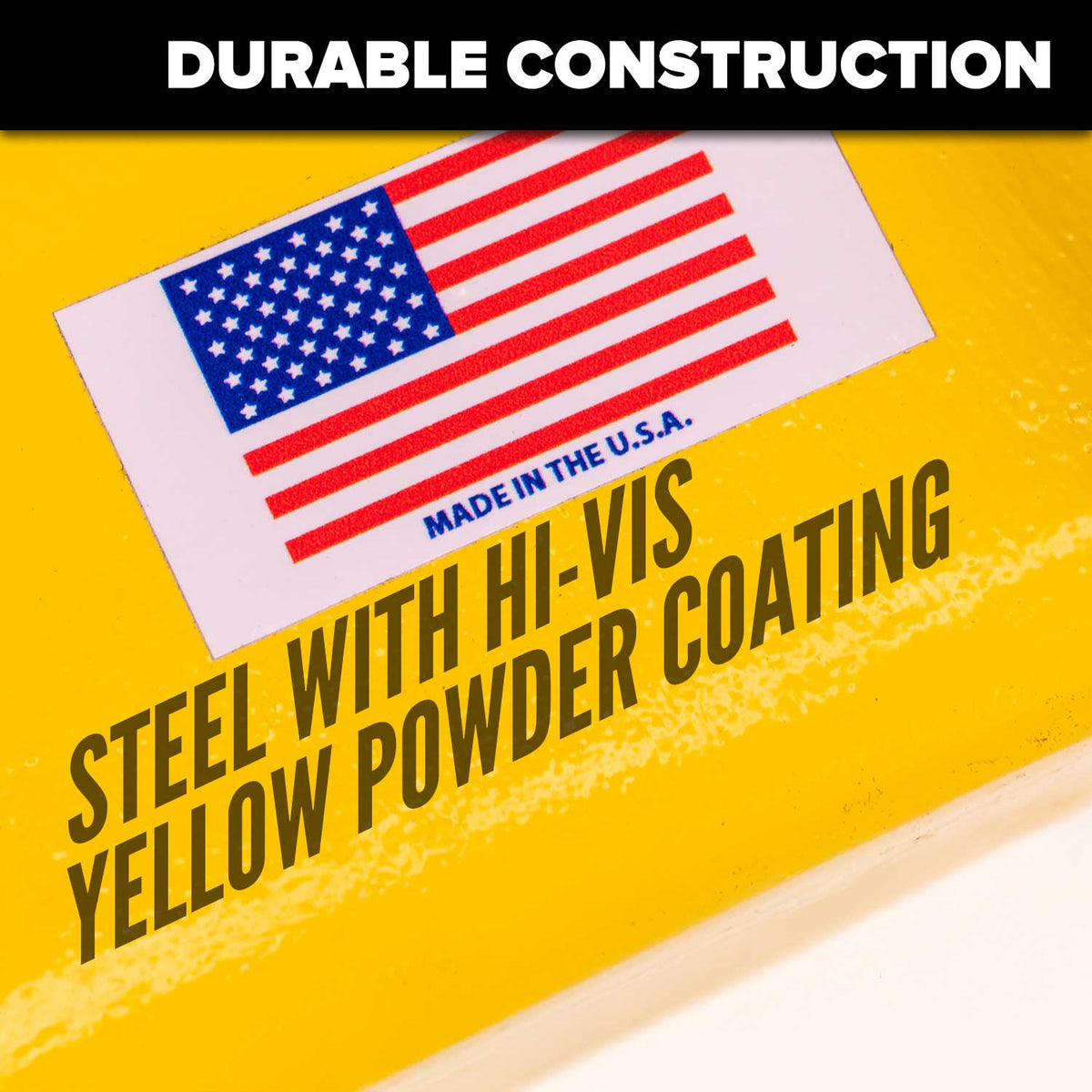

- High-visibility safety yellow powder coat finish resistant to scratches, chips, and wear.
- Backed by a 30-day limited manufacturer's warranty.
Applications
- Dual-point lifts where load weight isn't evenly distributed between hoists
- Shops, warehouses, and in-field jobs that need precise control over each end of a load
- Lifting beam setups where side loading has to be kept to a minimum
- Lifts that require near-vertical hoist alignment to keep an uneven load balanced and stable
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
Inside Length: 5.0"
Top Thickness: 0.88"
Thickness: 0.63"
Proof loaded per OSHA requirements.
Headroom: 18.1"
