SKU: FS-5143-60-ST4

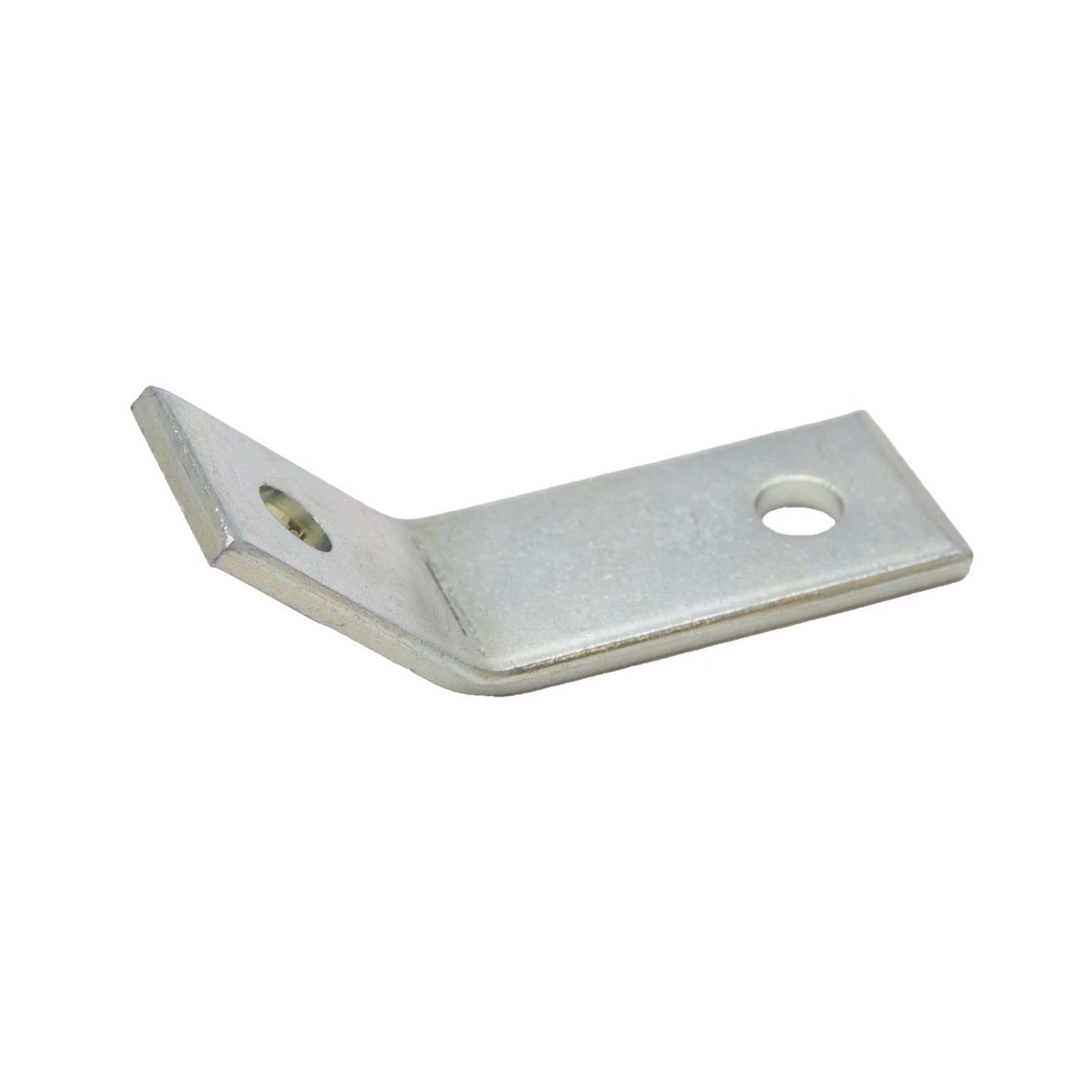

2-Hole 60 Degree Open Strut Angle - 304 Stainless Steel

2-Hole 60 Degree Open Strut Angle - 304 Stainless Steel!

Skip to product information
1 of 4

Continue Browsing

Angle Fittings

$16.00

Request Bulk Pricing
min. order qty: 7
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Plain
Material: 304 Stainless Steel

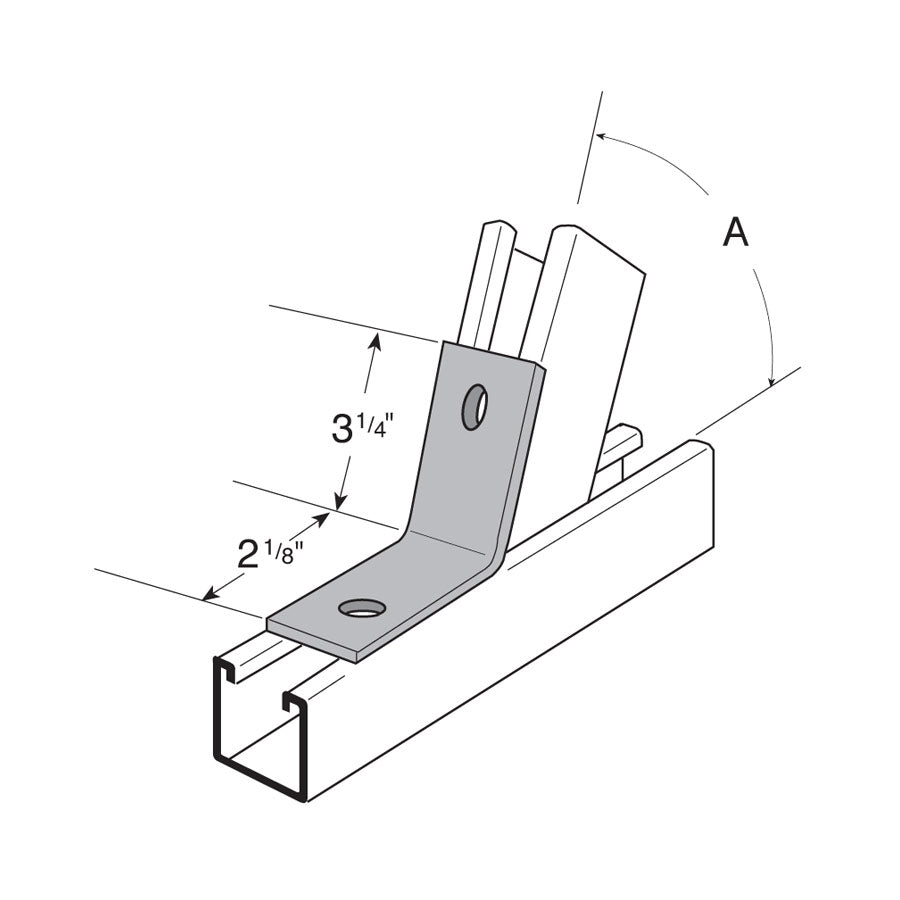

Additional Info: Dimension A (See image 2): 60°
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Thickness: 1/4"
Width: 1-5/8"
Description

2-Hole 60 Degree Open Angle - 304 Stainless Steel fittings connect strut channel at the corners and joints. If you are looking to join channel sections using angle fittings use channel nuts, bolts, nuts, and washers to join the fitting to the channel. 304 Stainless Steel provides excellent corrosion resistance primarily for exterior use.

View full details

Continue Browsing

Angle Fittings
