3/8" 19x7 Rotation-Resistant Wire Rope - EIPS IWRC | 250' Coil
Diameters
Lengths
Description
Description

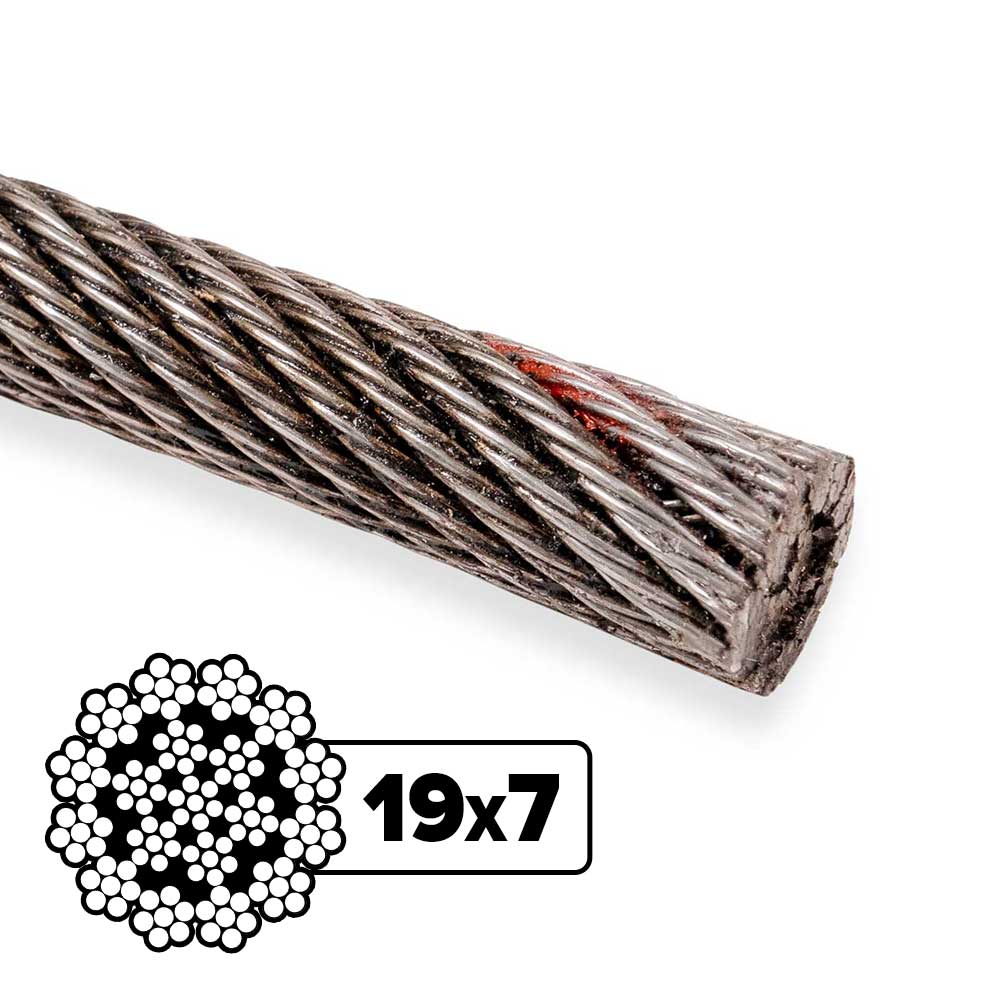

3/8" 19x7 Rotation-Resistant Wire Rope Cable
This 3/8" 19x7 rotation-resistant wire rope is engineered to minimize rope rotation while under load, making it an excellent choice for hoisting unguided loads with single-part line systems. Manufactured from Extra Improved Plow Steel (EIPS), this wire rope combines high strength, flexibility, and superior rotation resistance for demanding lifting and rigging applications.
Rotation-Resistant Wire Rope for Hoisting & Lifting Applications
The 19x7 construction is specifically designed to reduce load spin during lifting operations. Inner strands are laid in the opposite direction of the outer strands, allowing them to counteract rotational forces generated under load. With more than 10 outer strands, this rope is classified as a Category 2 Rotation-Resistant Rope, providing significant resistance to rotation and improved load control compared to Category 3 options.
19x7 Wire Rope Configuration
Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) offers approximately 10% greater tensile strength than IPS-grade wire rope, resulting in higher breaking strength and dependable performance in heavy-duty applications.

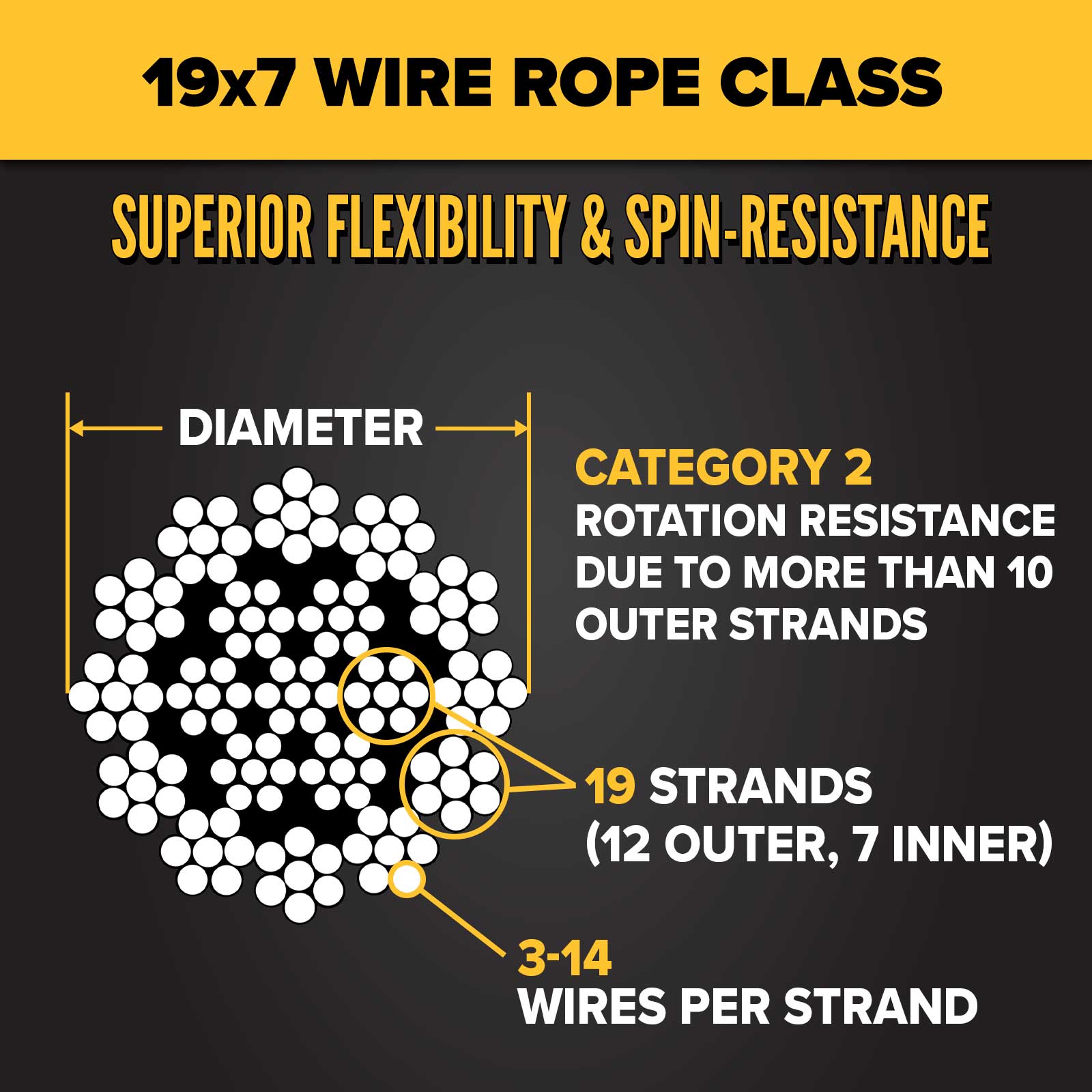

The class of this wire rope is 19x7. These numbers nominally refer to the rope construction, indicating 19 outer strands surrounding the core and approximately 3-14 wires within each strand. This design provides an excellent balance of flexibility and rotation resistance.
Finish & Core

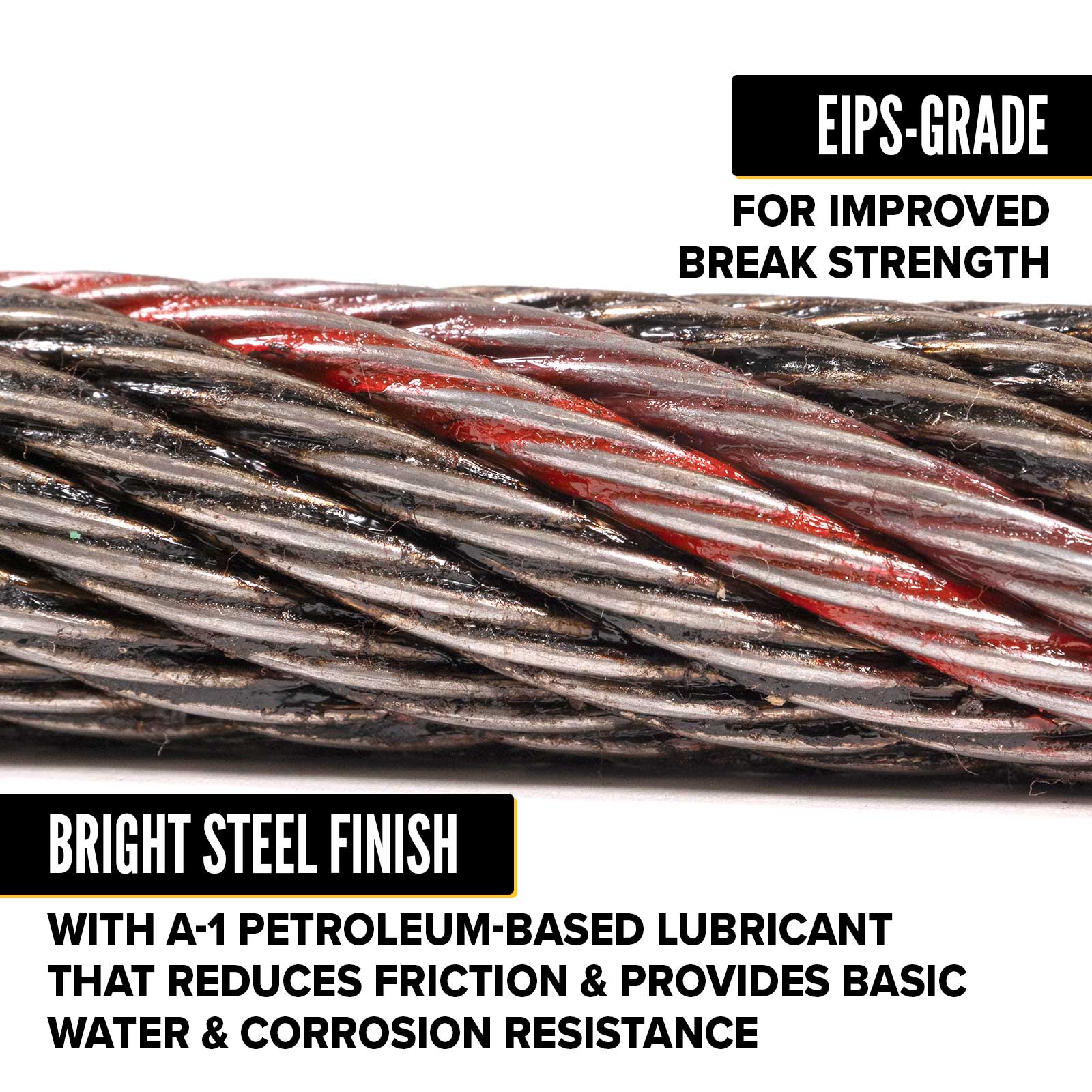

This wire rope features a bright steel finish protected by an A-1 petroleum-based lubricant. The lubricant is applied to both internal and external wires to reduce friction, minimize wear, and provide basic resistance to moisture and corrosion.

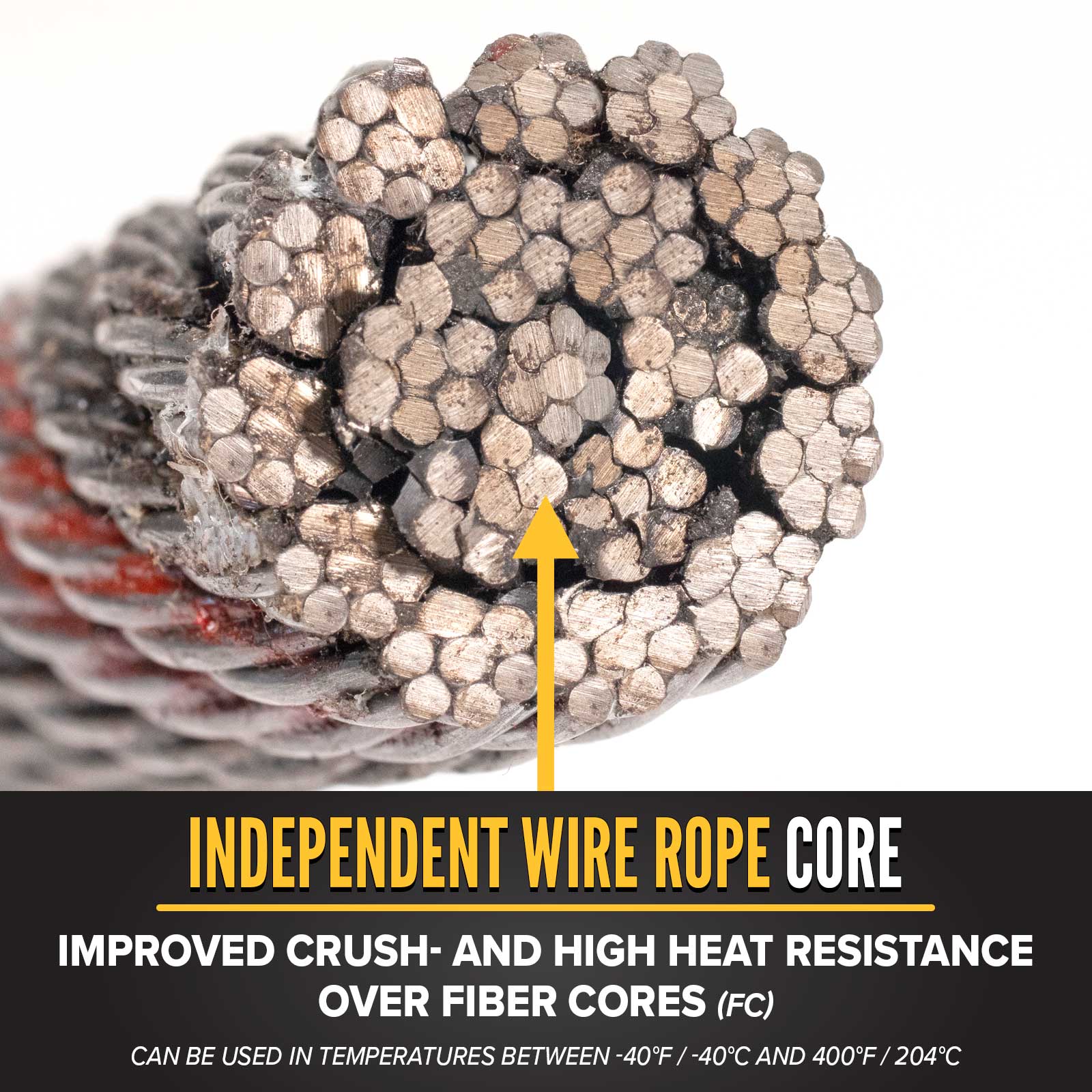

The Independent Wire Rope Core (IWRC) delivers enhanced support and stability compared to fiber core alternatives. IWRC construction improves crushing resistance, maintains rope integrity under load, and performs in temperatures ranging from -40°F (-40°C) to 400°F (204°C).
Key Features
- EIPS-grade steel provides increased tensile strength and breaking capacity.
- 19x7 construction offers significant rotation resistance for improved load control.
- Category 2 rotation-resistant rope designed for hoisting unguided loads.
- Greater spin resistance than comparable 8x19 rotation-resistant wire ropes.
- Bright steel finish with A-1 lubricant reduces internal friction and wear.
- IWRC core improves crushing resistance and structural stability.
- Flexible construction allows for easier handling and installation.
- Meets Federal Specification RR-W-410 and ASTM A1023 requirements.
- Should not be used with a swivel.
Common Applications
- Single-part line hoisting systems
- Crane lifting operations
- Material handling equipment
- Industrial rigging applications
- Unguided load lifting where rotation control is critical
Installation Tips
- Do not use this wire rope with swivels, as doing so may negatively affect its rotation-resistant characteristics.
- Inspect rope regularly for wear, broken wires, crushing, or deformation.
- Use properly rated fittings and hardware matched to the rope diameter and application requirements.
- Follow all applicable rigging standards and manufacturer recommendations for installation, inspection, and maintenance.
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
Right Hand Regular Lay
