SKU: FS-5019-E/G
3-Hole Corner Plate - Electro-Galvanized
3-Hole Corner Plate - Electro-Galvanized
No reviews
Regular price
$5.93
Sale price
$5.93
Regular price
Unit price
/
per
0% off
Call to Order
Payment methods
Accepted payments:
Minimum $100 Purchase on Special Order FlexStrut Items - Call 888-794-1590 To Place Your Order
Ships in 7-14 business days.
Ships in 7-14 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

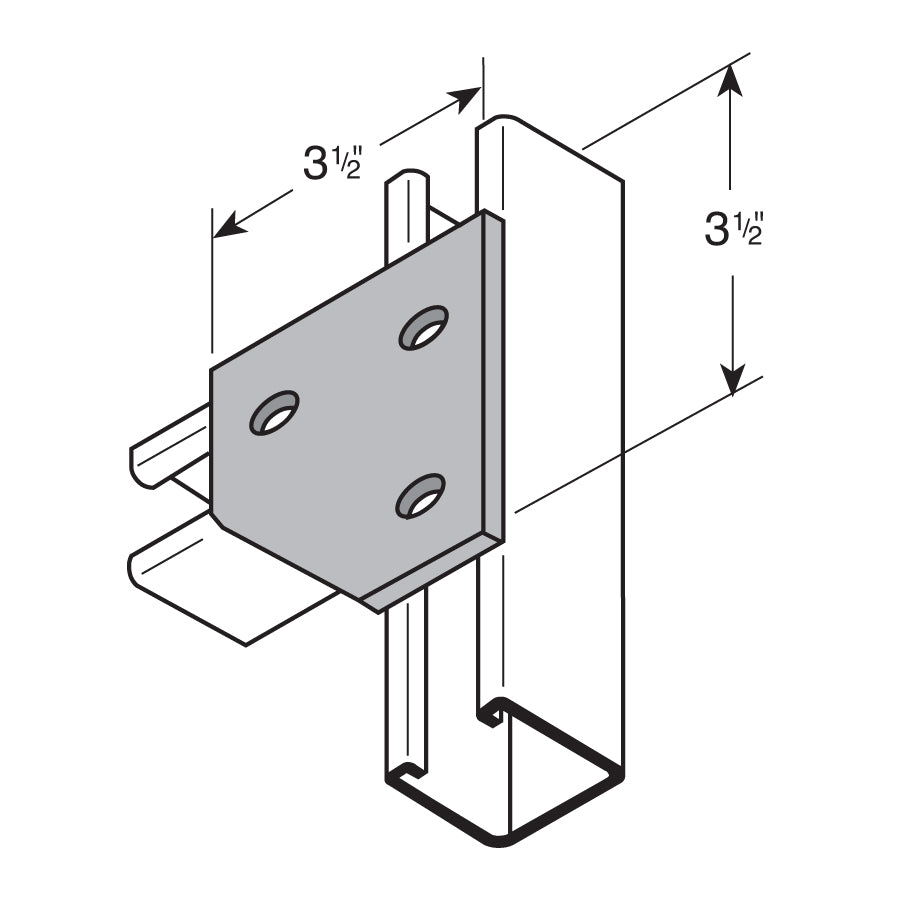

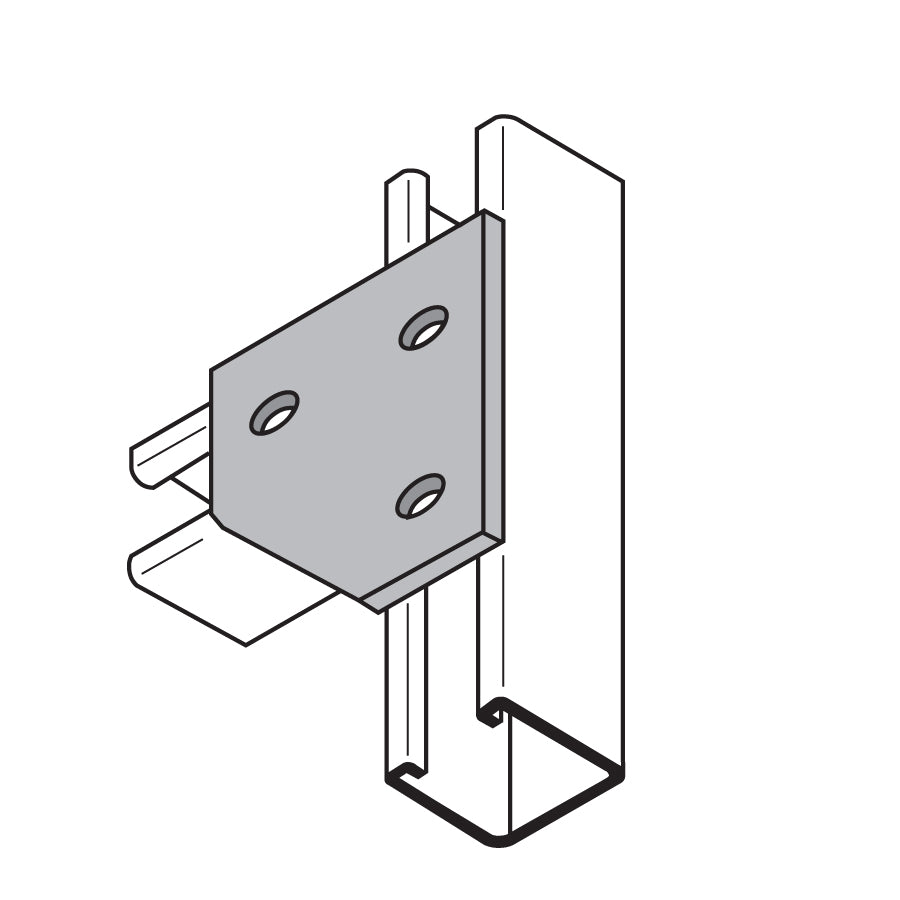

3-Hole Corner Plate - Electro-Galvanized allow for connections at the corners of your strut channel frame that sit flush to the top of two channel lips meeting at a 90 degree angle. The corner plates use 9/16" punched holes. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
