SKU: FS-5026-E/G

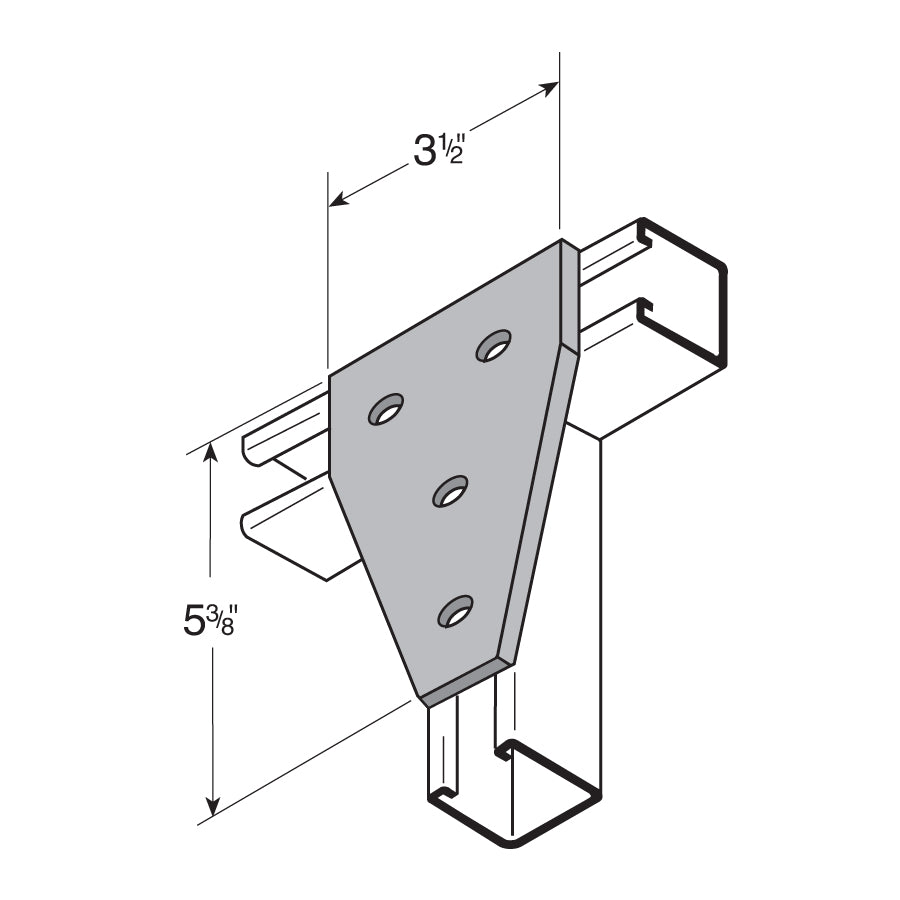

4-Hole T Gusset Plate - Electro-Galvanized

4-Hole T Gusset Plate - Electro-Galvanized

Regular price $9.78
Sale price $9.78 Regular price
0% off
Call to Order
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Minimum $100 Purchase on Special Order FlexStrut Items - Call 888-794-1590 To Place Your Order
Ships in 7-14 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

4-Hole T Gusset Plate - Electro-Galvanized allow for connections at the joints of your strut channel frame that sit flush to the top of two channel lips meeting at a T. Gussets have greater surface area than traditional corner flat fittings. The corner plates use 9/16" punched holes. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

Specifications:

Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
