5/8" 19x19 Compacted Rotation-Resistant Wire Rope - EIPS IWRC | 5,000 Feet
5/8" 19x19 Compacted Rotation-Resistant Wire Rope - EIPS IWRC | 5,000 Feet!
5/8" 19x19 Compacted Rotation-Resistant Wire Rope - EIPS IWRC | 5,000 Feet
Specifications
Right Hand Regular Lay

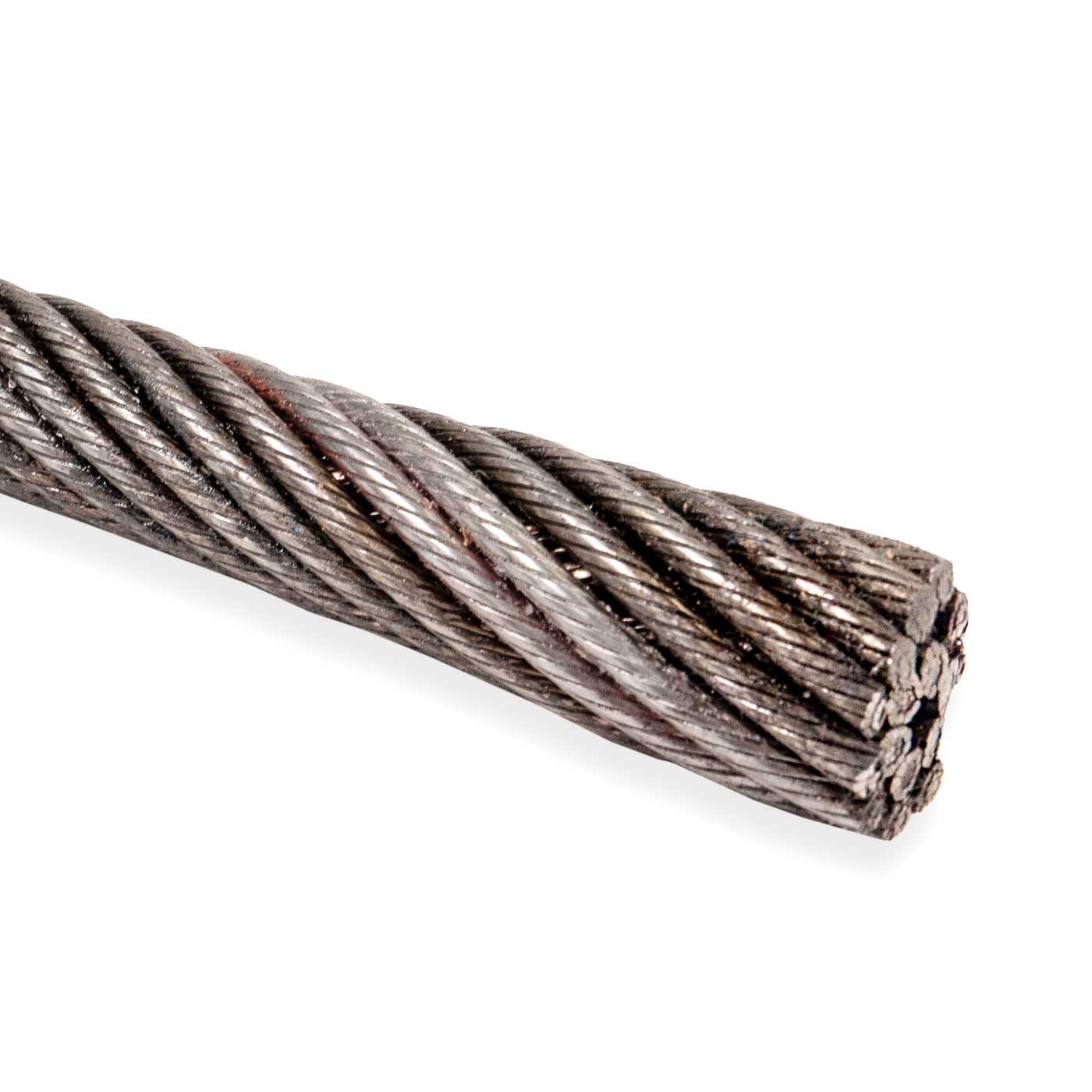

5/8" 19x19 Rotation-Resistant Wire Rope Cable
This 5/8" 19x19 rotation-resistant wire rope is designed for demanding lifting and hoisting applications where load rotation must be minimized. Featuring a compacted construction and high-strength Extra Improved Plow Steel (EIPS), this rope delivers increased strength, improved spoolability, and enhanced resistance to crushing and abrasion. Its flexible 19x19 design makes handling easier while providing the rotation resistance needed for single-part and multi-part lifting systems.
Note: Rotation-resistant wire rope should not be used with swivels, as doing so can negatively affect rope performance and service life.

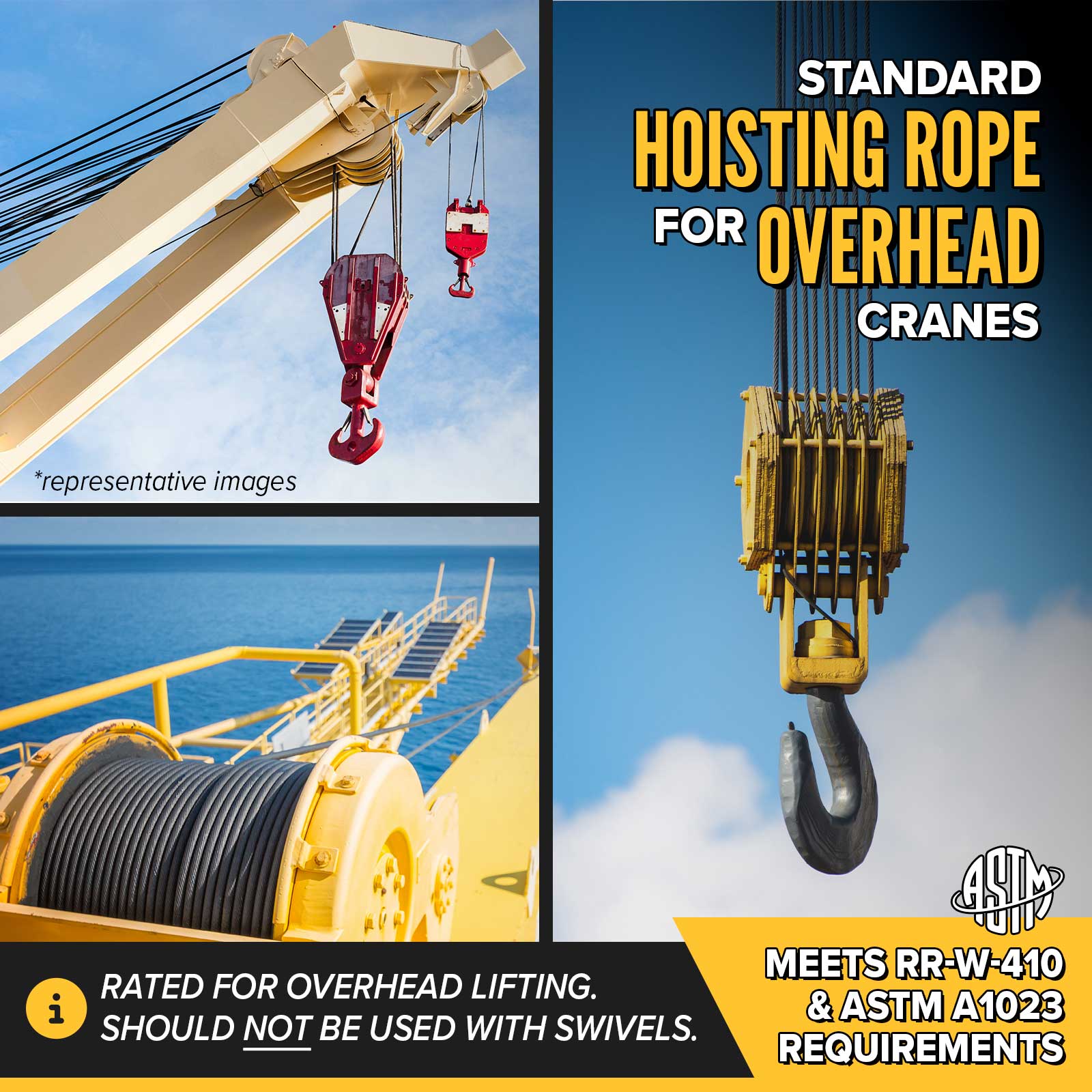

Compacted Rotation-Resistant Wire Rope for Hoisting & Lifting Applications

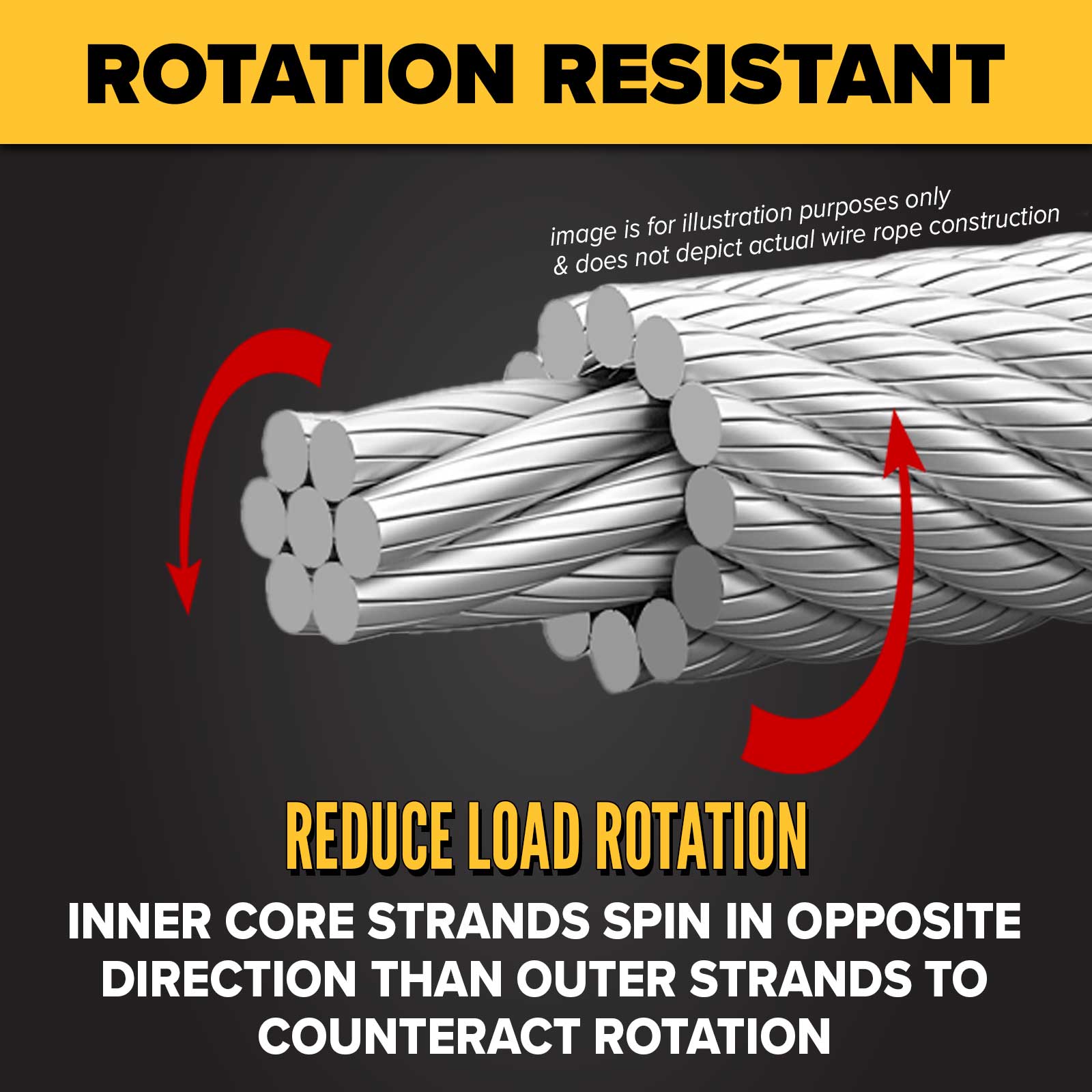

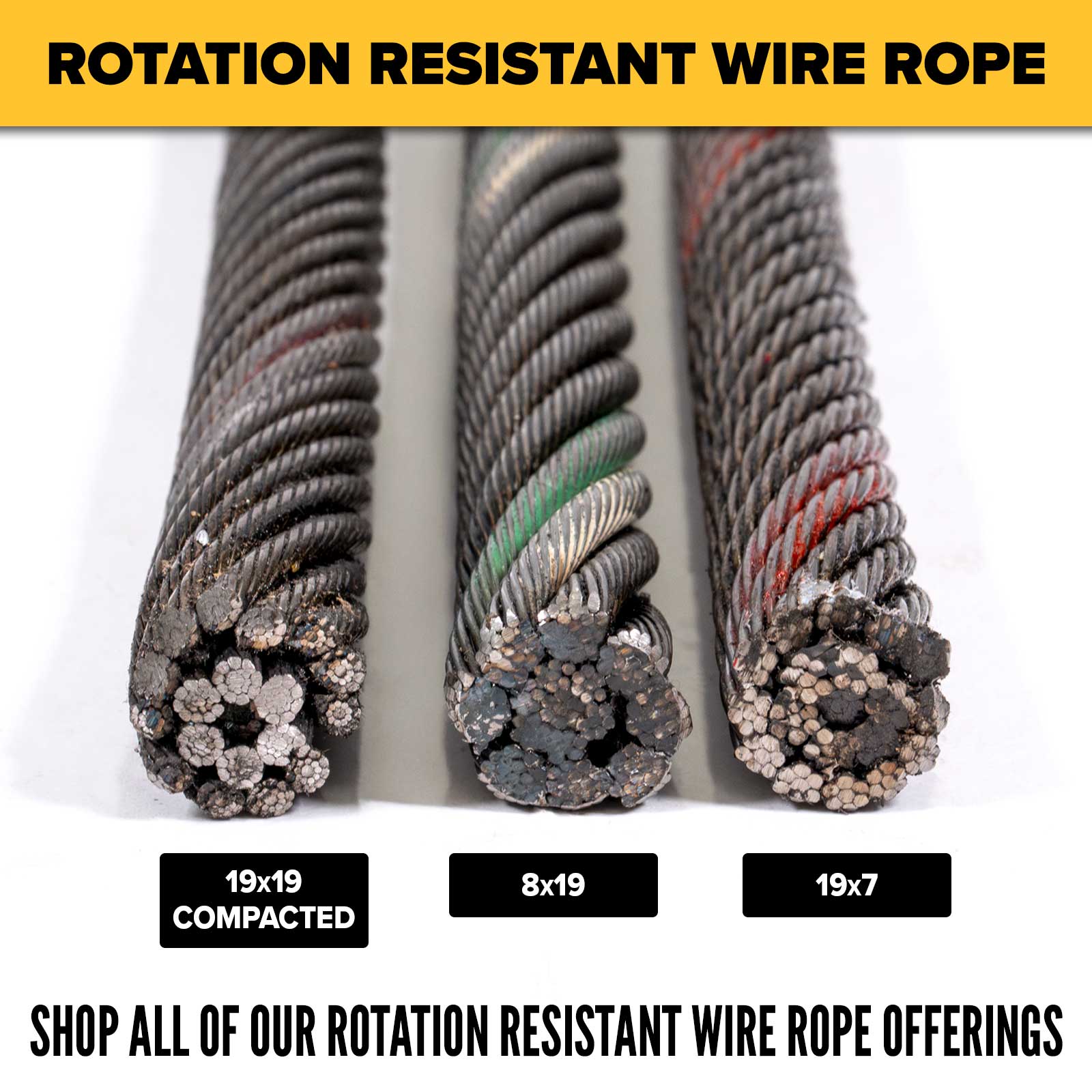

The 19x19 construction utilizes opposing strand lay directions, with inner strands rotating opposite the outer strands to counteract rotational forces while under load. This significantly reduces load spin and makes the rope ideal for lifting unguided loads. As a Category 2 rotation-resistant rope with more than 10 outer strands, it provides greater rotation resistance than Category 3 constructions such as 8x19 wire rope.

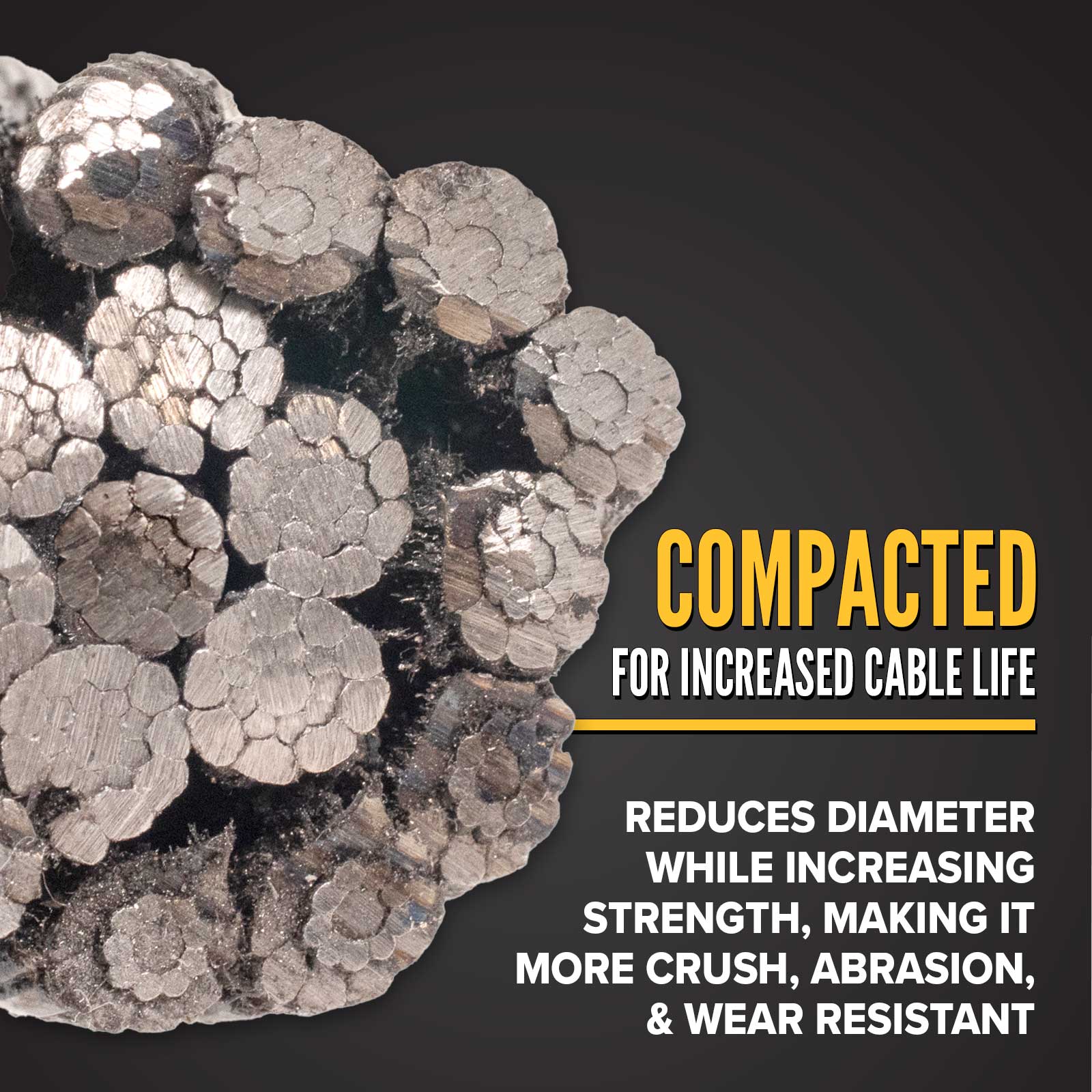

The compacted manufacturing process reduces rope diameter while increasing density, resulting in greater strength, improved abrasion resistance, enhanced crushing resistance, and better drum spooling characteristics compared to non-compacted ropes of the same diameter.

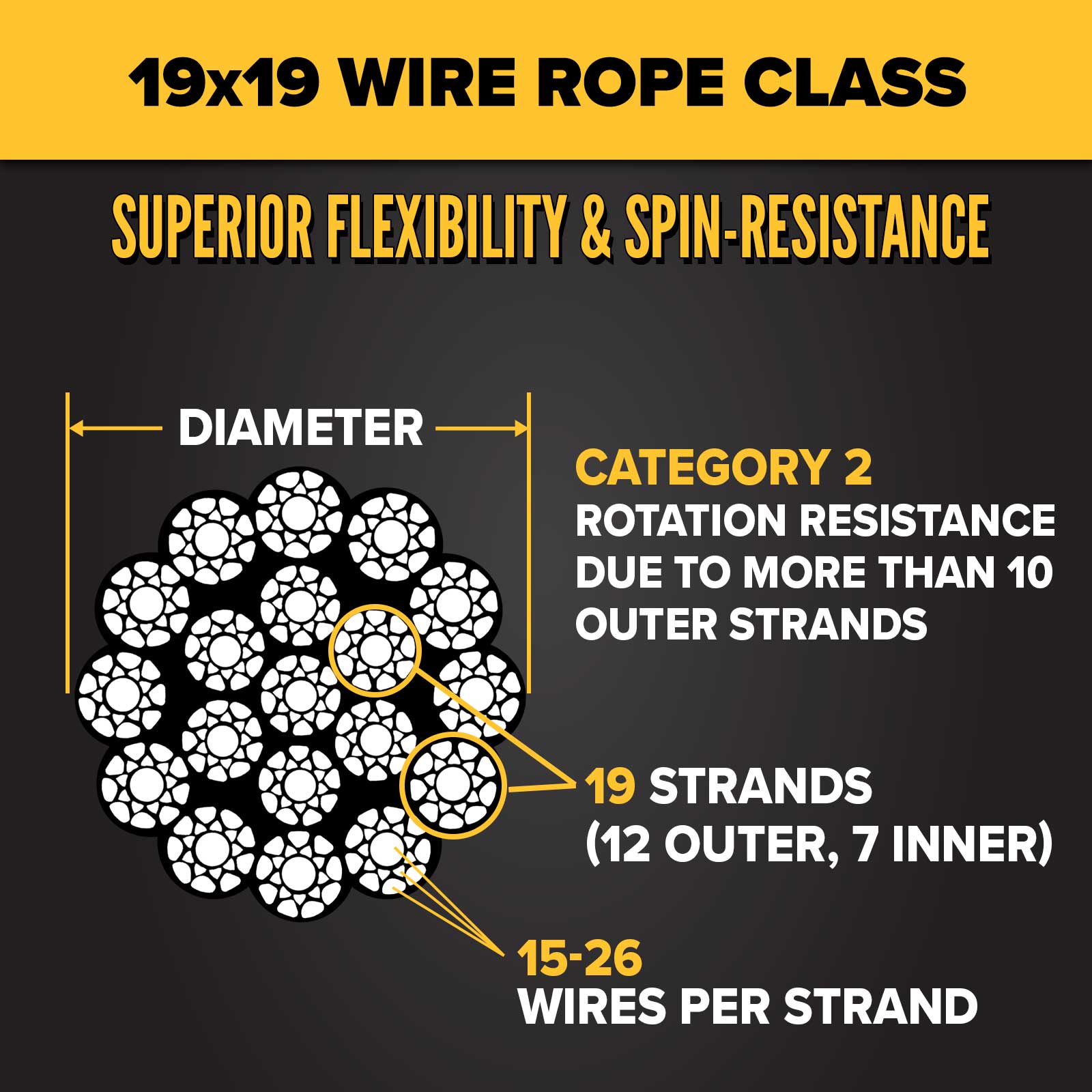

19x19 Wire Rope Configuration
This wire rope is manufactured using EIPS-grade (Extra Improved Plow Steel) steel. EIPS wire rope provides approximately 10% greater tensile strength than IPS-grade wire rope, resulting in improved breaking strength and longer service life under demanding conditions.

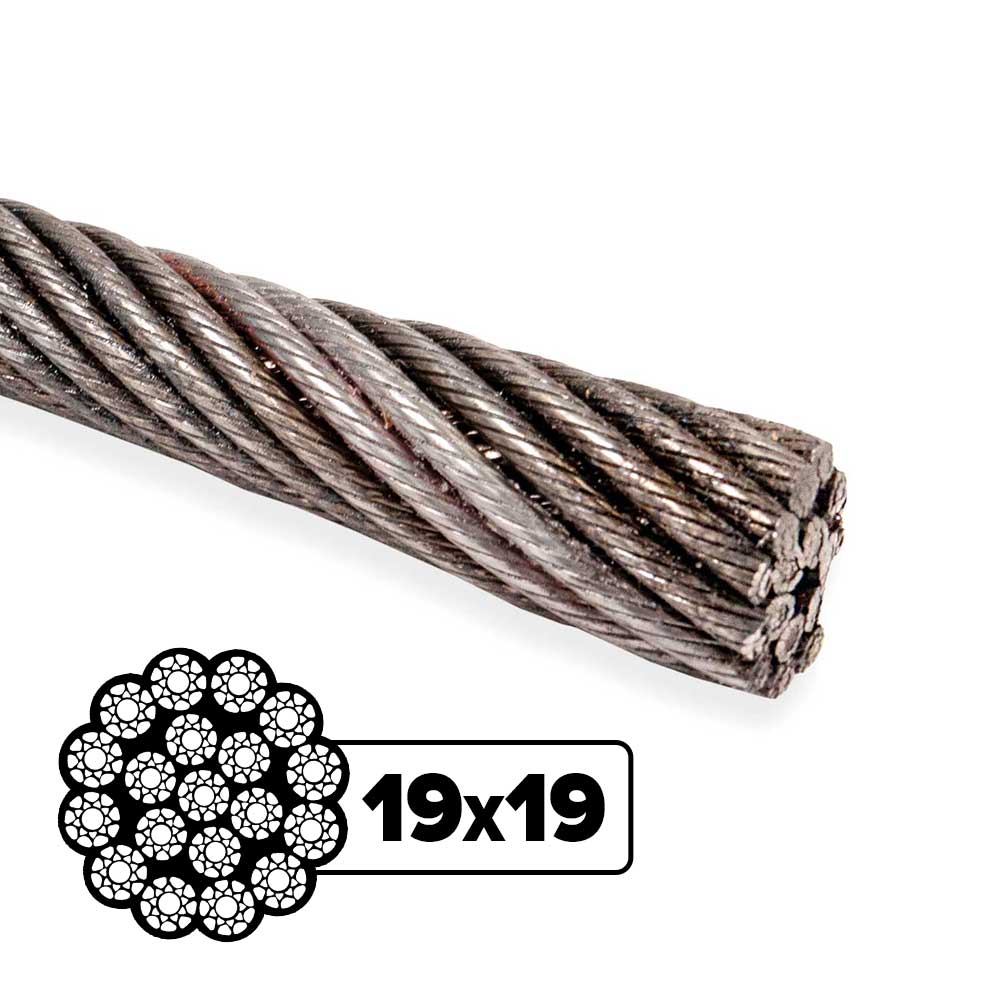

The class of this wire rope is 19x19. These numbers nominally refer to the rope construction, consisting of 19 outer strands with approximately 15-26 wires per strand. This high strand count contributes to the rope's flexibility, handling characteristics, and rotation-resistant performance.
Bright Finish & IWRC Construction

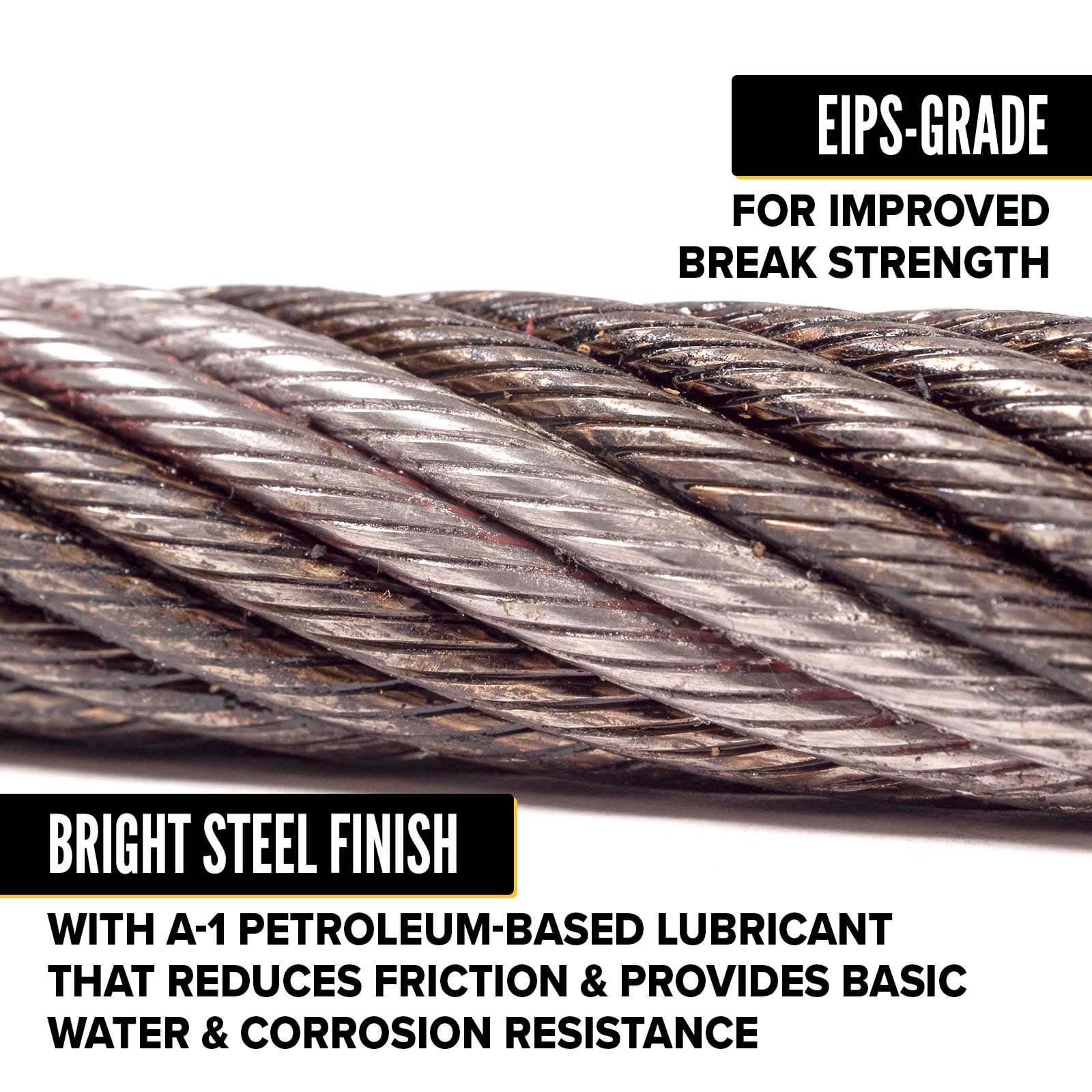

This rope features a bright steel finish protected with A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction between wires while providing basic moisture and corrosion resistance.

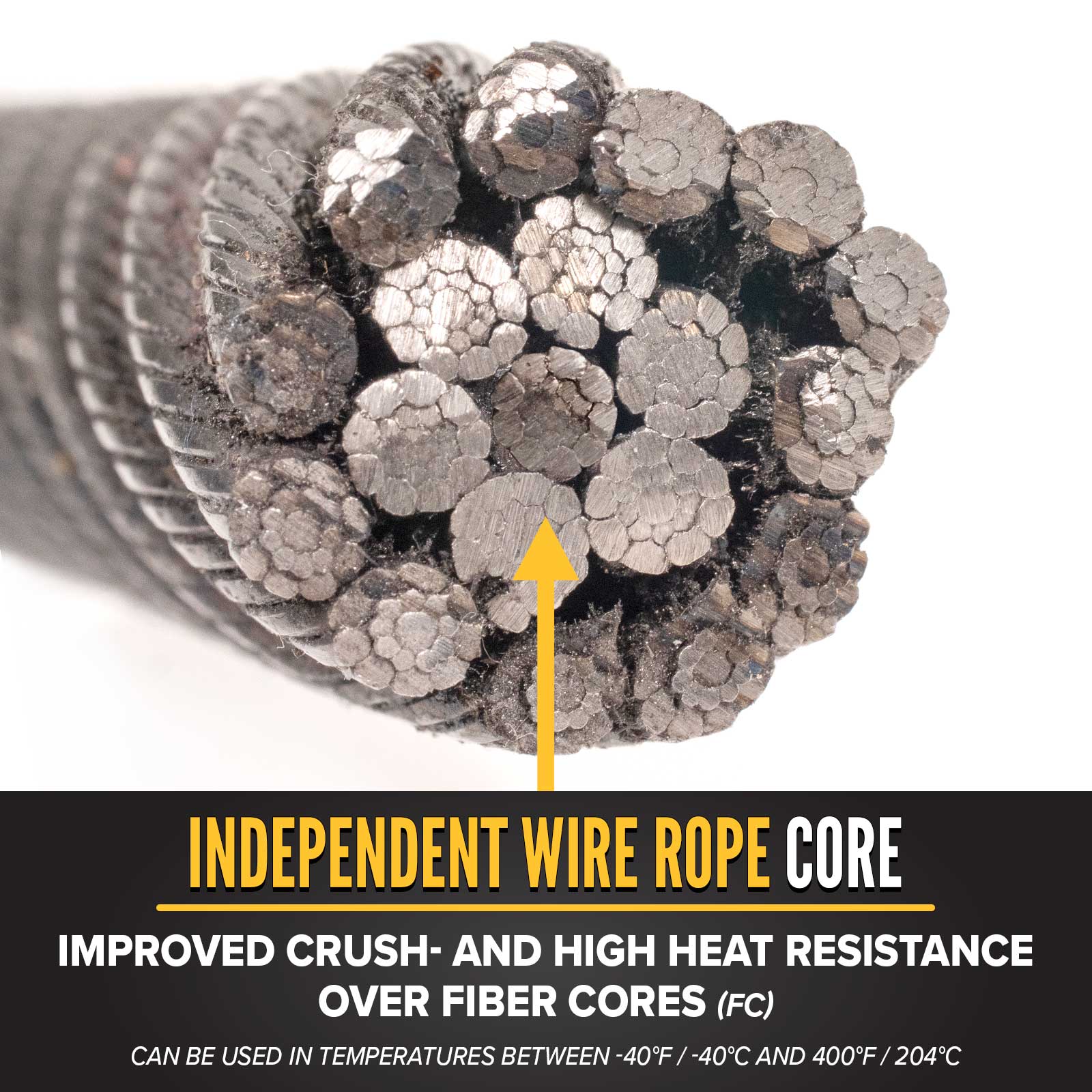

The Independent Wire Rope Core (IWRC) delivers increased strength and support compared to fiber core ropes. IWRC construction improves crushing resistance, maintains rope shape under load, and performs reliably in temperatures ranging from -40°F to 400°F.
Key Features
- Compacted 19x19 construction provides increased strength and improved spoolability
- Category 2 rotation-resistant design minimizes load spin during lifting operations
- EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
- High strand count offers excellent flexibility and handling characteristics
- Bright finish with A-1 lubricant reduces internal friction and wear
- IWRC core enhances crush resistance and load support
- Improved resistance to abrasion, crushing, and wear compared to standard constructions
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Should not be used with swivels
- Sold by the foot and shipped as one continuous length when available
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
