SKU: THDB62100H

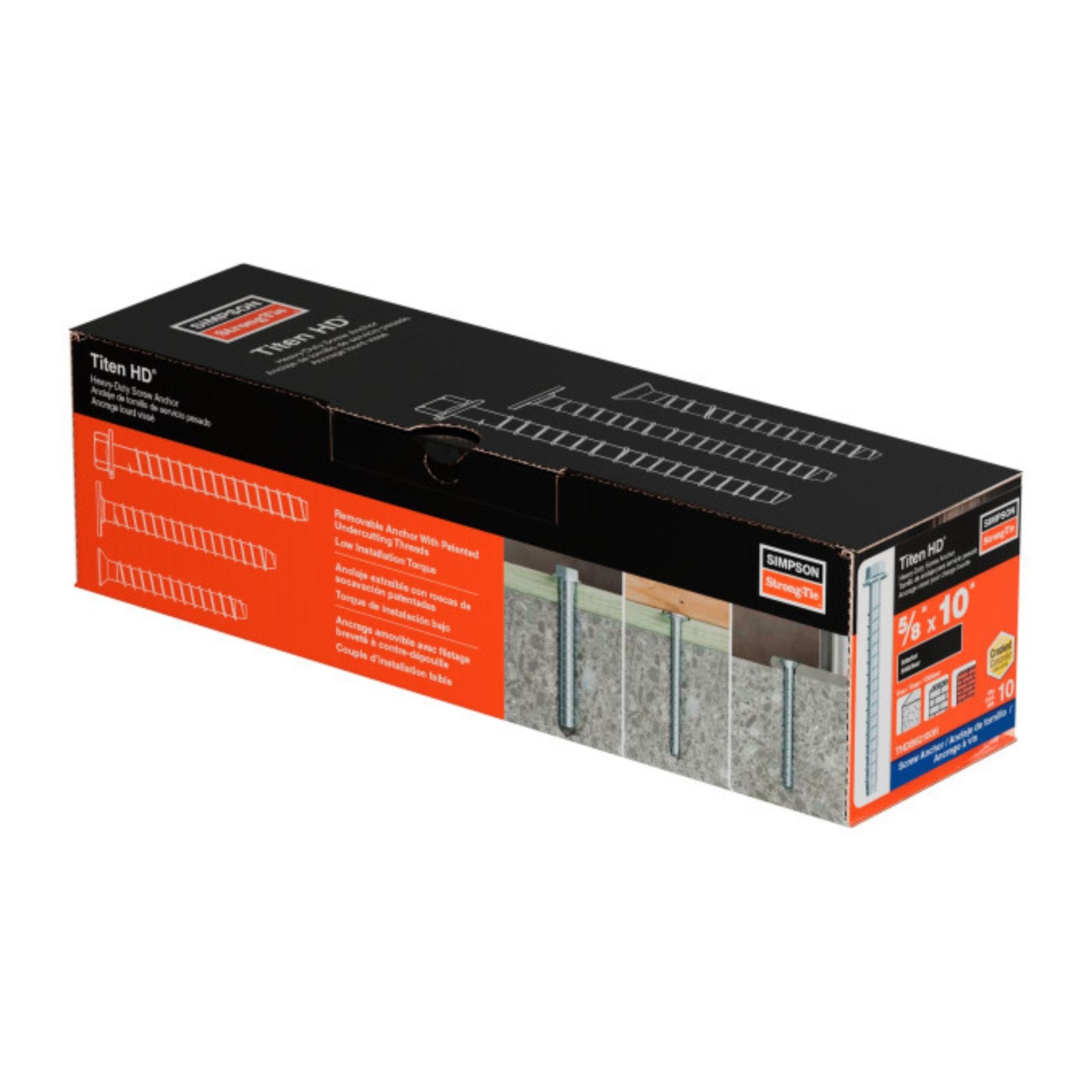

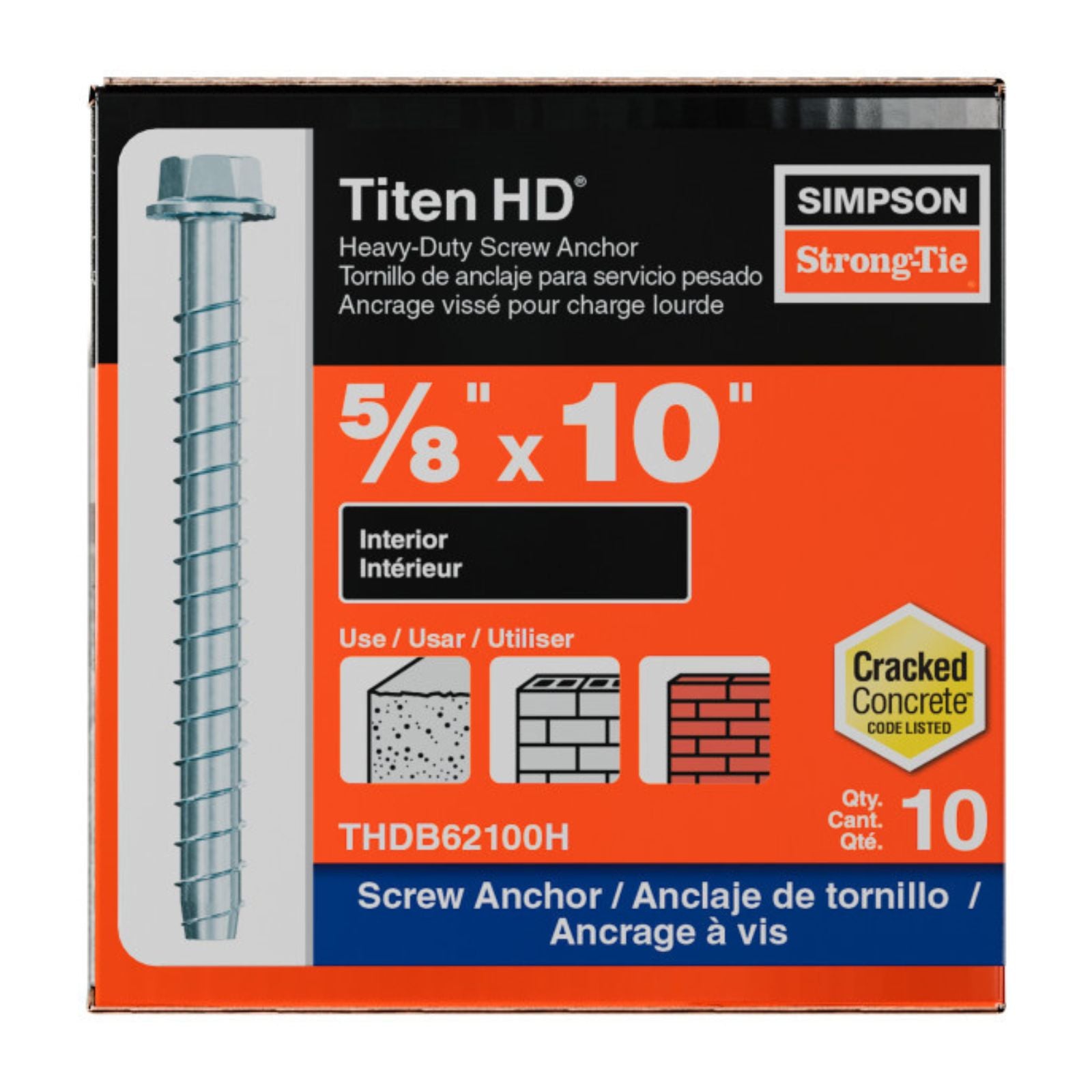

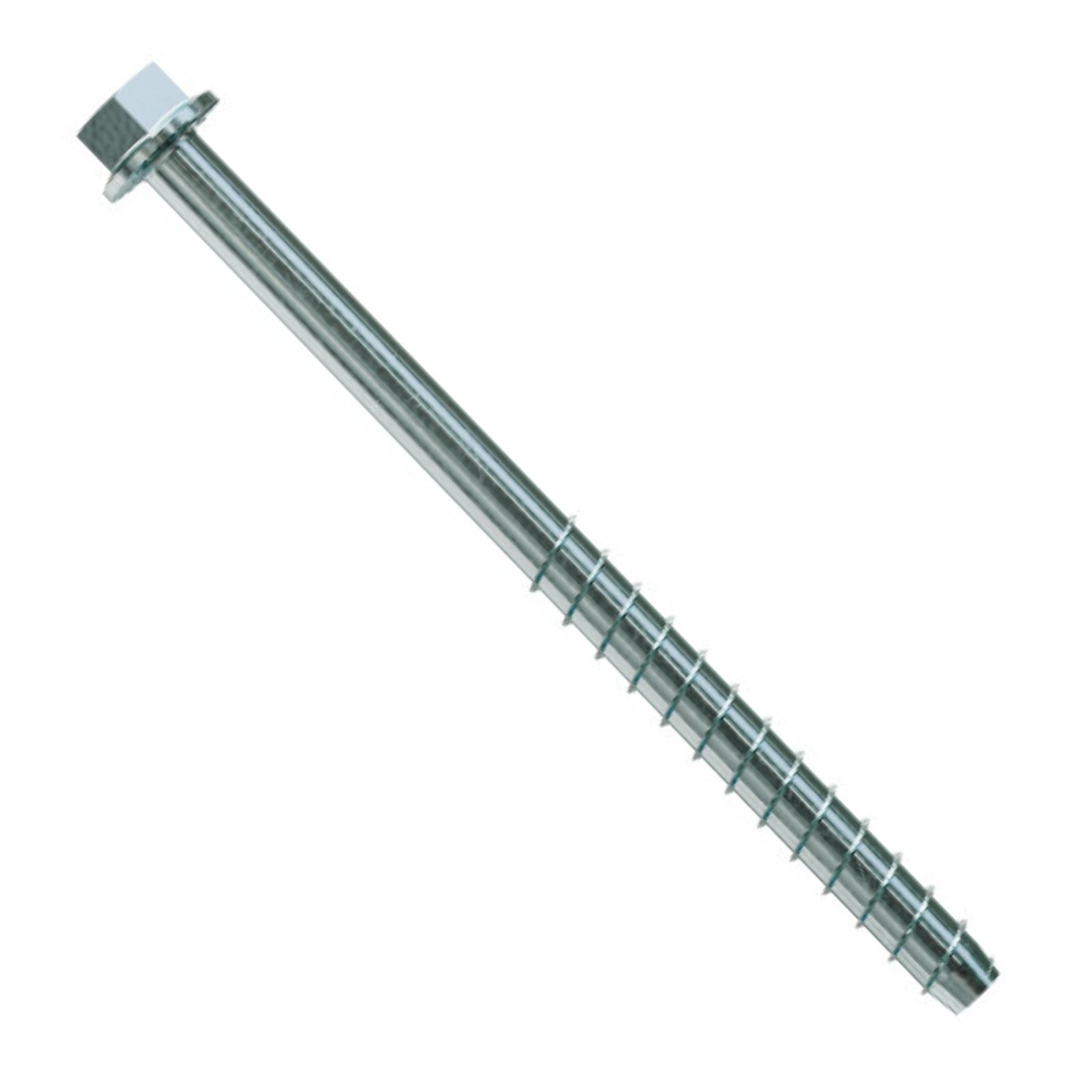

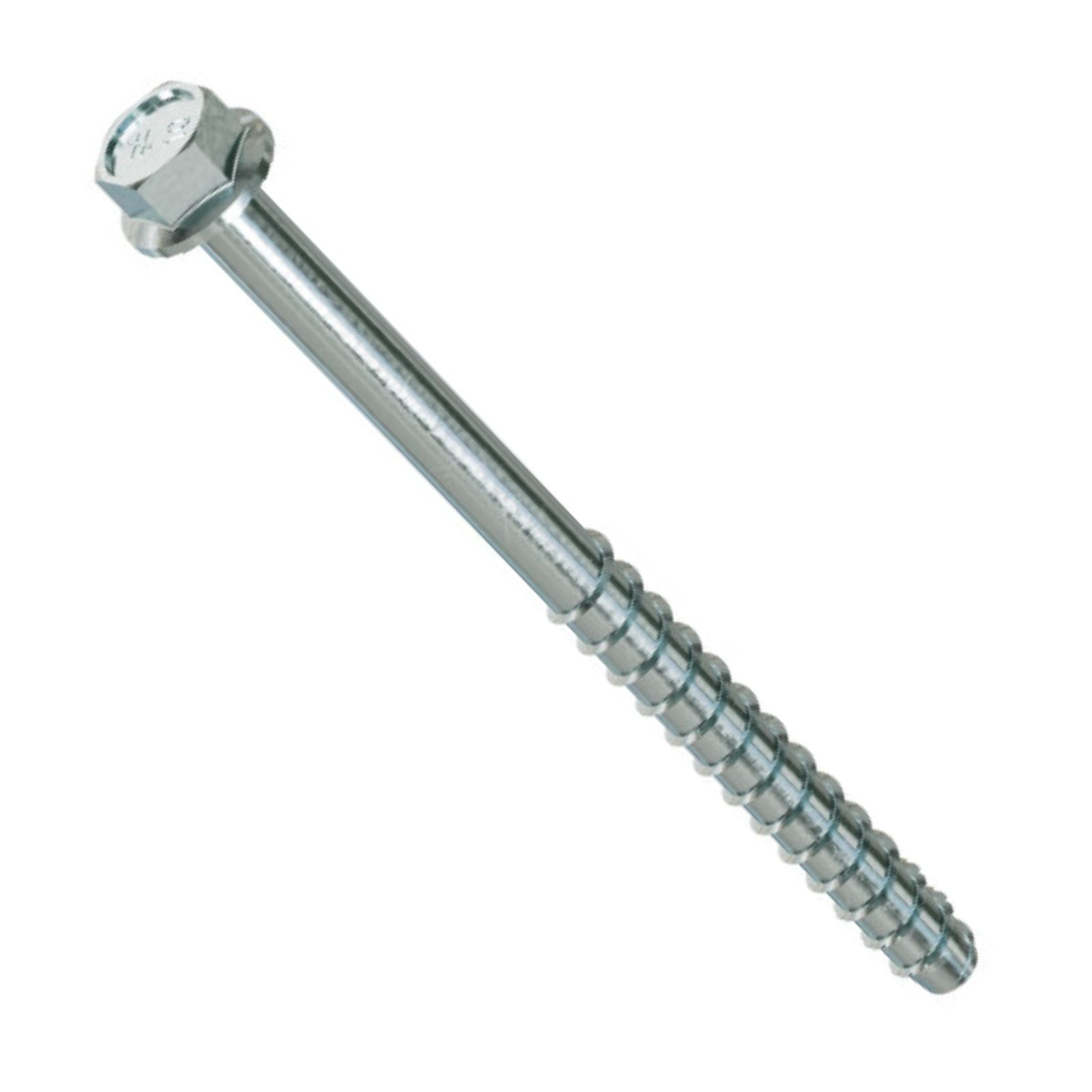

5/8" x 10" Strong-Tie THDB62100H Titen HD Screw Anchor, Zinc, Pkg 10

5/8" x 10" Strong-Tie THDB62100H Titen HD Screw Anchor, Zinc, Pkg 10!

  • 5/8" x 10" Strong-Tie THDB62100H Titen HD Screw Anchor, Zinc, Pkg 10
  • Strong-Tie THDB62100H Titen HD Screw Anchor, Zinc
  • Strong-Tie THDB62100H Titen HD Screw Anchor, Zinc
1 3

Continue Browsing

Zinc Large Diameter Concrete Screws
SKU: THDB62100H

5/8" x 10" Strong-Tie THDB62100H Titen HD Screw Anchor, Zinc, Pkg 10

$83.28

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 11 hours 24 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Diameter: 5/8"
Finish: Zinc
Length: 10"
Material: Carbon Steel
Drill bit size: 5/8"
Drive type: 15/16" Hex
Fixture hole size: 3/4"-13/16"

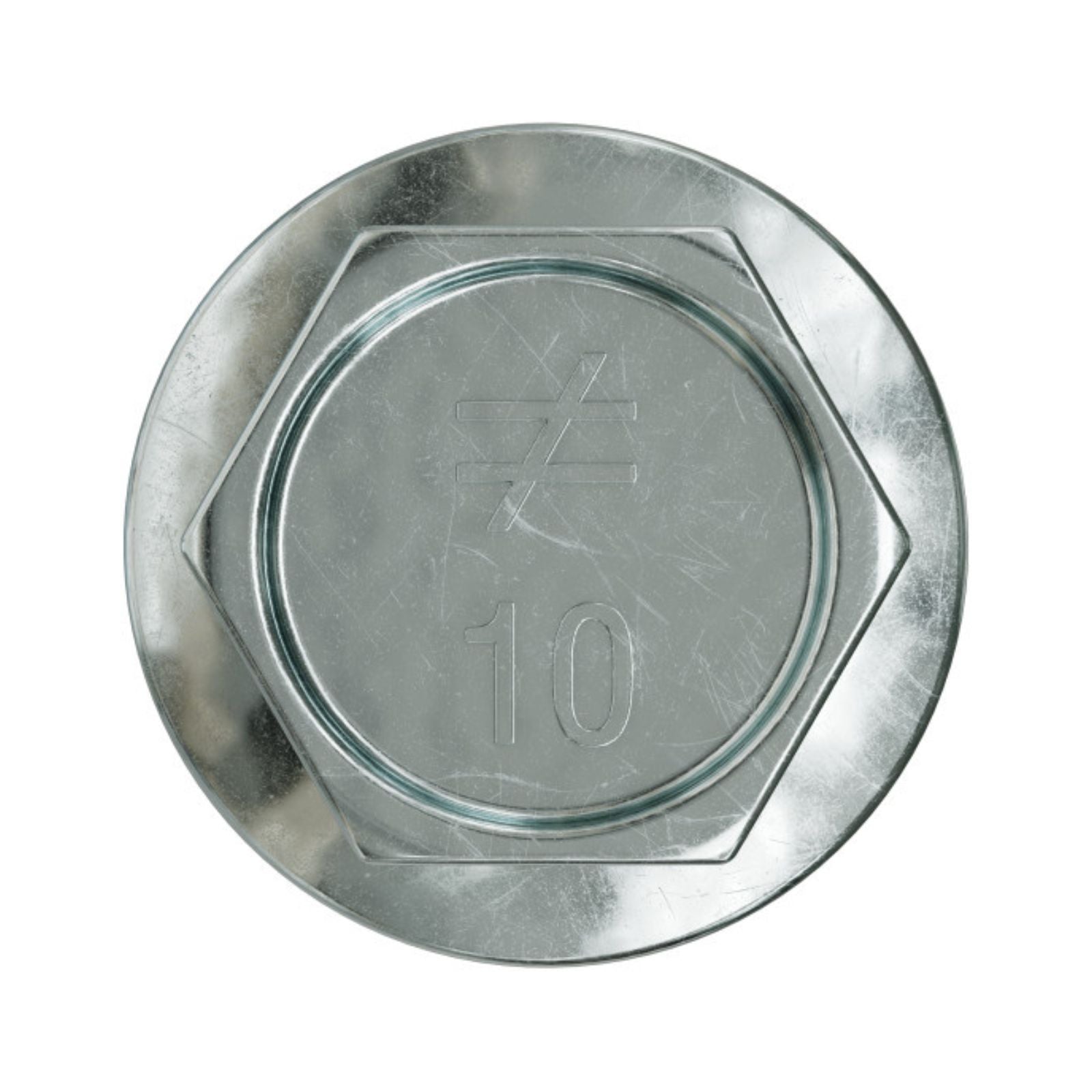

Head type: Hex Head
Manufacturer name: Simpson Strong-Tie
Quantity: 10
Description

Titen HD screw anchors are high strength anchors designed to be quickly and easily installed in cracked and uncracked concrete applications. These anchors are code listed by ICC-ES for cracked and uncracked concrete applications under the 2009 IBC. All Titen HD screw anchors feature a patented thread design with serrated cutting teeth for easy installation. These zinc concrete screws are designed for use in dry, interior, and non-corrosive environments or temporary outdoor applications.

Installation

  1. Drill a hole in the base material using a drill bit that matches the diameter of the anchor bolt. Drill to the specified embedment depth, plus an additional overdrill. Clean the hole with compressed air.
  2. Insert the anchor through the fixture and into the hole.
  3. Tighten the anchor bolt until the hex-washer head contacts the fixture.

* see further instructions in Spec Sheet
