SKU: THDB62612H

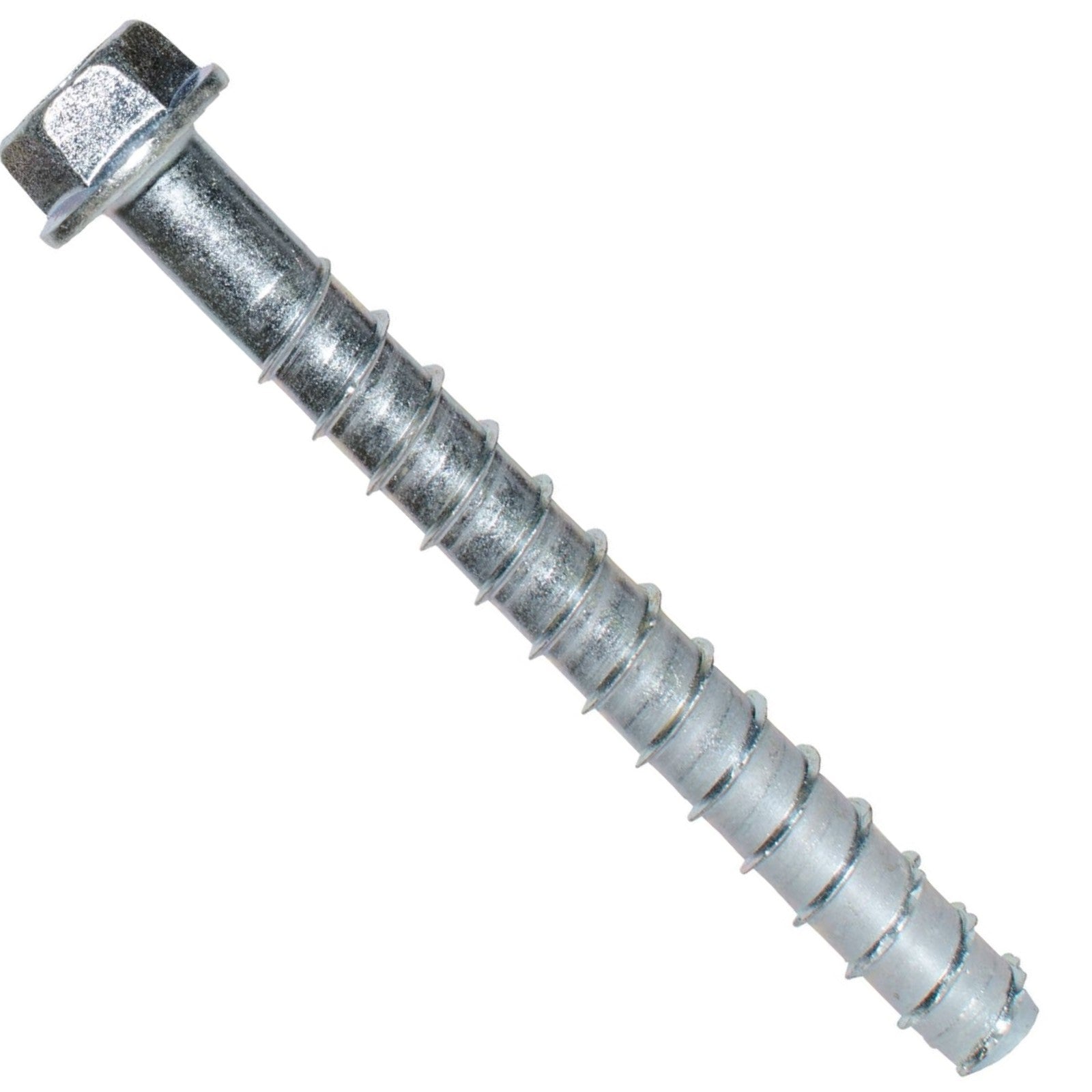

5/8" x 6-1/2" Strong-Tie THDB62612H Titen HD Screw Anchor, Zinc, Pkg 10

5/8" x 6-1/2" Strong-Tie THDB62612H Titen HD Screw Anchor, Zinc, Pkg 10!

1 7

Continue Browsing

Zinc Large Diameter Concrete Screws
SKU: THDB62612H

5/8" x 6-1/2" Strong-Tie THDB62612H Titen HD Screw Anchor, Zinc, Pkg 10

$30.19

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 7 and order in the next 1 hour 2 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

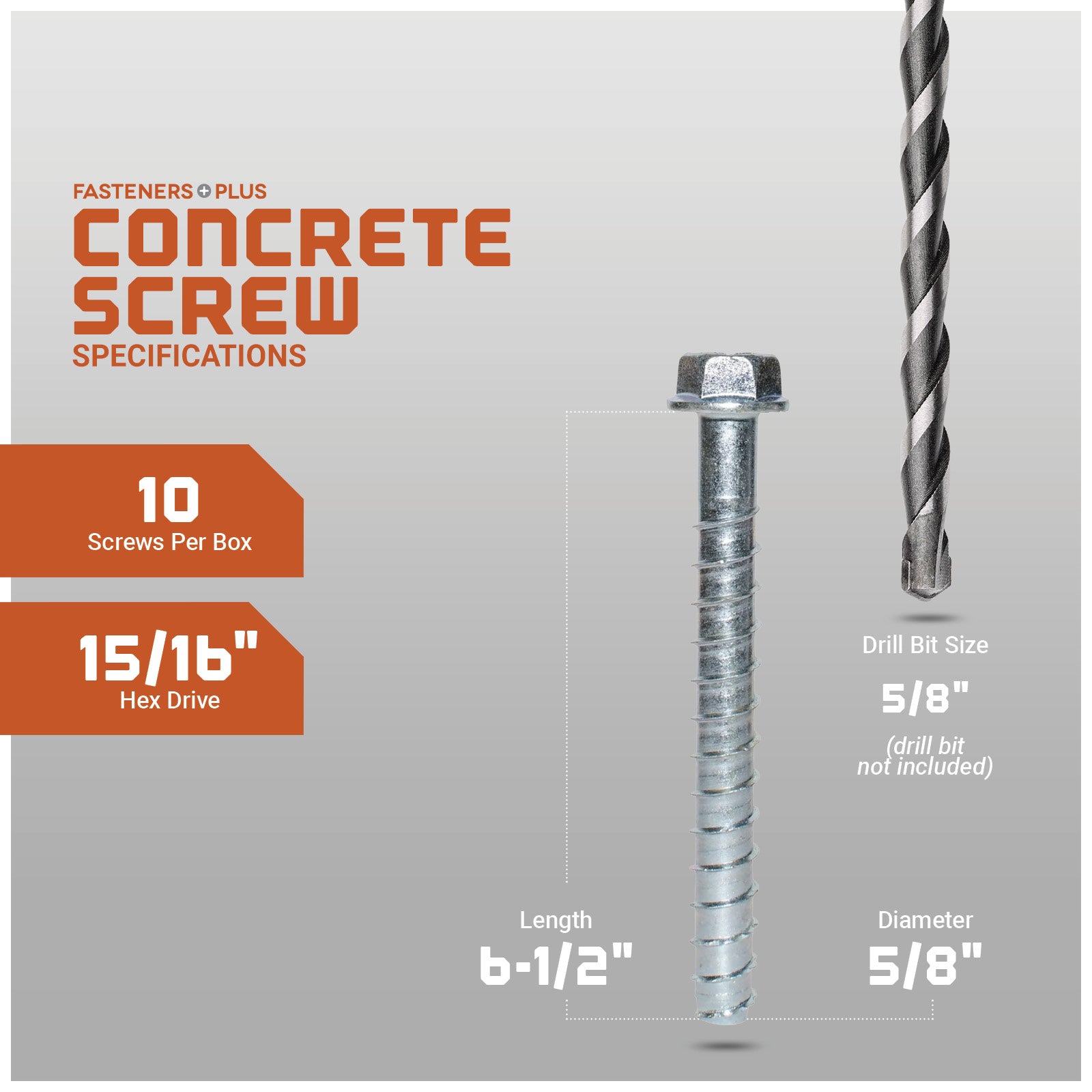

Specifications

Diameter: 5/8"
Finish: Zinc
Length: 6-1/2"
Drill bit size: 5/8"
Drive type: 15/16" Hex
Fixture hole size: 3/4"-13/16"
Head type: Hex Head
Manufacturer name: Simpson Strong-Tie
Quantity: 10
Description

Titen HD screw anchors are high strength anchors designed to be quickly and easily installed in cracked and uncracked concrete applications. These anchors are code listed by ICC-ES for cracked and uncracked concrete applications under the 2009 IBC. All Titen HD screw anchors feature a patented thread design with serrated cutting teeth for easy installation. These zinc concrete screws are designed for use in dry, interior, and non-corrosive environments or temporary outdoor applications.

Installation

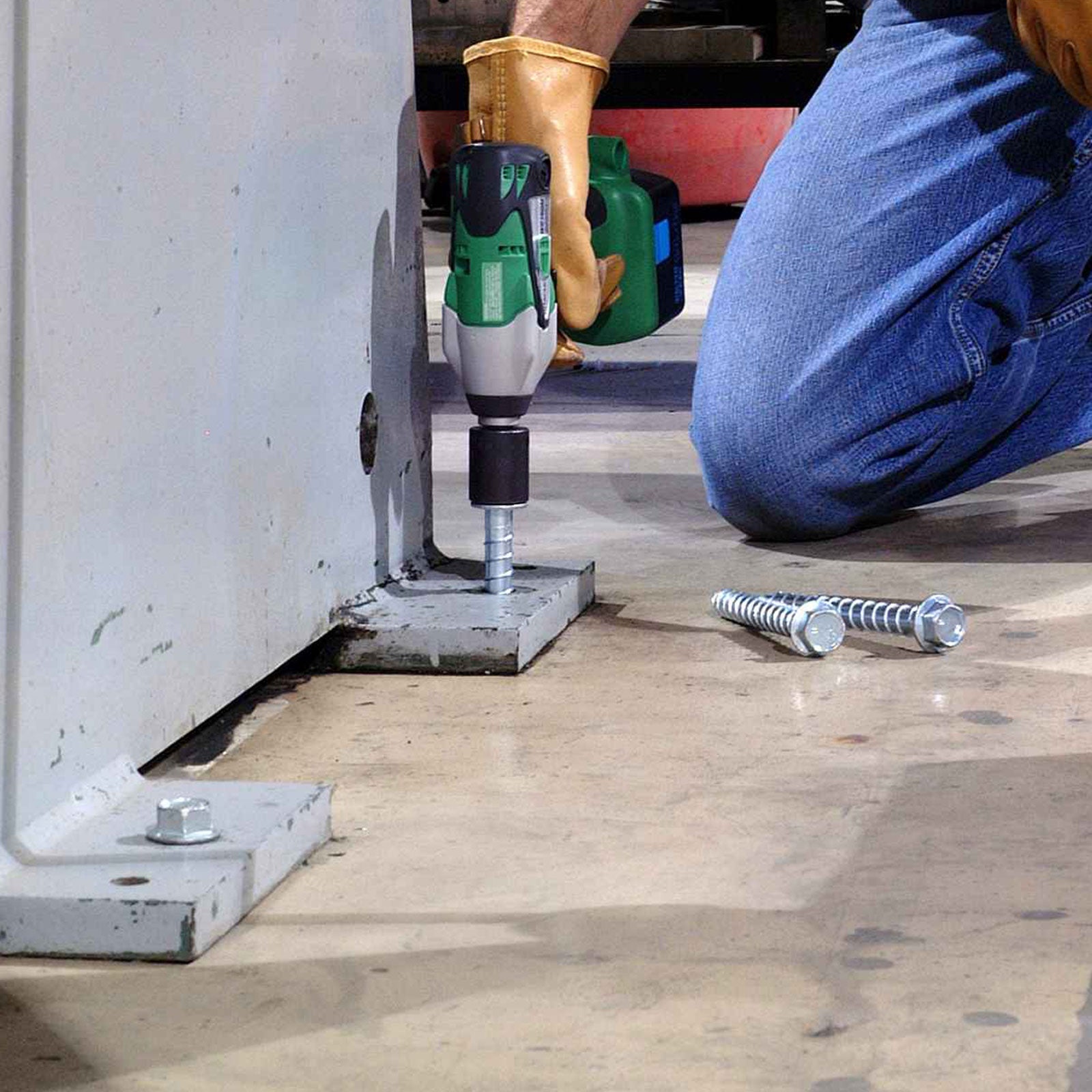

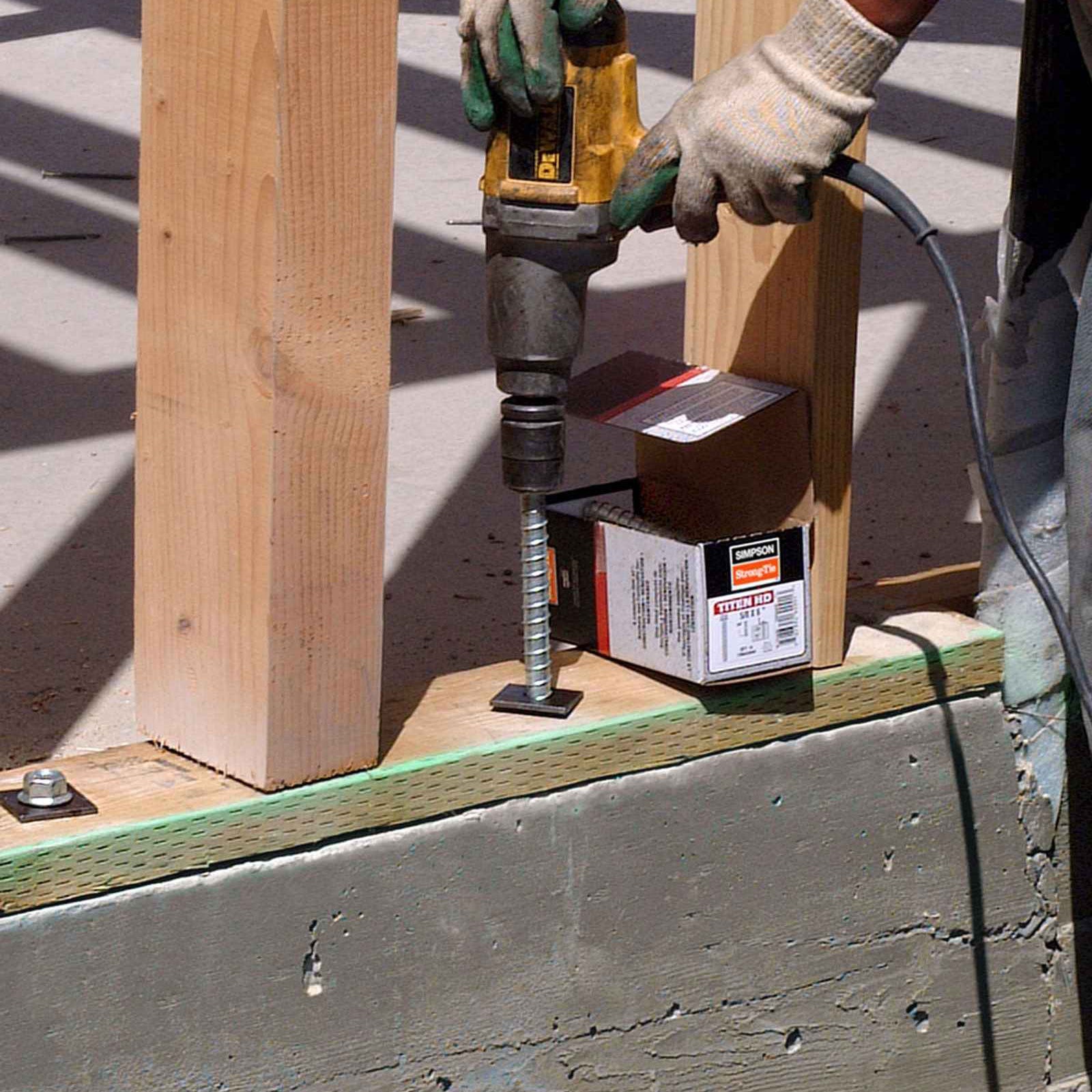

  1. Drill a hole in the base material using a drill bit that matches the diameter of the anchor bolt. Drill to the specified embedment depth, plus an additional overdrill. Clean the hole with compressed air.
  2. Insert the anchor through the fixture and into the hole.
  3. Tighten the anchor bolt until the hex-washer head contacts the fixture.

* see further instructions in Spec Sheet

More
View full details

Continue Browsing

Zinc Large Diameter Concrete Screws

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Raul M. Pinho

These concrete bolts are great. The best thing ever. I use them to mount some guard rails for the forklifts don't hit the walls. These things don't even budge. Great stuff
