SKU: TUFXKS5000EE-20

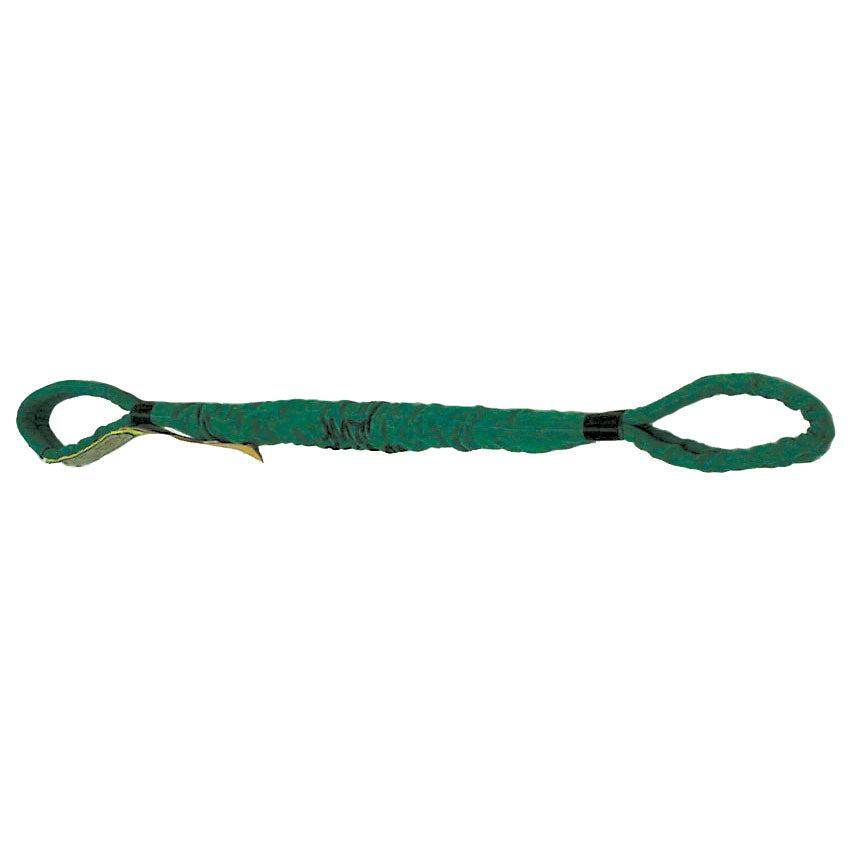

5" x 20' Eye & Eye Twin-Path® High Performance Roundsling | Vertical Cap: 50,000 lbs.

Regular price $2,87500
Ships FREE in 10-12 business days.

Description

At 5 inches, this twin-path eye sling is built for heavier loads that still need a fixed hardware connection at each end rather than a loop. Like the rest of the Twin-Path® line, this eye and eye twin path sling, also known as a twin-path eye sling or twin path eye and eye sling, is stronger than a comparably sized wire rope or chain sling at only about 10% of the weight, easier for riggers to handle, and a good fit for fragile cargo since it's synthetic. This entry-level model carries a 50,000 lb. vertical capacity.

Key Features

  • Sewn sleeve at each end forms a fixed eye for direct connection to hooks or shackles
  • Twin-Path construction uses two independent paths of K-Spec® core yarn under a protective outer jacket, so each path acts as its own connection between hook and load
  • The Covermax® jacket uses two layers of industrial-grade nylon, giving more than four times the abrasion resistance of a polyester jacket
  • Repairable if the jacket is damaged but the core yarns are unharmed
  • Check-Fast® inspection system flags core yarn damage or overload at a glance
  • Non-conductive, non-corrosive, water-resistant, UV-resistant, and load-conforming
  • 1% elongation at rated capacity; load-tested to 200% of capacity; meets ASME B30.9 standards
  • Temperature range -40°F (-40°C) to 180°F (82°C)

Applications

  • Lighter lifts needing a fixed hook or shackle connection rather than a loop
  • Crews standardizing on eye-and-eye rigging hardware across a range of capacities
  • Jobs where a sewn eye speeds up rigging compared to threading a continuous loop

Complete Your Sling Setup

Finish your lifting setup with the right supporting hardware and protection. Add sling protection to help guard against abrasion, edges, and wear, and pair your sling with a properly rated wide body shackle such as the Crosby® G-2160 Bolt Type Wide Body Shackle or Van Beest Green Pin® P-6033 Wide Body Sling Shackle.

View Product Safety Warnings

Specifications

Safety Factor: 5.1
Vertical Capacity: 50,000 lbs.
Choker Capacity: 40,000 lbs.
Basket Capacity: 100,000 lbs.
Length: 20'
Minimum Connection Diameter: 1.5"
Item Weight: 23.77 lbs.
Shipping and Returns: This item cannot be returned due to safety risks.
Additional Info: Nominal Body Width: 5"
Minimum bending radius: .75"
