Shop more Bolthold Asphalt Anchors
SKU: SP10-38S

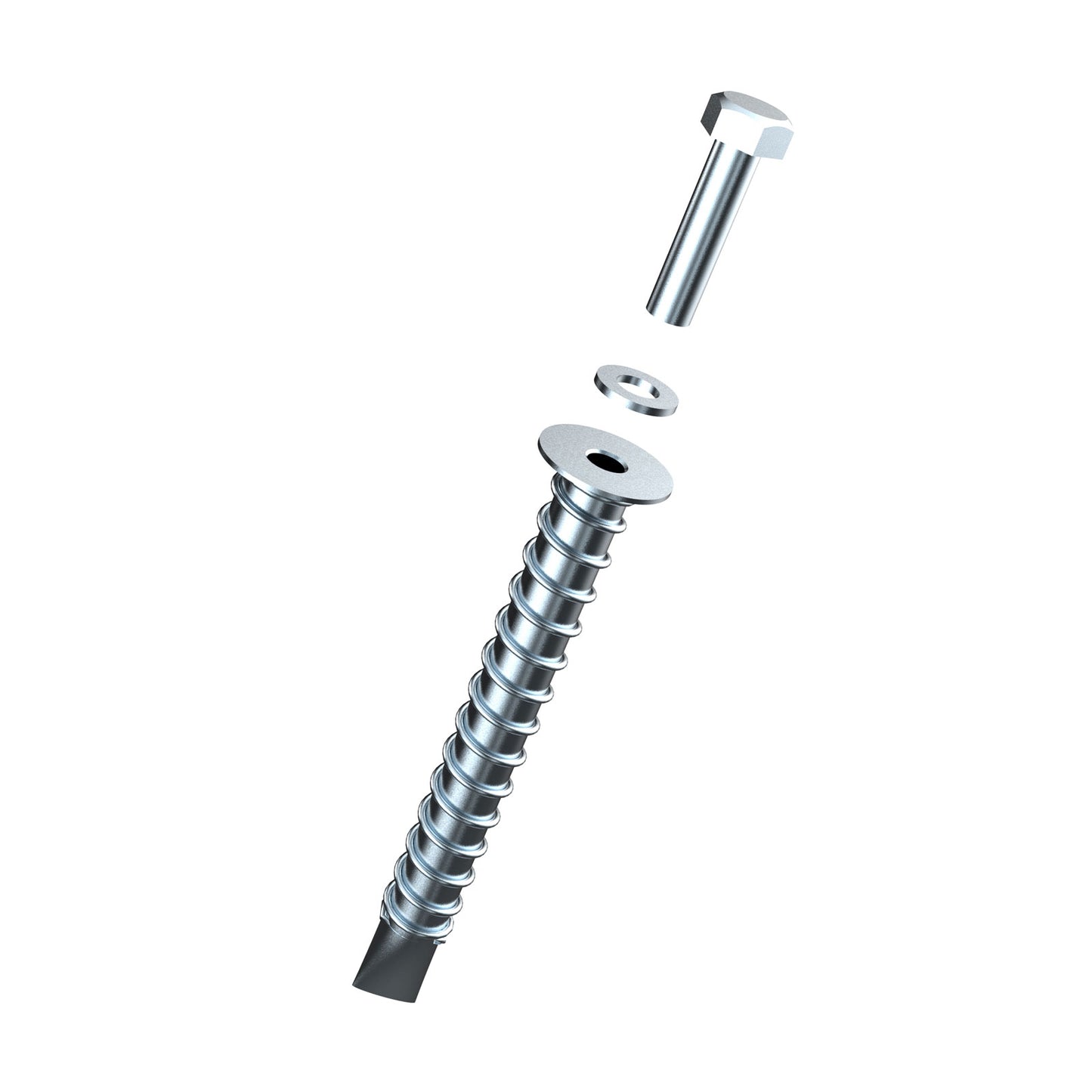

Bolthold SP10-38S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Bolthold SP10-38S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Regular price $96.00
Sale price $96.00 Regular price
0% off
shipping truck, lead time icon
Ships Apr 22 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Notice: Do not install anchors with tile grout. Bolthold anchors must be installed with the specified EPX2 or EPX3 special grout.

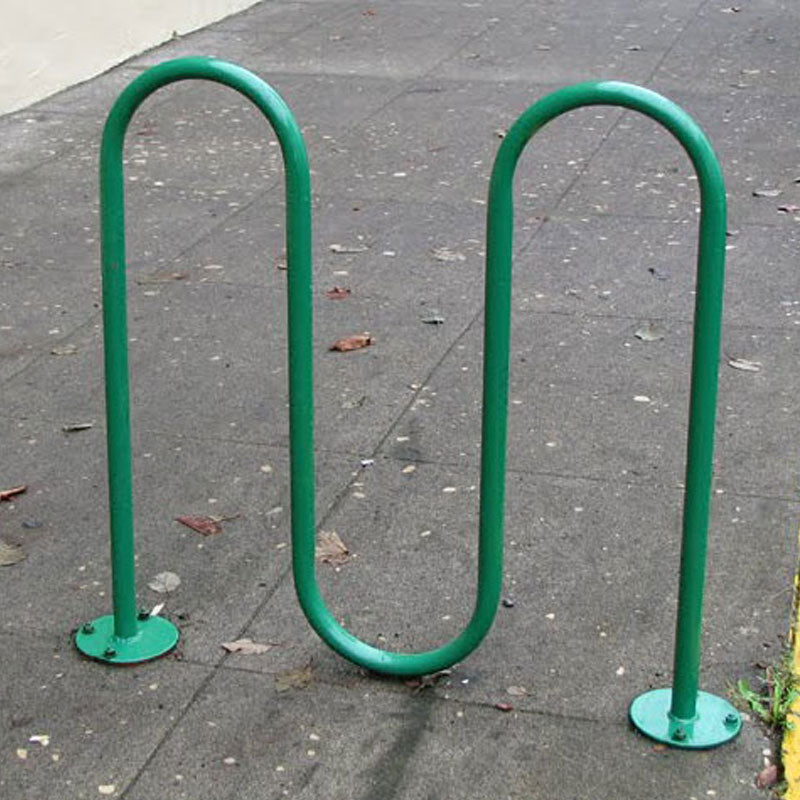

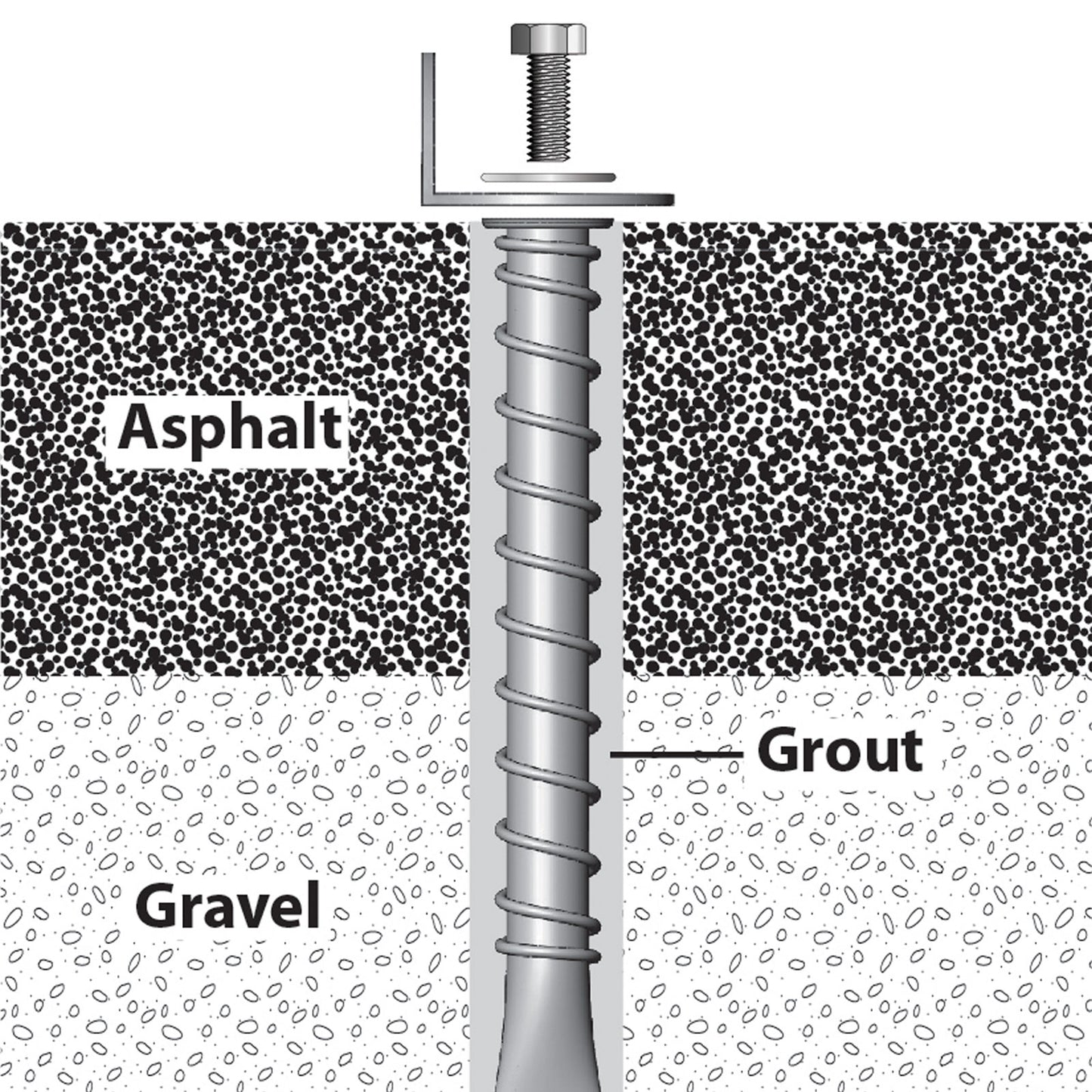

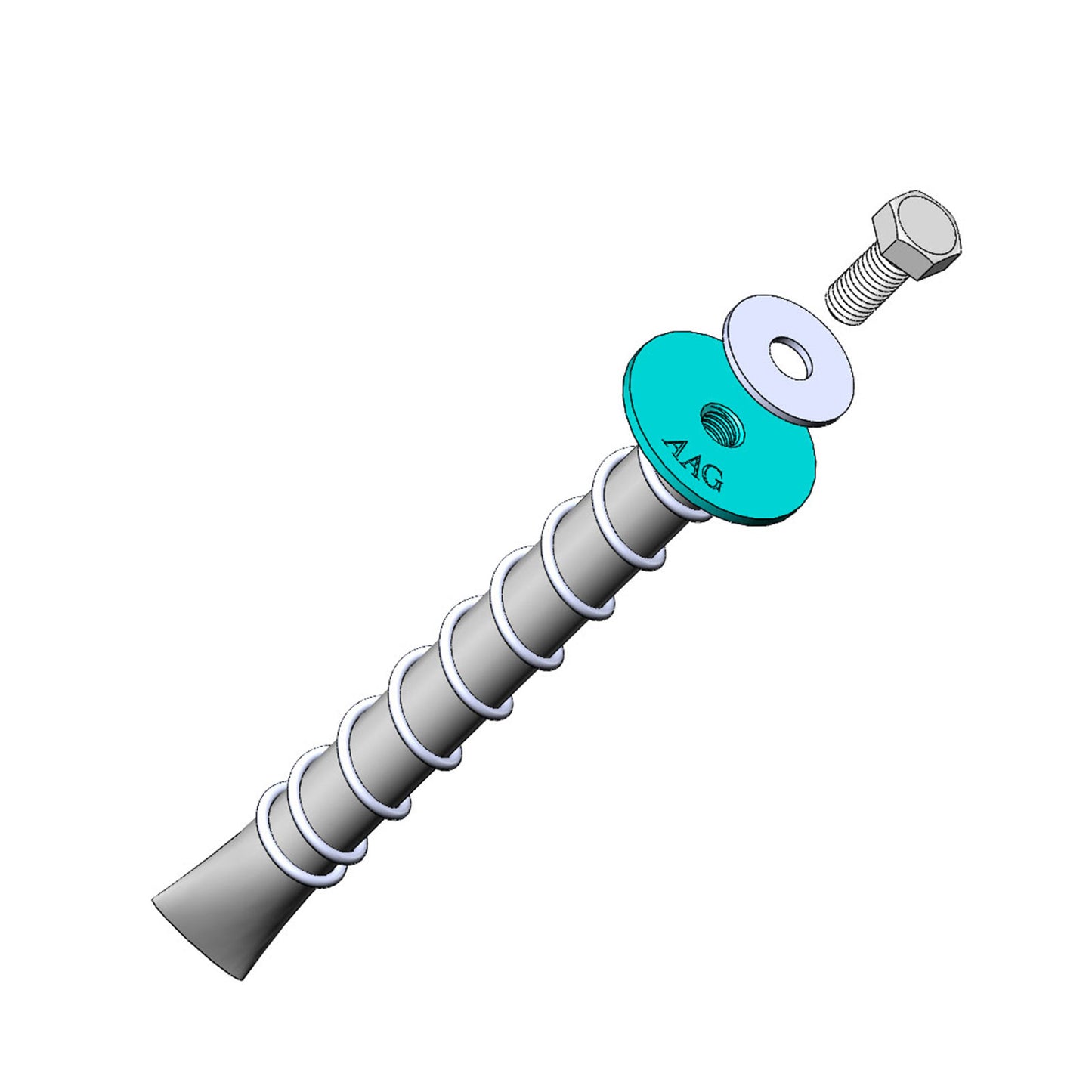

Bolthold SP10-38S Asphalt Anchors are heavy-duty anchors skillfully designed for asphalt applications. They have excellent performance in 2.5" shallow asphalt. The 2.5" asphalt thickness is common for walkways and parking lots. This 6" asphalt anchor bolt commonly anchors bike racks, signs, machinery, and more into asphalt surfaces. This anchor requires a 7/8" hole that is 6" deep, and the use of grout to secure it to the asphalt. The length of the bolt inside the anchor should not exceed 3". Each anchor is pre-installed with a 1" long hex bolt and a 1" diameter washer. The stainless steel finish provides enhanced corrosion resistance, making this fastener ideal for applications near salt water.

You can load the anchors at 80% of their pull rating if the object/structure stands solidly by itself. If the object applies a static pull force on the anchors just as it stands, limit the load to 20% of the pull rating.

Features:

  • Asphalt Anchors are mounted flush with the surface.
  • A 1.4" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
  • The attached objects can be easily removed without leaving protrusions on the surface.

Required Grout:

Listed below are the approximate amounts of grout required to install one six-pack of SP10-38S asphalt anchors.

Specifications:


Thread type: 3/8"-16 UNC Coarse Female Thread
Head diameter: 1.35"
Quantity: 6
Diameter: 5/8"
Length: 6"
Manufacturer name: Bolthold Asphalt anchors
Torque: 200 lb.-in.
Additional information: Shear Resistance: 1000 lbs.
Pull Force: 1500 lbs.
Product Guide: View Spec Sheet

Features

-Asphalt Anchors are mounted flush with the surface.
-A 1.4" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
-The attached objects can be easily removed without leaving protrusions on the surface.
