Shop more Bolthold Asphalt Anchors
SKU: SP58-58S

Bolthold SP58-58S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Bolthold SP58-58S Asphalt Anchor, 304 Stainless Steel, 6 Pkg

Regular price $180.00
Sale price $180.00 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 2 hours 45 minutes

Description:

Notice: Do not install anchors with tile grout. Bolthold anchors must be installed with the specified EPX2 or EPX3 special grout.

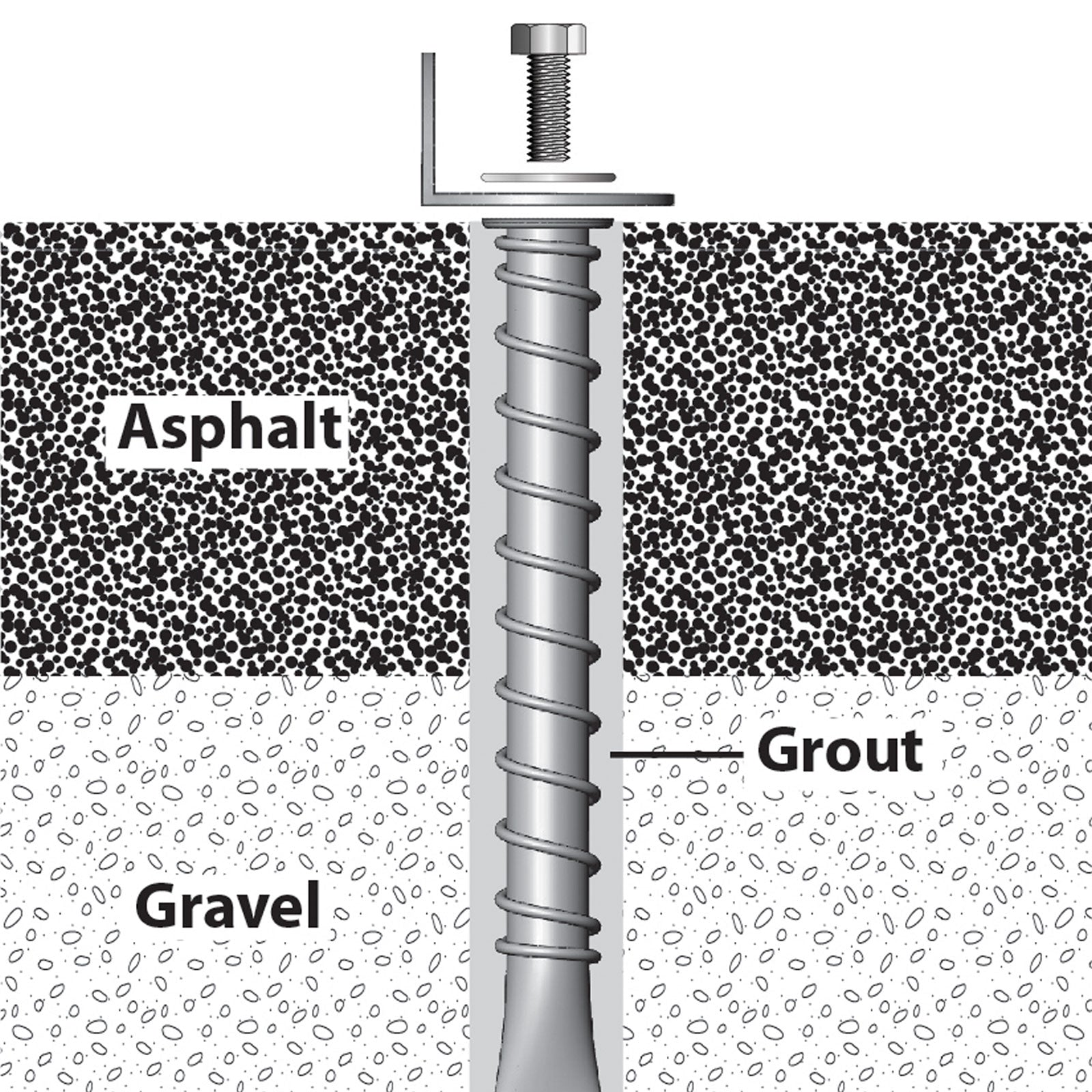

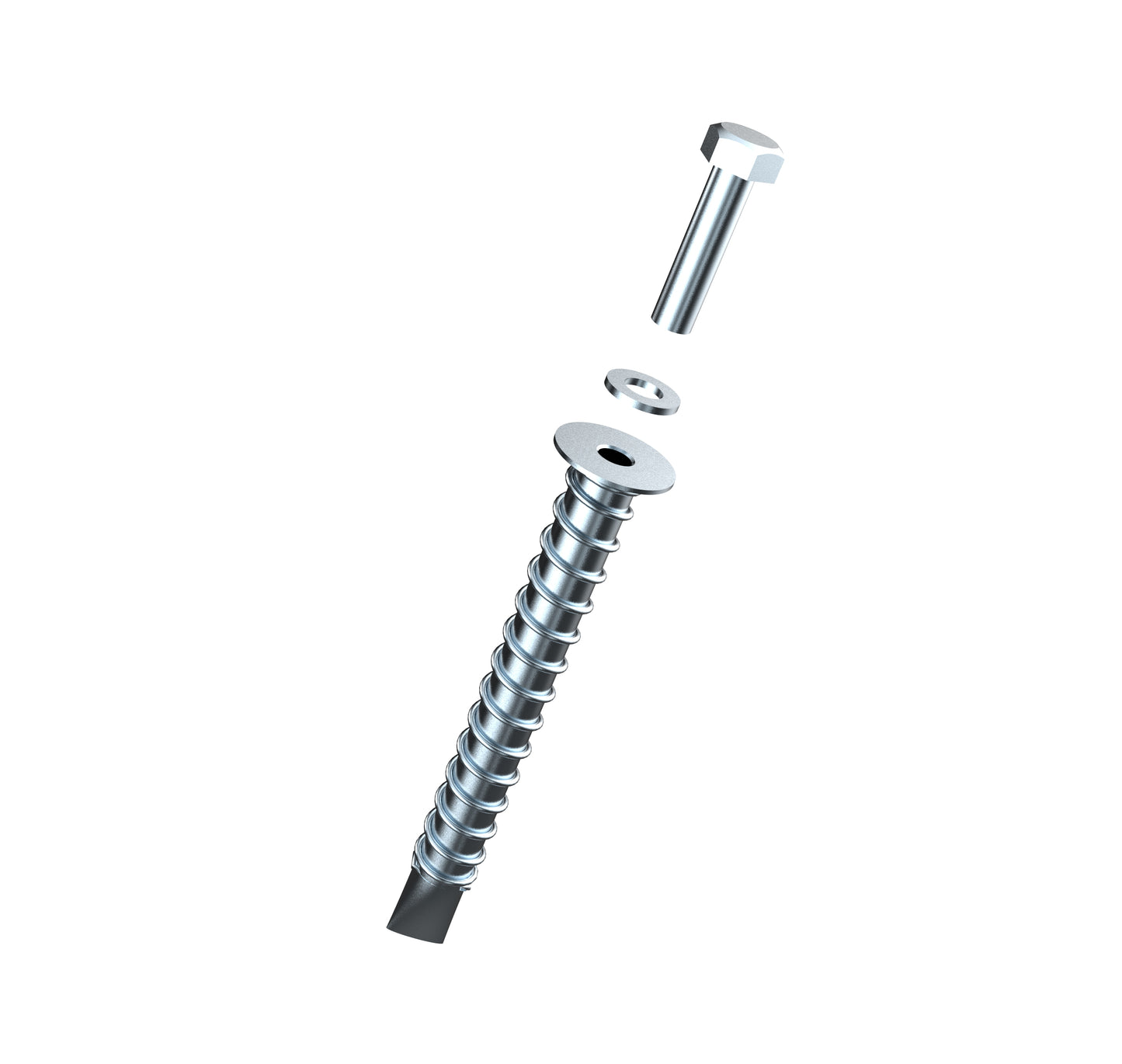

Bolthold SP58-58S Asphalt Anchors are heavy-duty anchors skillfully designed for asphalt applications. This 10" asphalt anchor bolt is great for mounting tents, speed bumps and curbs directly to asphalt surfaces. This anchor requires a 1.5" hole that is 10" deep, and the use of grout to secure it into the asphalt. The thread inside the anchor should not exceed 4". Each anchor is pre-installed with a bolt and a washer. The stainless steel finish provides enhanced corrosion resistance, making this fastener ideal for applications near salt water.

You can load the anchors at 80% of their pull rating if the object/structure stands solidly by itself. If the object applies a static pull force on the anchors just as it stands, limit the load to 20% of the pull rating.

Features:

  • Anchors are mounted flush with the surface.
  • A 2" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
  • The attached objects can be easily removed without leaving protrusions on the surface.

Required Grout:

Listed below are the approximate amounts of grout required to install one six-pack of SP58-58S asphalt anchors.

Specifications:


Thread type: 5/8"-11 UNC Coarse Female Thread
Head diameter: 2"
Quantity: 6
Diameter: 1-1/4"
Length: 10"
Manufacturer name: Bolthold Asphalt anchors
Torque: 750 lb.-in.
Additional information: Shear Resistance: 2500 lbs.
Pull Force: 5000 lbs.
Product Guide: View Spec Sheet

Features

-Anchors are mounted flush with the surface.
-A 2" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
-The attached objects can be easily removed without leaving protrusions on the surface.
