SKU: LC516EIB637

5/16" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil

Regular price $6,37500
Ships FREE in 2-3 business days.

Description

5/16" 6x37 Wire Rope Cable | Bright Steel

This 5/16" bright steel wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a 6x37 class construction with an Independent Wire Rope Core (IWRC). Known for its superior flexibility and fatigue resistance, 6x37 wire rope is a versatile solution for hoisting, suspension systems, winch lines, lifting operations, and other applications that require repeated bending and movement.

Flexible Wire Rope for Hoisting, Winching & Dynamic Loads

The 6x37 class is designed for applications where flexibility is critical. Compared to 6x19 wire rope, it bends more easily and withstands repeated flexing with greater fatigue resistance, making it ideal for high-cycle lifting and rigging systems. While it offers slightly less abrasion resistance than a 6x19 construction, it excels in applications involving frequent movement and dynamic loading.

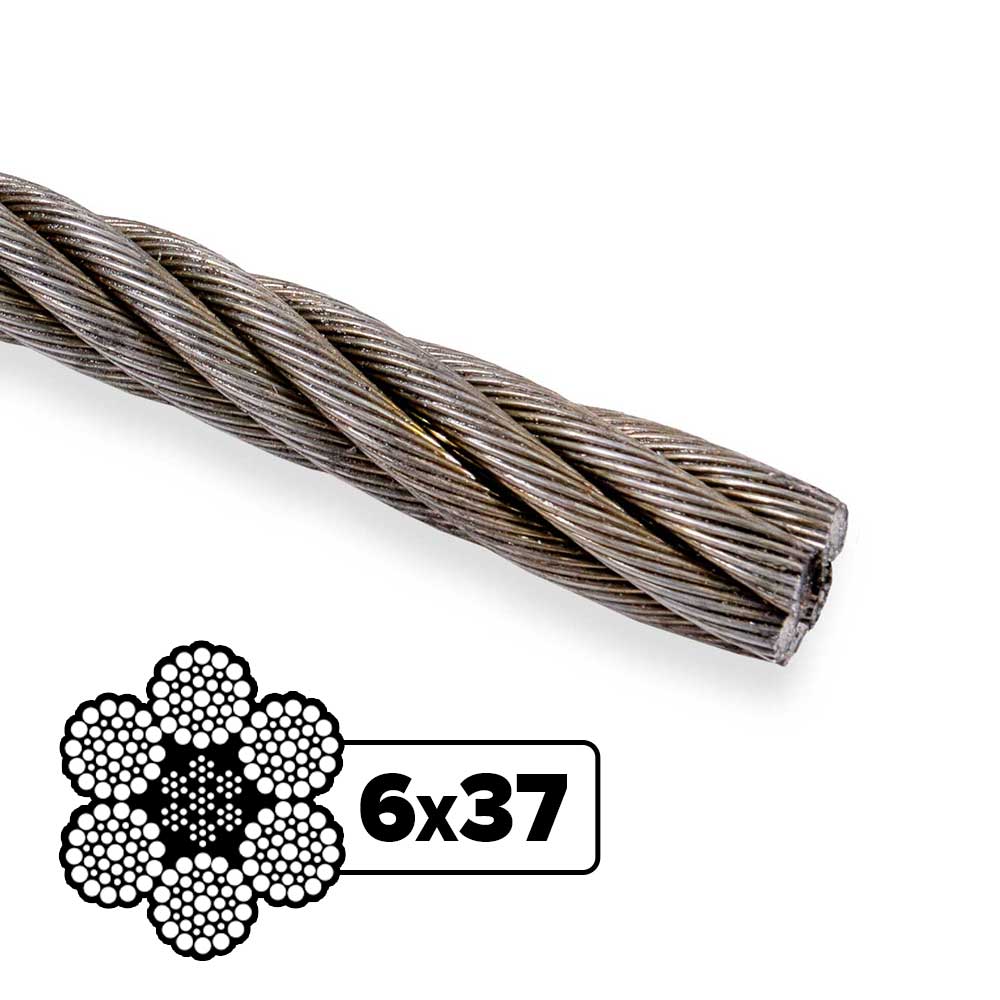

6x37 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade cable. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved break strength and dependable performance under load.

The class of this wire rope is 6x37. These numbers nominally refer to the rope construction, indicating six outer strands with approximately 27-49 wires per strand. The actual construction supplied is 6x36. If you require a different construction, please contact our team.

Finish & Core

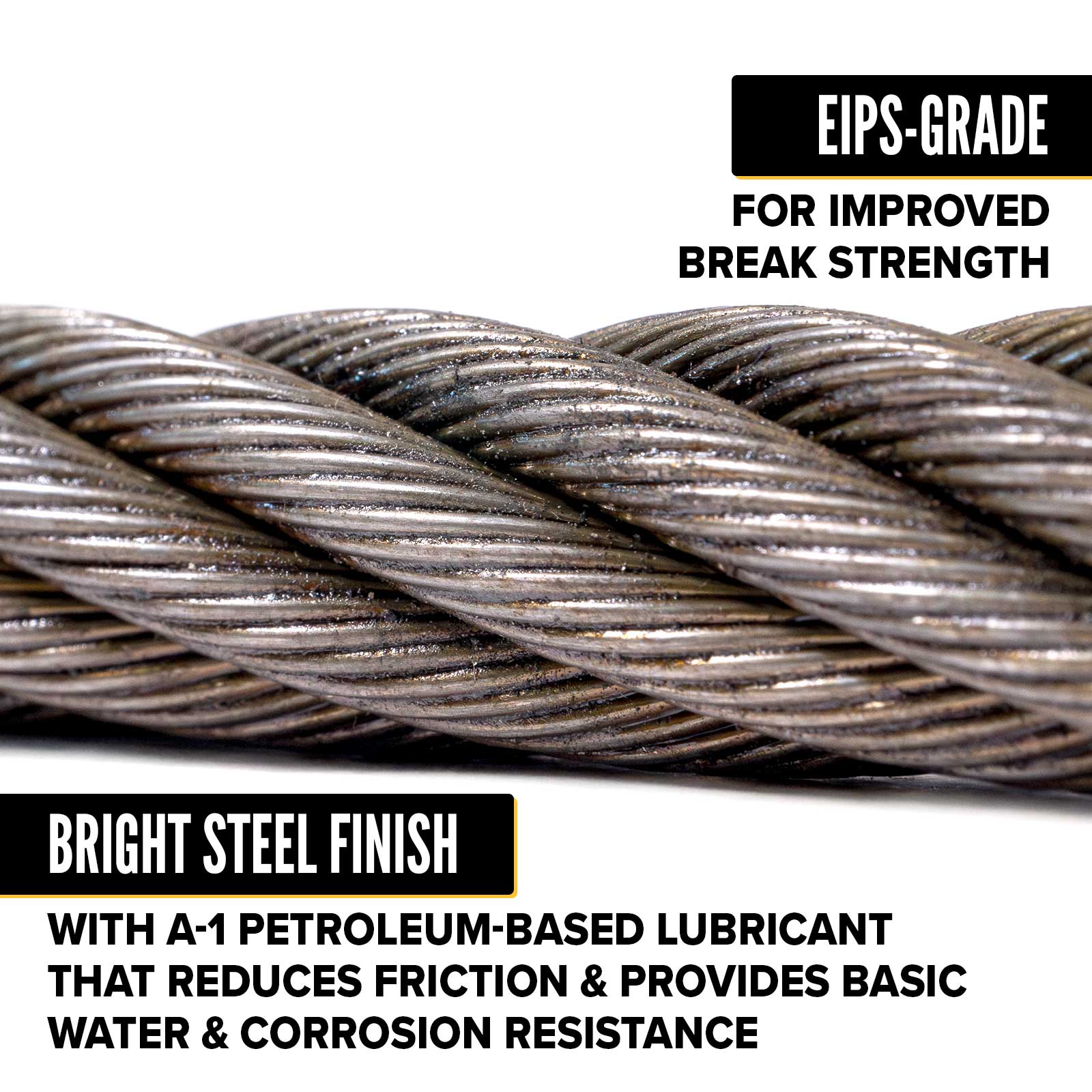

This wire rope features a bright steel finish, meaning it is uncoated and protected with an A-1 petroleum-based lubricant. The lubricant helps reduce internal friction, minimizes wear, and provides basic moisture and corrosion resistance. Lubrication is applied to both internal and external wires for enhanced service life.

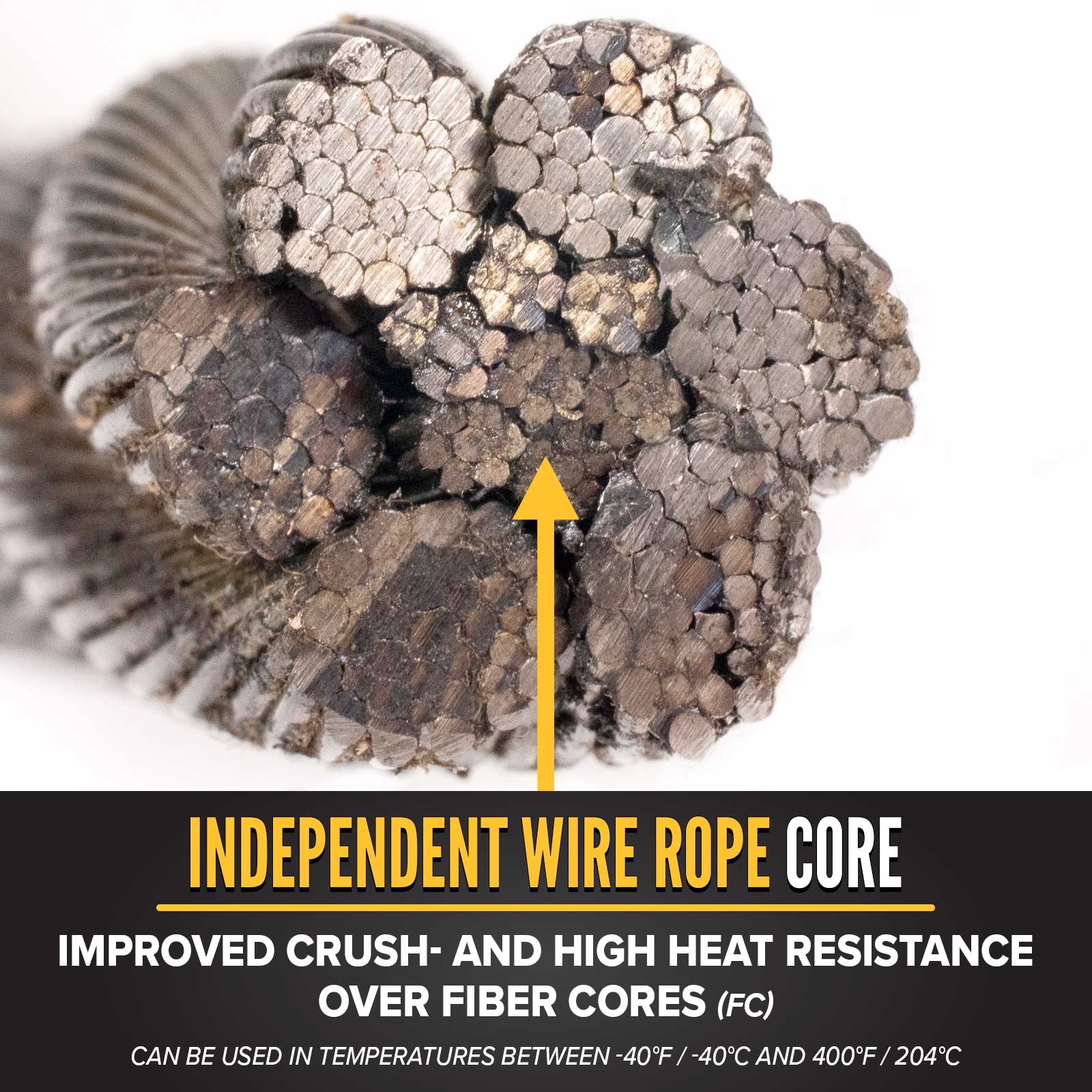

The Independent Wire Rope Core (IWRC) provides greater support than a fiber core, increasing crushing resistance, maintaining rope stability under load, and improving durability in demanding applications. Typical operating temperatures range from -40°F to 400°F.

Key Features

  • EIPS-grade steel provides approximately 10% greater tensile strength than IPS-grade wire rope
  • 6x36 construction delivers exceptional flexibility and fatigue resistance
  • Bright steel finish with petroleum-based lubricant reduces friction and wear
  • IWRC core improves crushing resistance and load stability
  • Ideal for hoisting, winch lines, suspension systems, and dynamic rigging applications
  • Designed for applications requiring repeated bending and movement
  • Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
  • Suitable for operating temperatures from -40°F to 400°F
  • Sold by the foot and shipped as one continuous length when available

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.

View Product Safety Warnings

California Residents: WARNING

Specifications

Assembly Break Strength: 5.27 tons / 10,540 lbs.
Rated For Overhead Lifting: Yes
Grade: EIPS
Wire Rope Diameter: 5/16"
Length: 5,000'
Wire Rope Class: 6x37
Rope Construction: 6x36
Core: IWRC
Finish: Bright
Item Weight: 900 lbs.
Weight Per Foot: 0.18 lbs.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Shipping and Returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Additional Info: Right Hand Regular Lay
