SKU: ABA66RZ

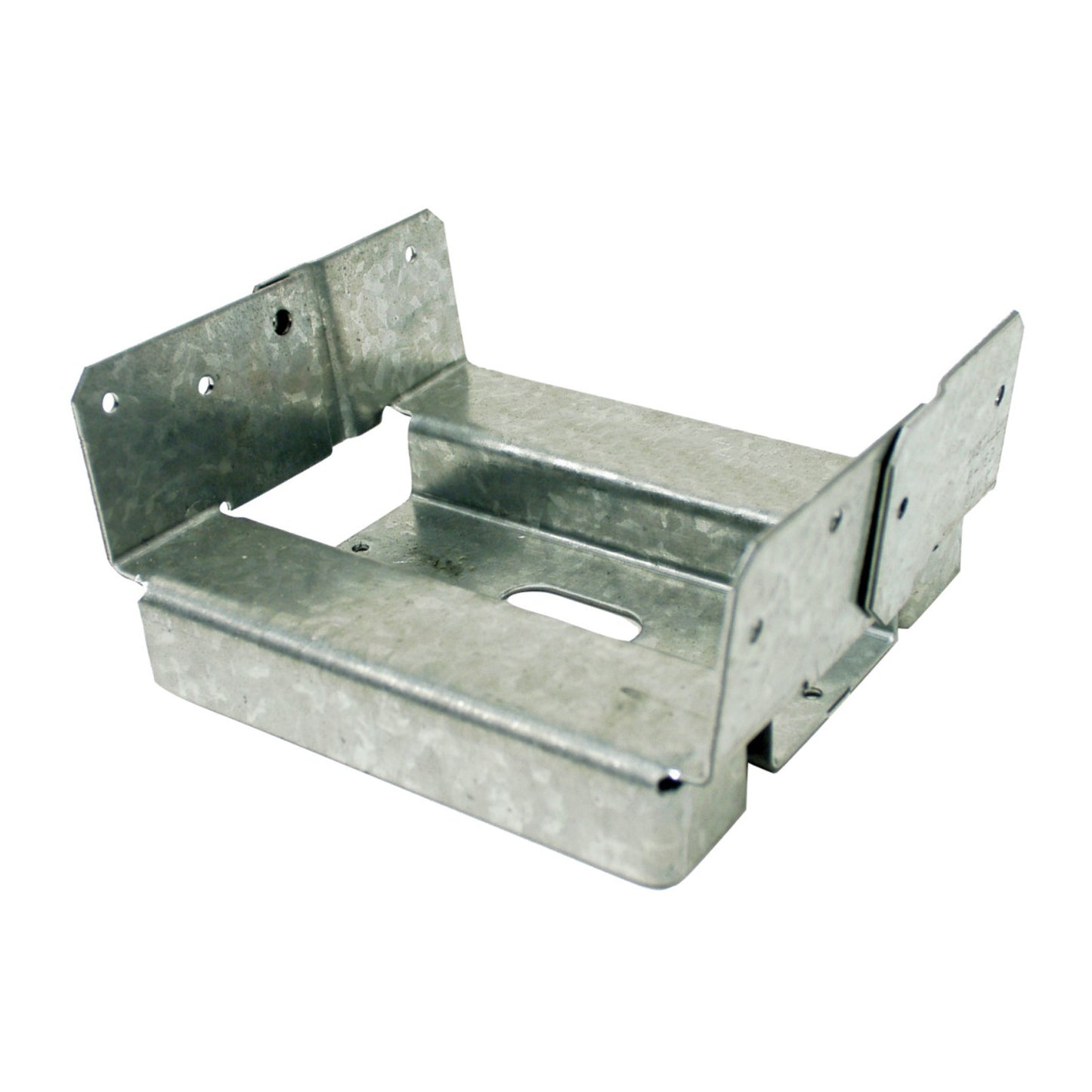

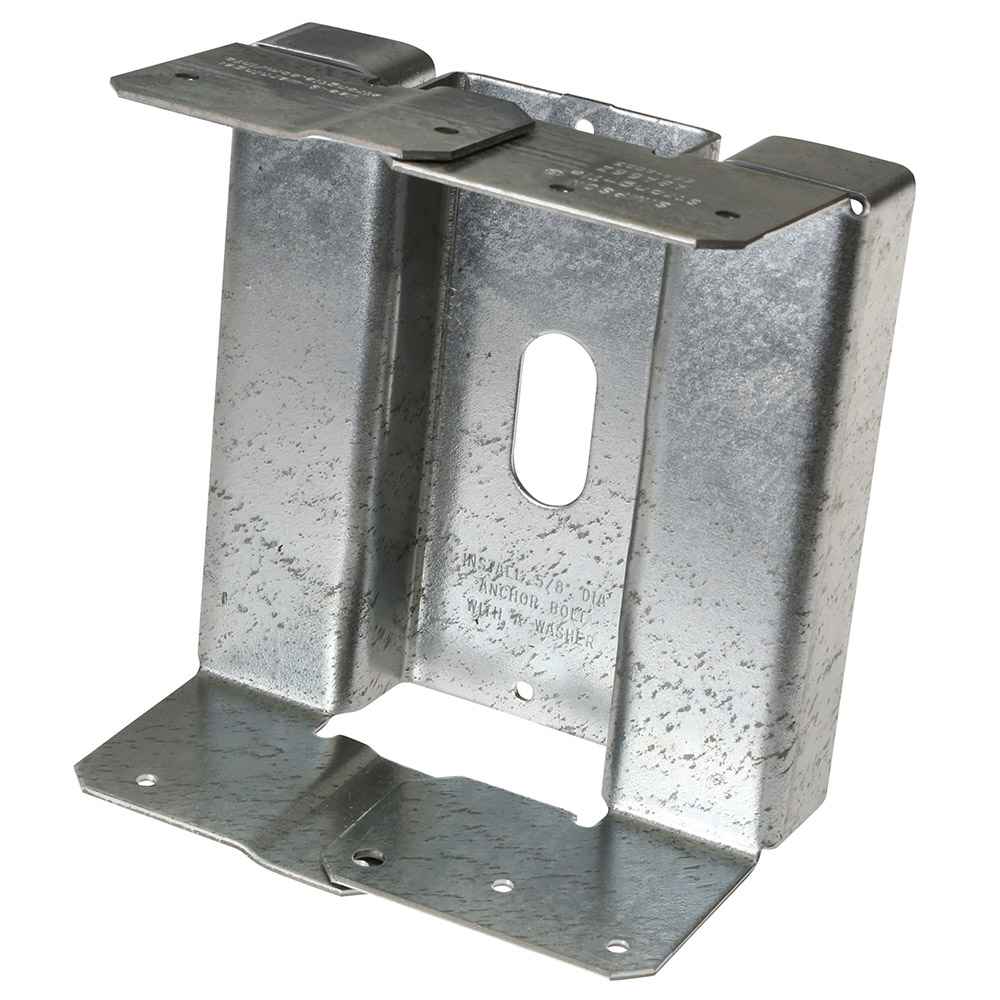

Simpson ABA66RZ Rough Cut 6x6 Adjustable Post Base - Zmax Finish

Simpson ABA66RZ Rough Cut 6x6 Adjustable Post Base - Zmax Finish!

Skip to product information
1 of 6
$26.49

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Nov 8 when you add 8 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: ZMAX
Material: Steel
Fasteners required: - (8) 0.162 x 3-1/2" Nails - (1) 5/8" Concrete Anchor
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Post size: Rough Cut 6x6
Description

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 6x6". If you have a nominal post measuring 5-1/2x5-1/2" you will need an ABA66Z Post base

The Simpson ABA66RZ Rough Cut 6x6 Adjustable Post Base - Zmax Finish is designed to securely attach wood posts to existing concrete, making it an essential component for your construction projects. This versatile post base is ideal for various applications and provides a moderate amount of uplift load capacity, making it a good option for most jobs. Its built-in 1-inch standoff design helps prevent rot at the end of the post, ensuring durability and longevity.

One of the standout features of the ABA Adjustable Post Base is its slotted anchor hole, which allows for precise post placement, making installation more manageable. The post base can be attached using nails or Strong-Drive® SD Connector screws, providing flexibility and ease of use.

This product is intended for use with Rough Cut 6x6 lumber but is also available in other sizes, including double 2x, 4x4, 4x6, and 6x6, for both nominal and rough-cut lumber.

Features:

  • Load Capacity: Engineered to withstand high uplift loads, making it ideal for longterm performance.
  • Versatile Application: Intended for use with Rough Cut 6x6 lumber with a slotted base for adjustable installation.
  • Enhanced Durability: The 1-inch standoff design meets code requirements and helps prevent post rot.
  • Light Corrosion Resistance: Proprietary ZMAX coating applied to the product provides protection against corrosion in most environments.

California Residents: WARNING

View full details
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
I
Ivan Cleeo Wright

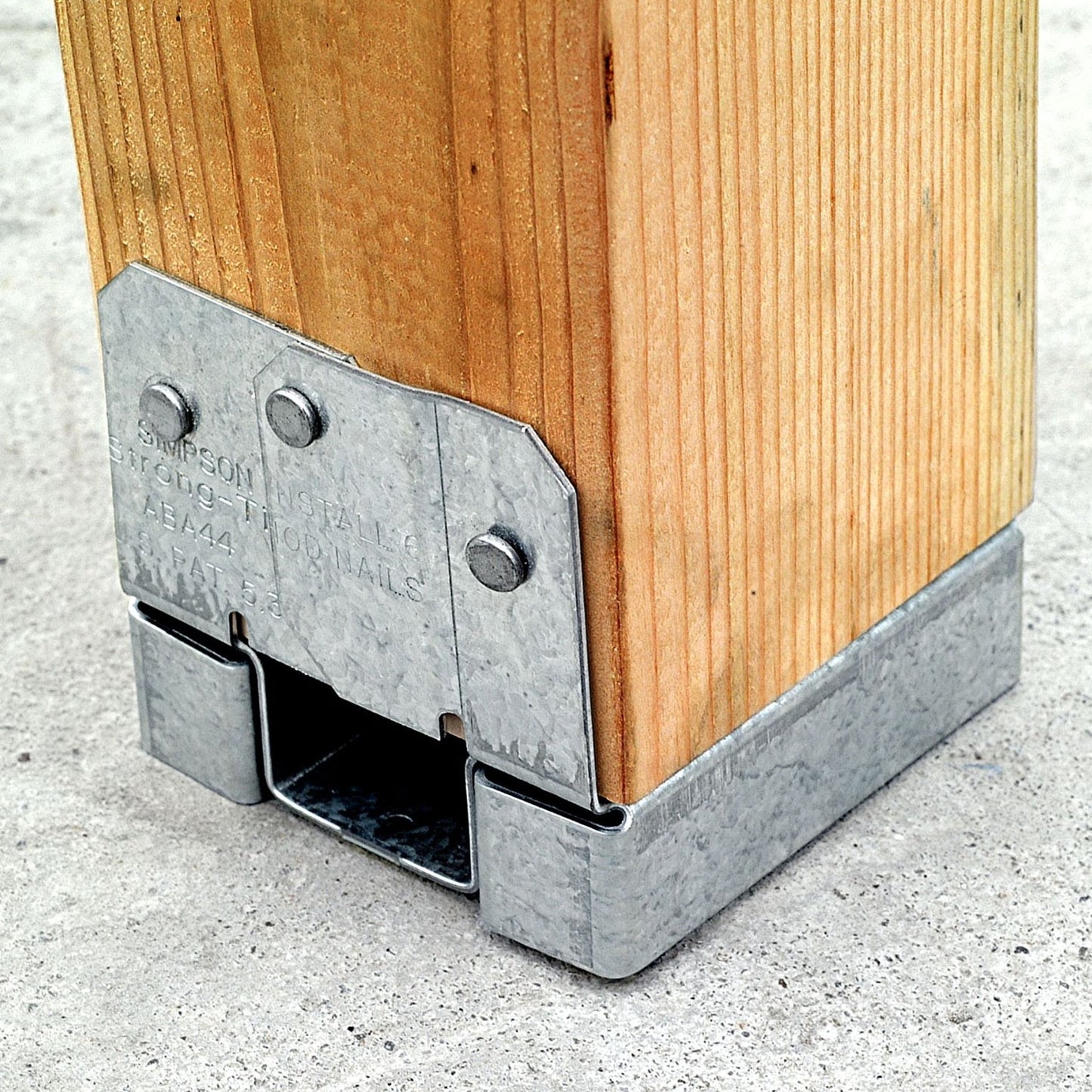

Deck Support

They met our requirements when installed.
