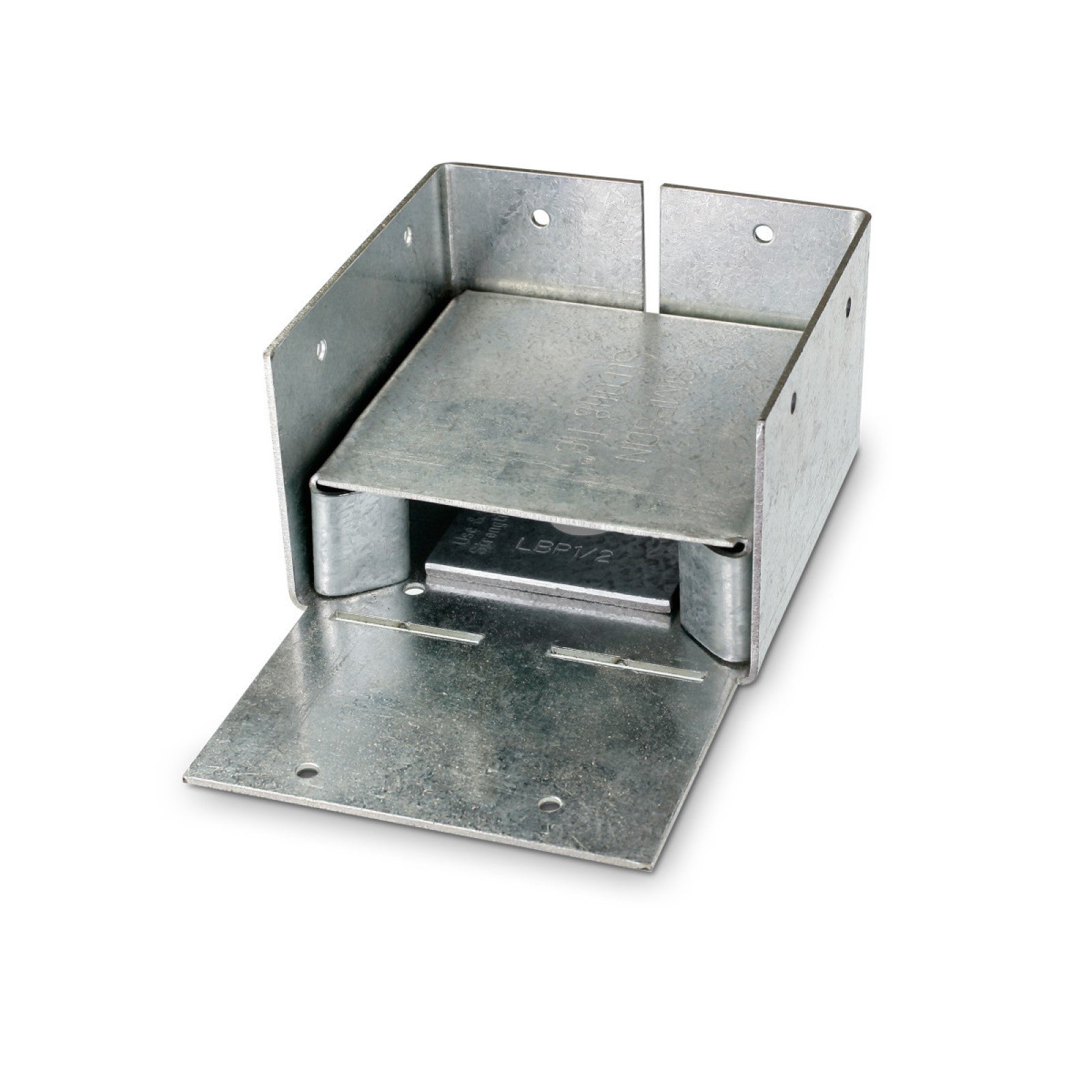

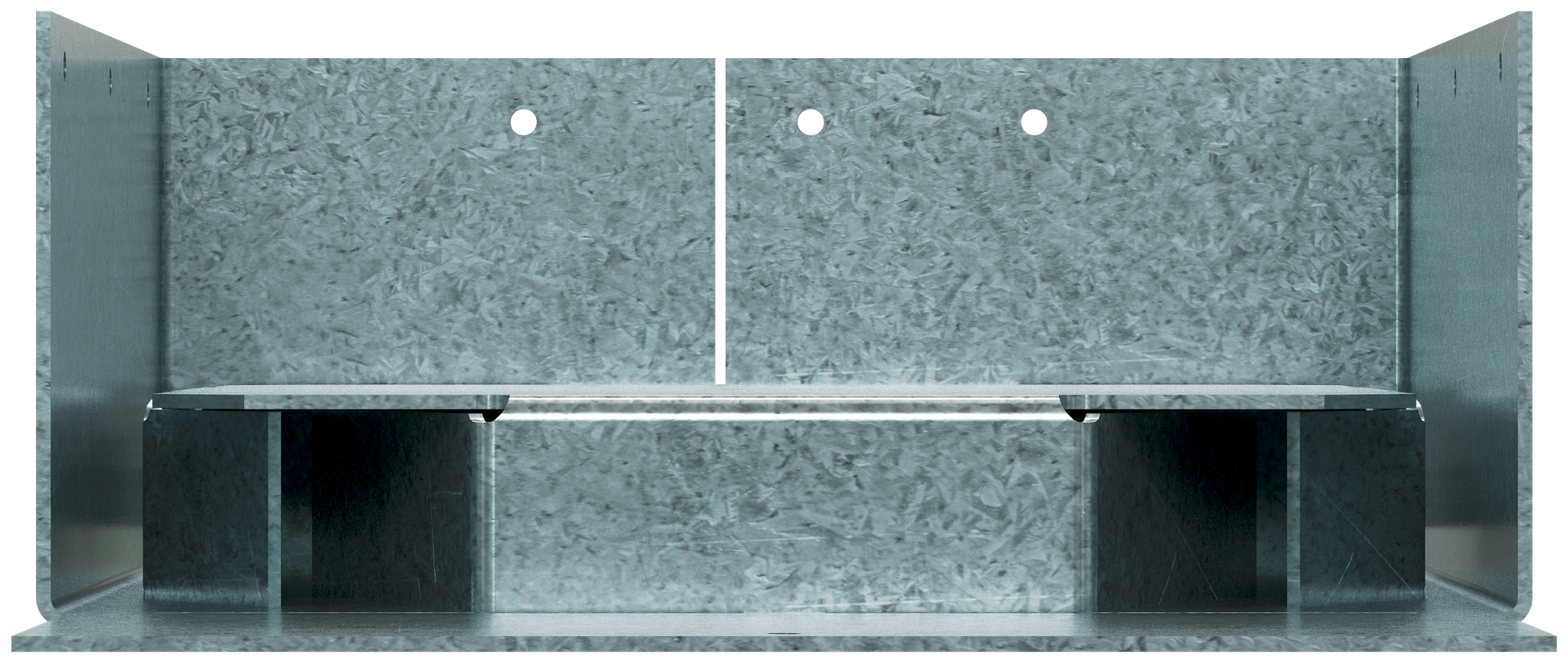

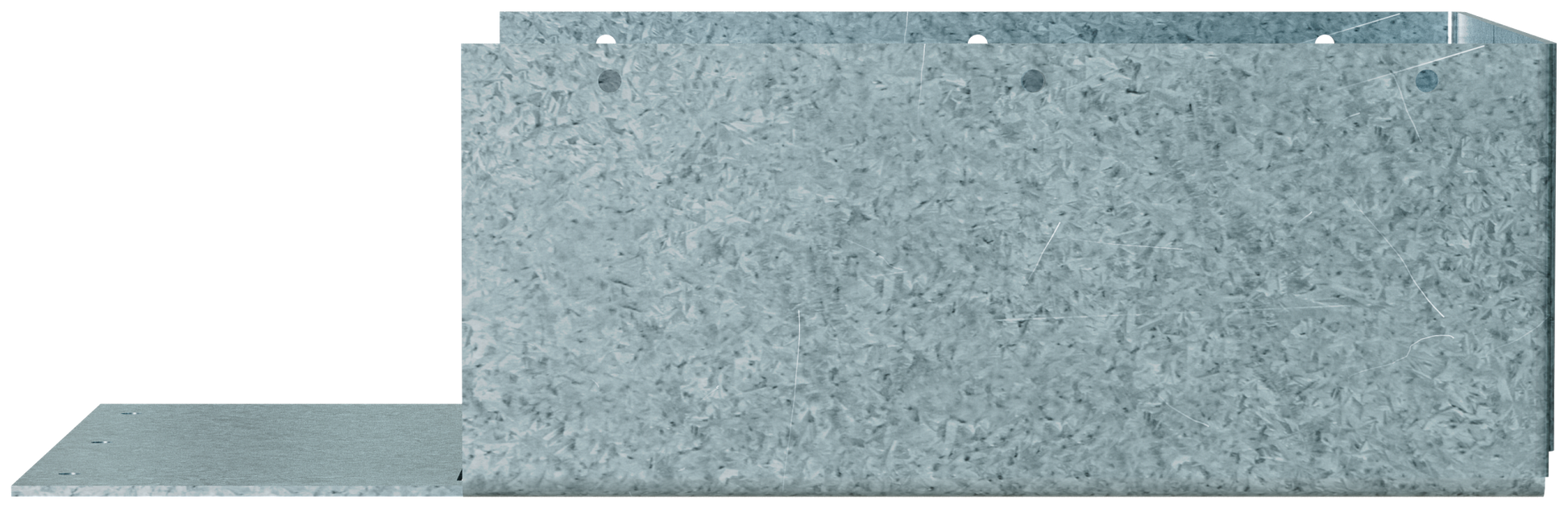

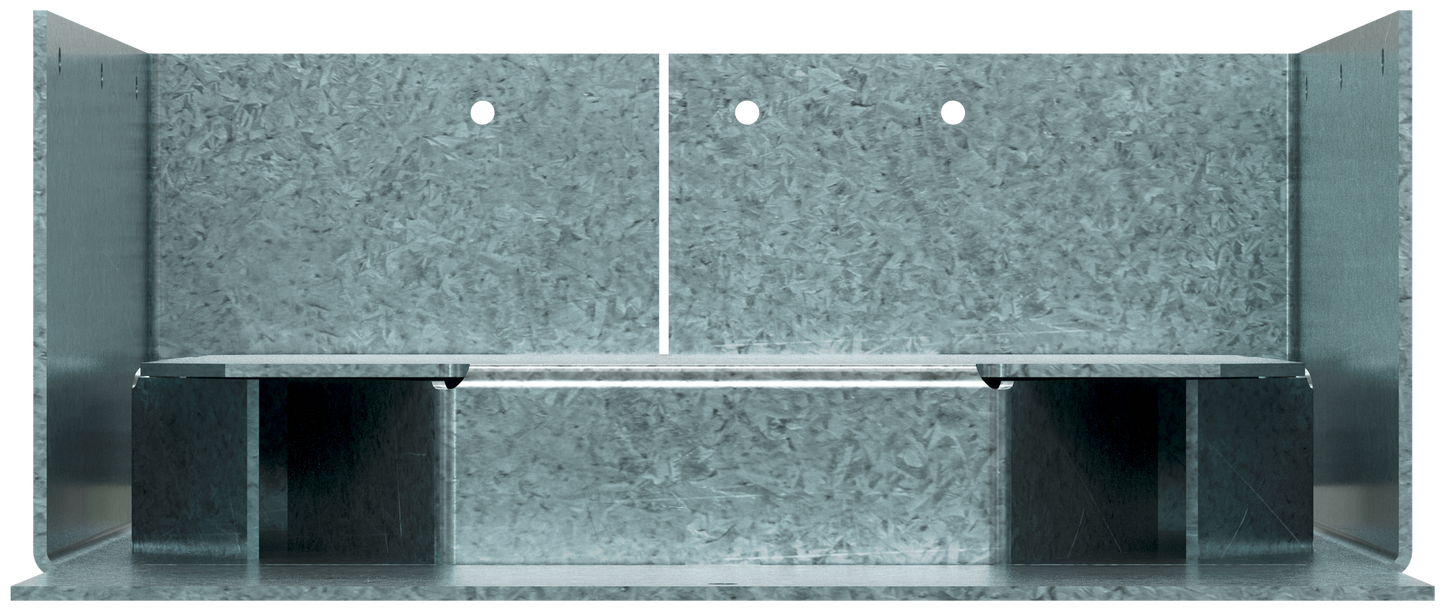

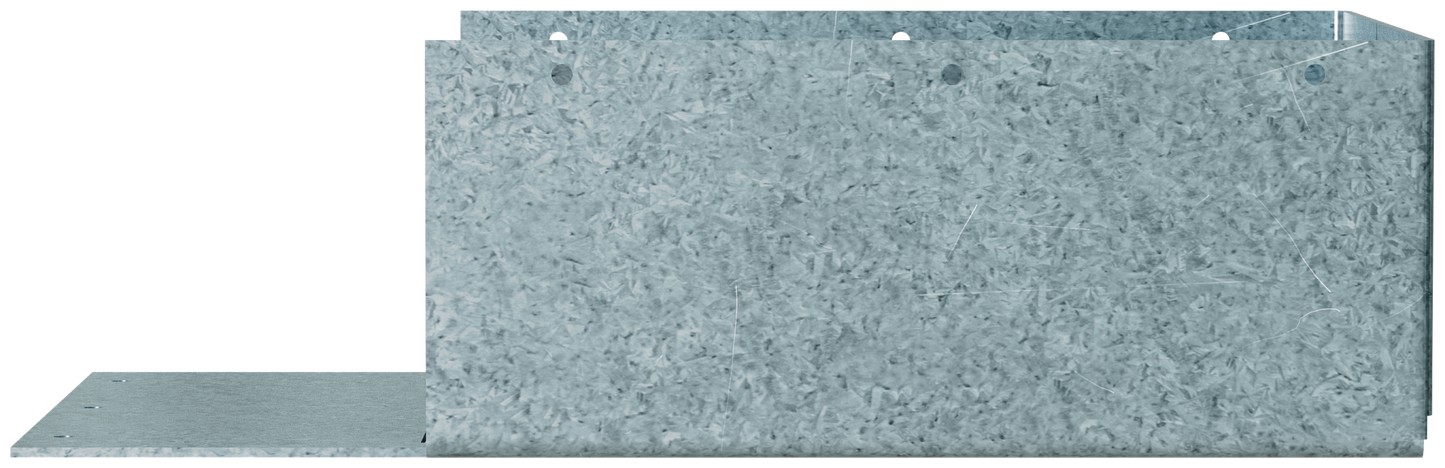

Simpson ABW7-7Z Adjustable Post Base with Wind Uplift
Simpson ABW7-7Z Adjustable Post Base with Wind Uplift
No reviews
Regular price
$79.26
Sale price
$79.26
Regular price
Unit price
/
per
0% off
Ships Apr 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
The Strong-Tie ABW series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The ABW adjustable post base is approved to be installed with the specified nails or with Strong-Drive SD connector screws . The Strong-Tie ABW post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Features:
- The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
- The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash
Installation:
- Use all specified fasteners.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
- Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.
- Place the standoff base and then the post in the ABW and fasten on three vertical sides, using nails or Strong-Drive® SD Connector screws.
- Make any necessary adjustments to post placement and tighten the nut securely on the anchor bolt.
- Bend up the fourth side of the ABW and fasten using the correct fasteners.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 3"
Fasteners required: (12) 0.148 x 3"
Thickness: Base - 12 Gauge; Strap - 14 Gauge
Width: 7-5/16"
Finish: ZMAX
Length: 7-5/16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
