SKU: CB1212X

Simpson CB1212X Column Base, Made to Order Non-Returnable

Name: Simpson CB1212X Column Base, Made to Order Non-Returnable
SKU: CB1212X
Availability: InStock

ICC Certified

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

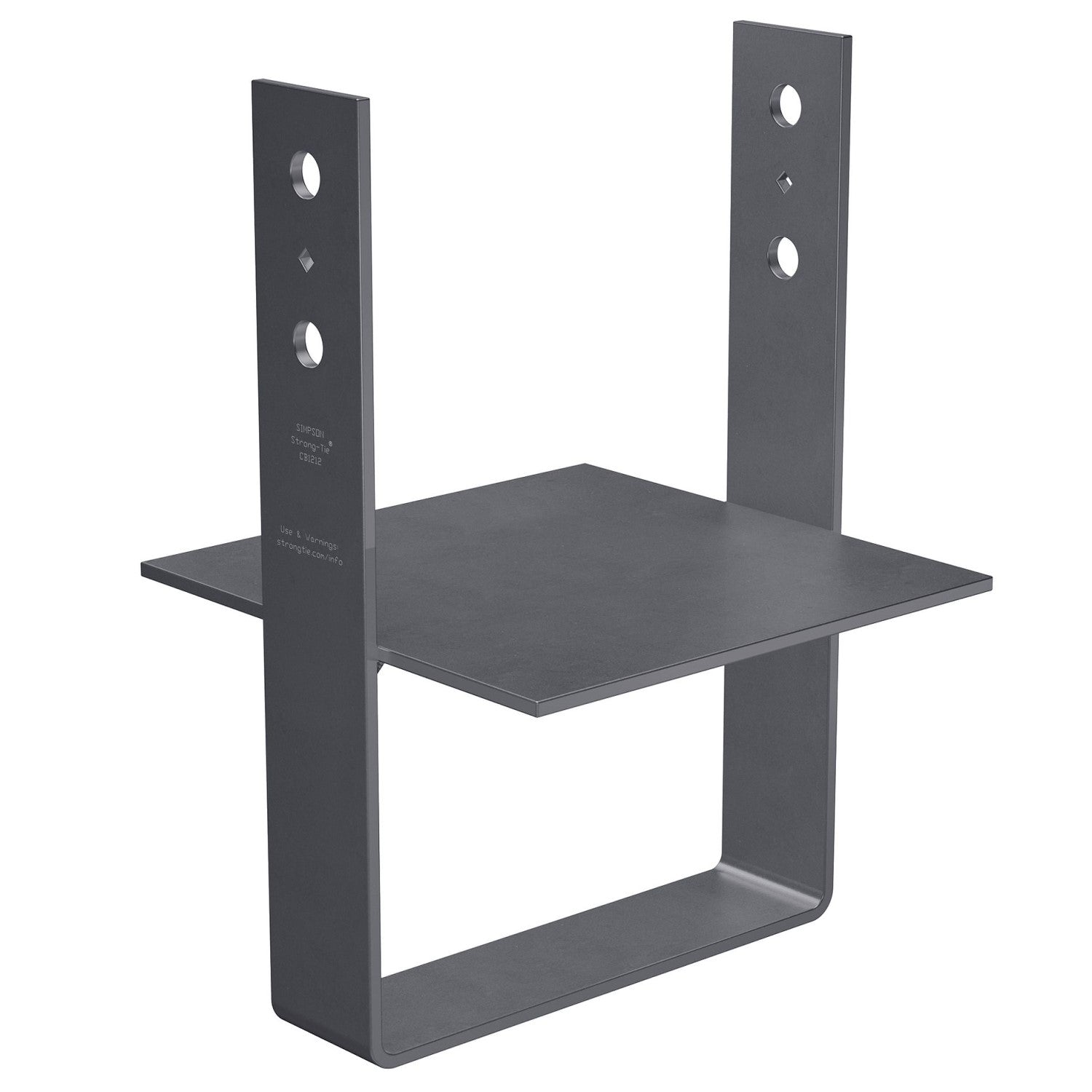

Simpson Strong-Tie CB Column bases are a sturdy cast-in place anchor that are designed for heavy duty column loads. The Strong-Tie CB1010 features a standard Gray Painted coating for added corrosion resistance. Some products are available in HDG, stainless steel or black powder coat upon request.

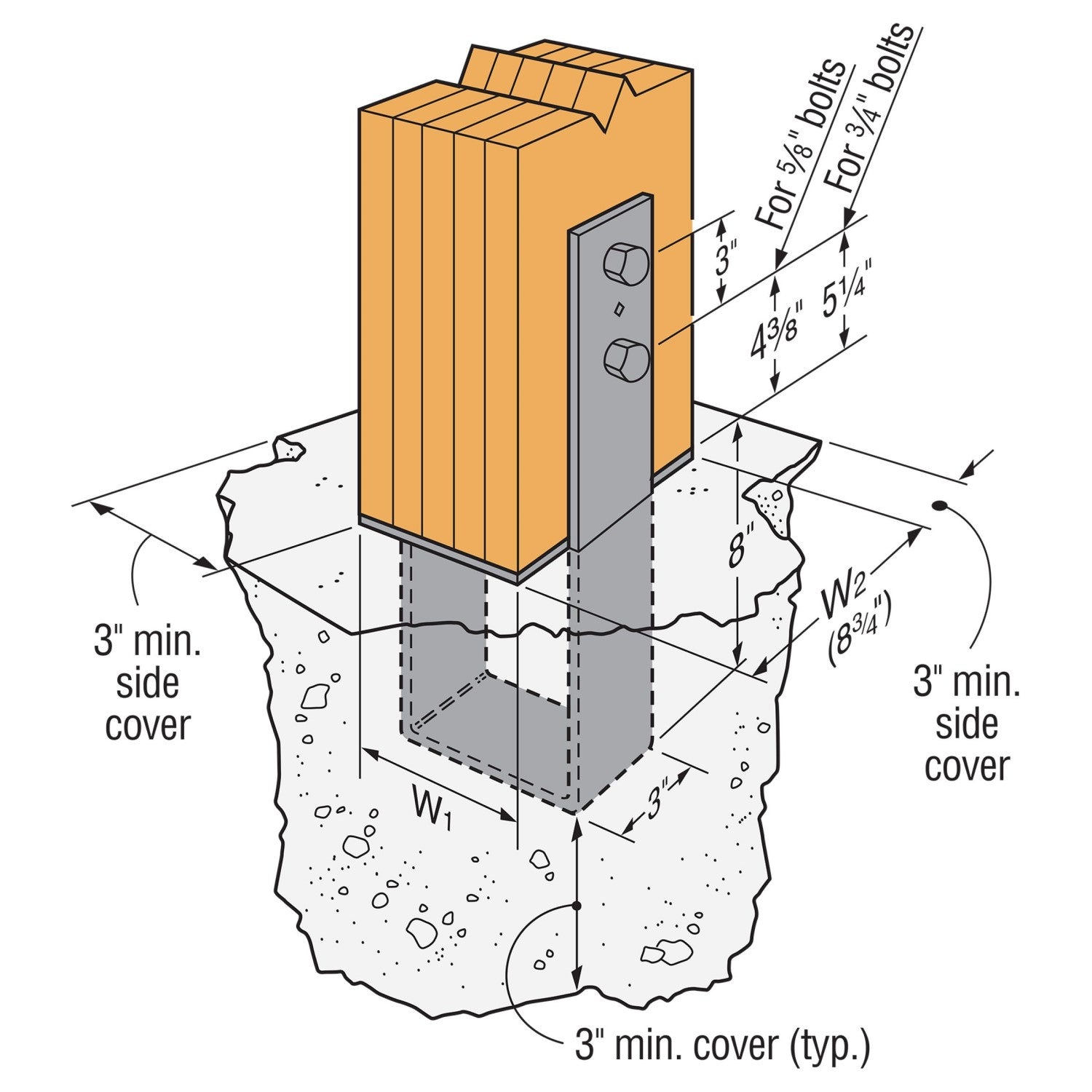

Installation:

Use all specified fasteners.
For full loads, minimum side cover required is 3" for CB, 2" for LCB.
Install all models with bottom of base plate flush with concrete.
Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson CB & LCB Column Bases.

California Residents: WARNING

Specifications

Manufacturer Name: Simpson Strong-Tie Company Inc

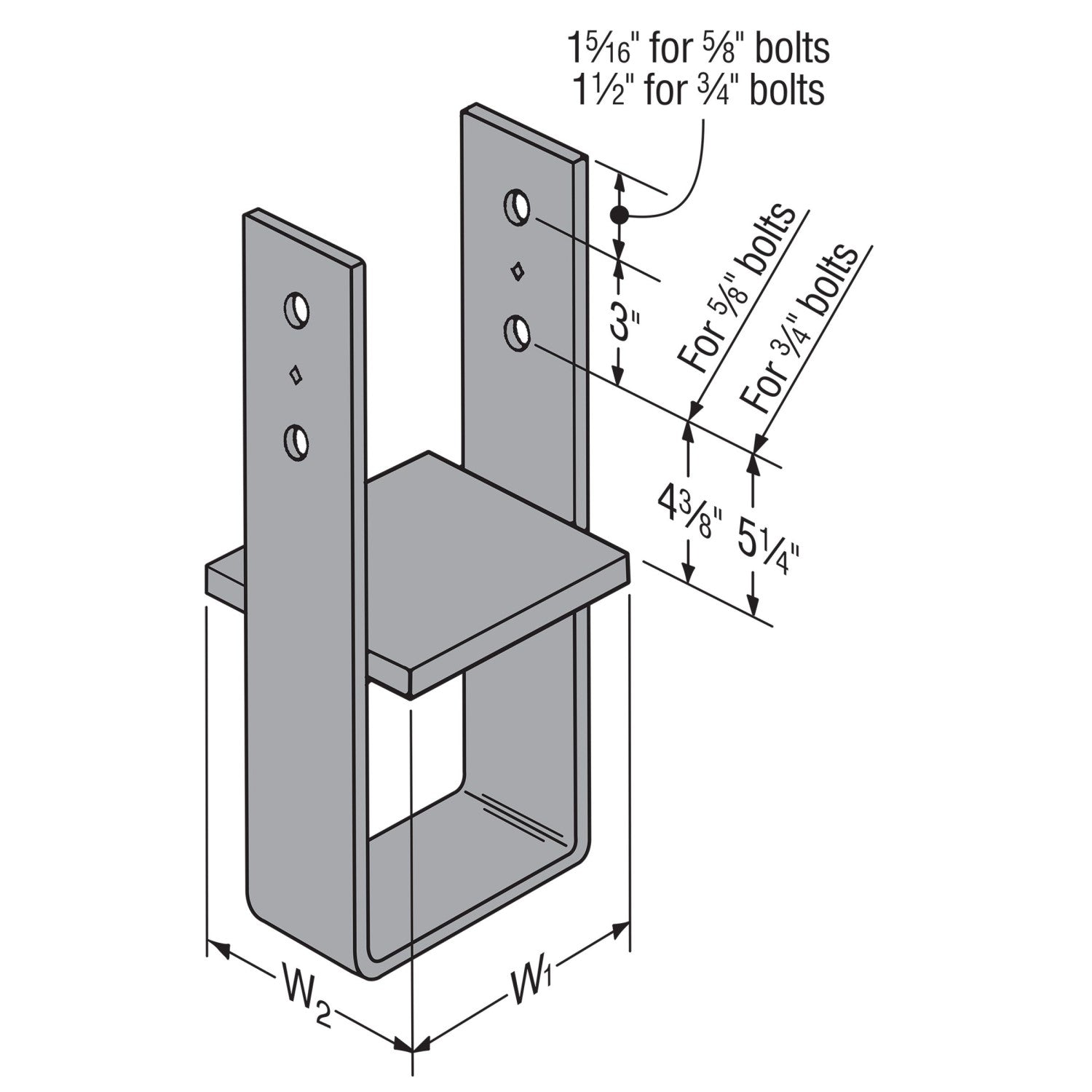

Fasteners Required: Bolts - (2) 3/4"

View Spec Sheet

Simpson ICC Certification CB Column Base - ESR 3050

Simpson Strong-Tie Limited Warranty
