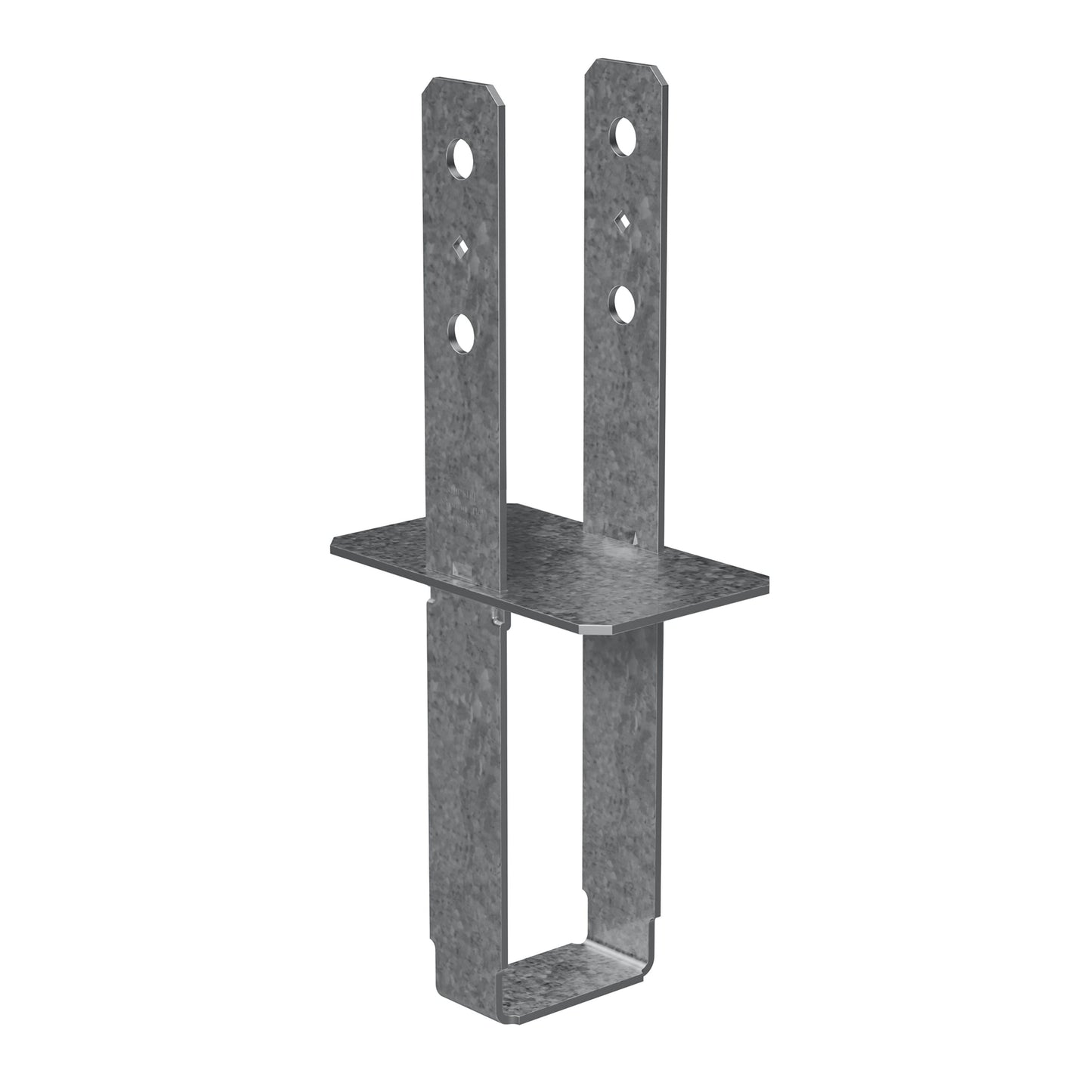

Simpson CB46W 4 X 6 Column Base
Simpson CB46W 4 X 6 Column Base!
Specifications
Simpson Strong-Tie CB Column bases are a sturdy cast-in place anchor that are designed for heavy duty column loads. The Strong-Tie CB46W features a standard Gray Painted coating for added corrosion resistance. Some products are available in HDG, stainless steel or black powder coat upon request.
Installation:- Use all specified fasteners.
- For full loads, minimum side cover required is 3" for CB, 2" for LCB.

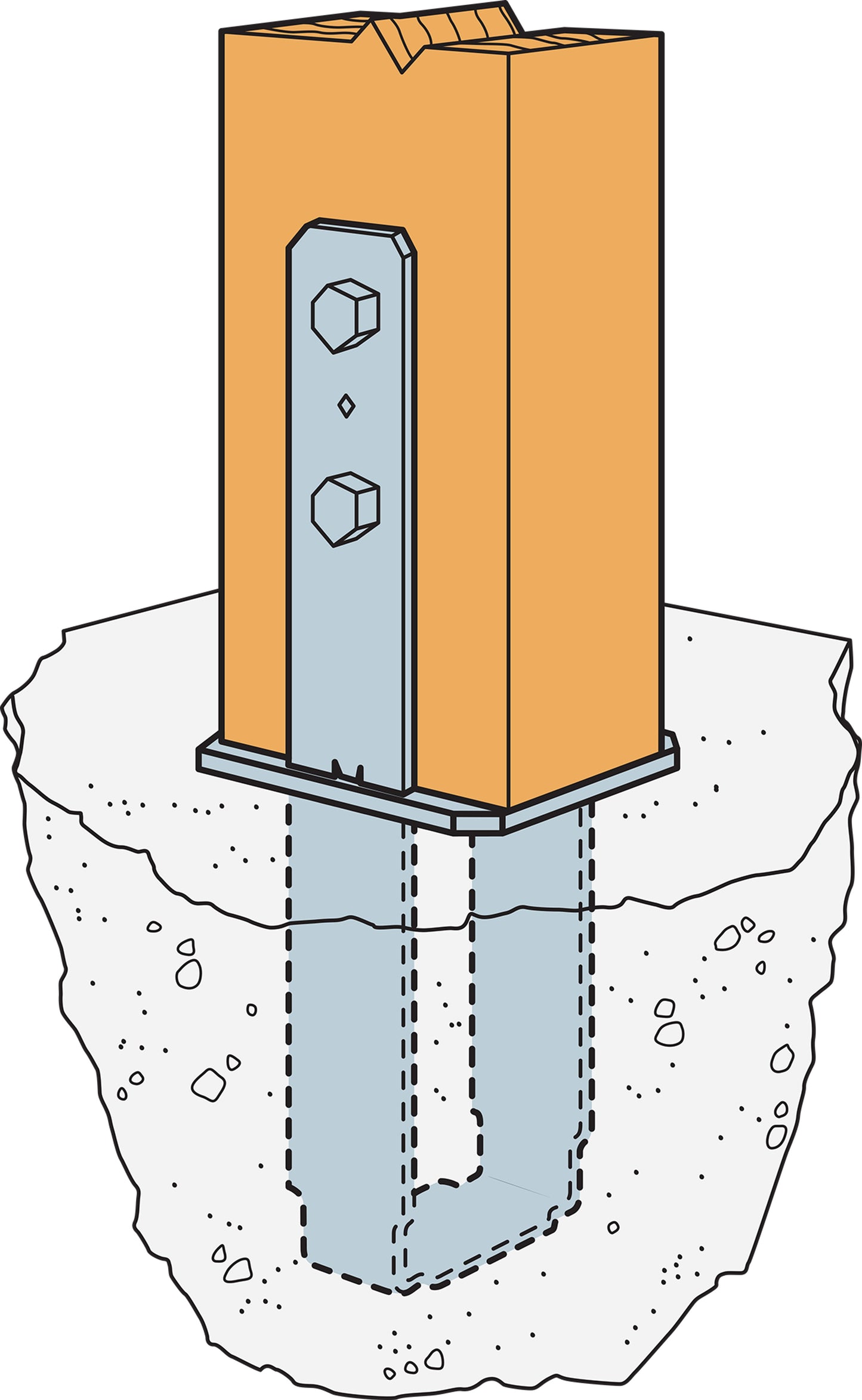

- Install all models with bottom of base plate flush with concrete.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson CB & LCB Column Bases.
