SKU: CB7 1/8-7X

Simpson CB7 1/8-7X Column Base

Simpson CB7 1/8-7X Column Base!

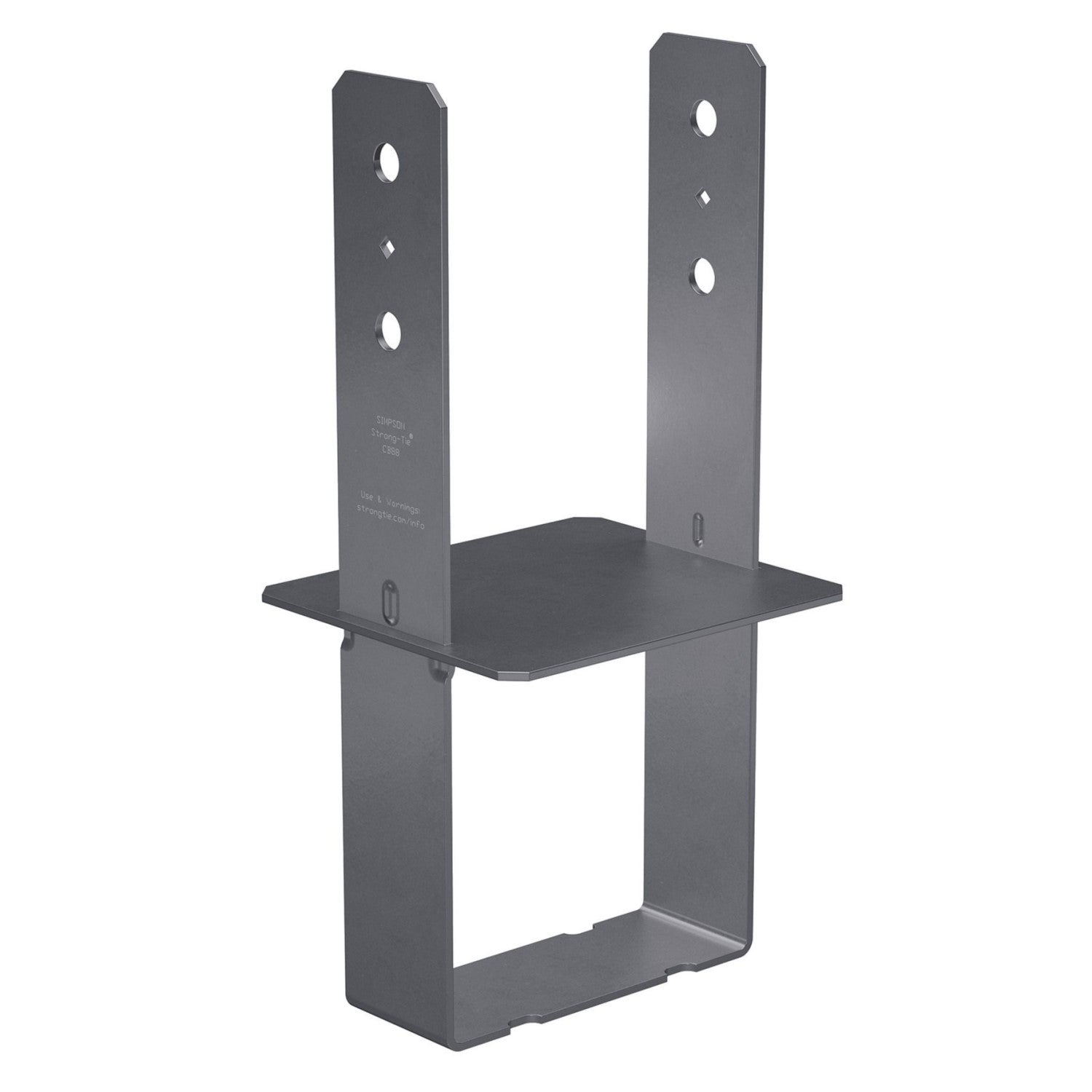

  • CB88 Shown

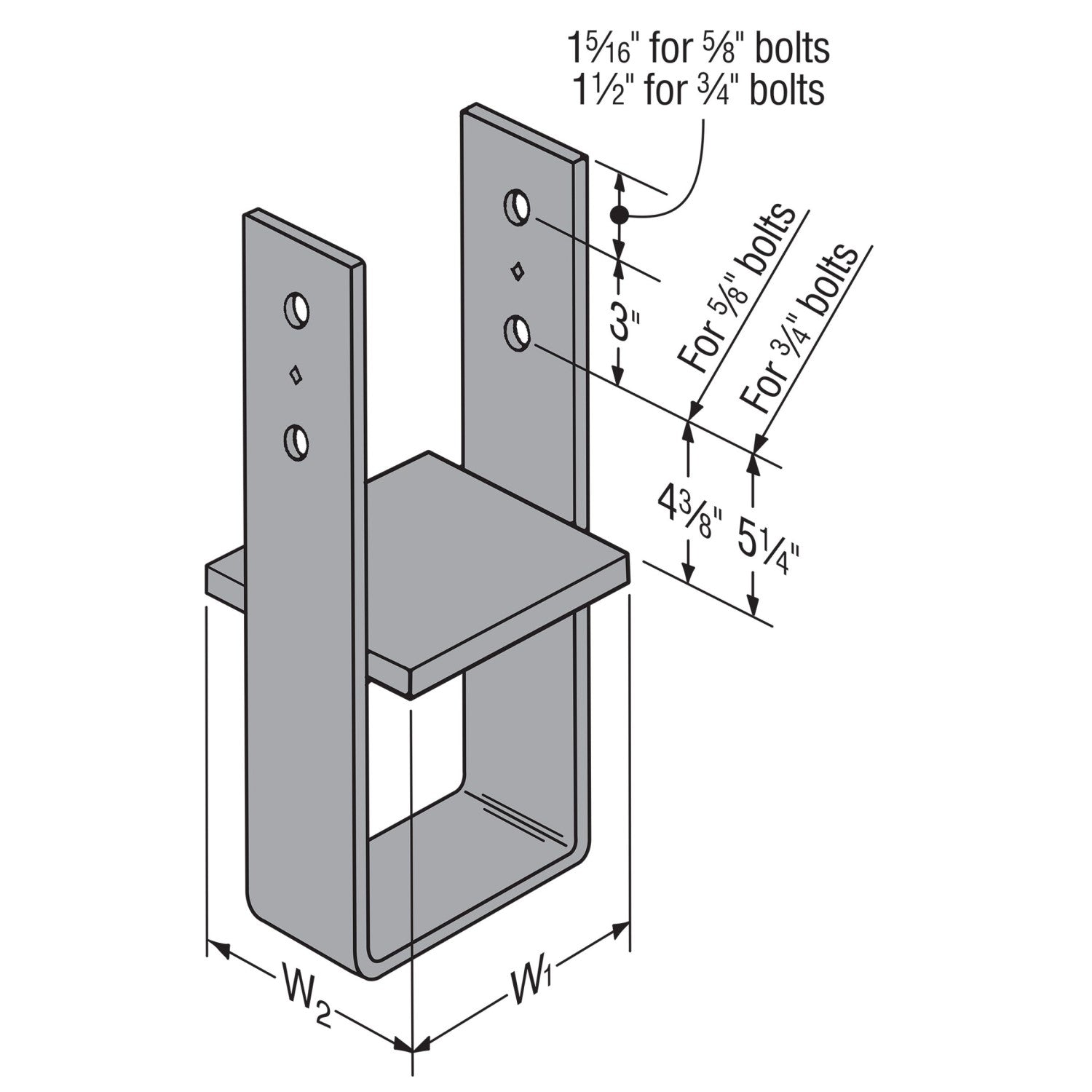

  • CB callout

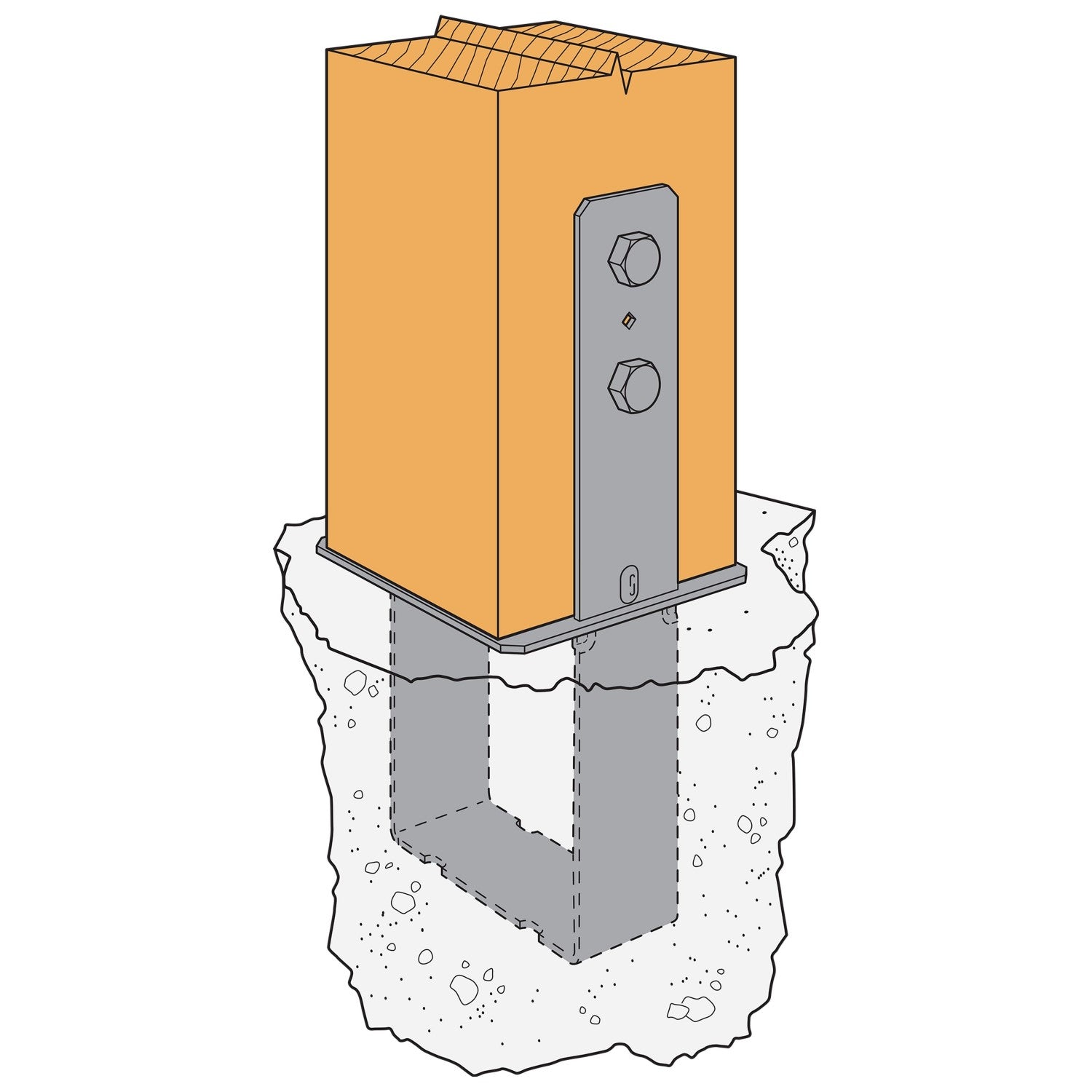

  • Typical CB88 Installation Shown
  • Simpson Platinum DistributorSimpson AC6Z Adjustable Post Cap for 6X Beam - ZMAX
1 4

Continue Browsing

CB Column Bases
SKU: CB7 1/8-7X

Simpson CB7 1/8-7X Column Base

Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Bolts - (2) 3/4"
Manufacturer name: Simpson Strong-Tie Company Inc
Description
  • This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

    •

    Simpson Strong-Tie CB Column bases are a sturdy cast-in place anchor that are designed for heavy duty column loads. The Strong-Tie CB1010 features a standard Gray Painted coating for added corrosion resistance. Some products are available in HDG, stainless steel or black powder coat upon request.

    Installation:
    • Use all specified fasteners.
    • For full loads, minimum side cover required is 3" for CB, 2" for LCB.
    • Install all models with bottom of base plate flush with concrete.
    • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson CB & LCB Column Bases.
