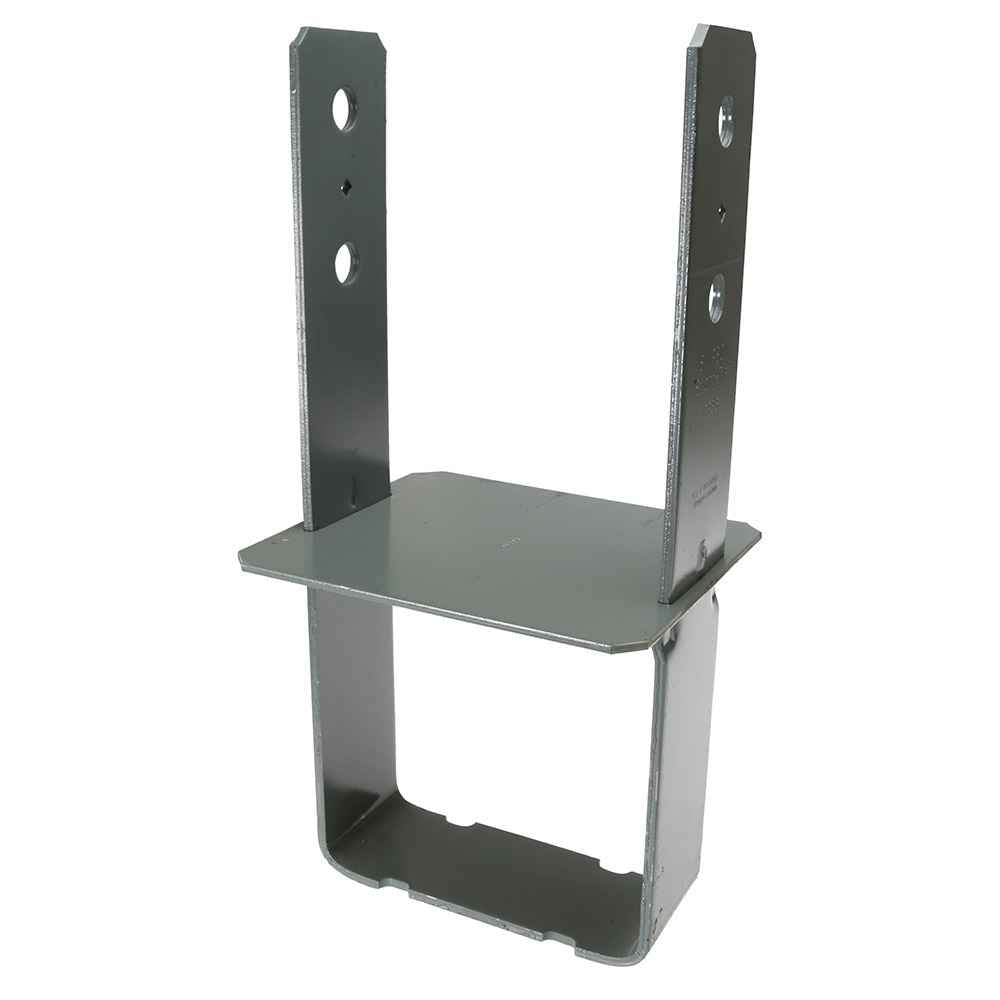

Simpson CB88RHDG 8x8 Rough Column Base - Hot Dip Galvanized
Simpson CB88RHDG 8x8 Rough Column Base - Hot Dip Galvanized
Couldn't load pickup availability
Ships in 21-28 business days.
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.
The Simpson CB88RHDG 8x8 Rough Column Base - Hot Dip Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column base is designed to connect columns or posts to concrete foundations.
These connectors are cast-in-place or wet-set in concrete, sit flush with the concrete for full post bearing, and is ideal for columns that require high structural values and long-lasting performance.
This product is intended for use with 8x8 posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.
Features:
- Connection Type: Designed to be cast-in-place or wet-set into concrete in order to connect columns to concrete foundations.
- Lumber Size: Intended for use with 8x8 posts/columns.
- Material and Finish: Made from Heavy Gauge Steel for durability and finished with Hot Dip Galvanized coating.
- Performance: Increased uplift resistance for wind or seismic loading.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 8x8
Fasteners required: Bolts - (2) 3/4"
Finish: Hot Dip Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Column size: 8X8
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-For full loads, minimum side cover required is 3" for CB, 2" for LCB.
-Install all models with bottom of base plate flush with concrete.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
