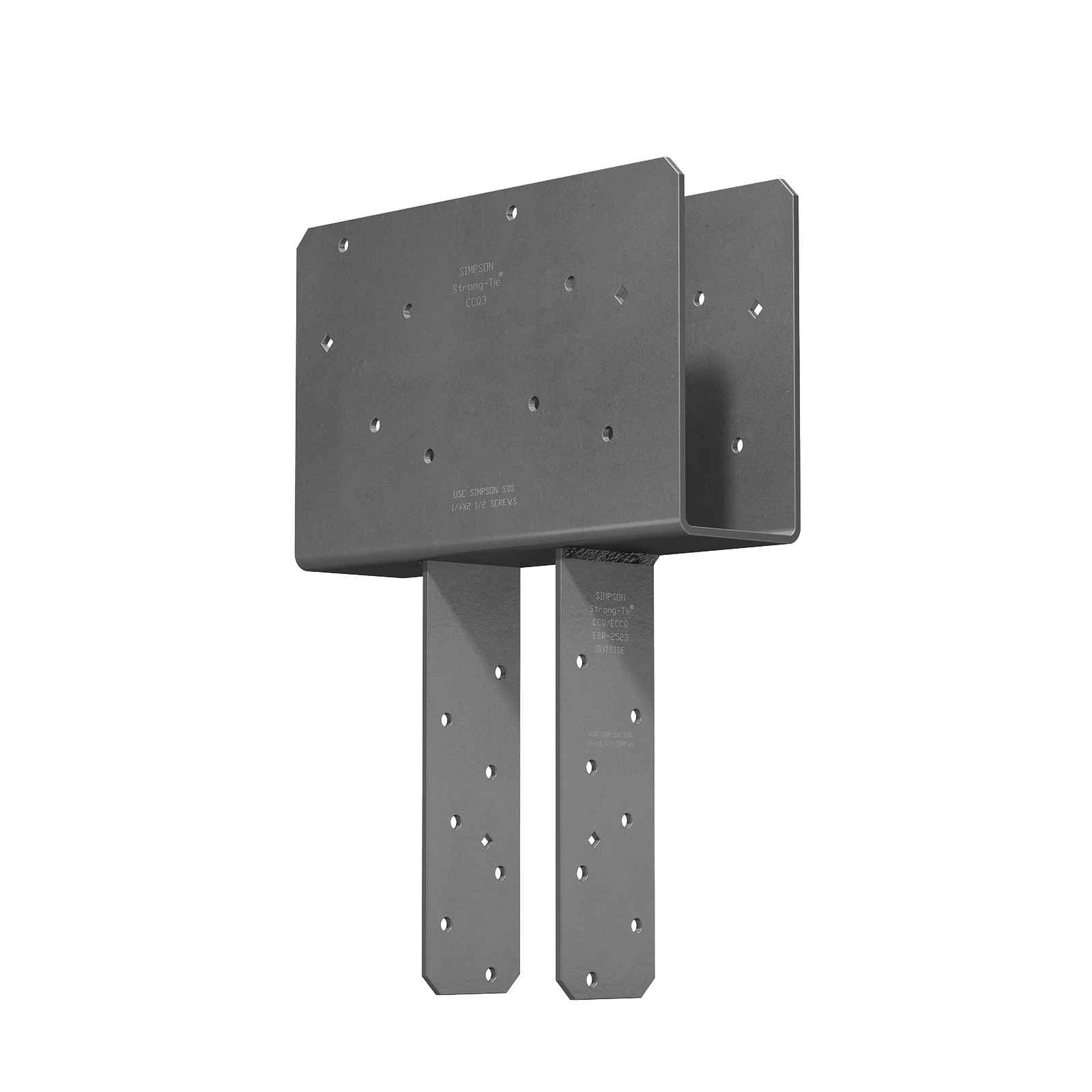

Simpson CCQ3-4HDG-SDS Column Cap w/SDS Screws - Hot Dip Galvanized
Simpson CCQ3-4HDG-SDS Column Cap w/SDS Screws - Hot Dip Galvanized
Couldn't load pickup availability
Ships in 21-28 business days.
Description:
Description:
Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.
The Simpson CCQ3-4HDG-SDS Column Cap w/SDS Screws - Hot Dip Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in wood construction.
The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.
This product is intended for use with 4x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber. Included with this column cap are the necessary Simpson Strong-Drive SDS screws to provide fast installation and lower profile than standard bolts.
Features:
- Connection Type: Provides strong column to beam connection and the extended area of the column seat offers additional surface area of bearing to distribute the load.
- Lumber Size: Intended for use with 3-1/8x beams and 4x posts/columns and includes necessary SDS screws for quick installation.
- Material and Finish: Made from Steel for durability and finished with Hot Dip Galvanized coating.
- Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
- Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4x
Height: 7"
Fasteners required: 1/4" x 2-1/2" SDS Screws: Beam (16), Post (14)
Thickness: 3 Gauge
Quantity: 1
Finish: Hot Dip Galvanized
Length: 11"
Manufacturer name: Simpson Strong-Tie
Beam size: 3-1/8x
Additional information:
Width (1): 3-1/4"
Width (2): 3-5/8"
Product Guide: View Spec Sheet
Features
Features
•The SDS screws provide a lower profile than standard through bolts
•Certified welds for confidence in strength and loading
•Uplift loads have been increased for earthquake or wind loading
•Diamond holes for temporary fastening
Installation
Installation
•Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.) Use stainless-steel Strong-Drive screws with stainless-steel connectors.
•For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)
