SKU: CCQ44SDS2.5-R

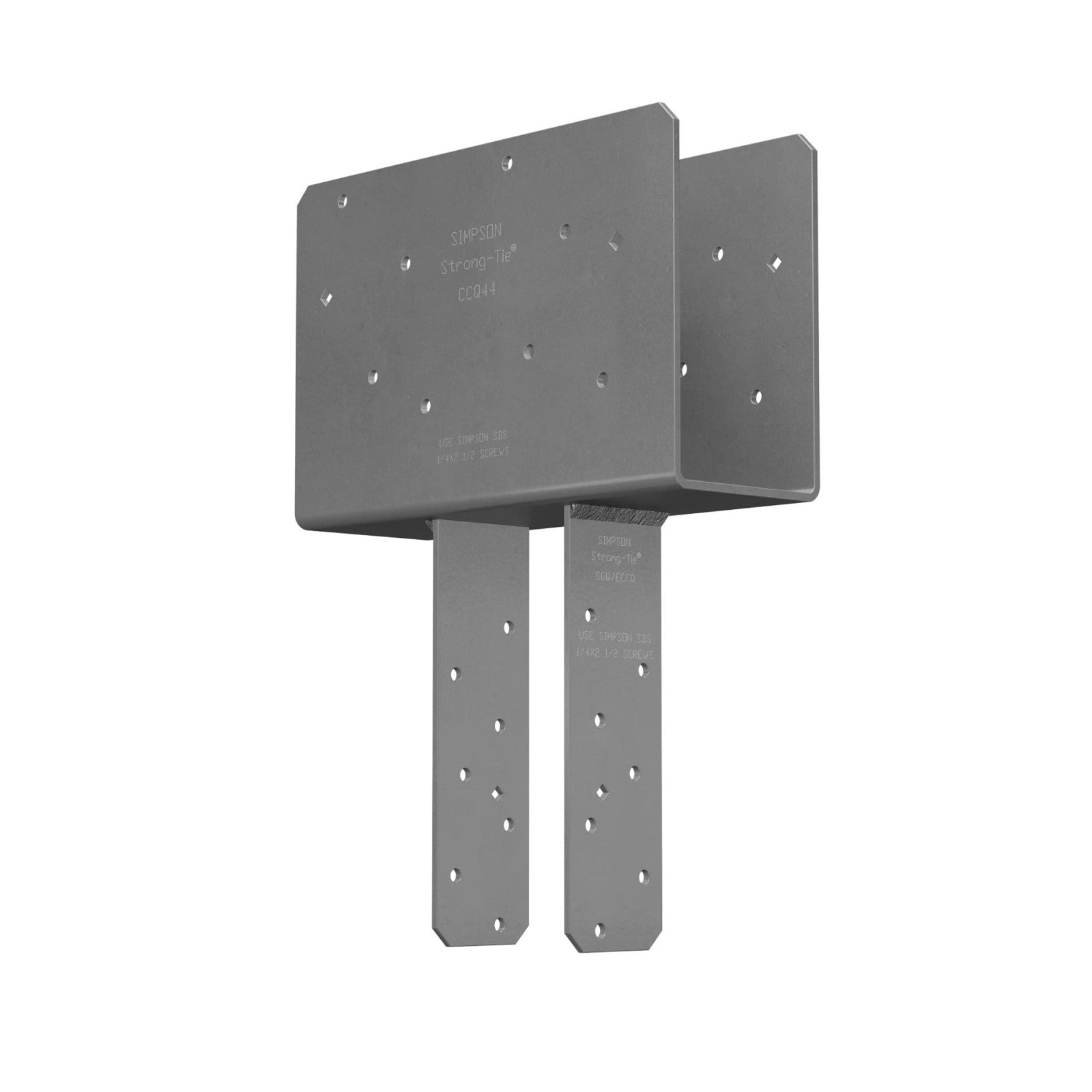

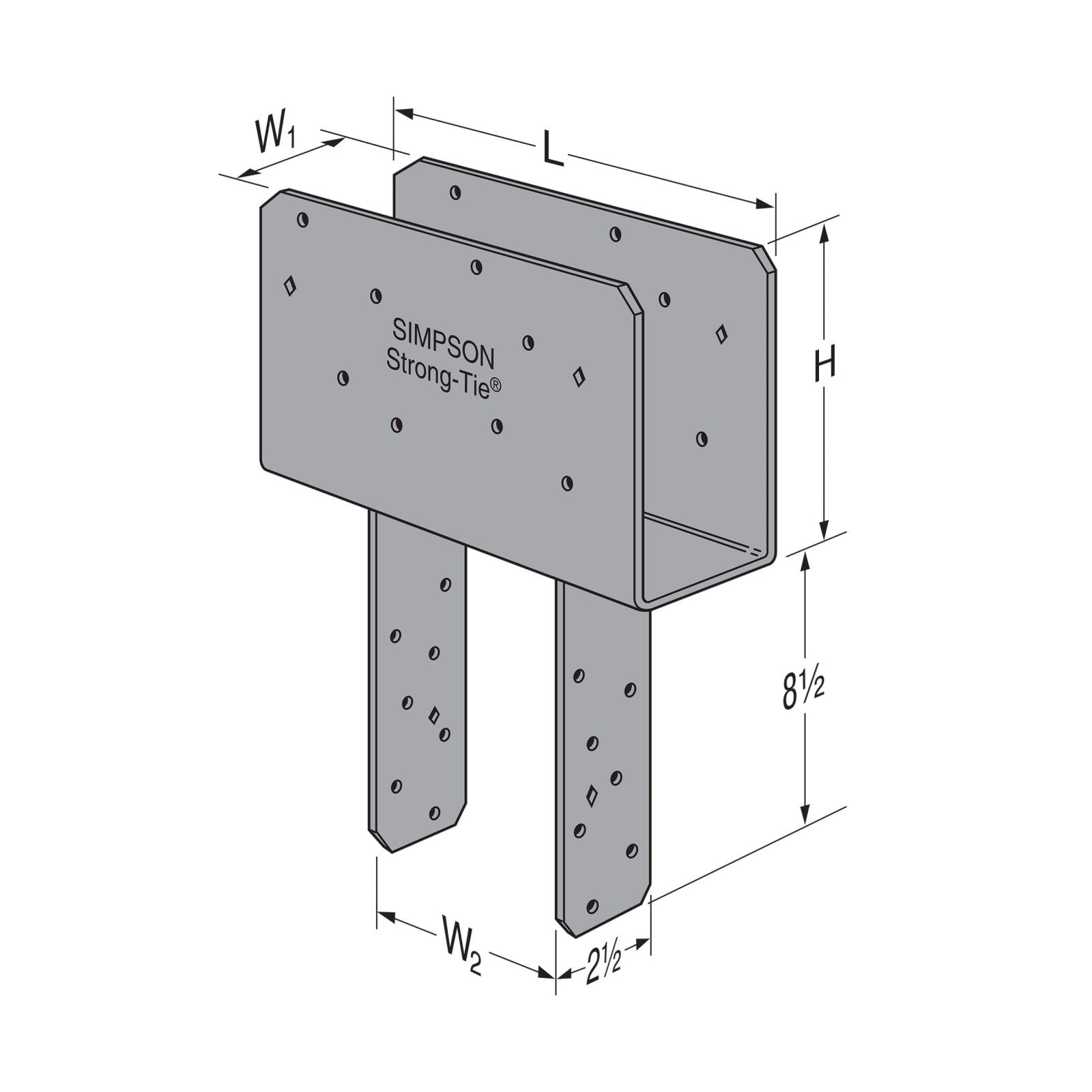

Simpson CCQ44SDS2.5-R Column Cap for 4X Beam, 4X Post

Simpson CCQ44SDS2.5-R Column Cap for 4X Beam, 4X Post!

Skip to product information
1 of 5
$120.07

Request Bulk Pricing
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Beam size: 4X
Manufacturer name: Simpson Strong-Tie
Thickness: 7 Gauge
Description

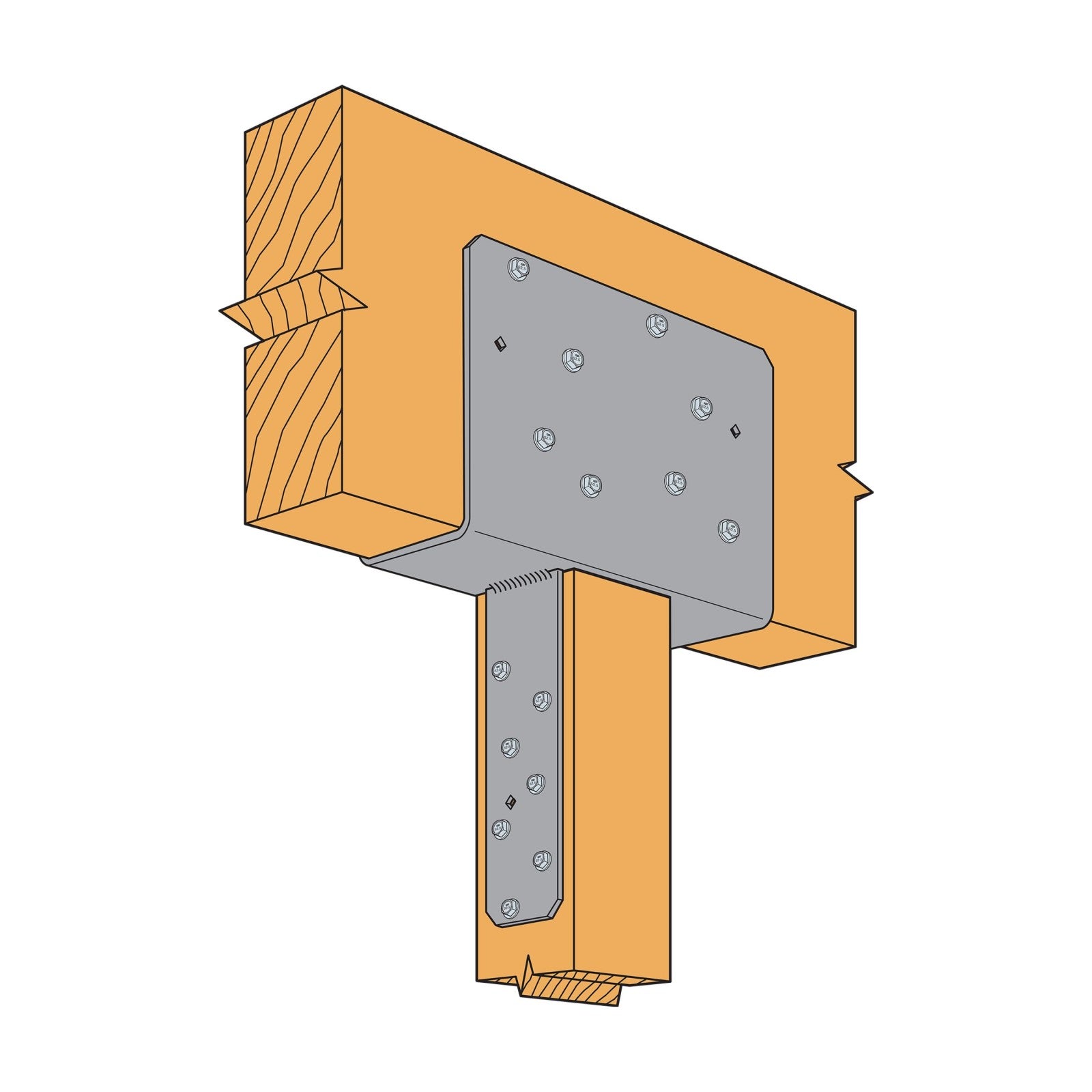

The CCCQ is designed to provide strong column-to-beam connections when there are multiple wood beams on top of a column. When properly installed, this cross-column cap helps to distribute the load from the intersecting beams and provides support for the connection. The CCQ44SDS2.5-R come with Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

  • Simpson Strong-Tie gray paint. Also available in HDG; please request when ordering.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
  • Available in widths up to 8" wide; additionally, many combinations of beam and post sizes can be manufactured.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
