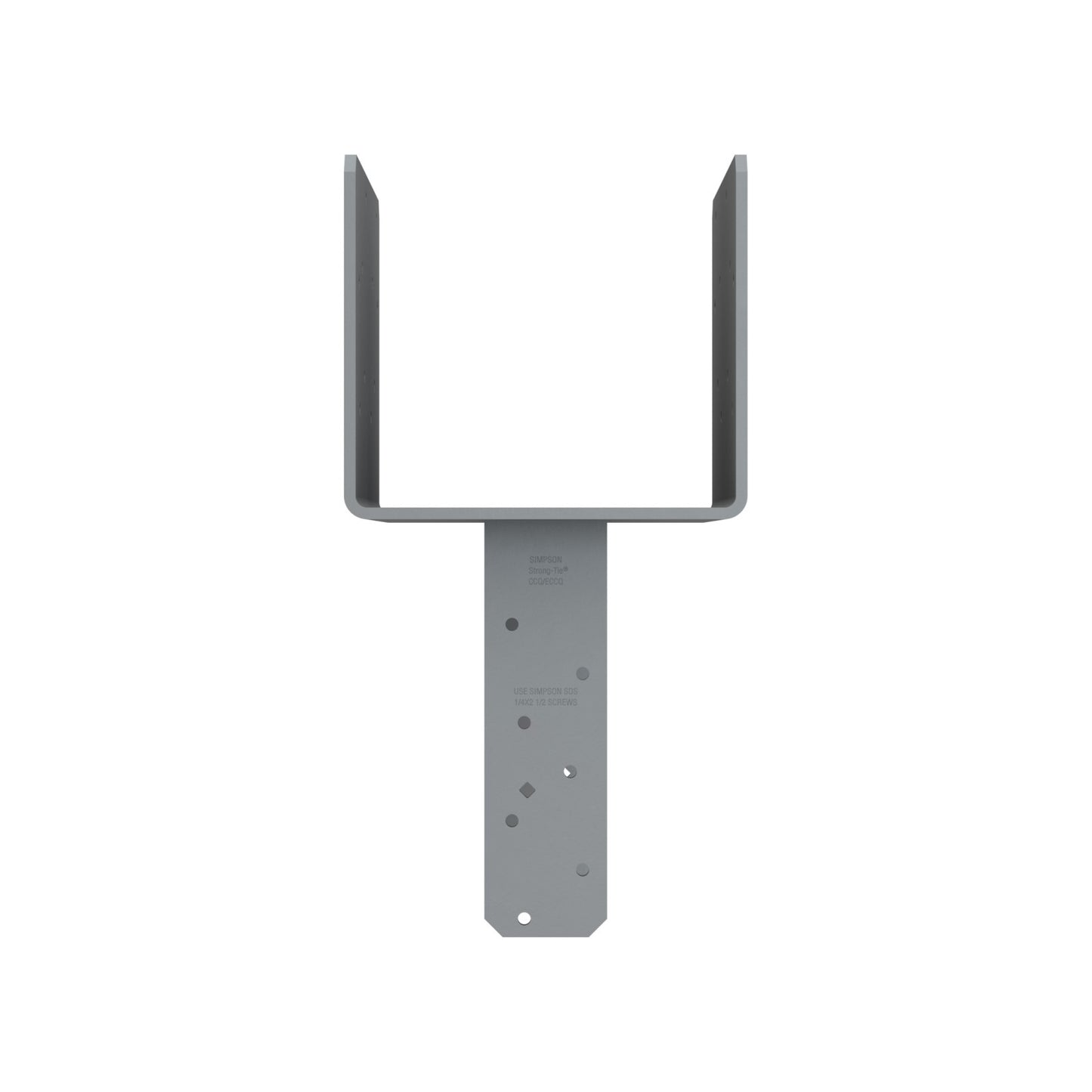

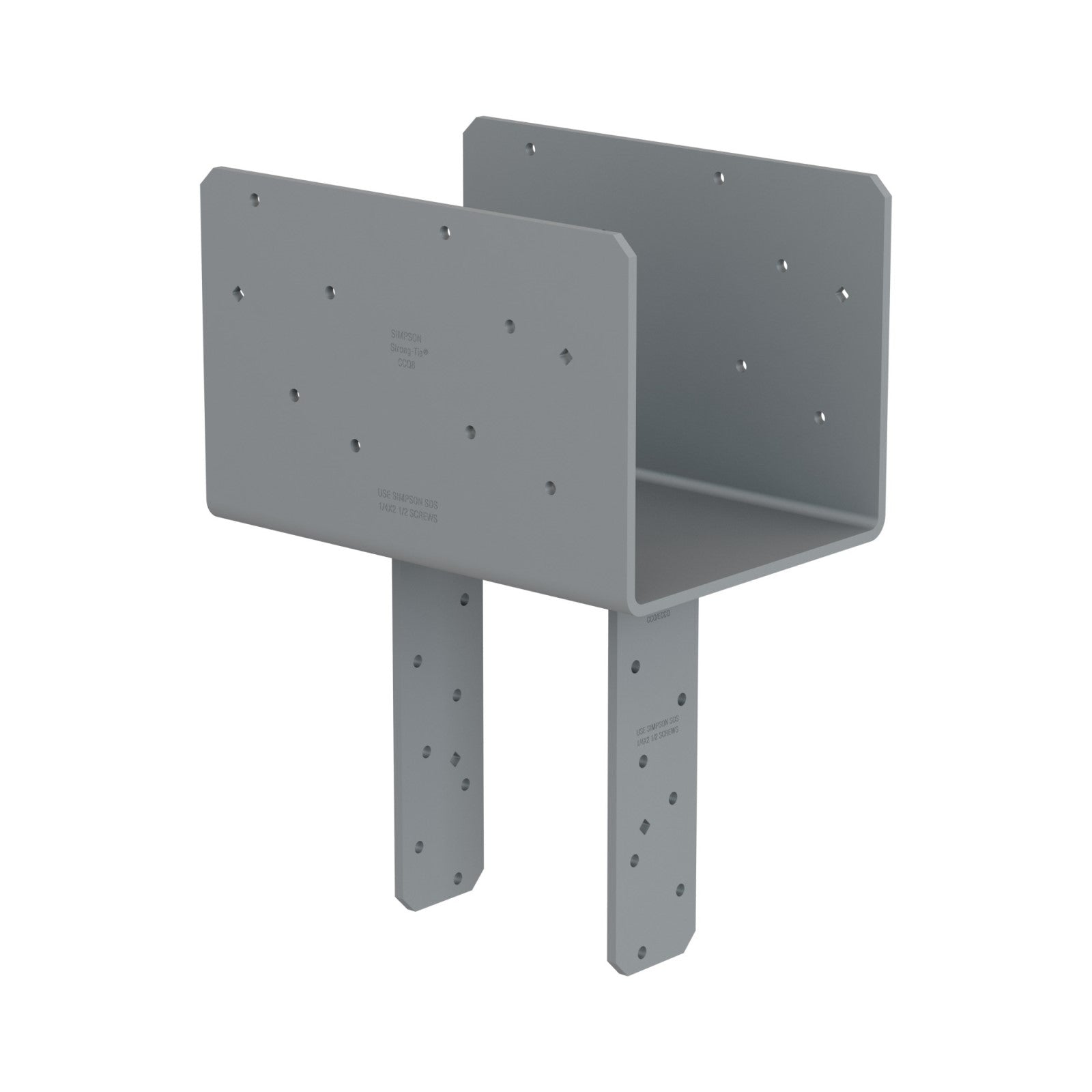

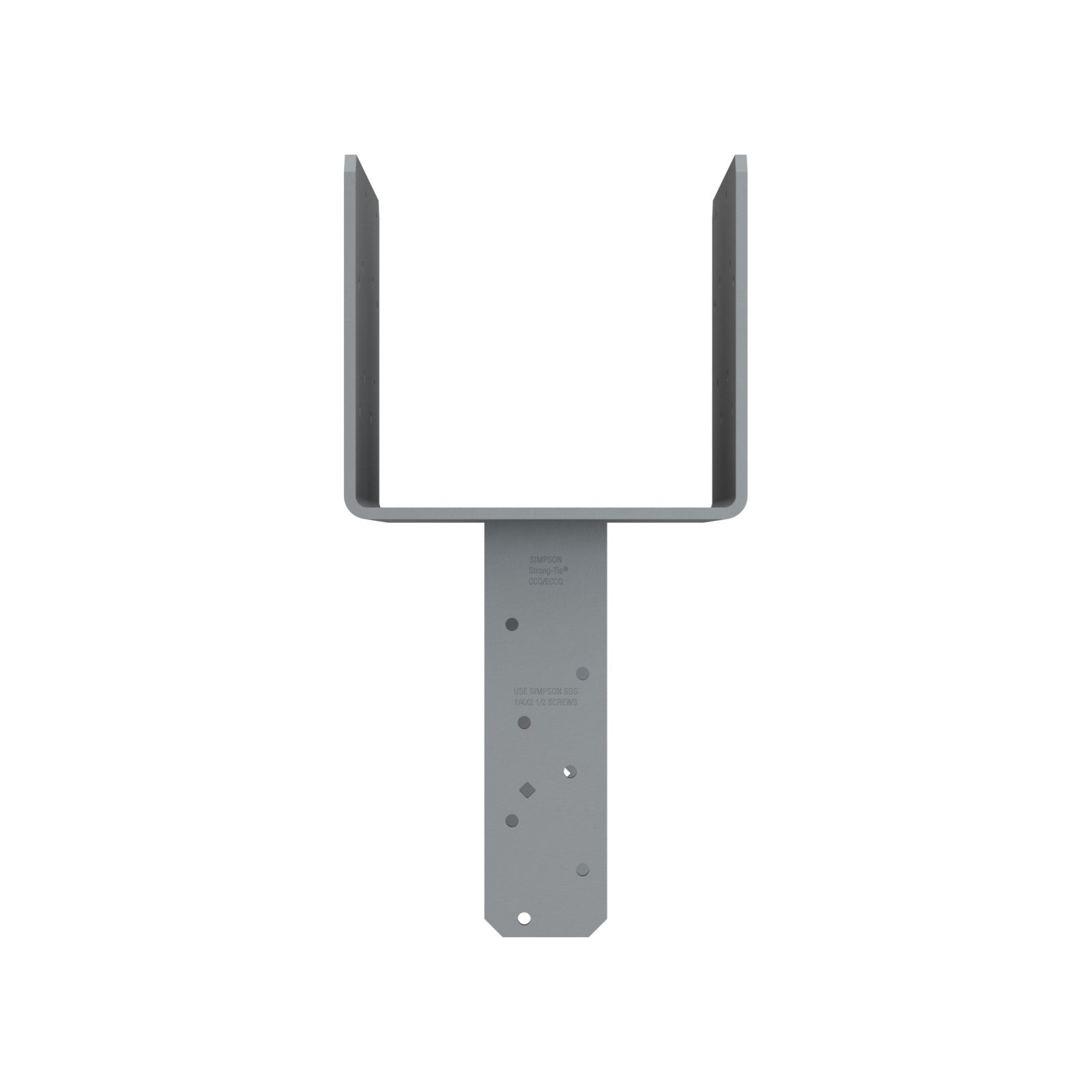

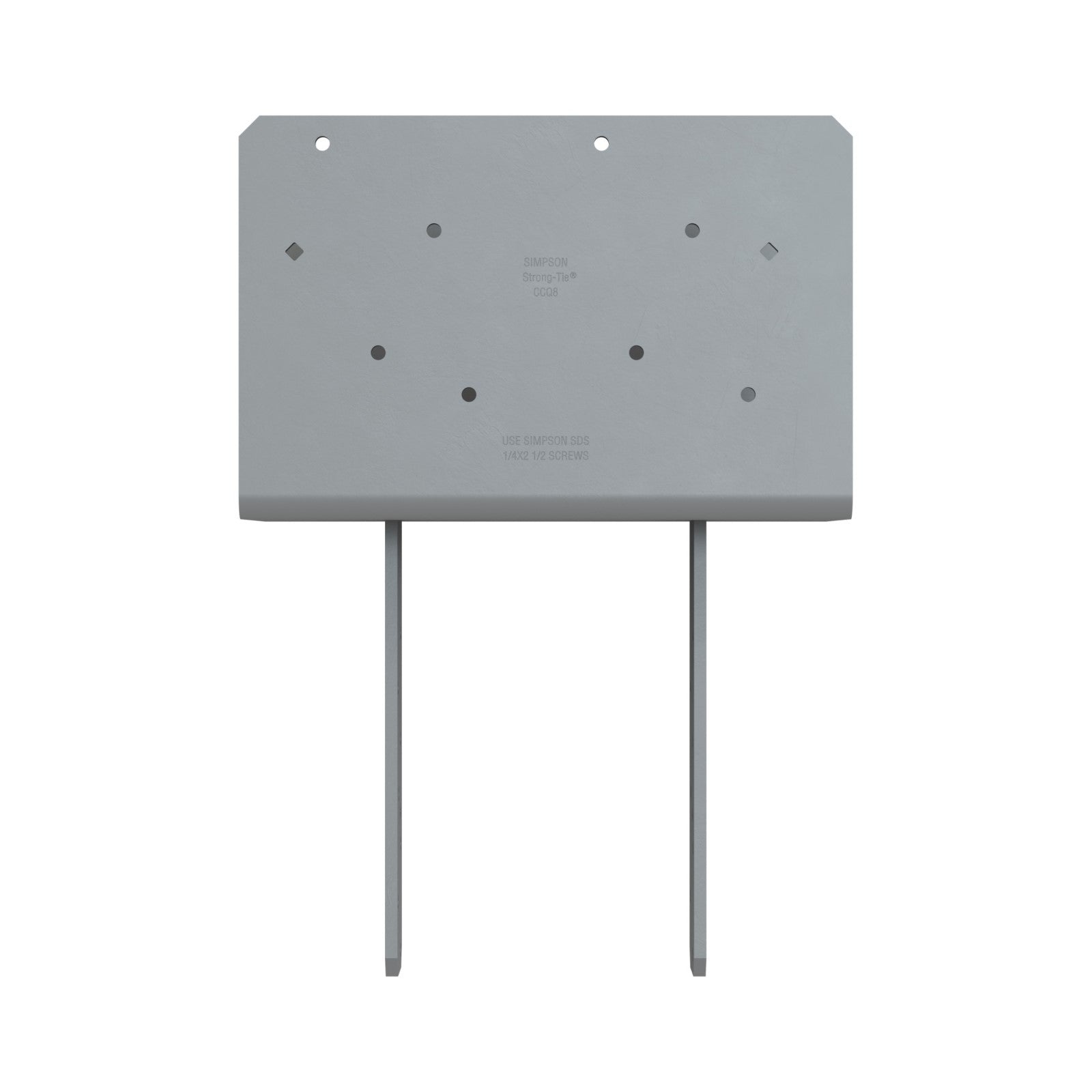

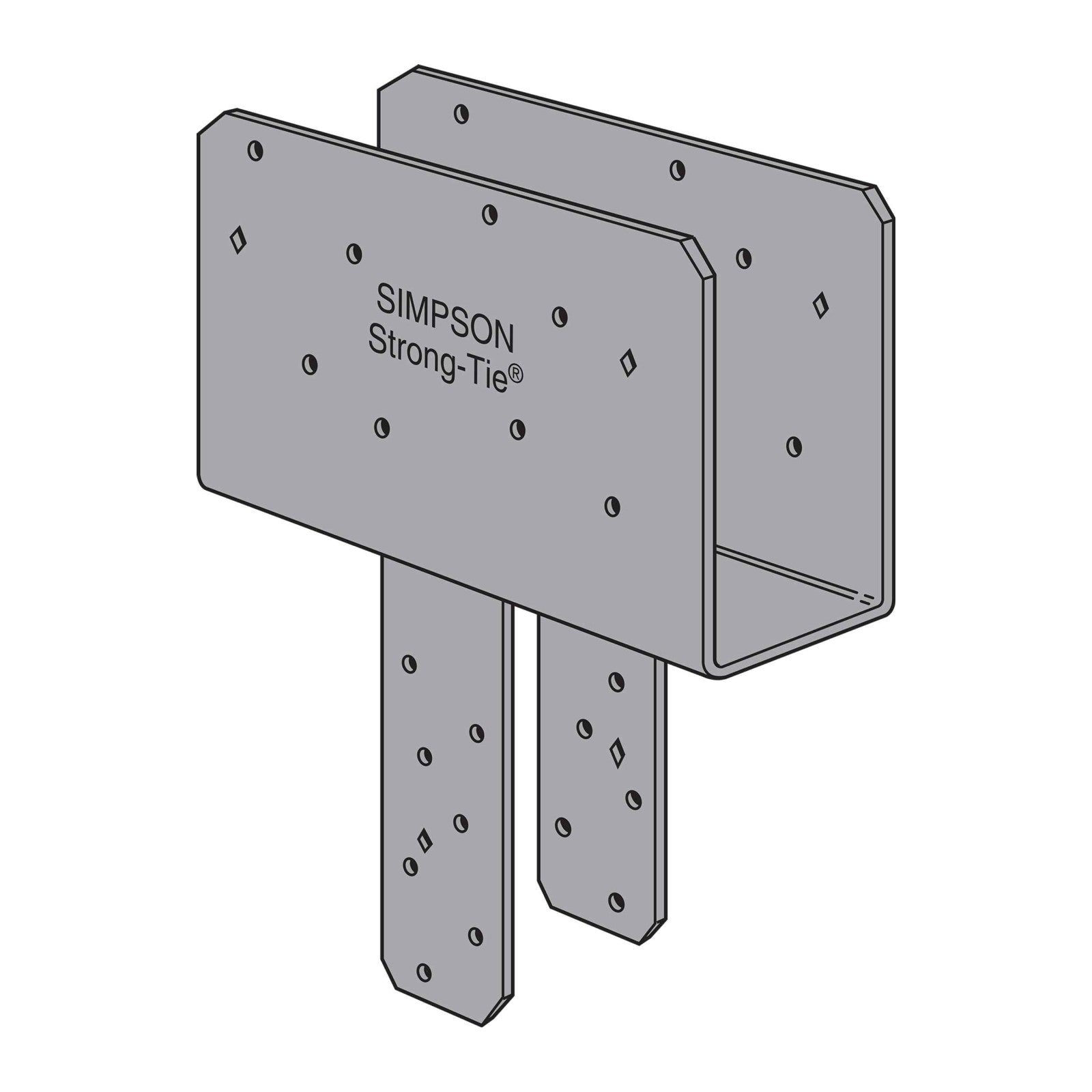

Simpson CCQ8X-SDS2.5 Column Cap for 8X Beam, Variable Post W/SDS Screws, Custom Non-Returnable

Simpson CCQ8X-SDS2.5 Column Cap for 8X Beam, Variable Post W/SDS Screws, Custom Non-Returnable

Call for Price
Call to Order
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

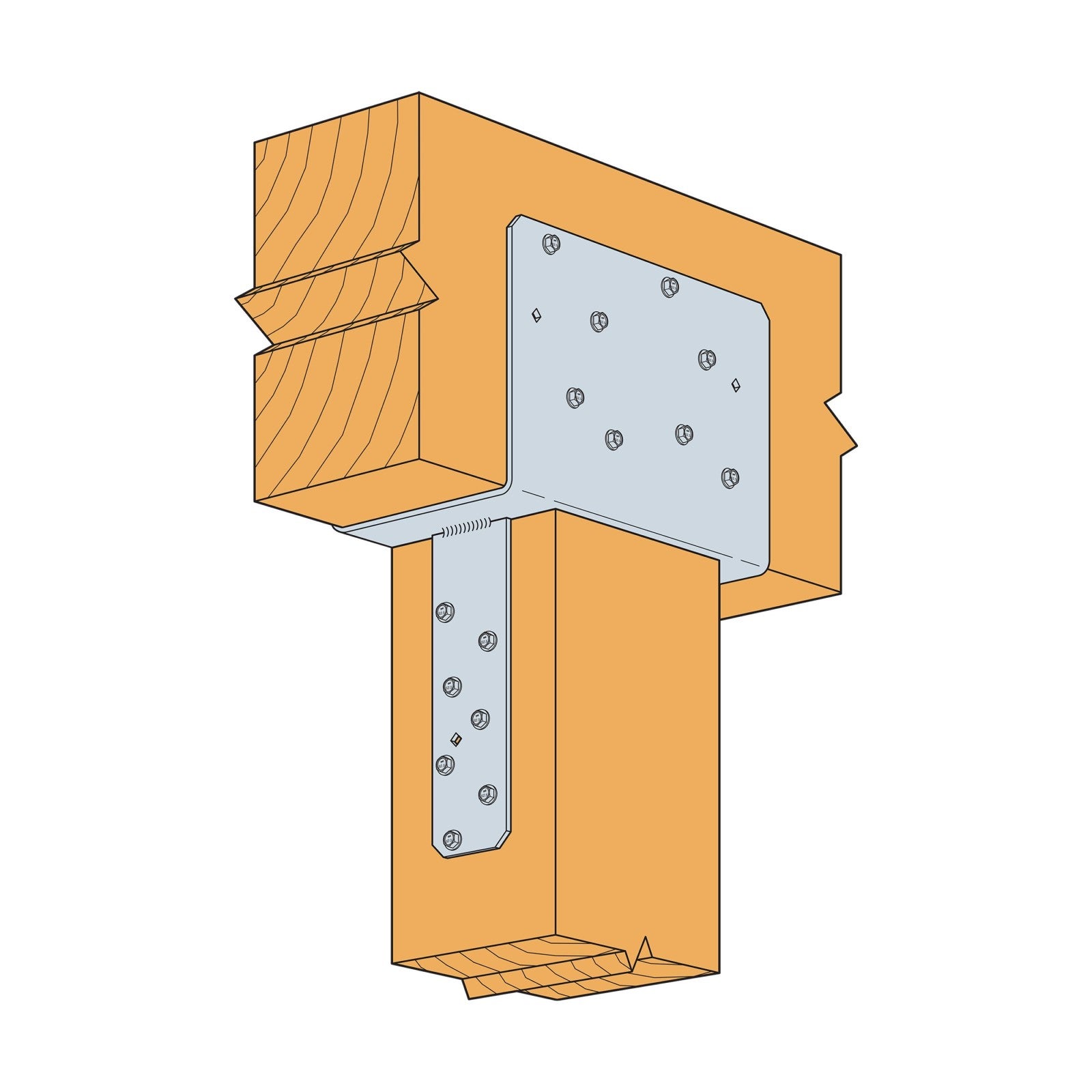

The CCCQ is designed to provide strong column-to-beam connections when there are multiple wood beams on top of a column. When properly installed, this cross-column cap helps to distribute the load from the intersecting beams and provides support for the connection. The CCQ8X-SDS2.5 comes with Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

  • Simpson Strong-Tie gray paint. Also available in HDG; please request when ordering.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
  • Available in widths up to 8" wide; additionally, many combinations of beam and post sizes can be manufactured.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING


Height: 7"
Thickness: 3 Gauge

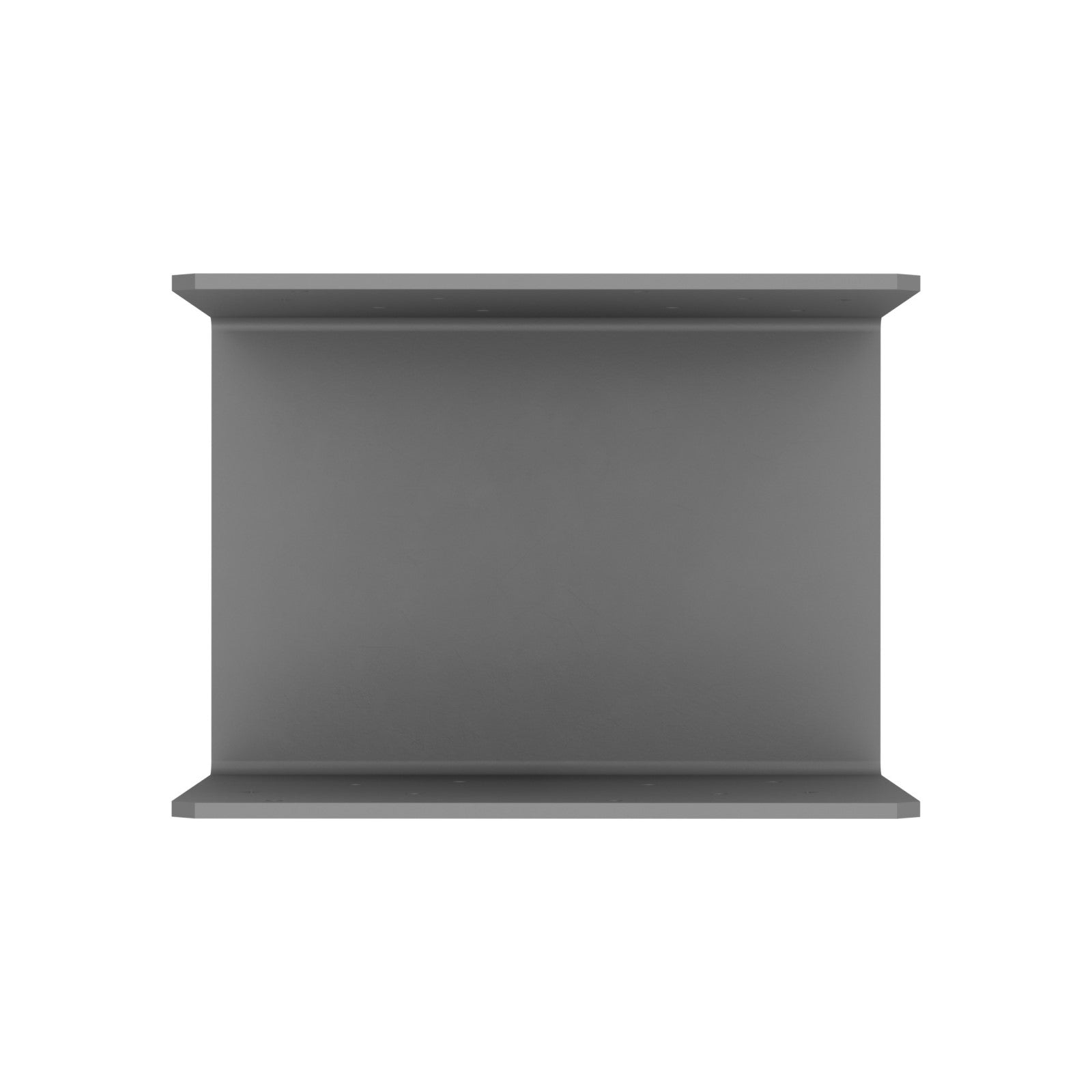

Width: (See Image 2) W1: 7.5" - 8.8125"; W2: 3.5625" - 10.188"
Finish: Hot Dip Galvanized
Manufacturer name: Simpson Strong-Tie
Beam size: 8X
Product Guide: View Spec Sheet
