SKU: CCT5 1/4X

Simpson CCT5 1/4X T-Shape Column Cap for 5-1/8" Beam, Made to Order Non-Returnable

Name: Simpson CCT5 1/4X T-Shape Column Cap for 5-1/8" Beam, Made to Order Non-Returnable
SKU: CCT5 1/4X
Availability: InStock
Rating: 5.0 (1 reviews)

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

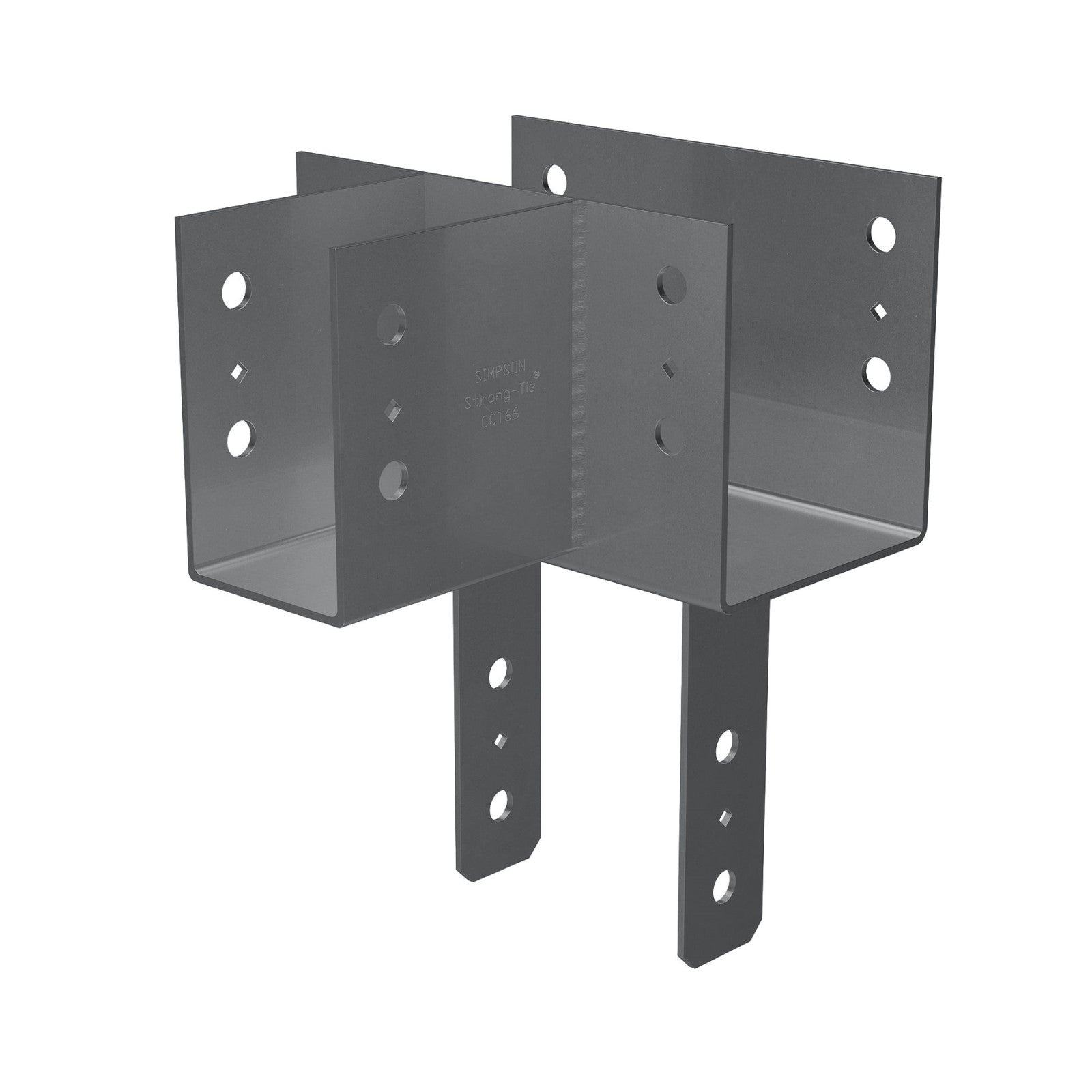

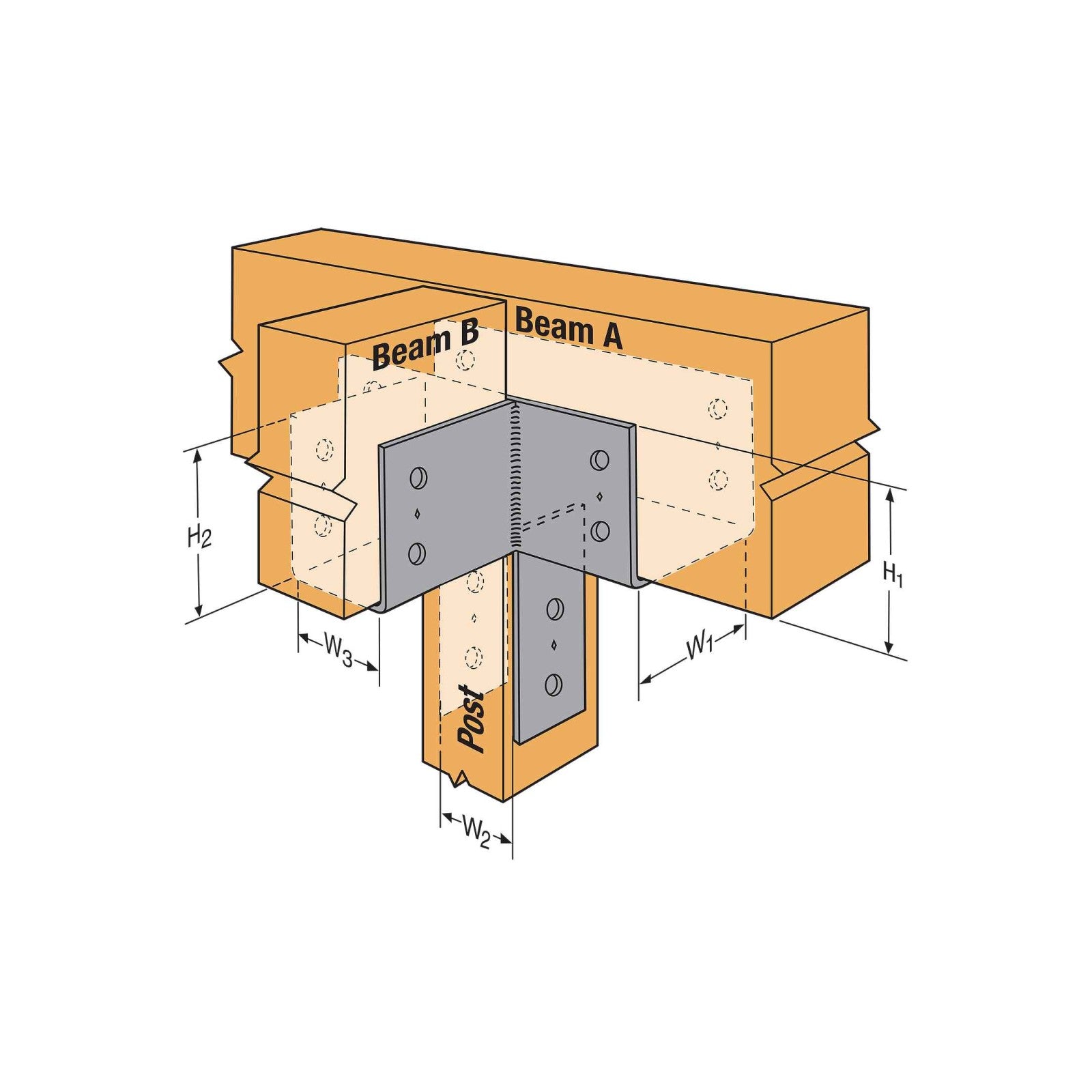

The CCT Column Cap T Configuration is designed to provide strong column-to-beam connections when there are two beams in a "T" formation on top of a column. When properly installed, this column cap helps to distribute the load from a bisecting beam and provides support for the connection. The CCT5 1/4X is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

Certified welds for confidence in strength and loading
Bolt spacing that meets NDS code requirements to ensure optimal performance
Diamond holes to provide temporary fastening
Also available in HDG, please indicate when ordering.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications

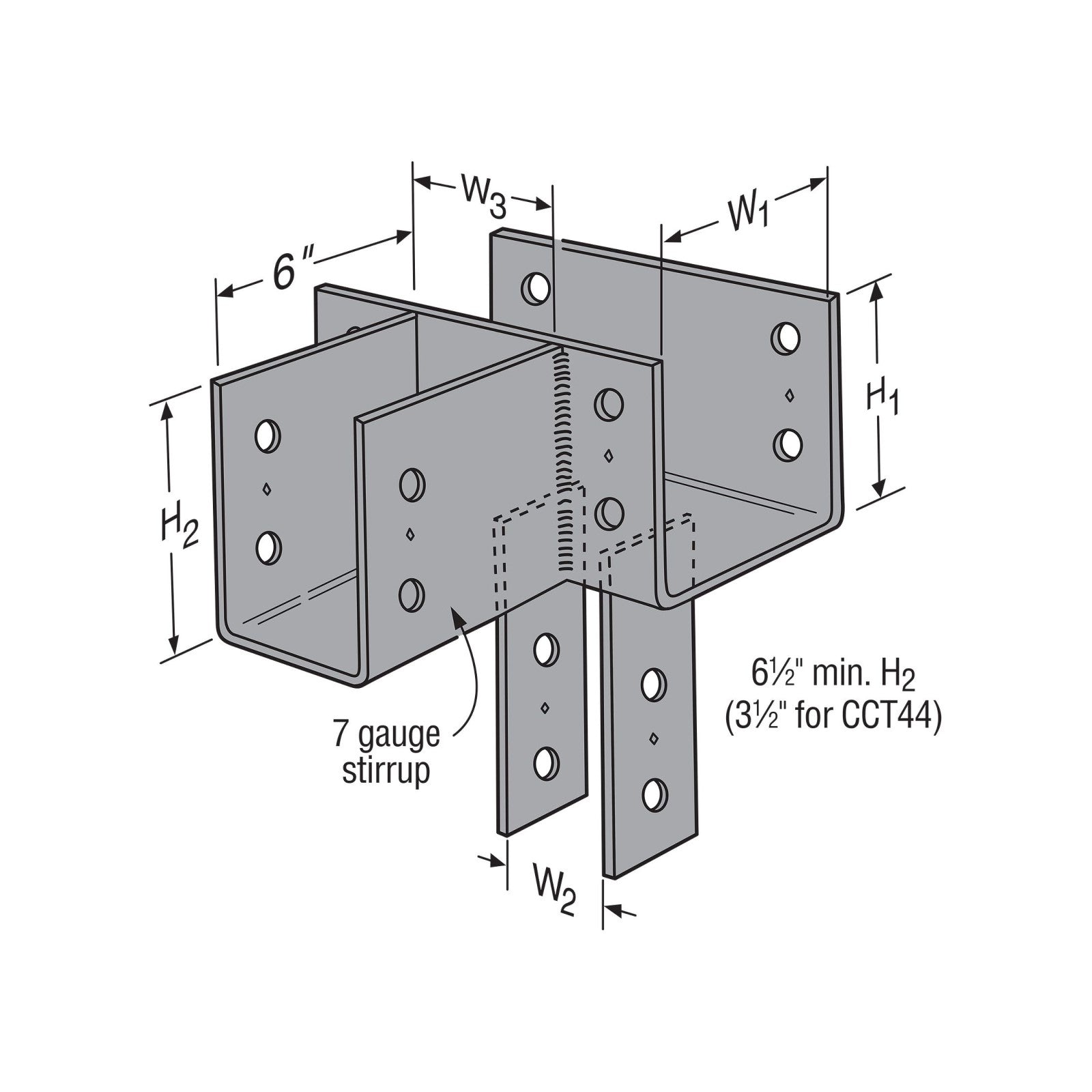

Width: (See Image 2) W1: 5.25"; W2: 3.25" - 10"; W3: 3.25" - 8"

Height: (See Image 2) H1: 8.125"; H2: 6.5" - 15"

Beam Size: 5-1/8"

Finish: Gray Paint

Manufacturer Name: Simpson Strong-Tie

View Spec Sheet

Simpson Strong-Tie Limited Warranty
