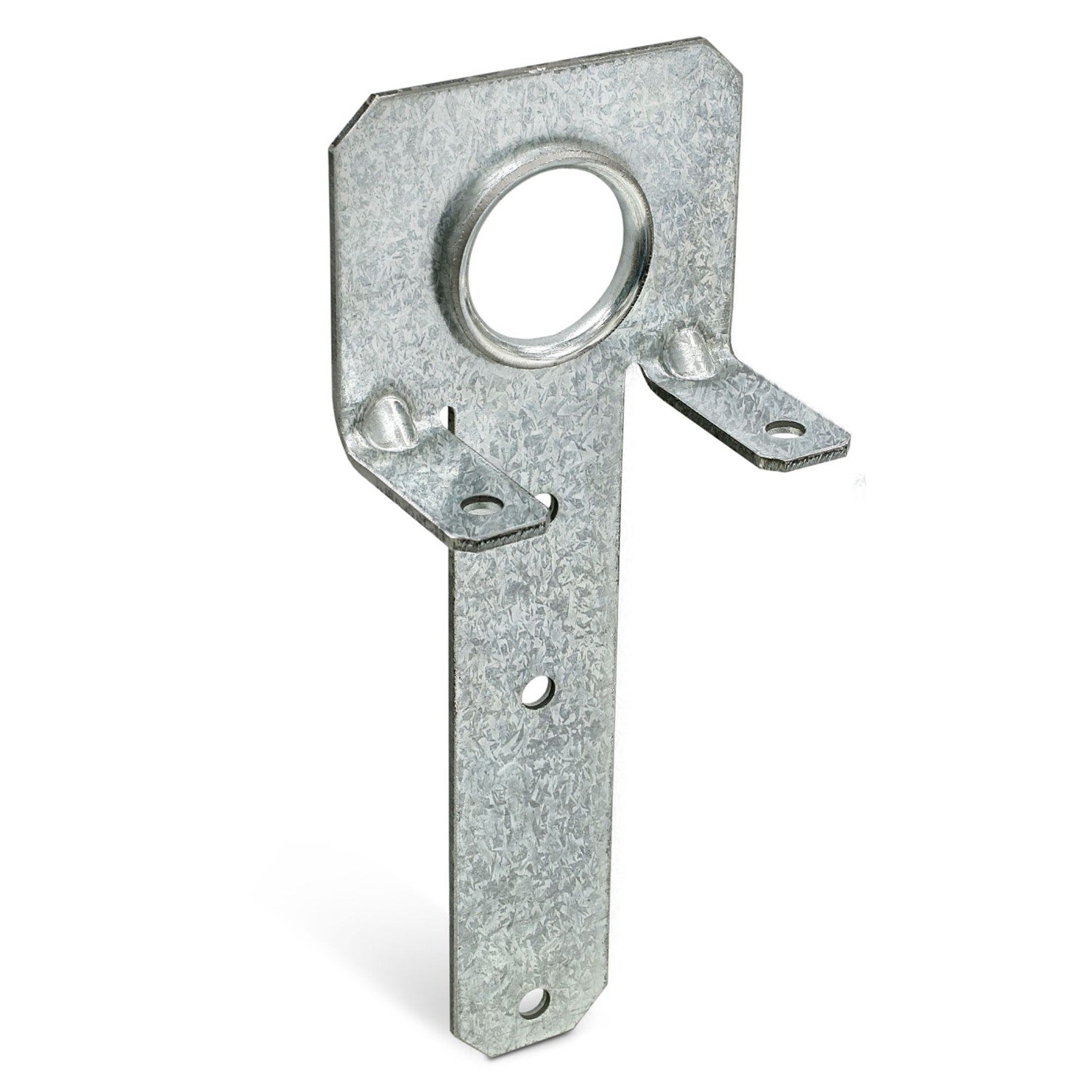

Simpson CHC Component Hoist Clip Galvanized
Simpson CHC Component Hoist Clip Galvanized
Description:
Description:

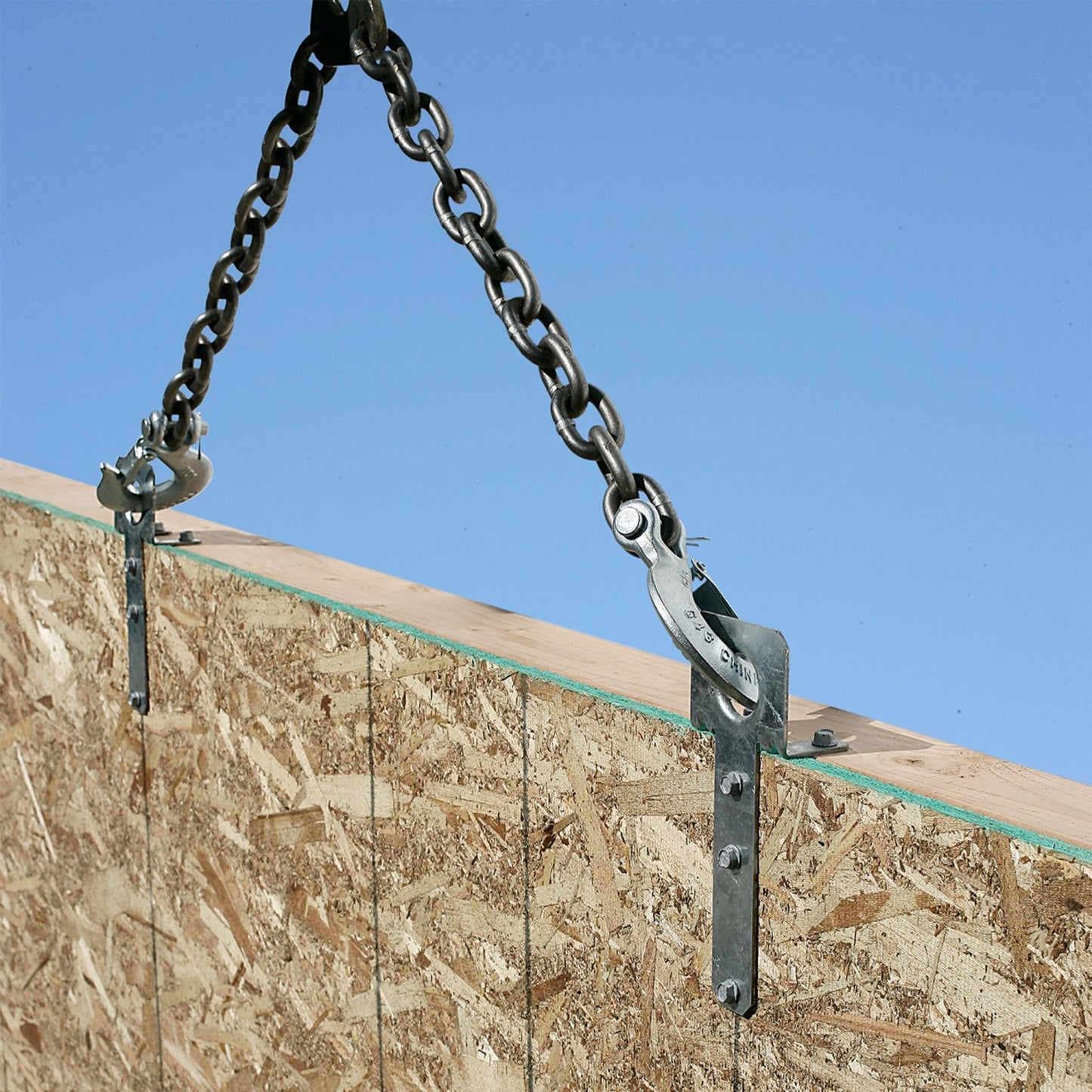

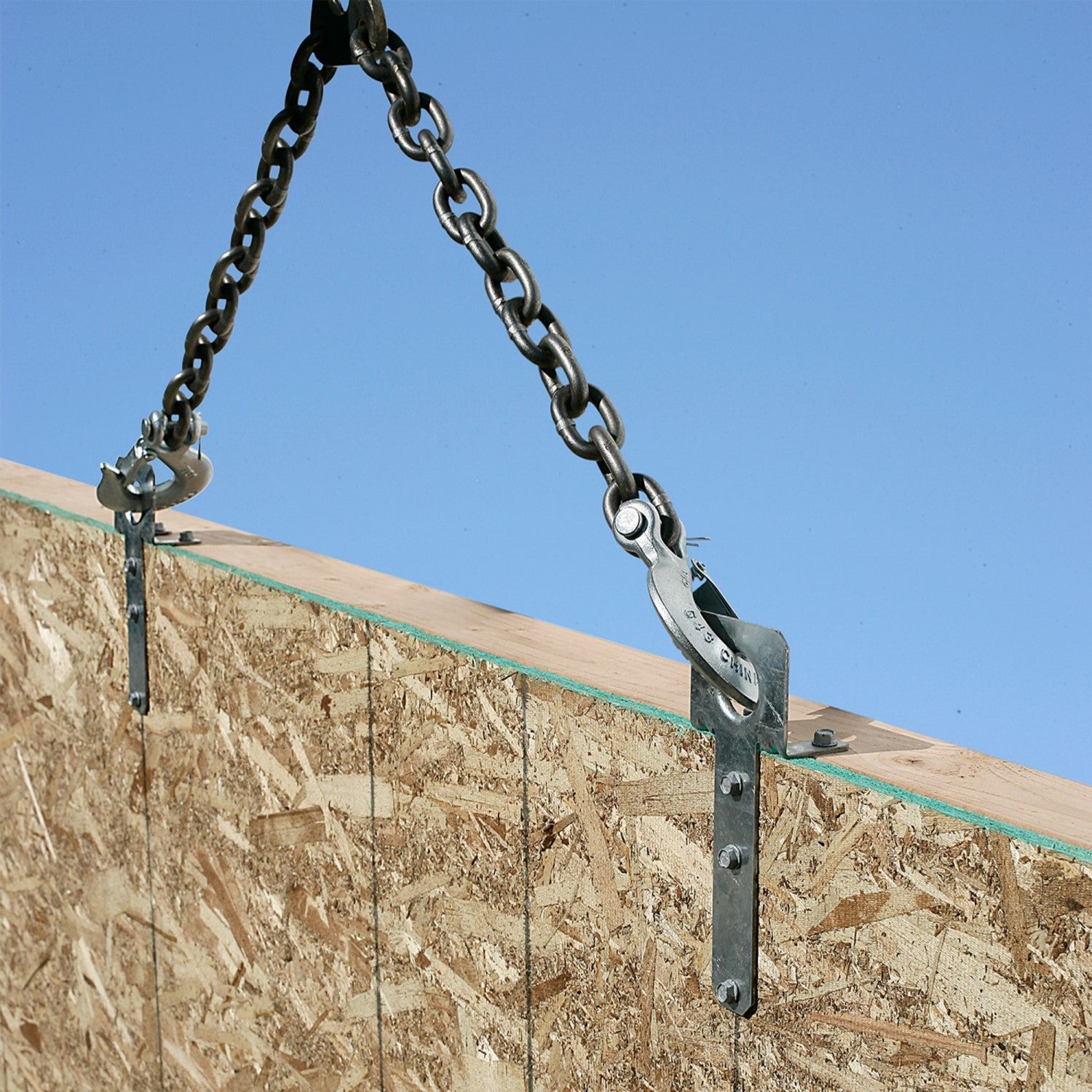

The CHC Component Hoist Clip provides a tested, load-rated solution for the safe lifting and placement of assembled wood components. The CHC is load rated with Strong-Drive® SDS Heavy-Duty Connector screws for easy installation and removal, and superior shear and withdrawal strength during lifting.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Top: (2) 1/4" x 3" Face: (3) 1/4" x 3"
Thickness: 12 Gauge
Width: 3-1/8"
Finish: G90 Galvanized
Length: 8"
Features
Features
• Attaches easily to wood members using Strong-Drive SDS Heavy-Duty Connector screws (sold separately)
• May be used alone or in pairs for increased load; use only one time.
• Tested in multiple load directions for versatility.
• Lifting devices should be connected to the CHC with a closed-loop attachment of sufficient strength to carry the allowable load.
